System Specifications

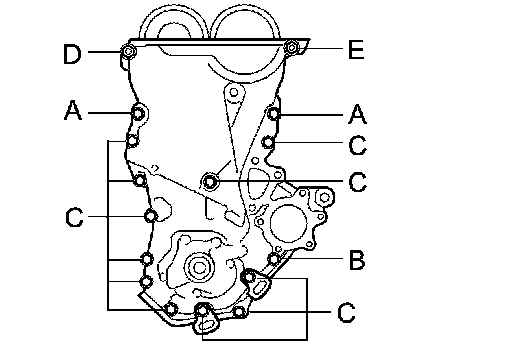

Timing Cover Bolts And Nut
Bolt A 32 Nm (326 kgf-cm, 24 ft. lbs.)
Bolt B 11 Nm (112 kgf-cm, 8.1 ft. lbs.)
Bolt C 11 Nm (112 kgf-cm, 8.1 ft. lbs.)
Nut D 24 Nm (245 kgf-cm, 18 ft. lbs.)
Bolt E 24 Nm (245 kgf-cm, 18 ft. lbs.)

Bolt Lengths
A 30 mm (1.18 inch)
B 35 mm (1.38 inch)
C 20 mm (0.79 inch)
E 20 to 14 mm (0.79 to 0.55 inch)

Crankshaft Pulley
a. Align the hole of the crankshaft damper with the straight pin, then install the crankshaft damper.
b. Using SST, hold the crankshaft damper and tighten the crankshaft bolt.
SST 09213-58013 (91111-50845), 09330-00021
Torque 128 Nm (1,305 kgf-cm, 95 ft. lbs.)

NOTICE: When installing SST, be careful that the bolt which holds SST does not interfere with the chain cover.
