Key Cancel Switch Does Not Operate
Key Cancel Switch does not OperateDESCRIPTIONWhen the key cancel switch is ON, all entry functions will stop operating. If the key cancel switch is not turned ON but all entry functions stop operating, one of the following is malfunctioning: 1) key cancel switch, 2) certification ECU, or 3) wire harness.
Wiring Diagram:
Step 1:

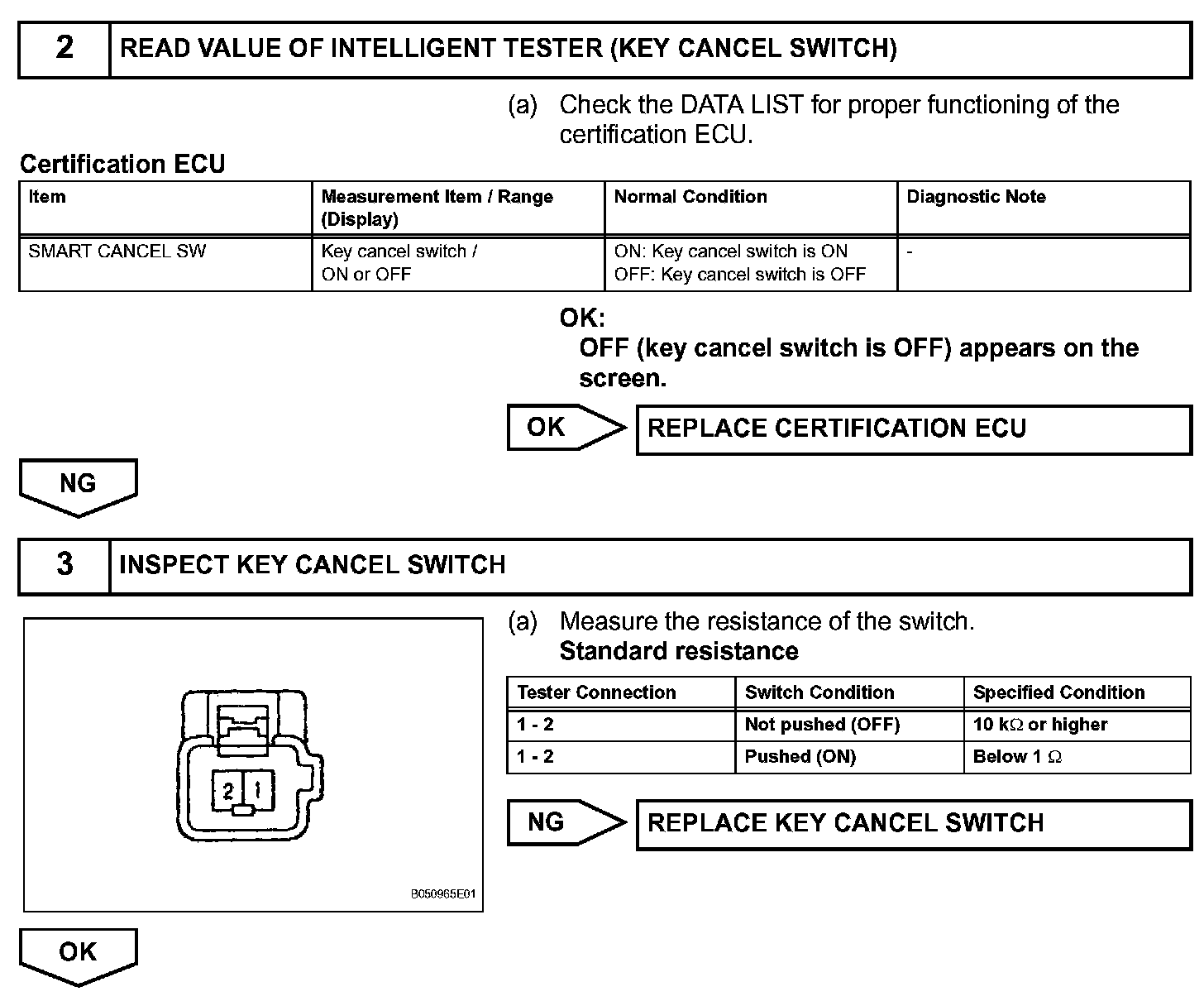

Step 2-3:

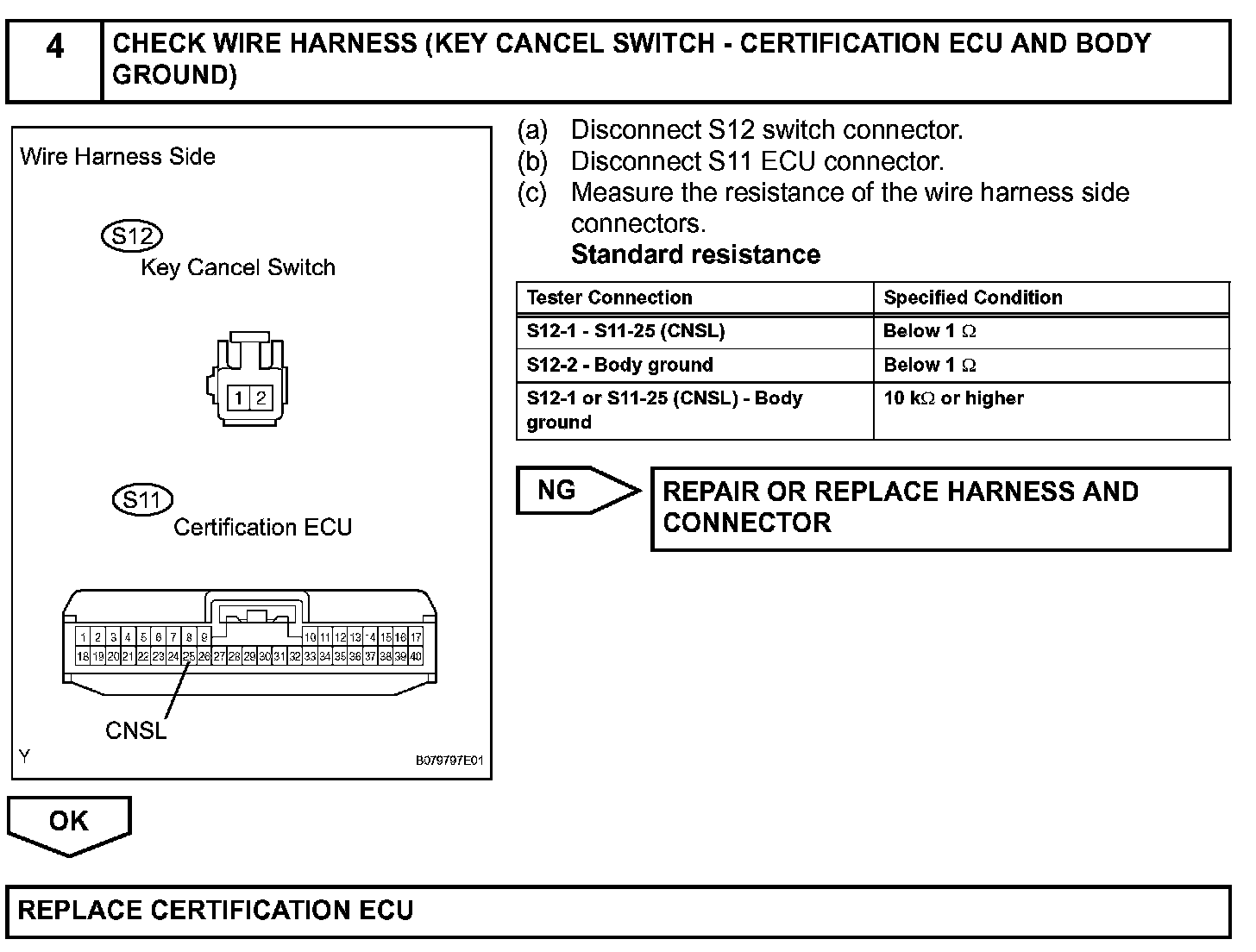

Step 4:
INSPECTION PROCEDURE
