Repair Instruction - Customize Parameters

CUSTOMIZE PARAMETERS

HINT: The following items can be customized.

NOTE:
- When the customer requests a change in a function, first make sure that the function can be customized.
- Be sure to make a note of the current settings before customizing.
- When troubleshooting a function, first make sure that the function is set to the default setting.




1. AIR CONDITIONING SYSTEM

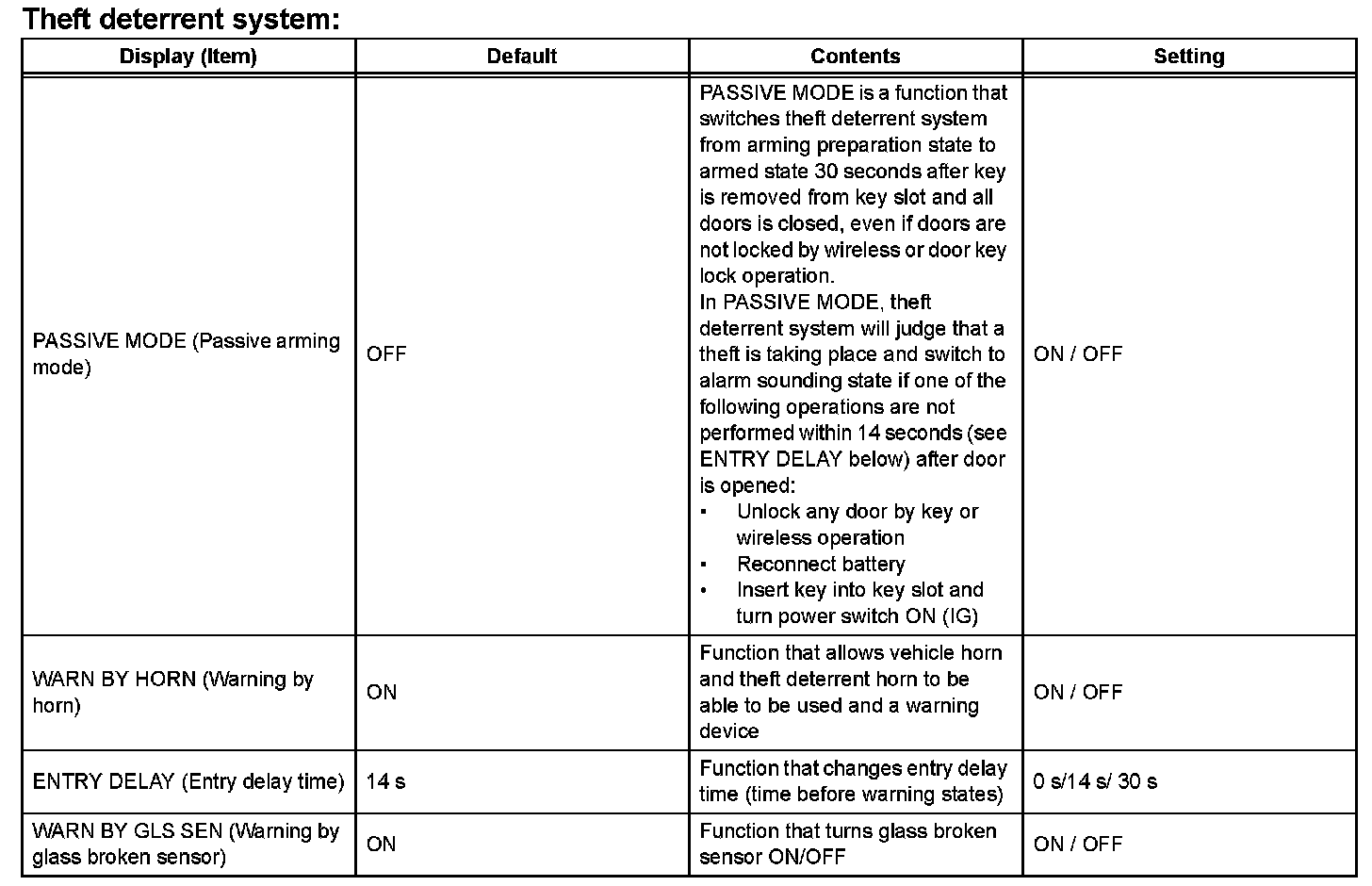

2. THEFT DETERRENT SYSTEM

Part 1:




Part 2:

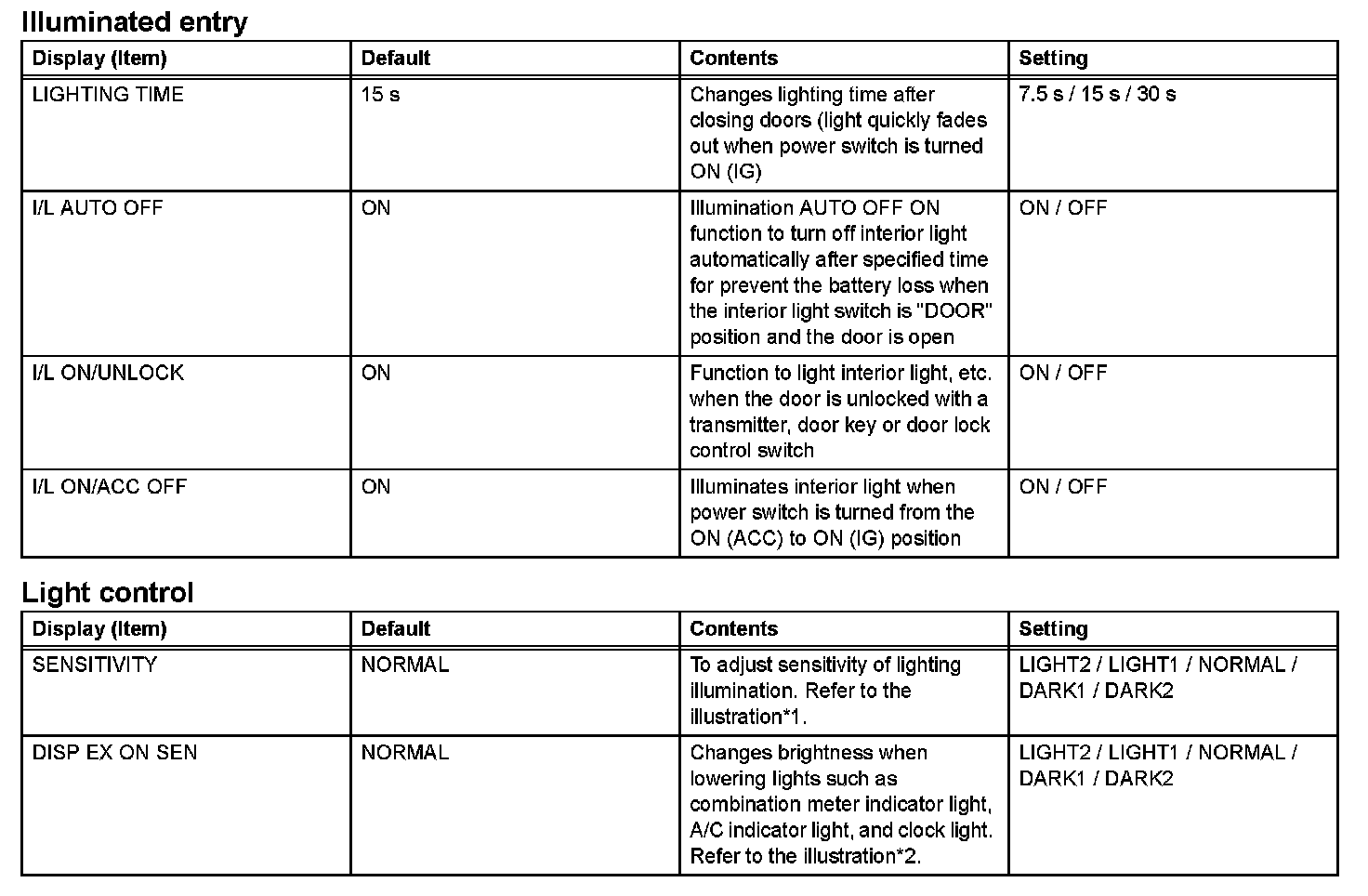

3. LIGHTING SYSTEM

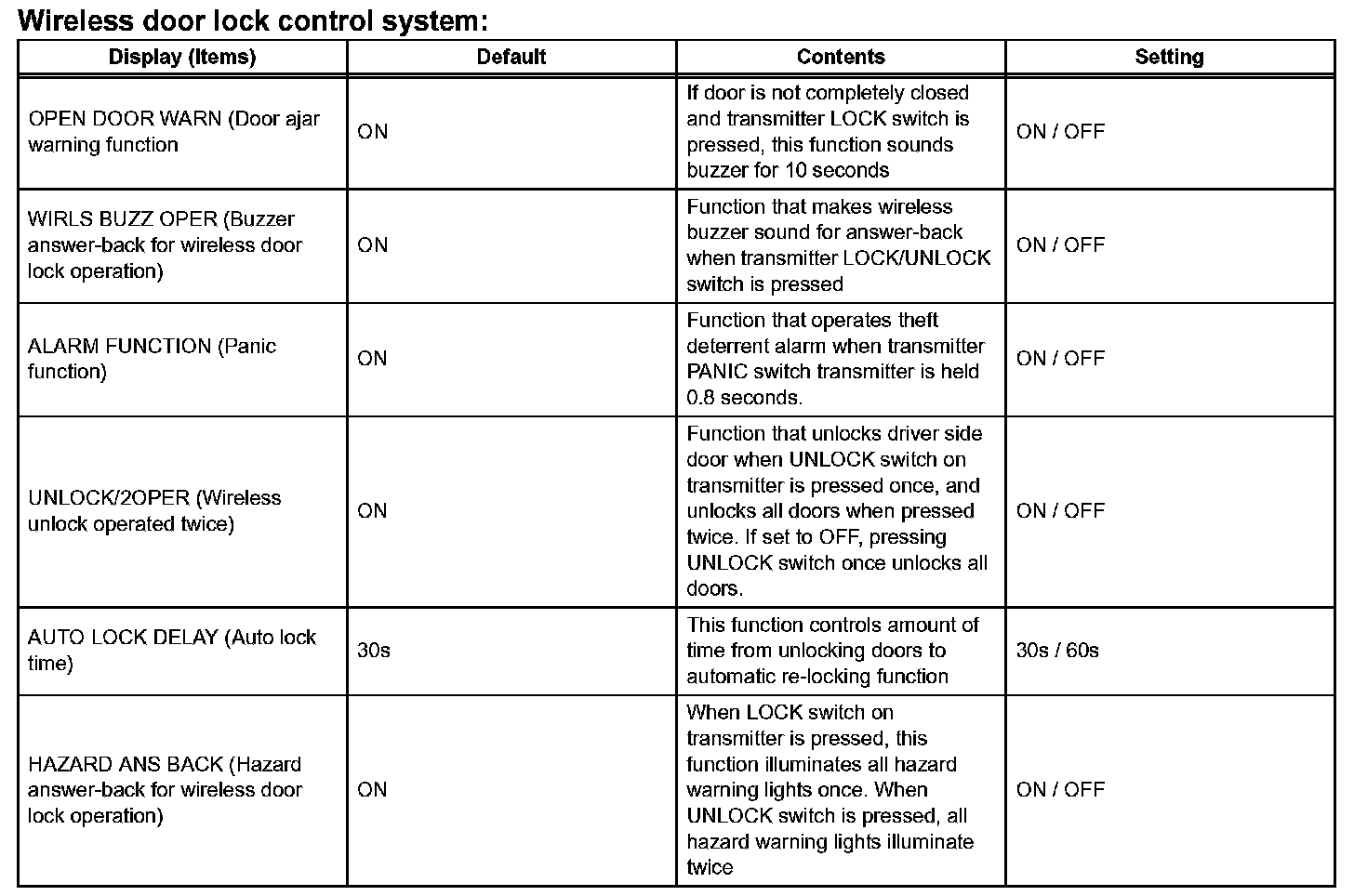

4. WIRELESS DOOR LOCK CONTROL SYSTEM (with Smart Key System)

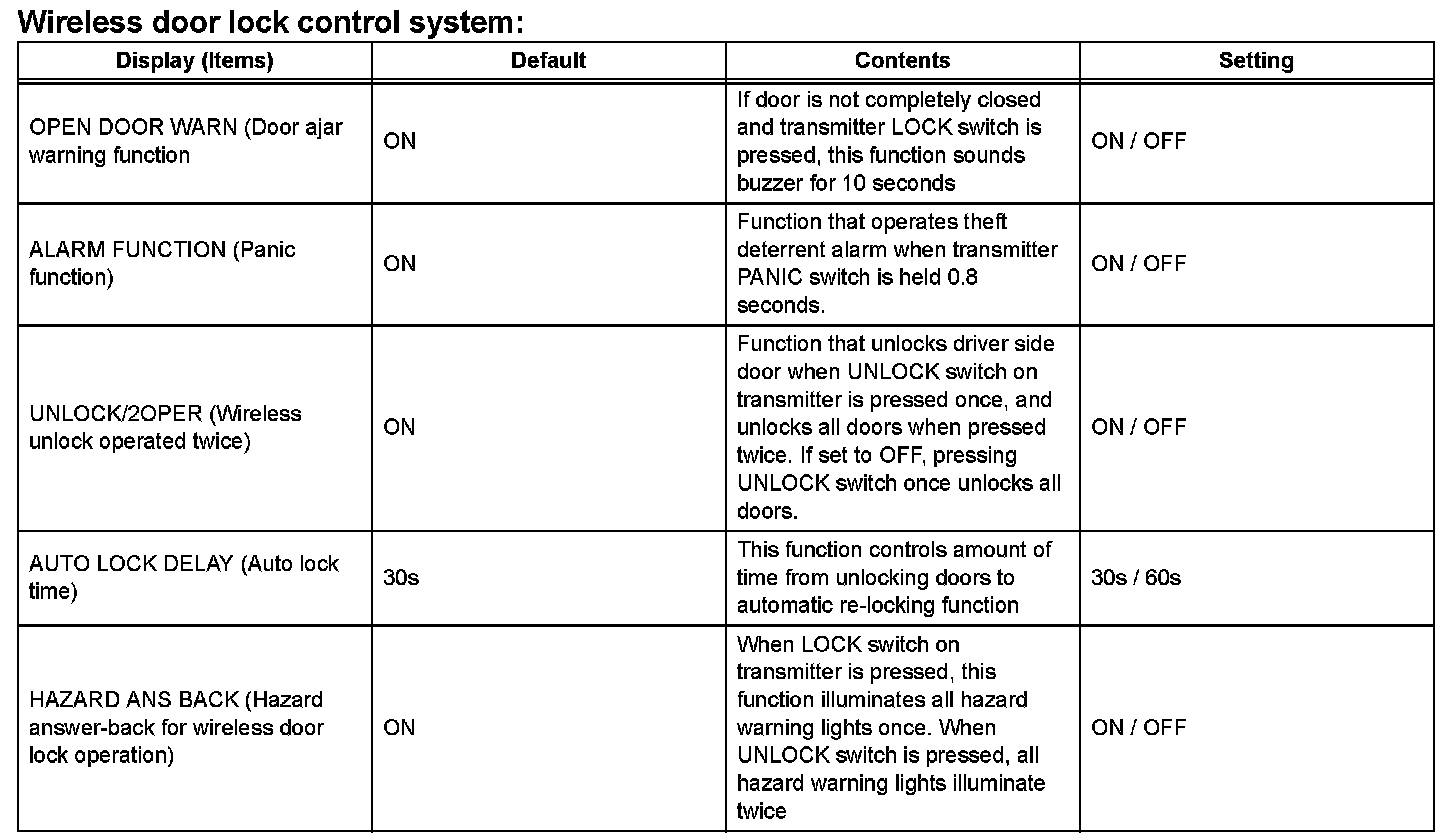

5. WIRELESS DOOR LOCK CONTROL SYSTEM (without Smart Key System)

Part 1:




Part 2:




6. SMART KEY SYSTEM

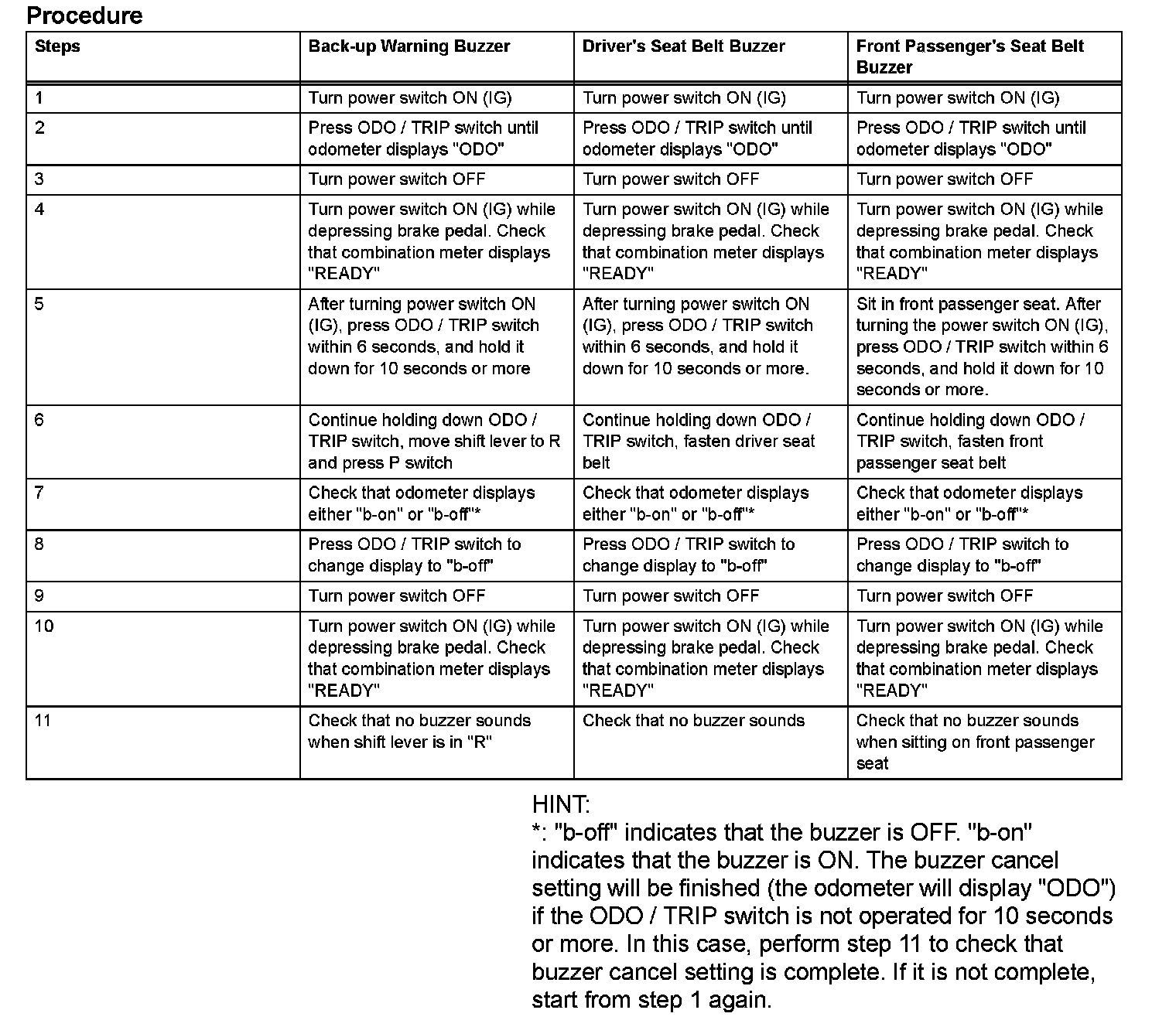

7. METER / GAUGE SYSTEM






NOTE: Basically, these buzzers should be set on for safety driving. However, only if it is necessary to set the buzzer off for some reason, perform the given procedures.

NOTE: When either the battery cable or the combination meter connector is disconnected, these buzzers are set on.
