Door Control Switch
INSPECTION 1.

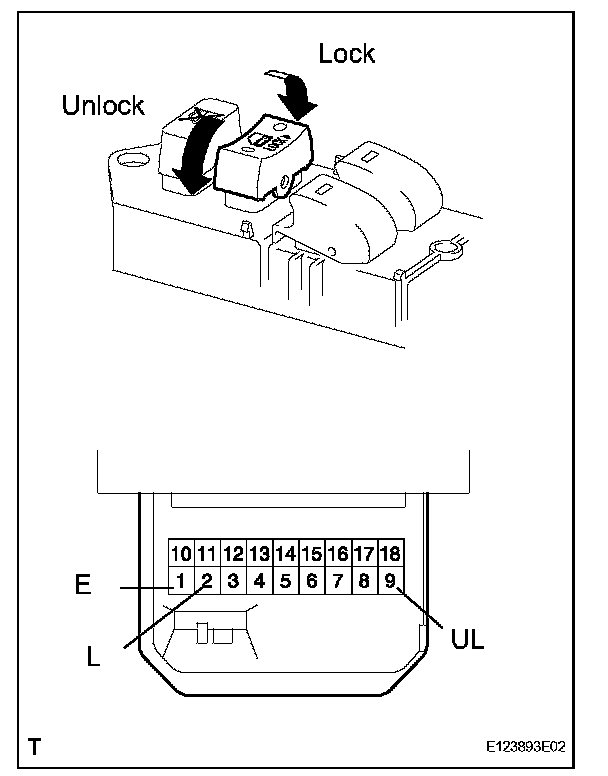

INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY (DOOR CONTROL SWITCH)
a.

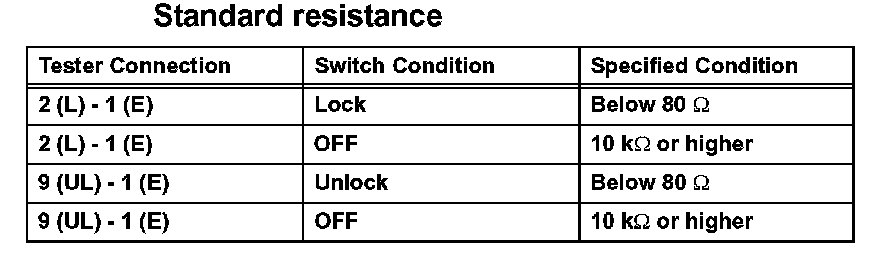

Measure the resistance of the door control switch.
If the result is not as specified, replace the power window regulator master switch assembly.
2.

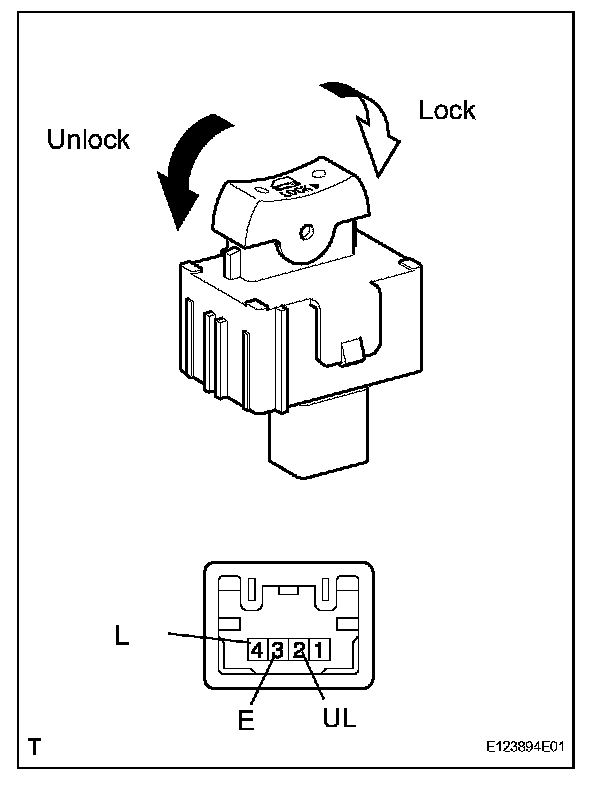

INSPECT DOOR CONTROL SWITCH ASSEMBLY
a.

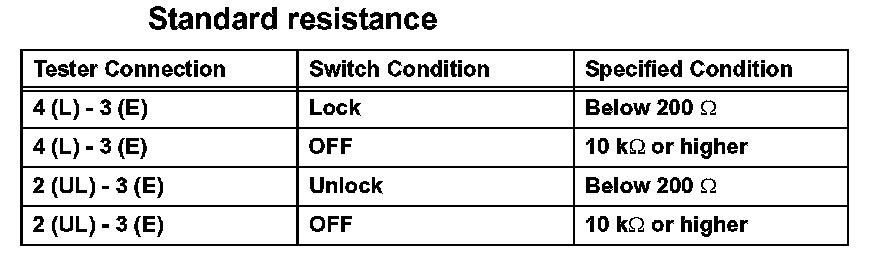

Measure the resistance of the door control switch.
If the result is not as specified, replace the door control switch assembly.
