Front Door Lock

INSPECTION

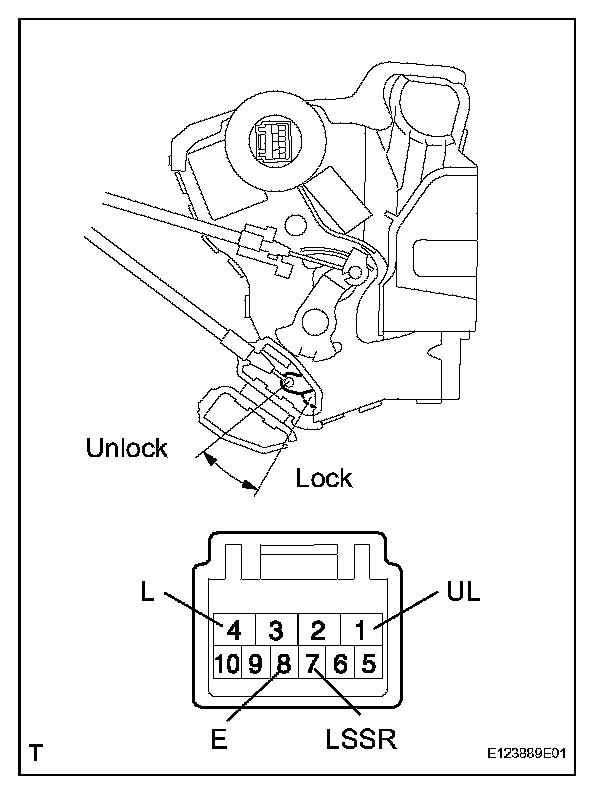

1. INSPECT FRONT DOOR WITH MOTOR LOCK ASSEMBLY LH

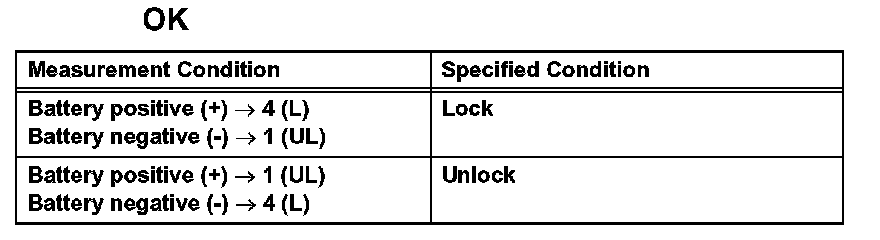

a. Apply the battery voltage to the motor terminals and check the operation of the door lock motor.

If the result is not as specified, replace the door lock assembly.

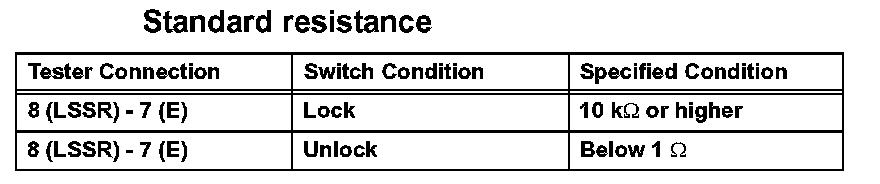

b. Measure the resistance of the door lock position switch.

If the result is not as specified, replace the door lock assembly.

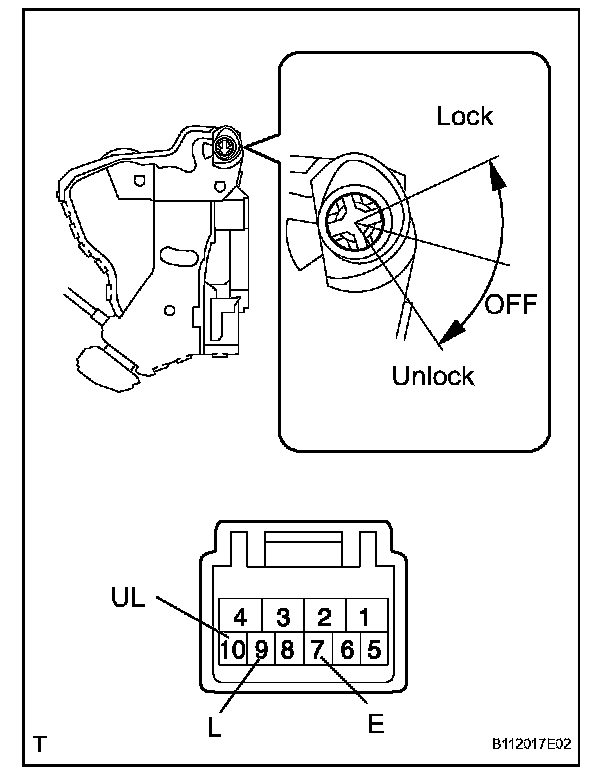

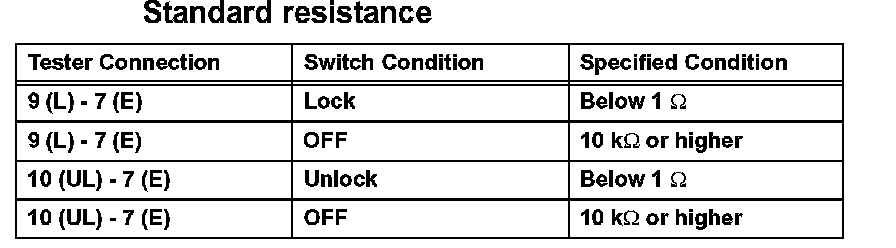

c. Measure the resistance of the door key lock and unlock switch operation.

If the result is not as specified, replace the door lock assembly.

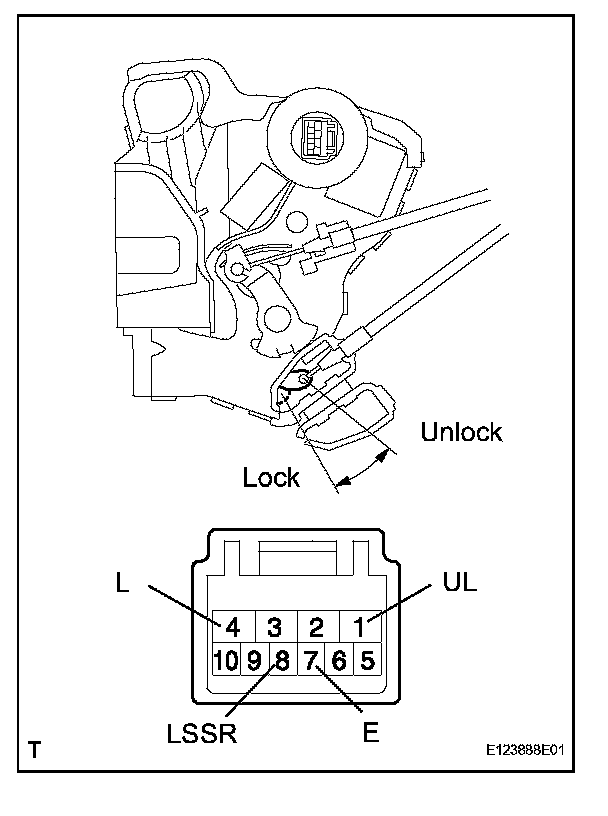

2. INSPECT FRONT DOOR WITH MOTOR LOCK ASSEMBLY RH

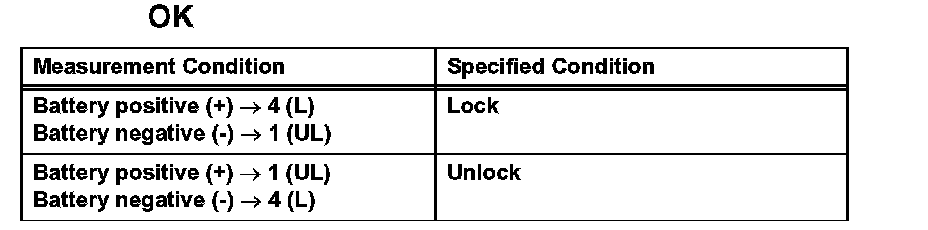

a. Apply the battery voltage to the door lock motor and check that the operation of the door lock motor.

If the result is not as specified, replace the door lock assembly.

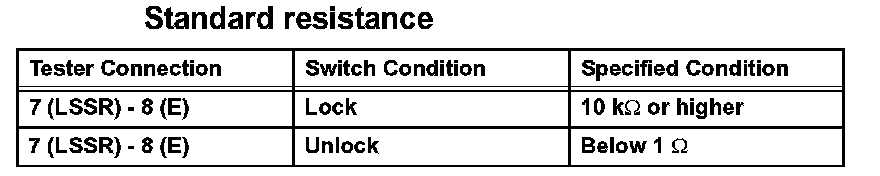

b. Measure the resistance of the door lock position switch.

If the result is not as specified, replace the door lock assembly.
