No Answer-Back

No Answer-Back

DESCRIPTION
In some cases, wireless door lock control functions are normal but the hazard warning lights and / or wireless door lock buzzer answer-back function(s) is not operate. In such cases, the main body ECU's hazard warning lights and wireless door lock buzzer signal outputs may be malfunctioning.

NOTE: Troubleshooting should be started after confirming that the customize status of the answer-back function has been switched ON.

Wiring Diagram:

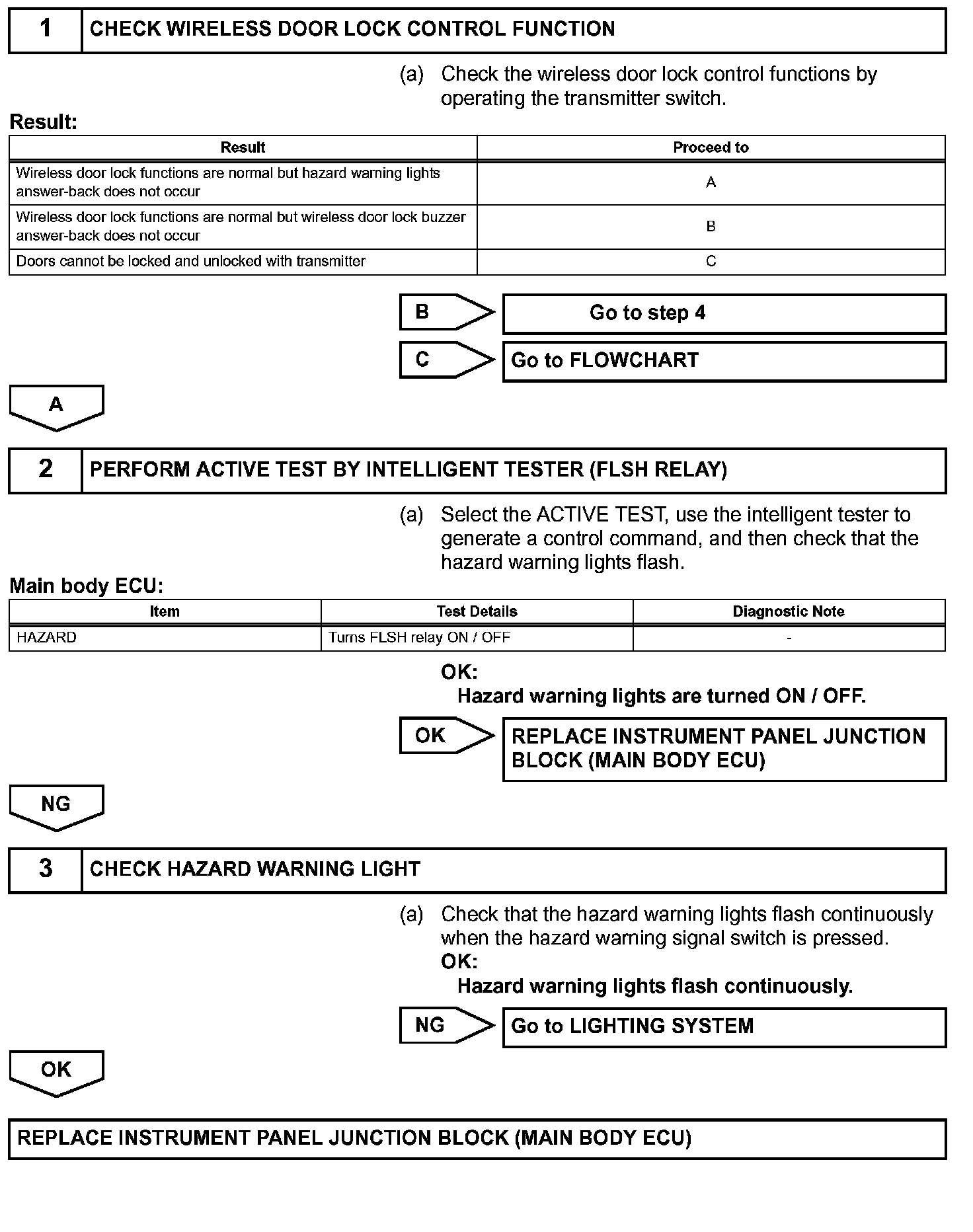

Step 1-3:

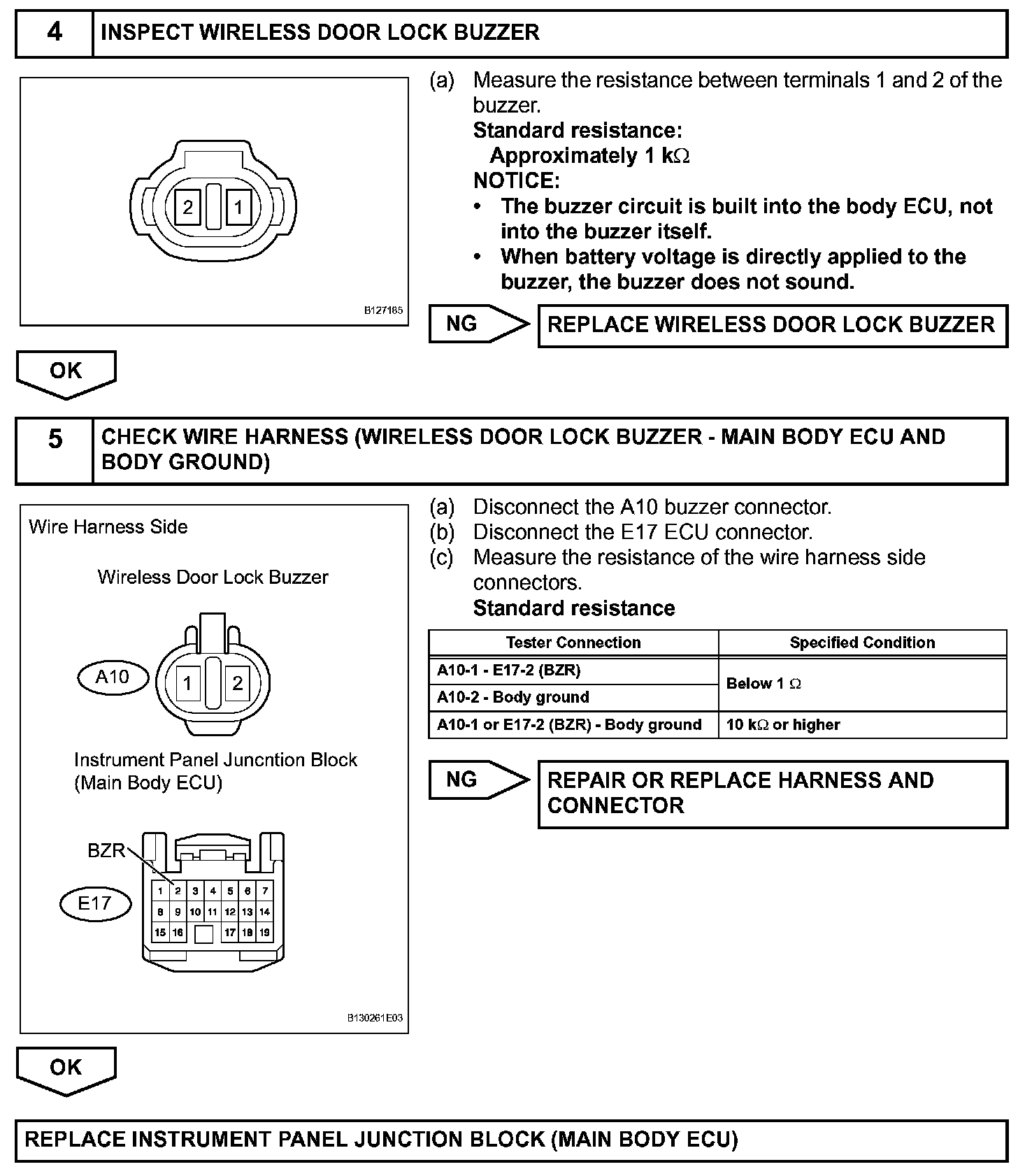

Step 4-5:

INSPECTION PROCEDURE
