Inner Rear View Mirror

INNER REAR VIEW MIRROR

Inner Rear View Mirror:

REMOVAL

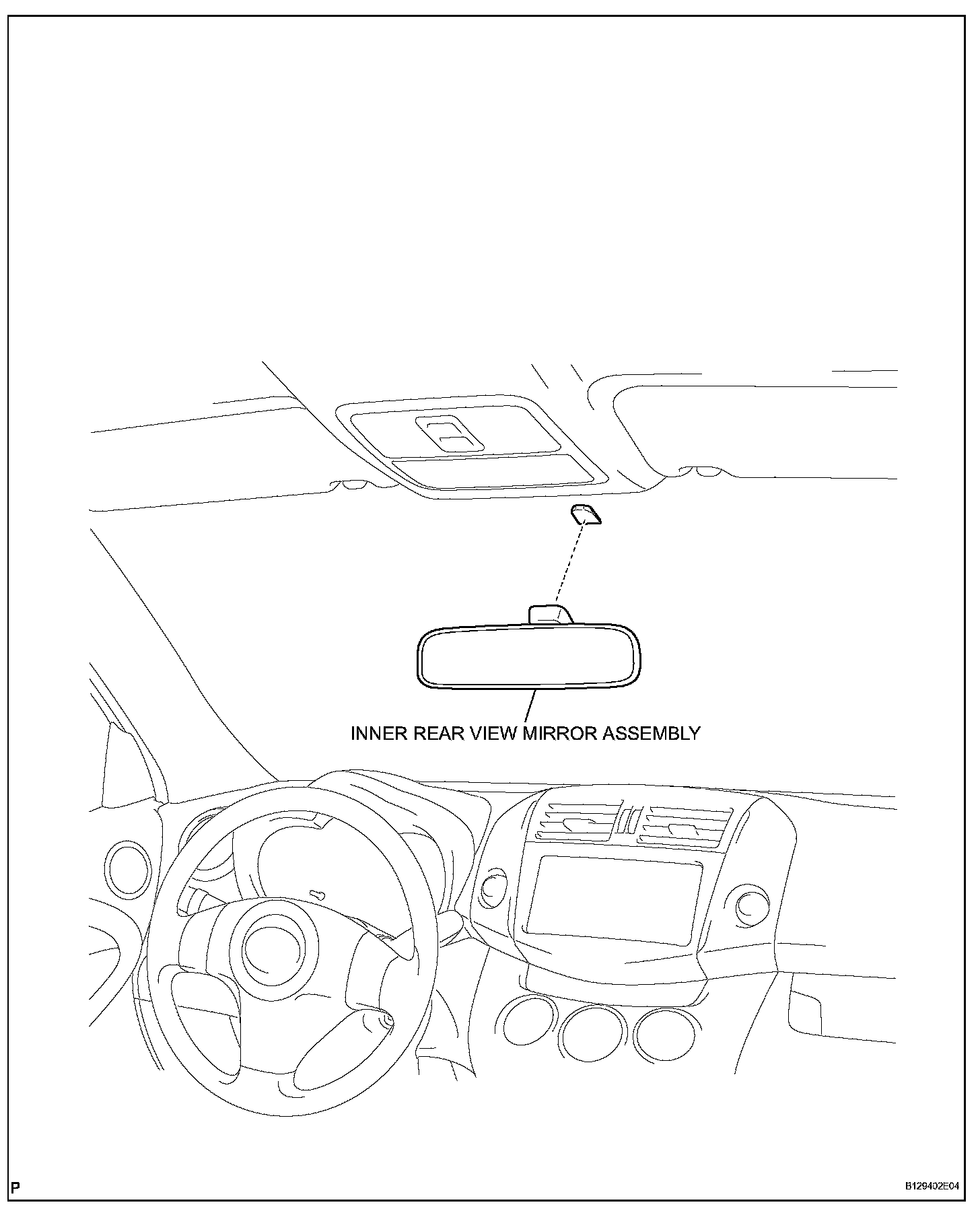

1. REMOVE INNER REAR VIEW MIRROR ASSEMBLY

a. Disengage the 2 claws and separate the inner rear view mirror cover as shown in the illustration.

b. Remove the inner rear view mirror as shown in the illustration.

INSTALLATION

1. INSTALL INNER REAR VIEW MIRROR ASSEMBLY

a. Install the inner rear view mirror as shown in the illustration.
b. Install the cover.
