Programming and Relearning

REGISTRATION

1. PERFORM VEHICLE STABILITY CONTROL SYSTEM RECOGNITION IN ECM

NOTE: If the vehicle has both cruise control and VSC, when replacing ECM, perform VSC recognition as follows:

a. Turn the ignition switch ON.

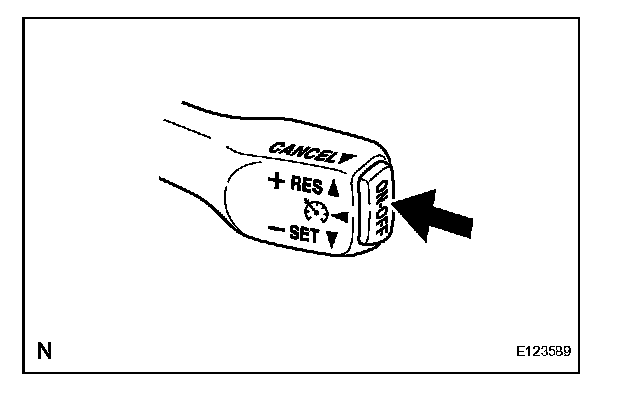

b. After waiting approximately 5 seconds, turn the cruise control main switch ON.
c. Keep the cruise control main switch ON for approximately 5 seconds or more.

HINT: The VSC recognition will not be reflected in the cruise control system until the ignition switch is turned OFF and ON.
