Battery Current Sensor: Testing and Inspection
ON-VEHICLE INSPECTION 1.
CHECK
BATTERY CURRENT SENSOR ASSEMBLY
a.

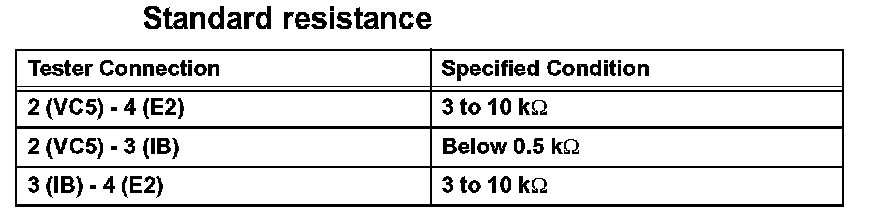

Measure the resistance of the sensor.
If the result is not as specified, replace the sensor assembly.
b.

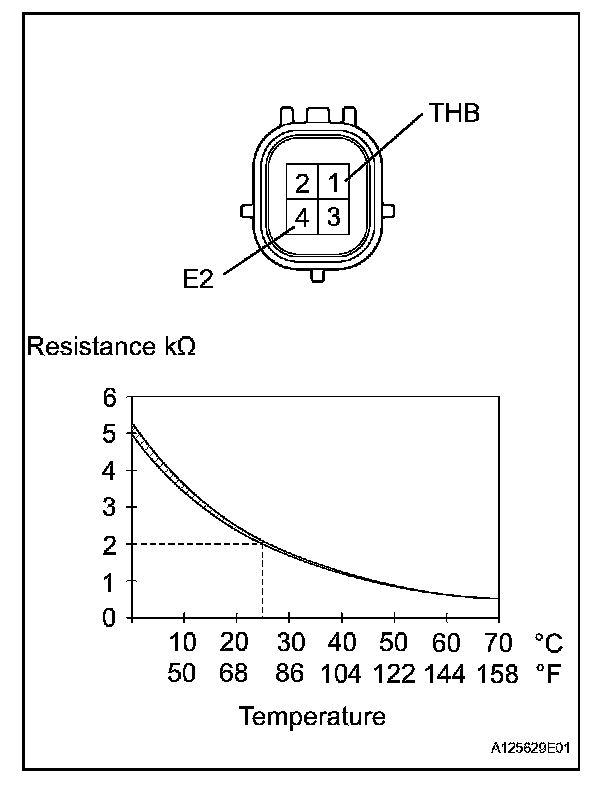

Measure the resistance of the sensor.
If the result is not as specified, replace the sensor assembly.
