Short to B+ in CAN Bus Line
Short to B+ in CAN Bus LineDESCRIPTION

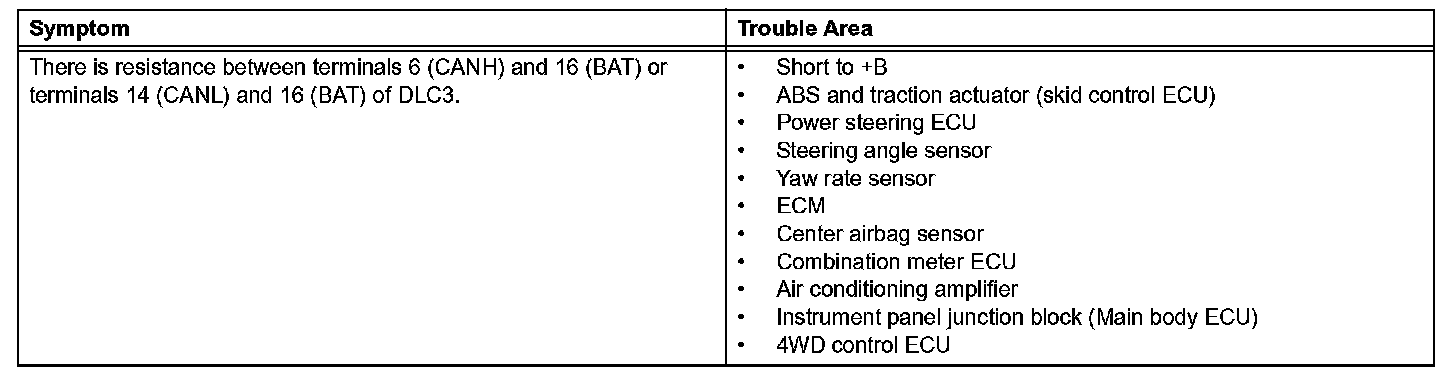

There may be a short circuit between the CAN bus line and +B when there is resistance between terminals 6 (CANH) and 16 (BAT) or terminals 14 (CANL) and 16 (BAT) of the DLC3.

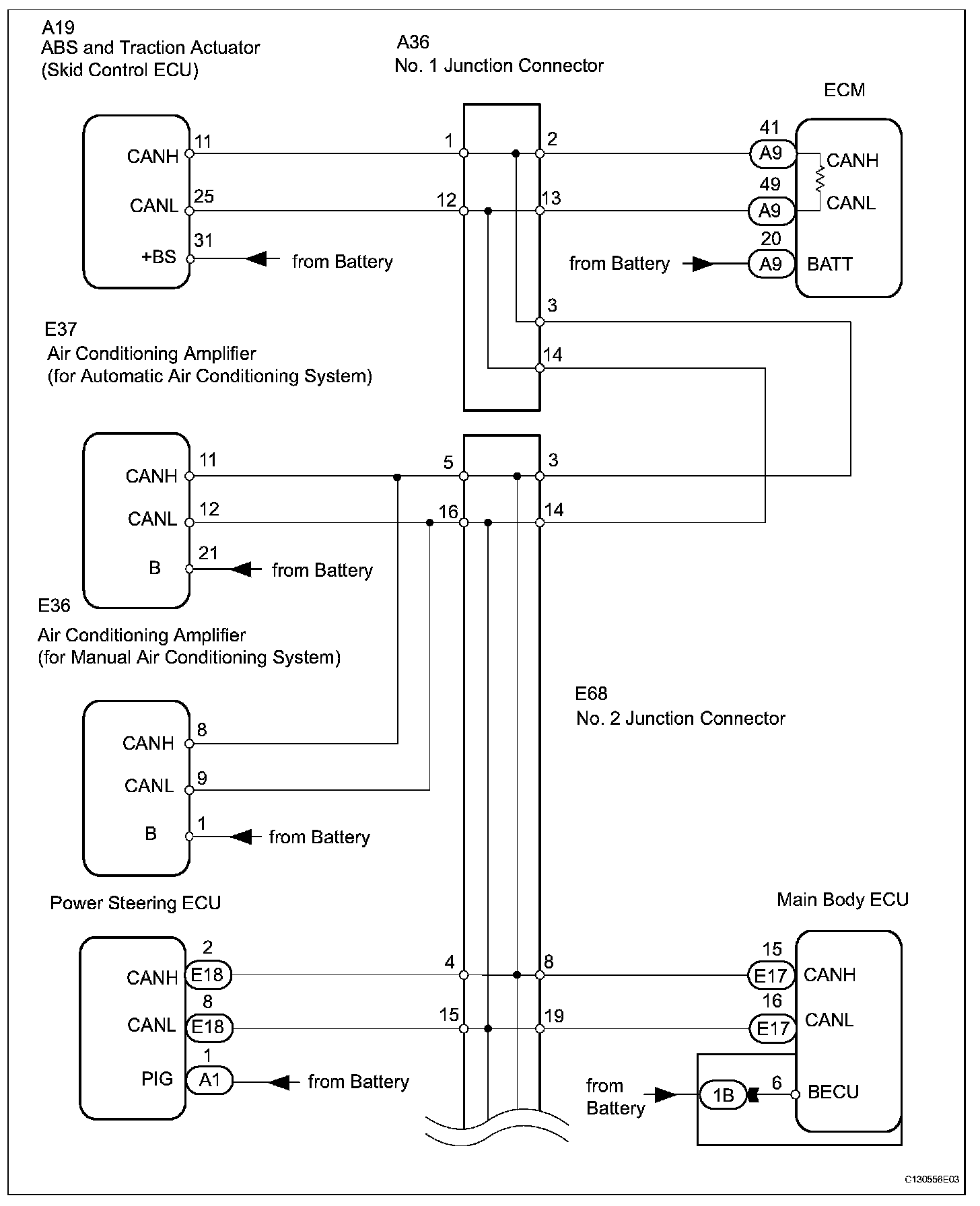

Wiring Diagram (Part 1):

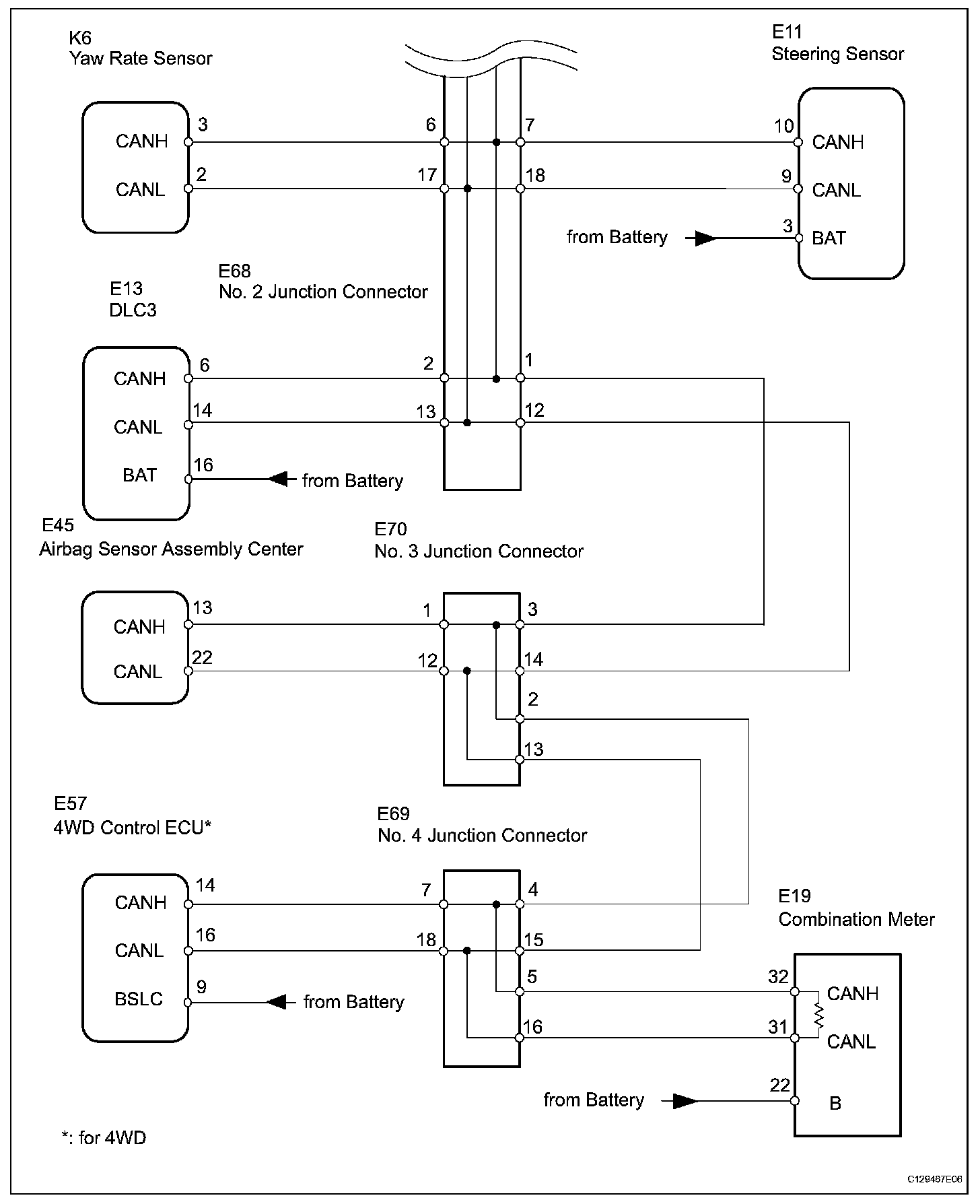

Wiring Diagram (Part 2):
INSPECTION PROCEDURE
NOTE:
- Turn the ignition switch OFF before measuring the resistances of the main wire and the branch wire.
- After the ignition switch is turned OFF, check that the key reminder warning system and light reminder warning system are not in operation.
- Before measuring the resistance, leave the vehicle for at least 1 minute and do not operate the ignition switch, any switches or doors. If doors need to be opened in order to check connectors, open the doors and leave them open.
HINT: Operating the ignition switch, any switches or any doors triggers related ECU and sensor communication with the CAN, which causes resistance variation.

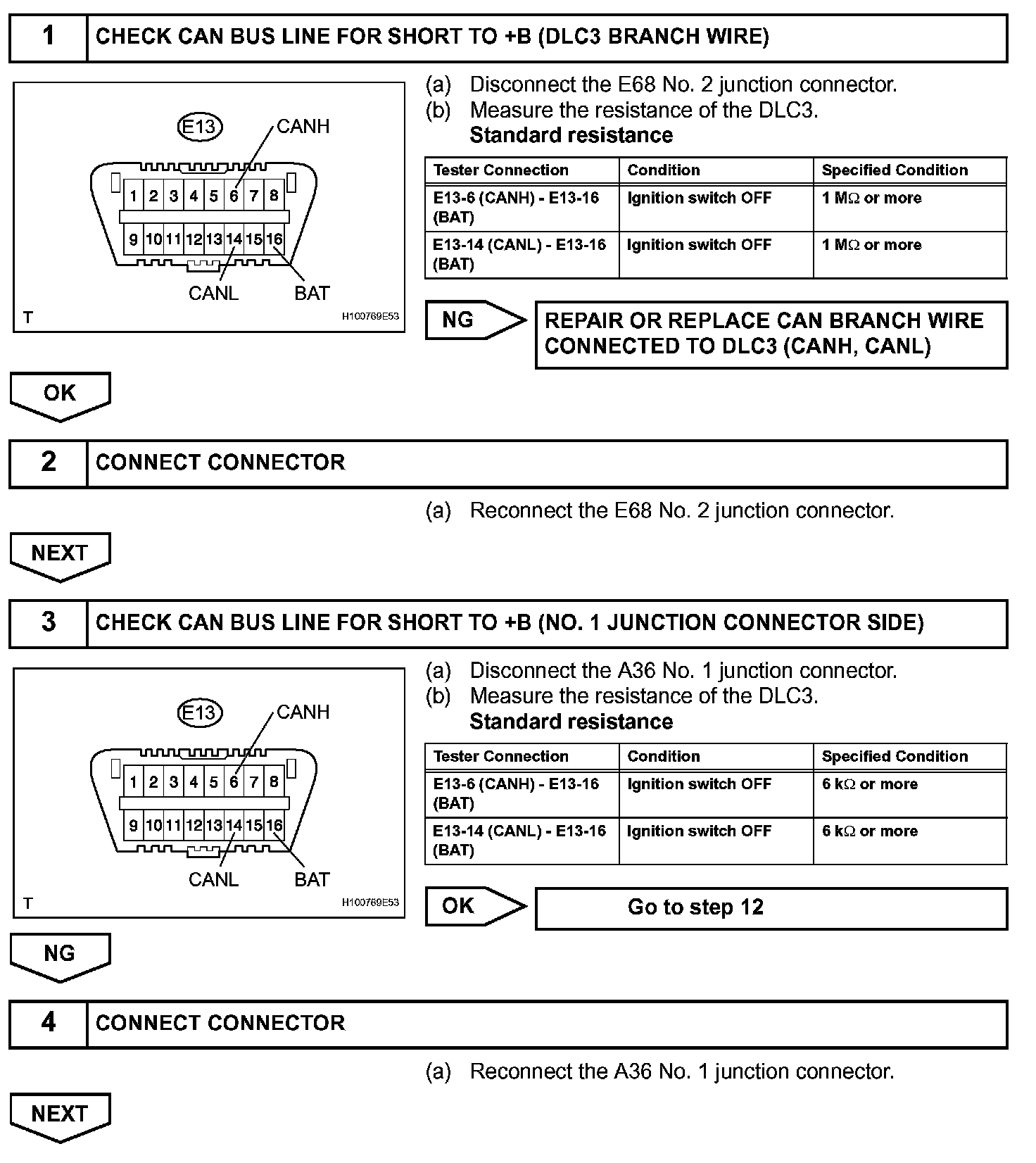

Step 1-4:

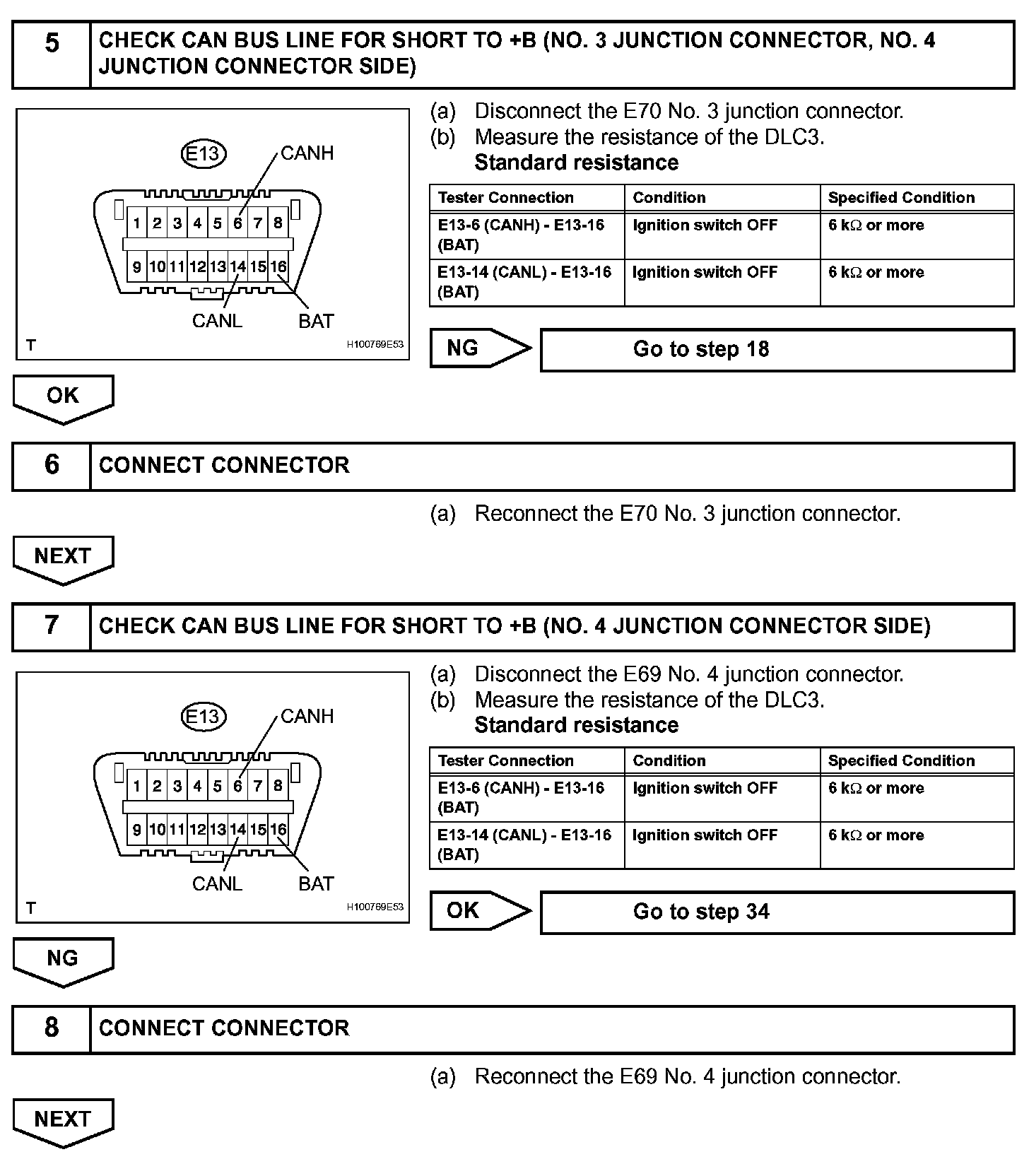

Step 5-8:

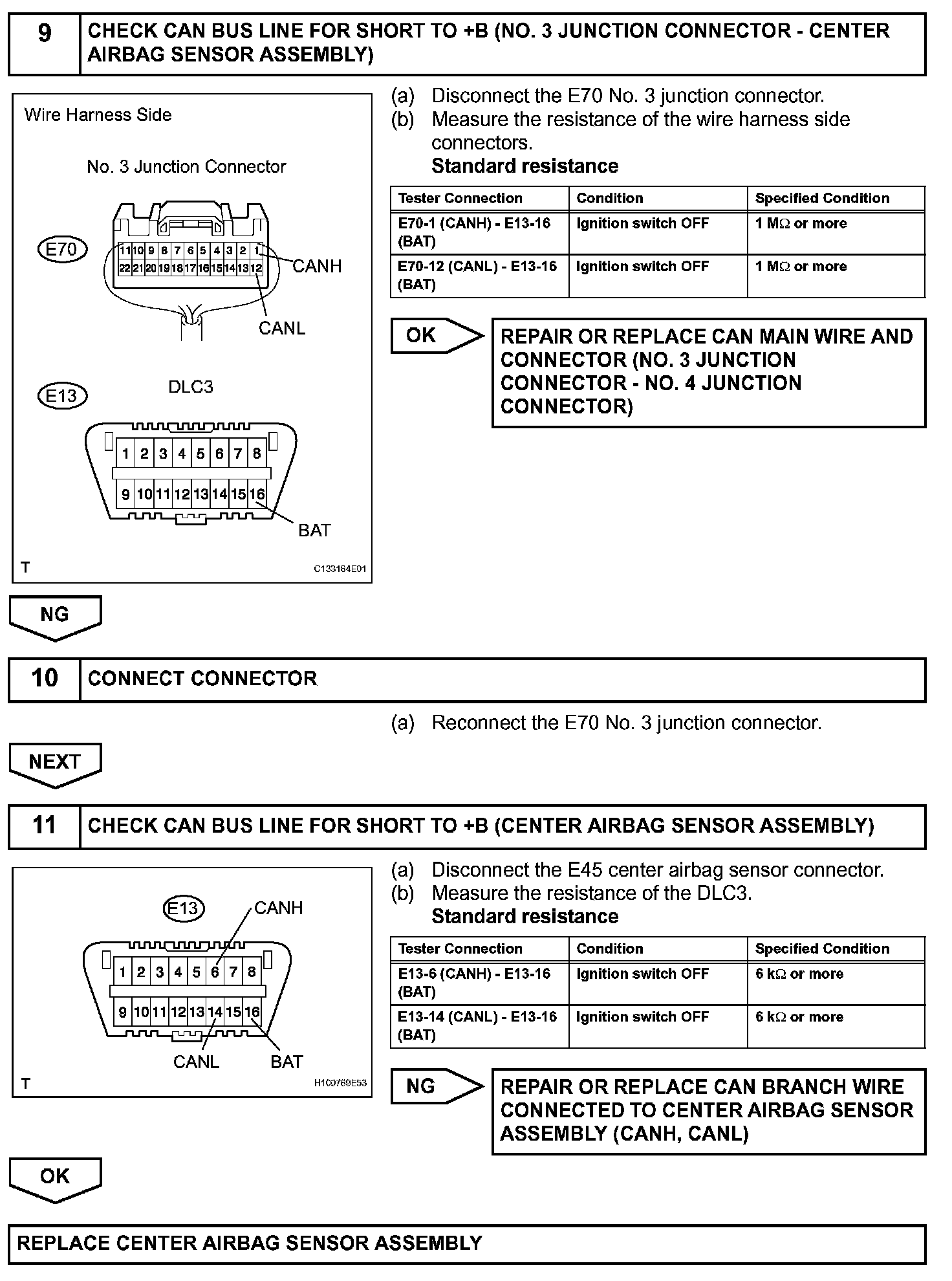

Step 9-11:

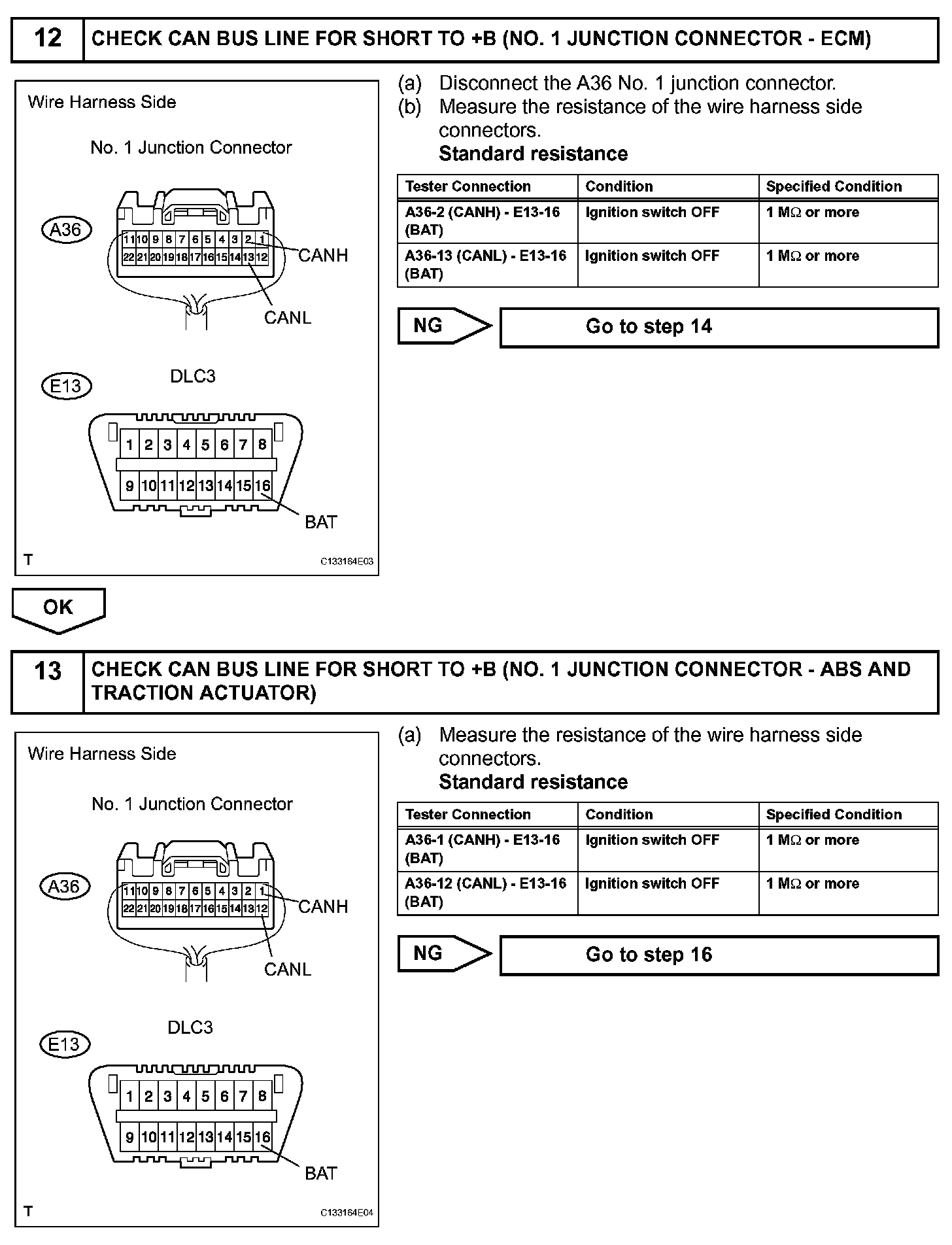

Step 12-13:

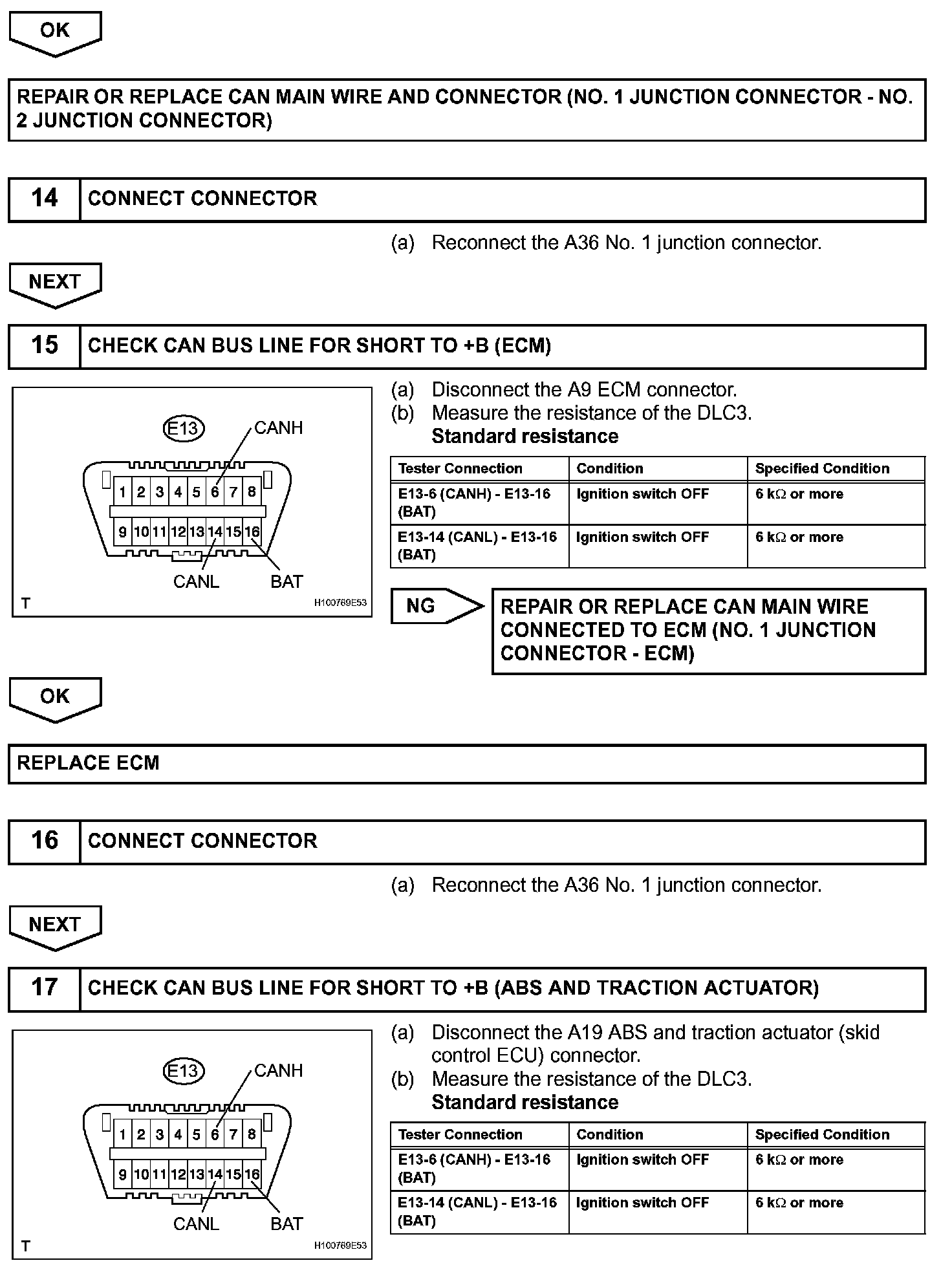

Step 13 (Continued)-17:

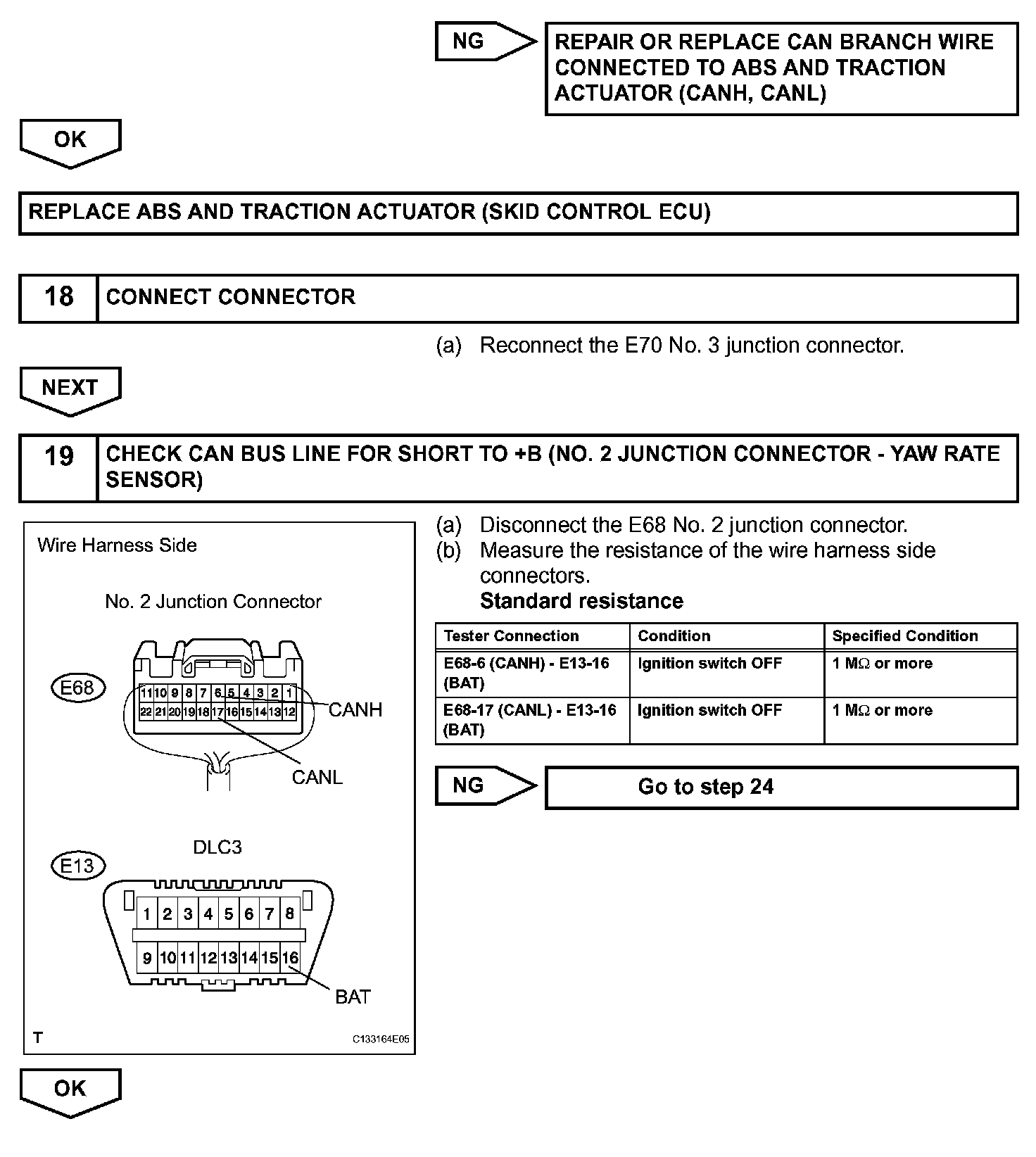

Step 17 (Continued)-19:

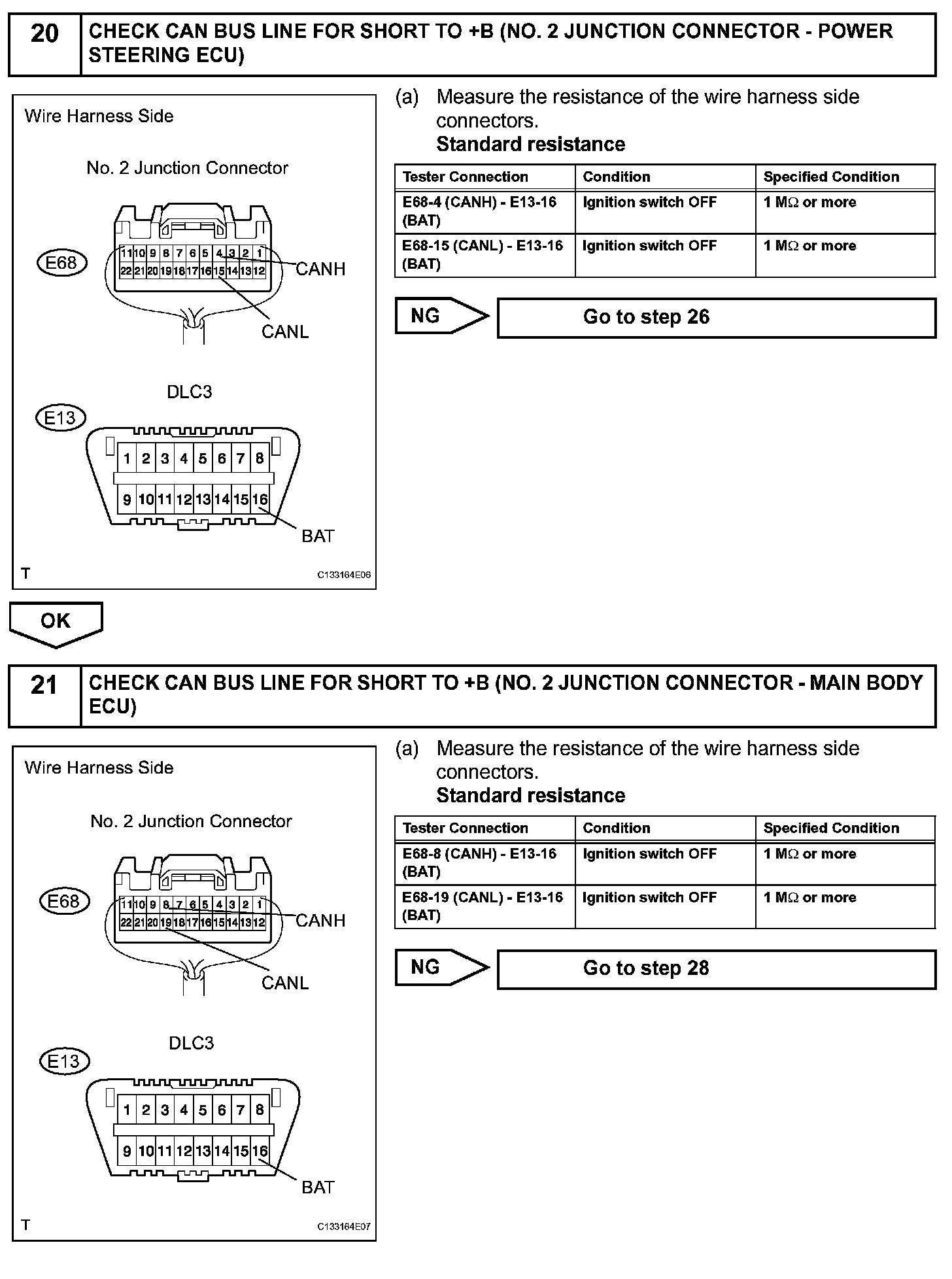

Step 20-21:

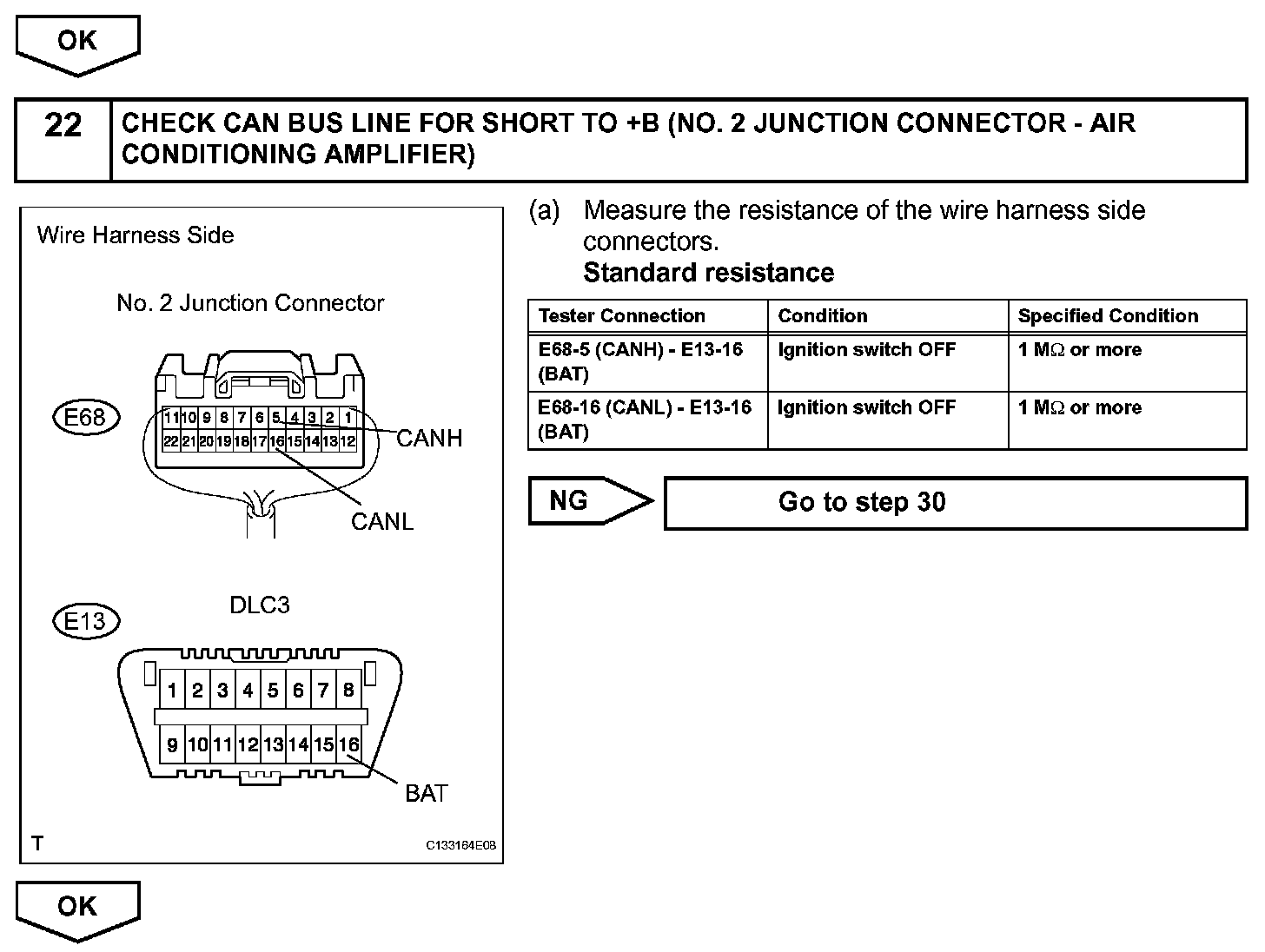

Step 21 (Continued)-22:

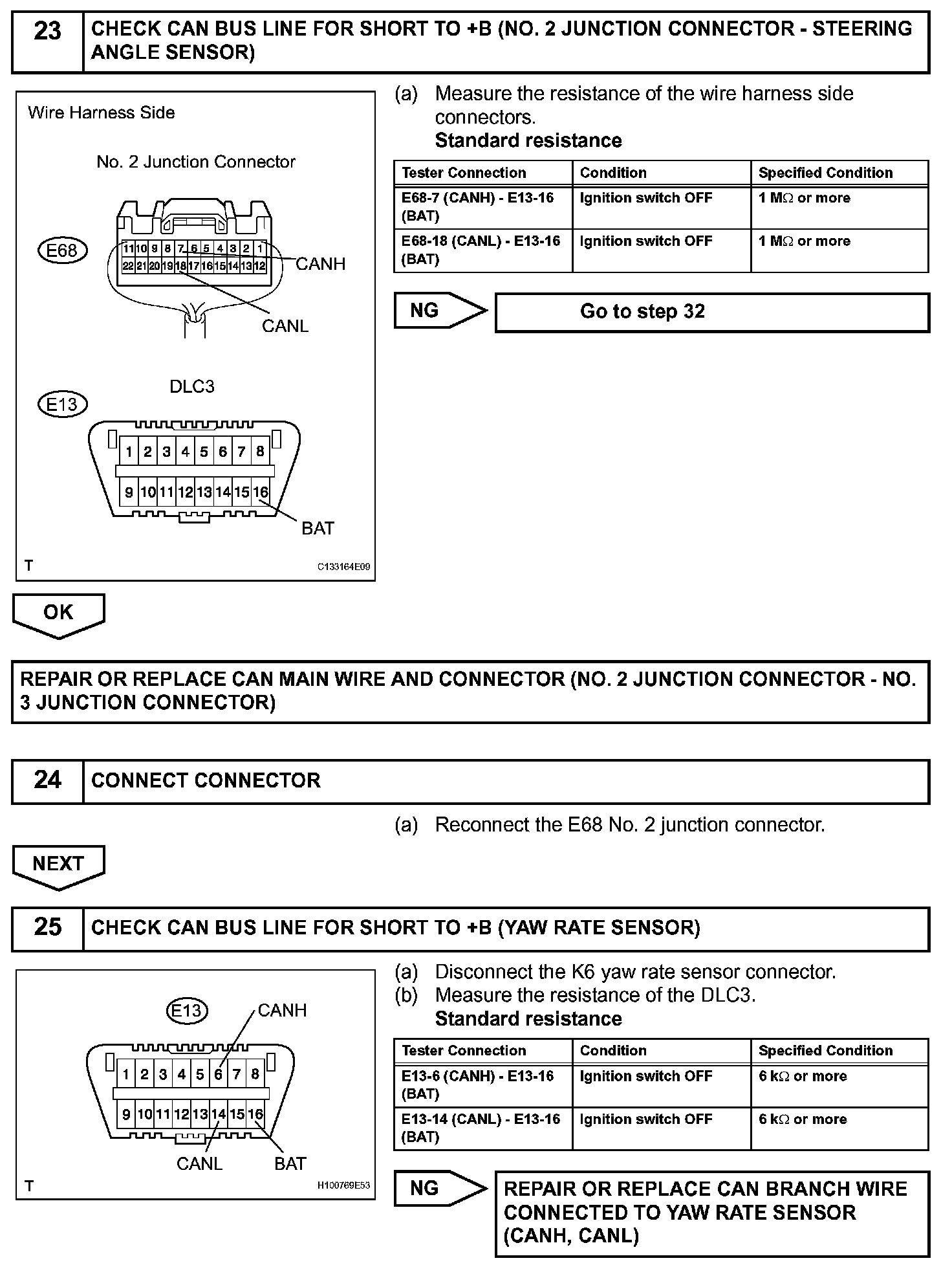

Step 23-25:

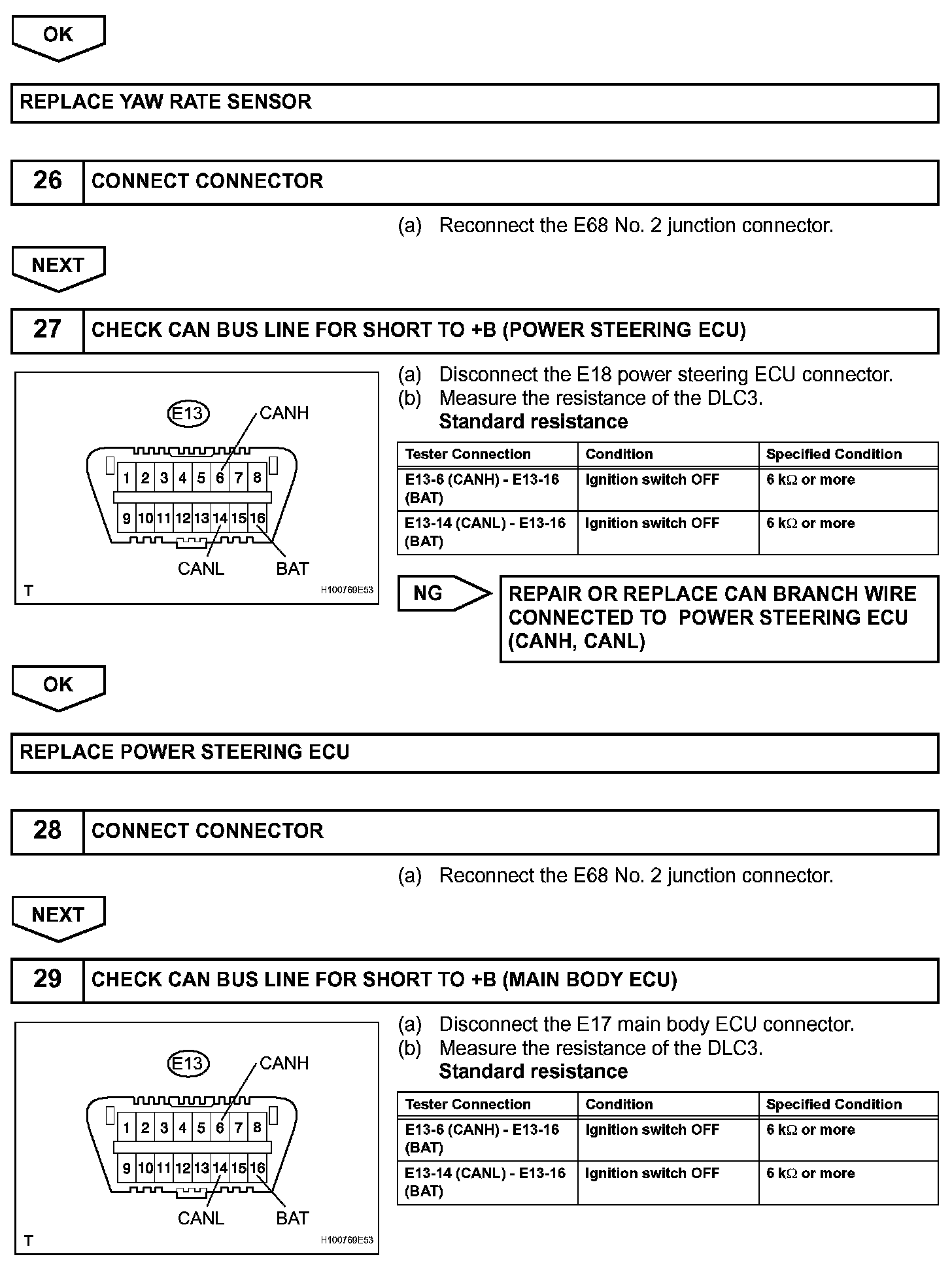

Step 25 (Continued)-29:

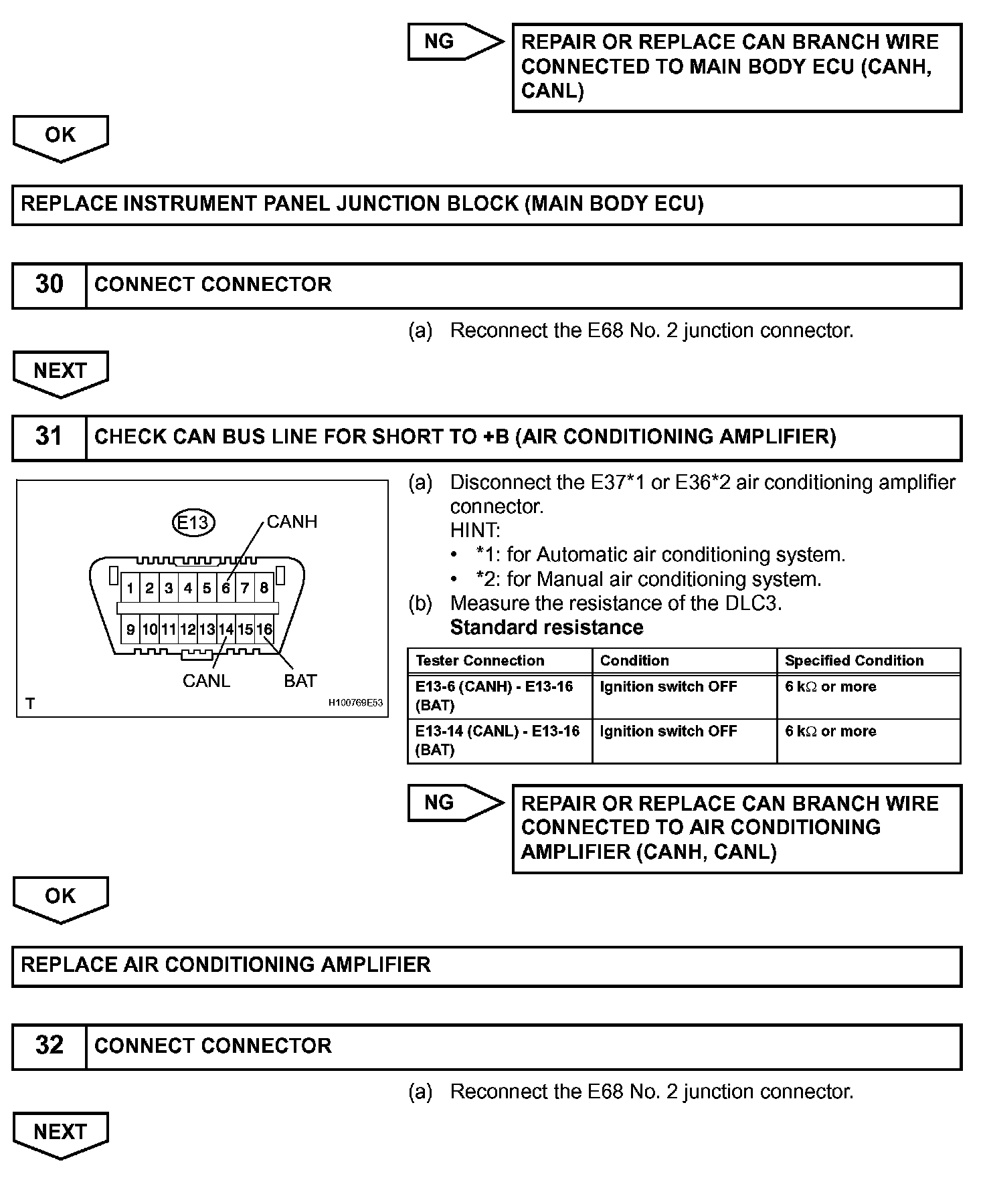

Step 29 (Continued)-32:

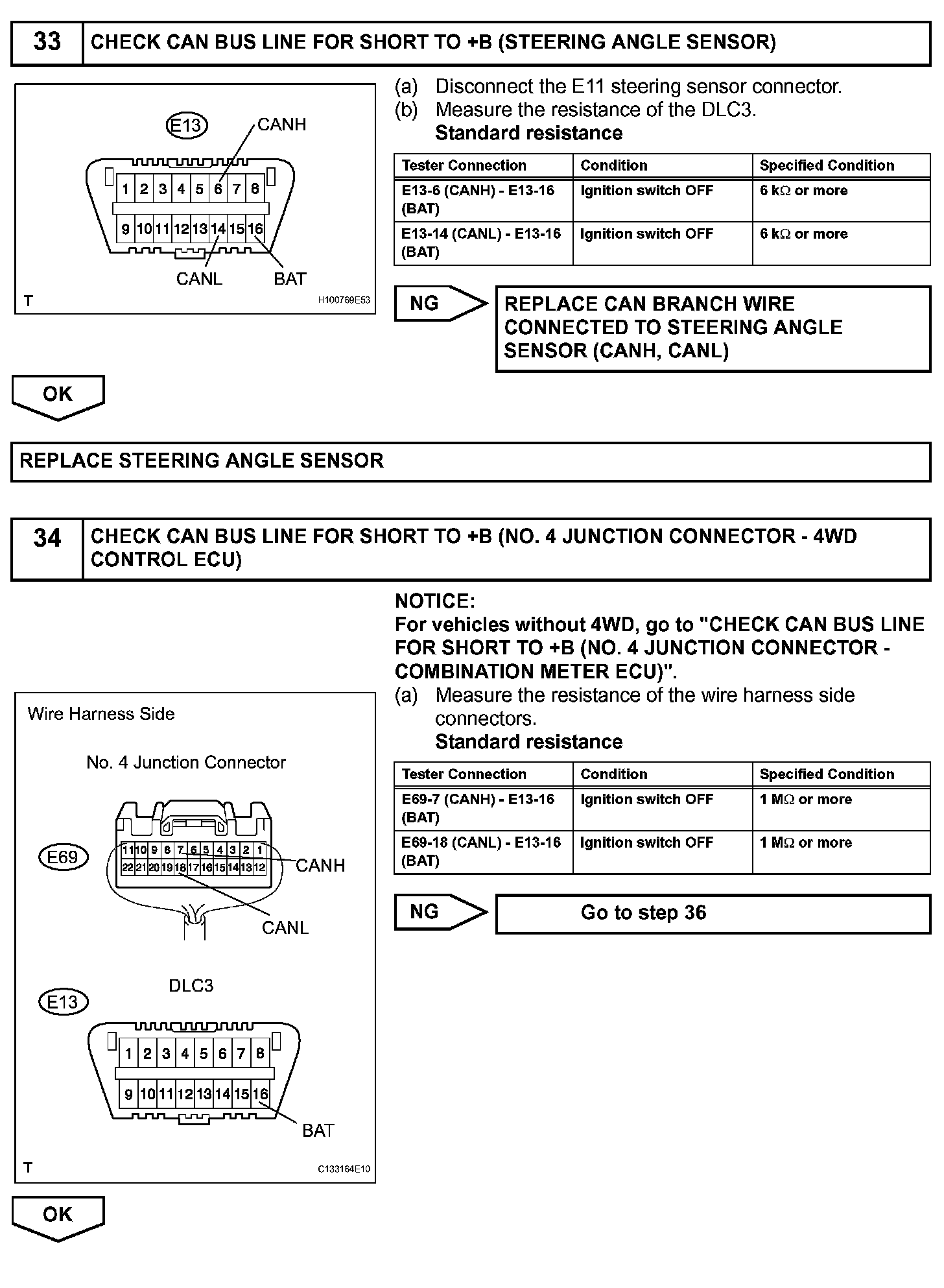

Step 33 (Continued)-34:

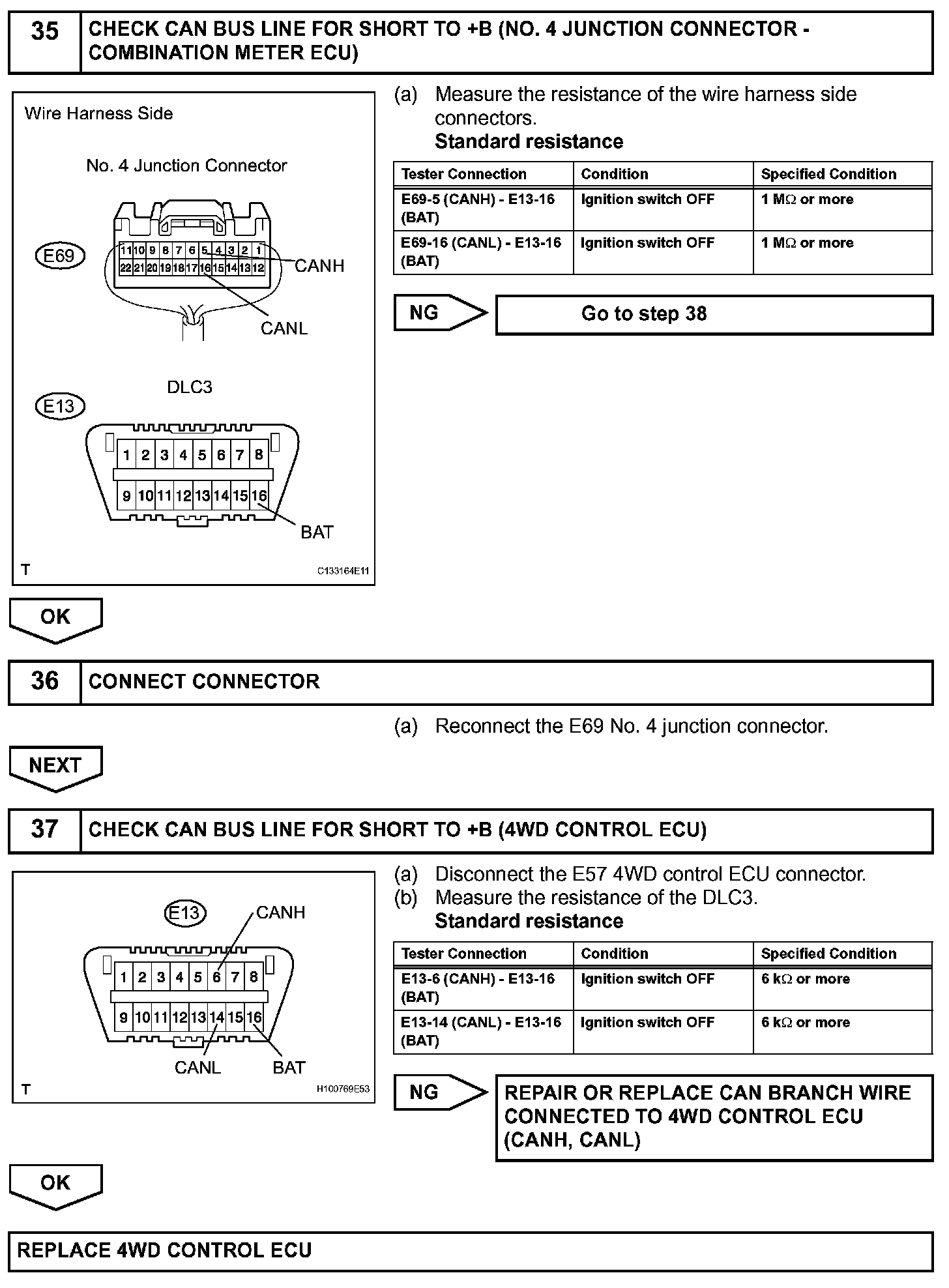

Step 35-37:

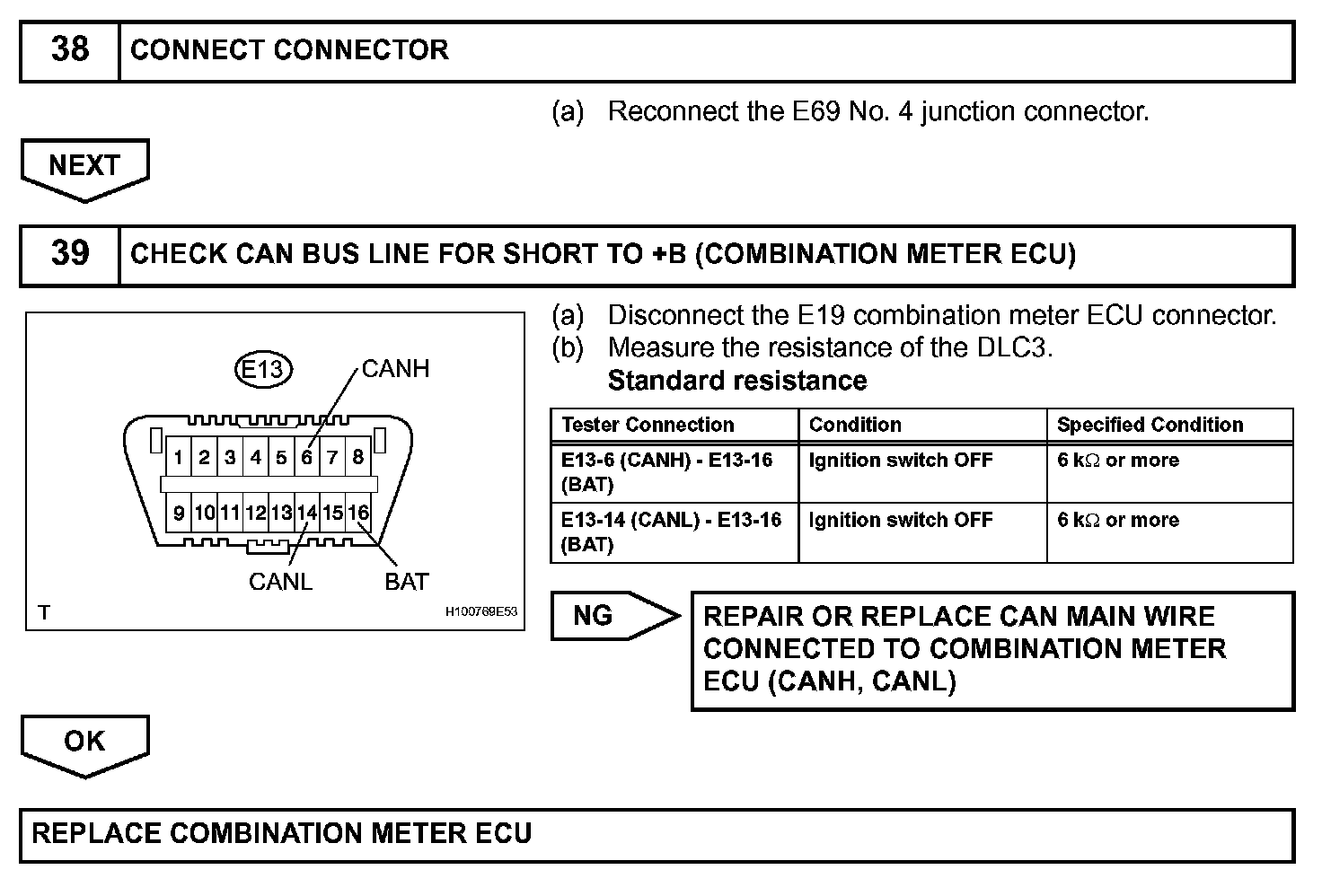

Step 38-39:
