Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch

Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch

DESCRIPTION
When the engine is running or the ignition switch is ON and the window lock switch of the power window regulator master switch is normal, the front passenger door power window regulator motor is driven by operating the front passenger door power window regulator switch.

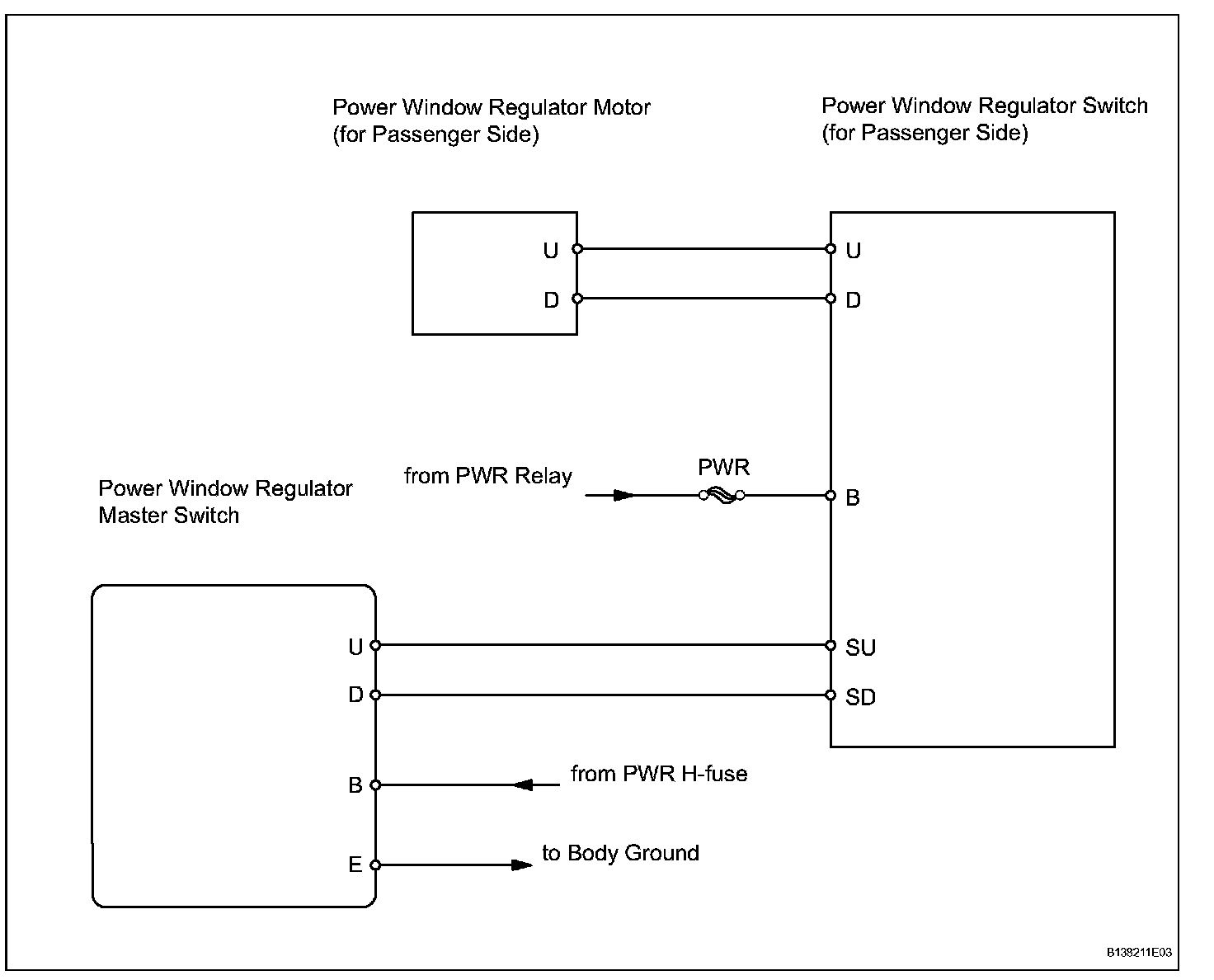

Wiring Diagram:

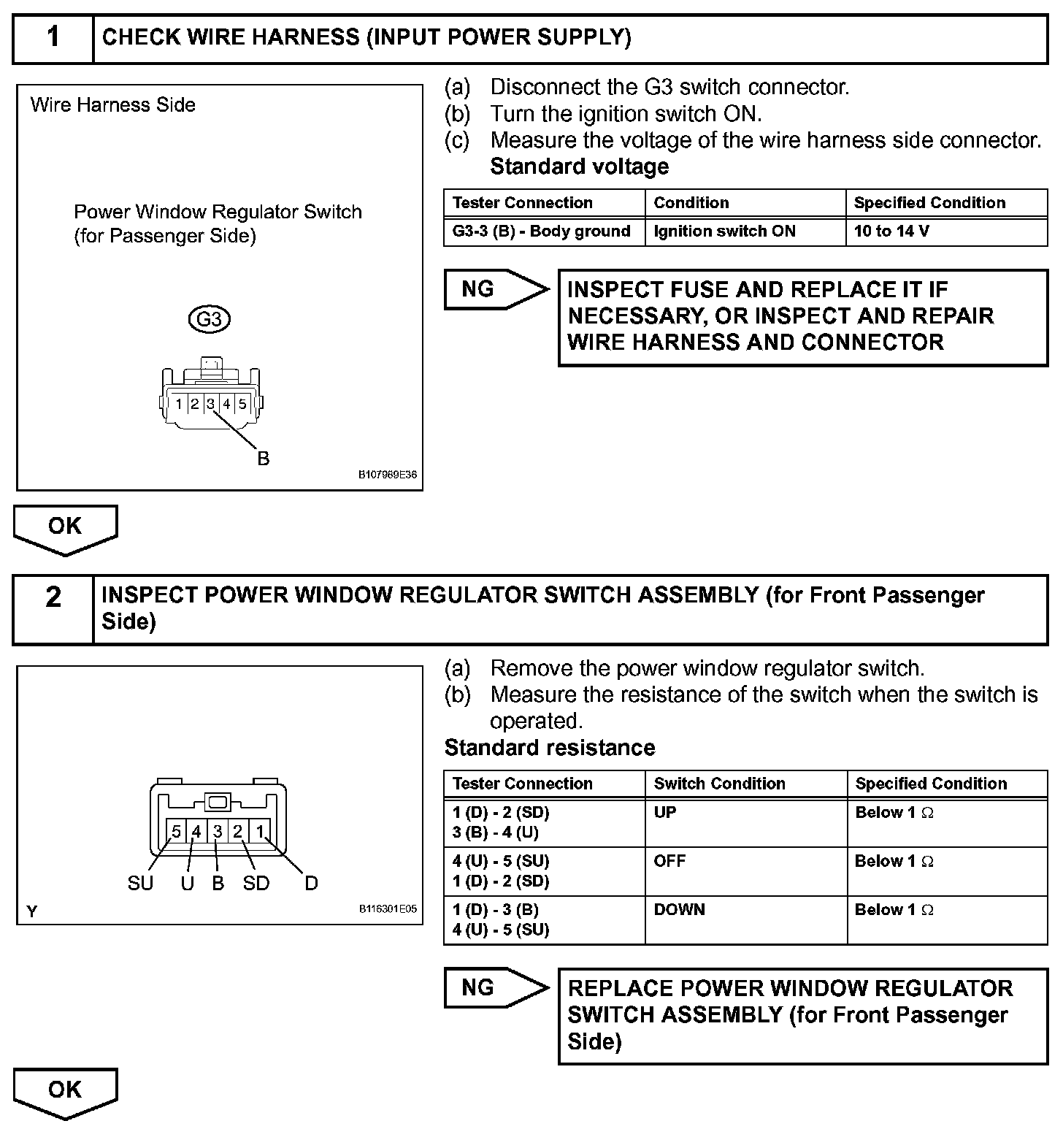

Step 1-2:

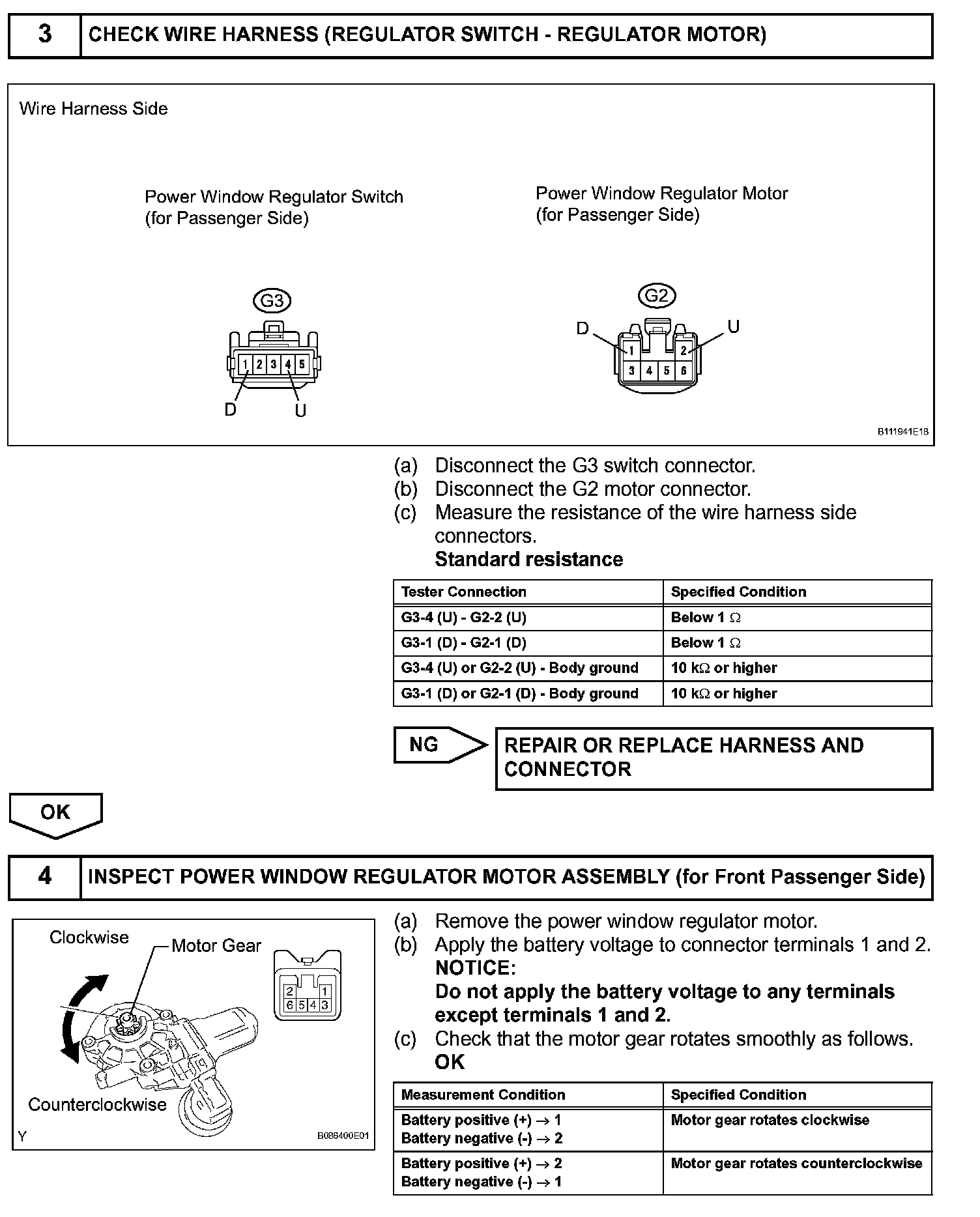

Step 3-4:

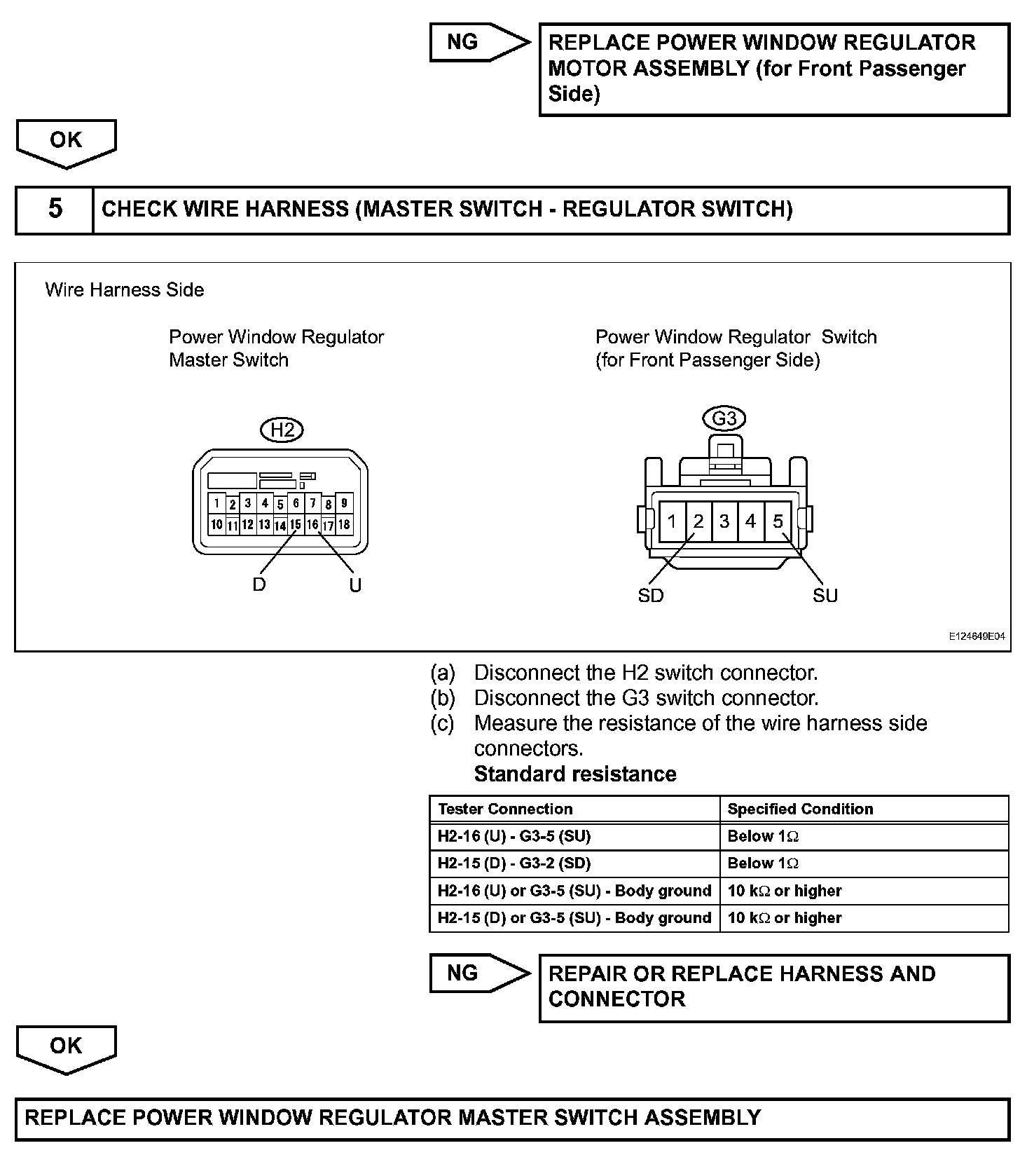

Step 4(Continued)-5:




INSPECTION PROCEDURE
