Wiper Switch: Service and Repair

Wiper Switch:





REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
3. REMOVE STEERING PAD ASSEMBLY
4. REMOVE STEERING WHEEL ASSEMBLY
5. REMOVE STEERING COLUMN COVER UPPER
6. REMOVE STEERING COLUMN COVER LOWER




7. REMOVE WIPER AND WASHER SWITCH ASSEMBLY
a. Disconnect the connectors.

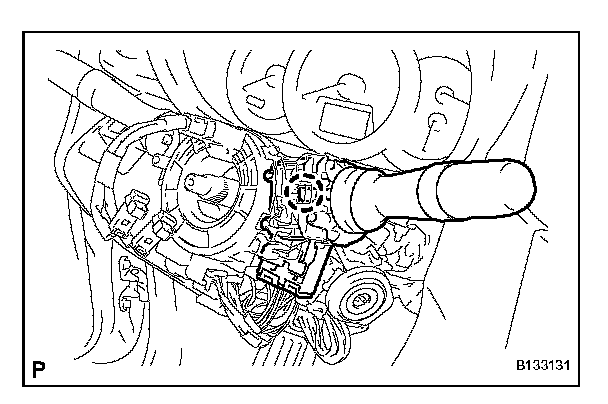

b. Detach the claw and remove the wiper switch.

NOTE: Do not push the claw with excessive force as damage may occur.

INSTALLATION




1. INSTALL WIPER AND WASHER SWITCH ASSEMBLY
a. Attach the claw to install the wiper switch.
b. Connect the connectors.

NOTE: Do not push the claw with excessive force as damage may occur.

2. INSTALL STEERING COLUMN COVER LOWER
3. INSTALL STEERING COLUMN COVER UPPER
4. INSTALL STEERING WHEEL ASSEMBLY
5. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
6. INSPECT STEERING WHEEL CENTER POINT
7. INSTALL STEERING PAD ASSEMBLY
8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
9. INSPECT STEERING PAD ASSEMBLY
10. CHECK SRS WARNING LIGHT
a. Check the SRS warning light.
