Traction Control Switch (For 2WD)

INSPECTION

CHECK TRACTION CONTROL SWITCH (AUTO LSD SWITCH)

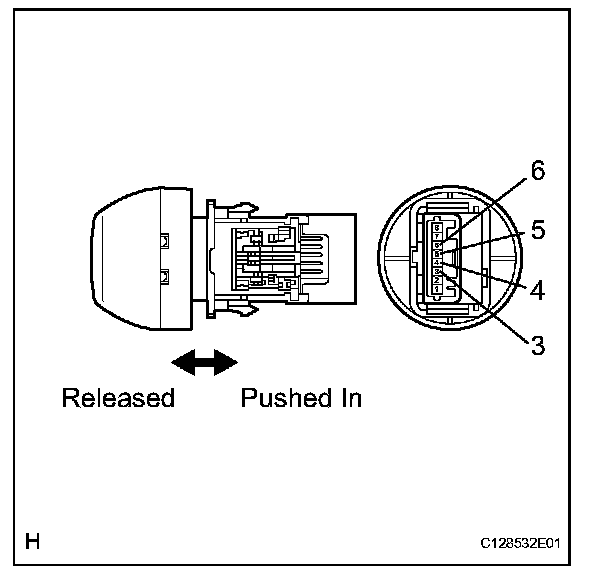

a. Measure the resistance of the switch.

If the result is not as specified, replace the switch.

b. Check illumination operation.
1. Connect the battery's positive (+) lead to terminal 5 and negative (-) lead to terminal 4.

Then check that the bulb illuminates.

OK: Bulb illuminates.

If the result is not as specified, replace the switch.
