Back-Up Power Source Circuit
Back-up Power Source Circuit DESCRIPTION This is the back-up power source circuit for the air conditioning amplifier. Power is supplied even when the ignition switch is turned OFF and is used for functions such as the diagnostic trouble code memory.
Wiring Diagram:
INSPECTION PROCEDUREStep 1:

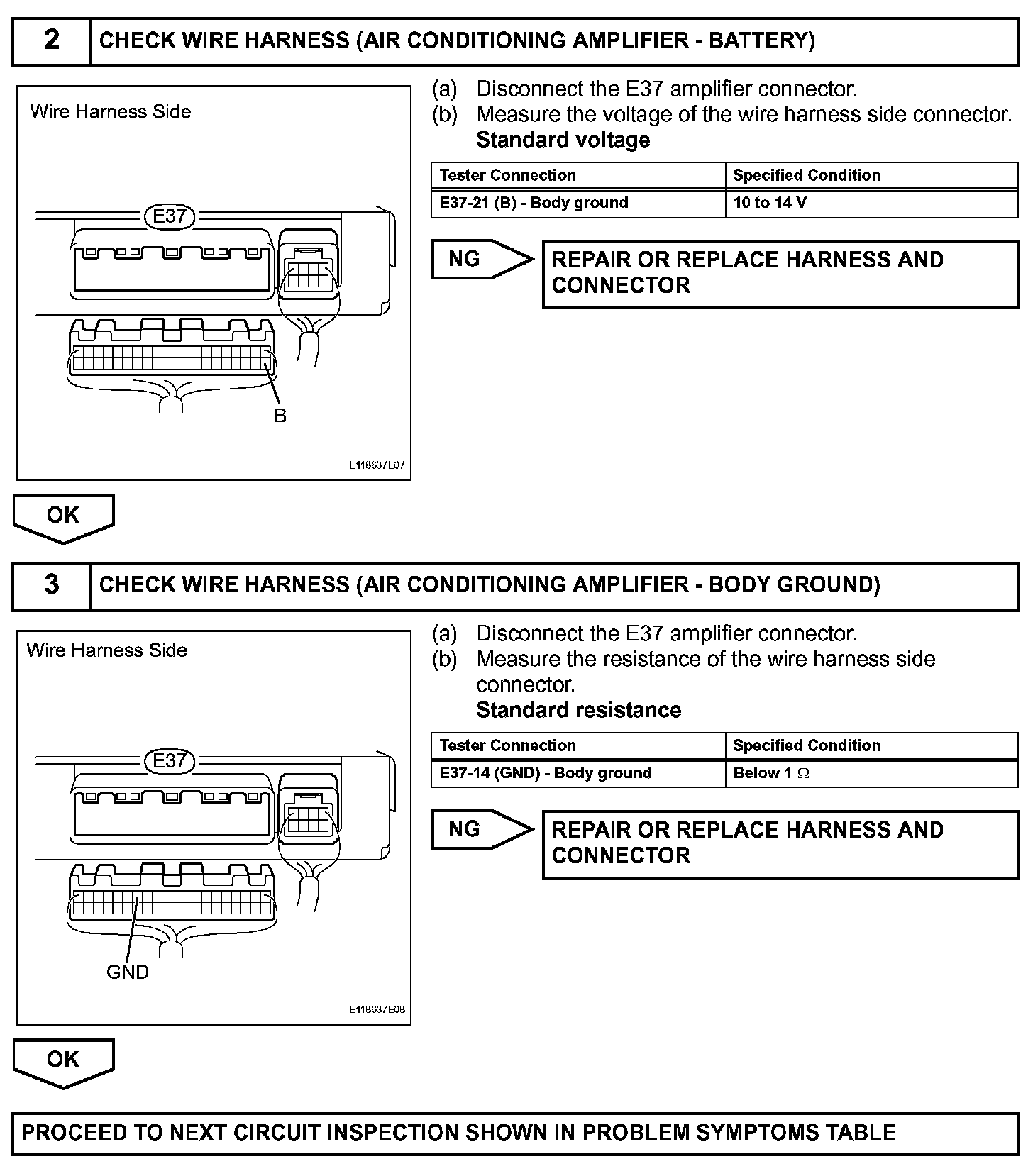

Step 2-3:
