Tire Pressure Module: Service and Repair

TIRE PRESSURE WARNING ECU

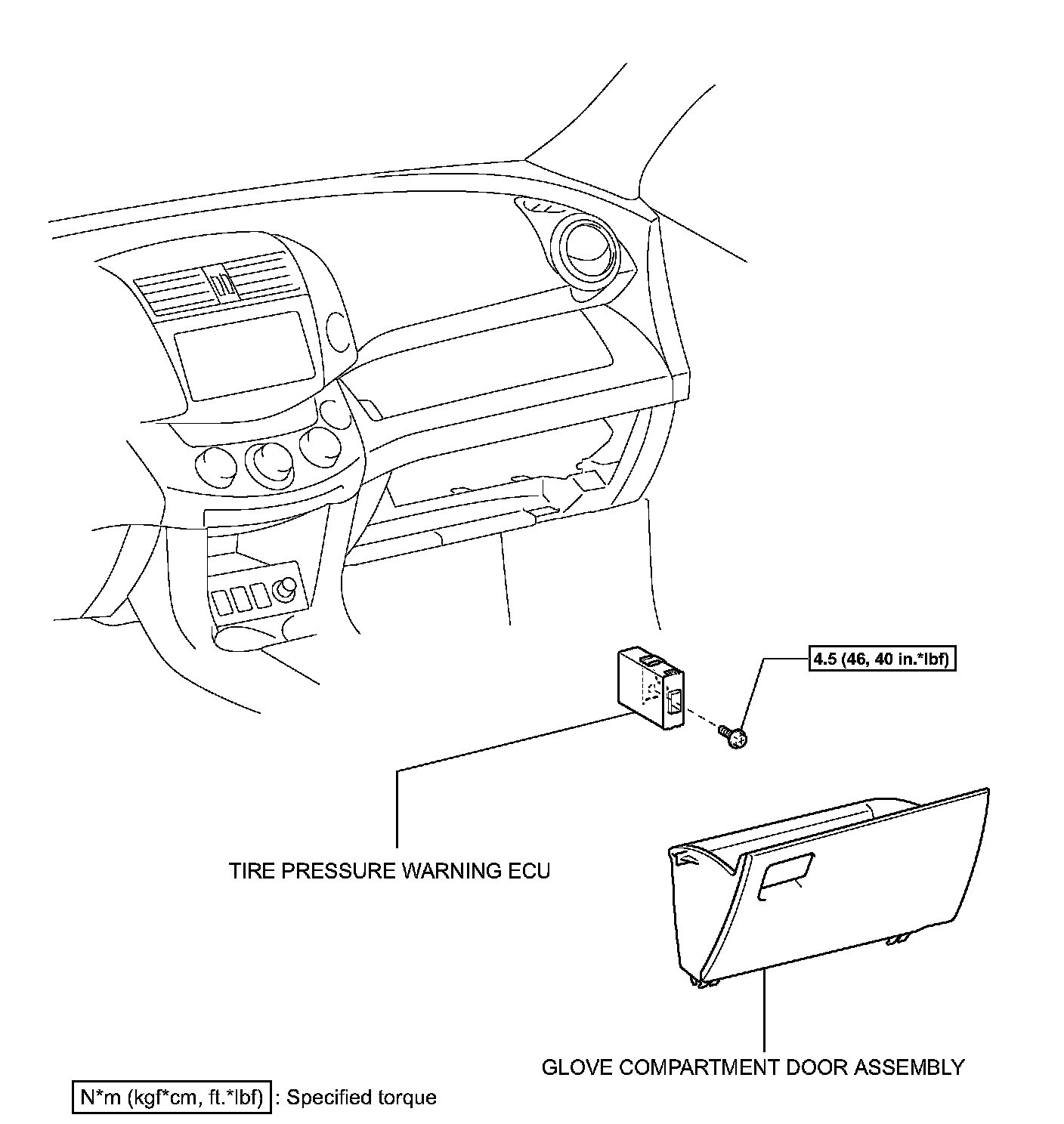

Components:





REMOVAL
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

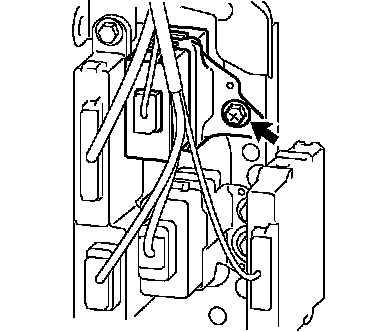

3. REMOVE TIRE PRESSURE WARNING ECU
a. Disconnect the connector.





b. Remove the bolt and ECU.

INSTALLATION

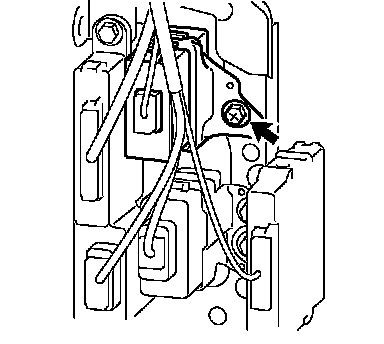

1. INSTALL TIRE PRESSURE WARNING ECU
a. Install the ECU with the bolt.
Torque: 4.5 Nm (46 kgf-cm, 40 inch lbs.)
b. Connect the connector.

2. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
4. REGISTER TRANSMITTER ID
5. INSPECT TIRE PRESSURE WARNING SYSTEM
