Hydraulic Test
HYDRAULIC TEST
1. PERFORM HYDRAULIC TEST
(a) Measure the line pressure.
NOTICE:
^ Perform the test at the normal operating ATF temperature: 50 to 80°C (122 to 176°F).
^ The line pressure test should always be performed with at least 2 people. One person should observe the condition of the wheels or wheel chocks while the other is performing the test.
^ Be careful to prevent SST's hose from interfering with the exhaust pipe.
^ This test must be performed after checking and adjusting the engine.
^ Perform the test with the A/C OFF.
^ When conducting the stall test, do not continue for more than 10 seconds.
(1) Warm up the ATF (Automatic Transmission Fluid).
(2) Lift the vehicle up.
(3) Remove the engine under cover.
(4) Connect the intelligent tester to the DLC3.

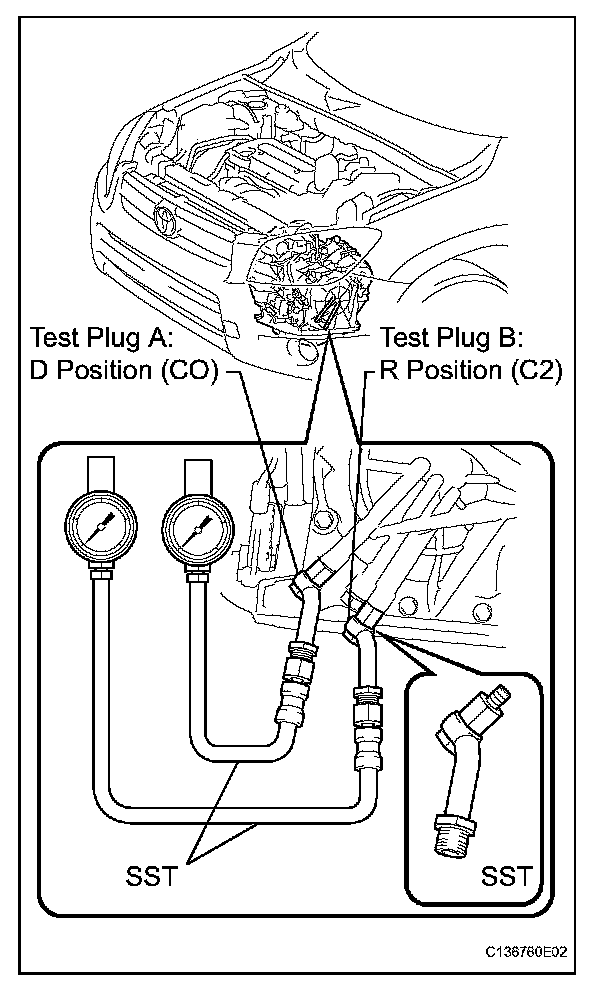

(5) Remove the test plug A on the transaxle case front left side and install SST.
SST 09992-00095 (09992-00231, 09992-00271)
NOTICE: There is a difference between the installation point of the D position and R position.
(6) Start the engine.
(7) Using intelligent tester, shift to D position and hold 3rd gear by active test, and measure the line pressure in idling.
Specified line pressure:
(8) Turn the ignition switch off.
(9) Disconnect the connector of the transmission wire.
HINT: Disconnect the connector only when performing the D position stall test.
(10) Start the engine.
(11) Firmly depress the brake pedal, shift to the D position, depress the accelerator pedal all the way down and check the line pressure while the stall test is performed.
Specified line pressure:
(12) Turn the ignition switch off.
(13) Remove SST, and install the test plug A.
(14) Remove the test plug B, install SST and start the engine.
SST 09992-00095 (09992-00231, 09992-00271)
(15) Connect the transmission wire connector, depress the brake pedal firmly, shift to the R position and check the line pressure while the engine is idling and during the stall test.
Specified line pressure:
(16) Remove SST, and install the test plug B.
(17) Clear the DTC.
Evaluation:
