Disc Player Controller Power Source Circuit
Disc Player Controller Power Source CircuitDESCRIPTIONThis circuit provides power to the disc player controller. The power is sent from the battery to the disc player controller through the multi-display controller sub-assembly.

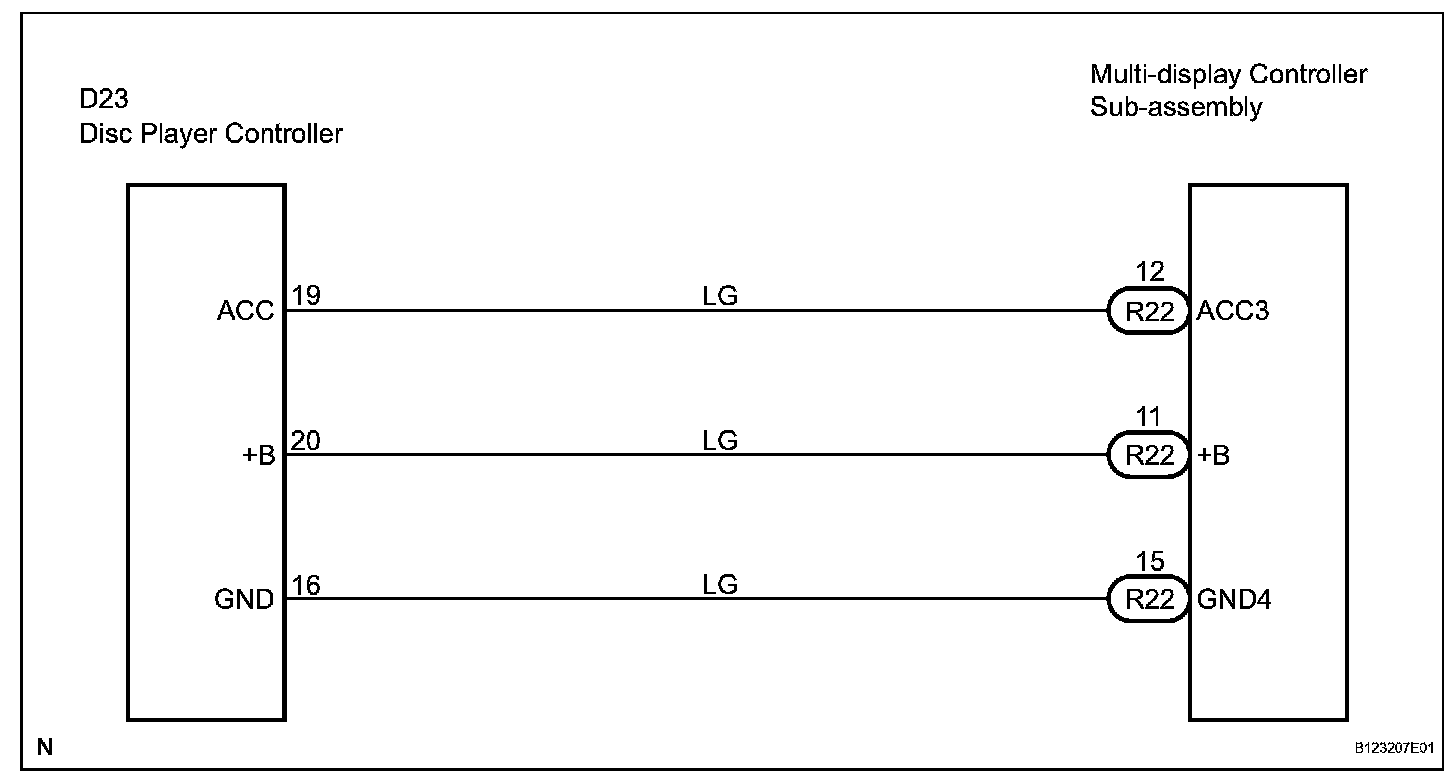

Wiring Diagram:
Step 1:
Step 1(Continued)-3:

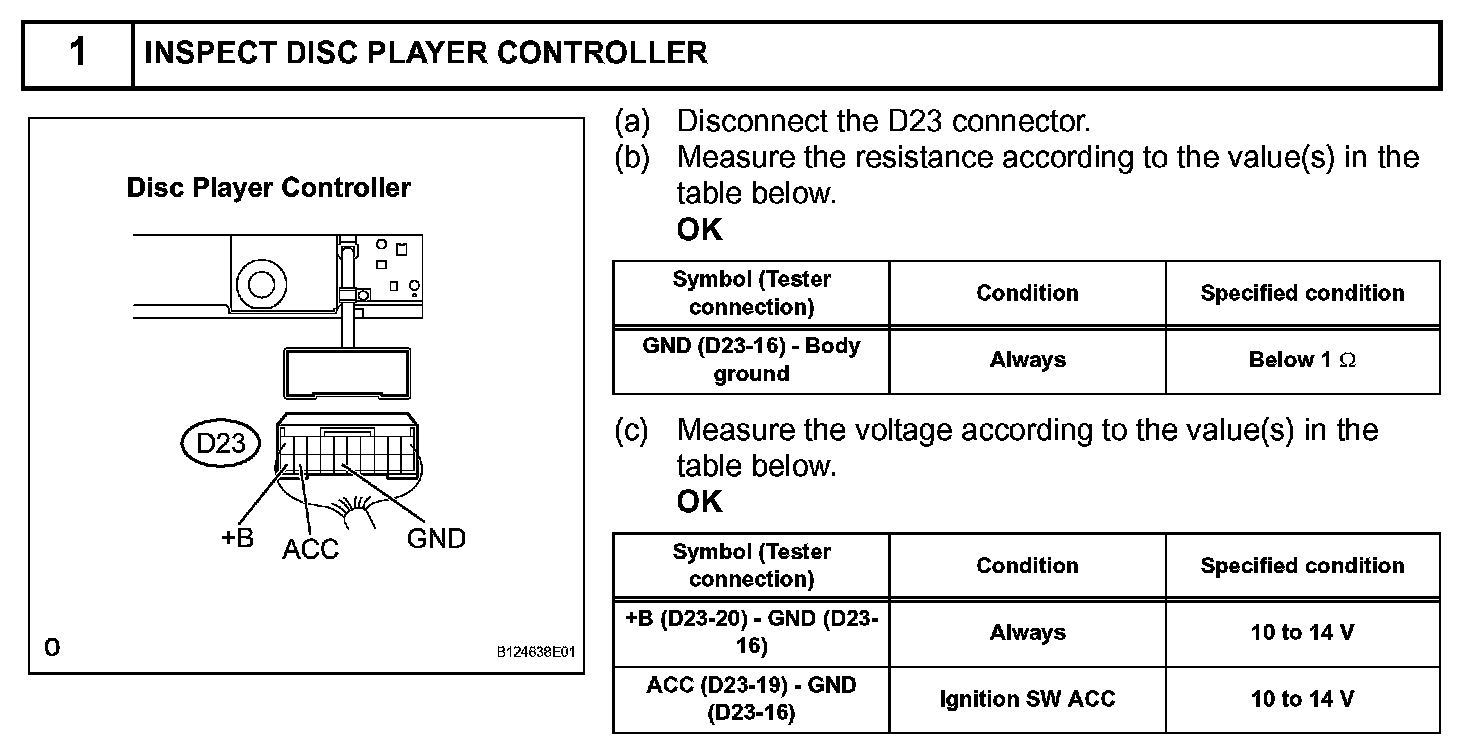

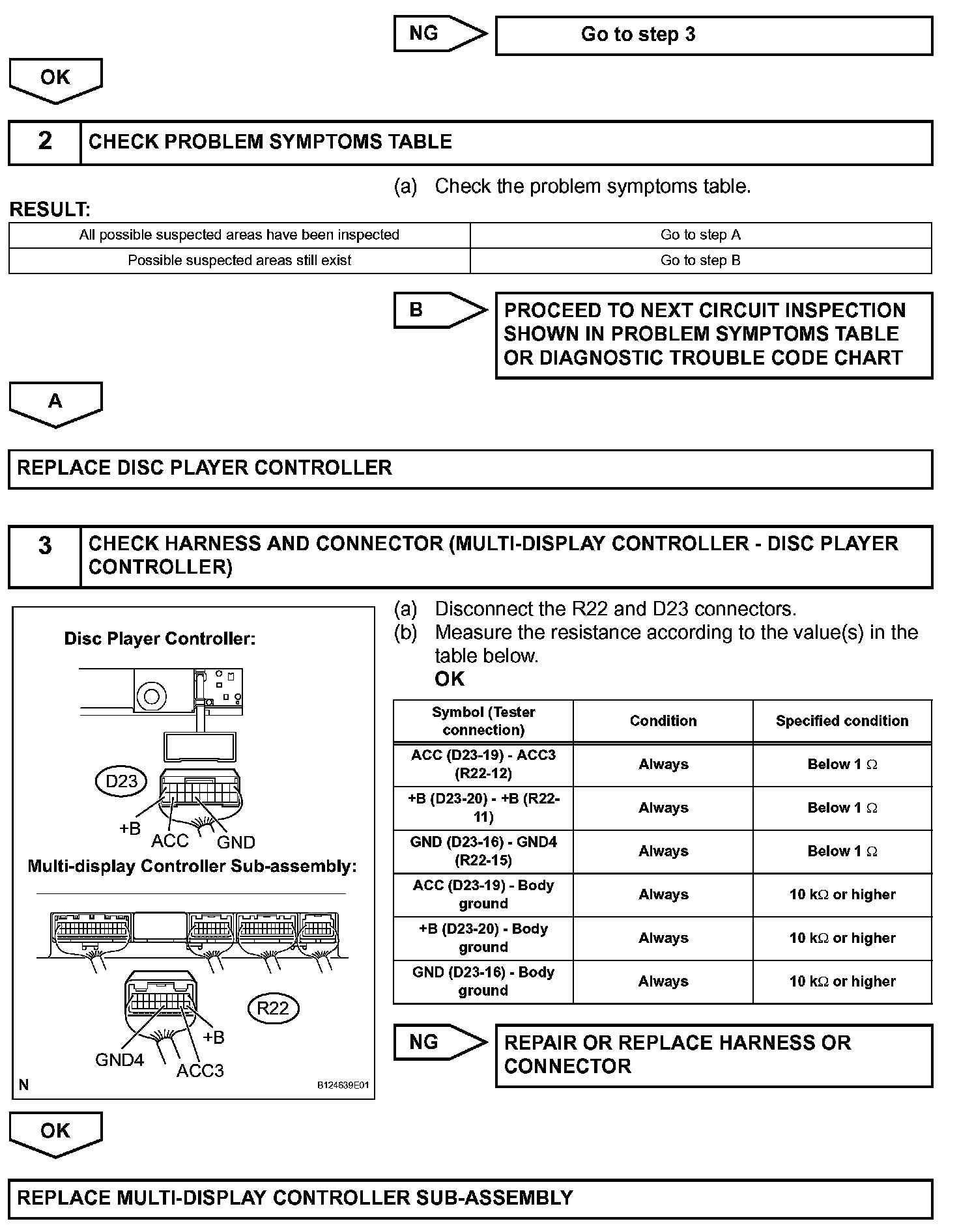

INSPECTION PROCEDURE
