Mute Signal Circuit Between Disc Player Controller and Multi-Display Controller

Mute Signal Circuit between Disc Player Controller and Multi-display Controller

DESCRIPTION

The multi-display controller sub-assembly controls the volume according to the MUTE signal from the disc player controller.

The MUTE signal is sent to reduce noise and a popping sound generated when the mode, etc. is switched.

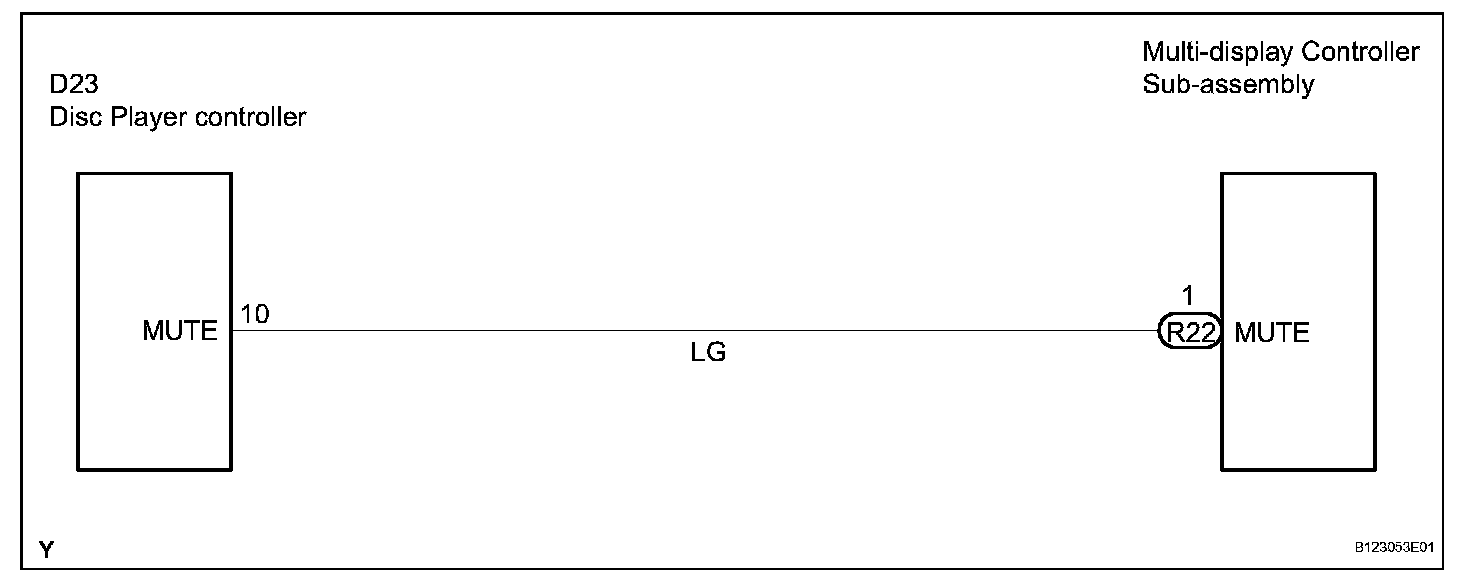

Wiring Diagram:

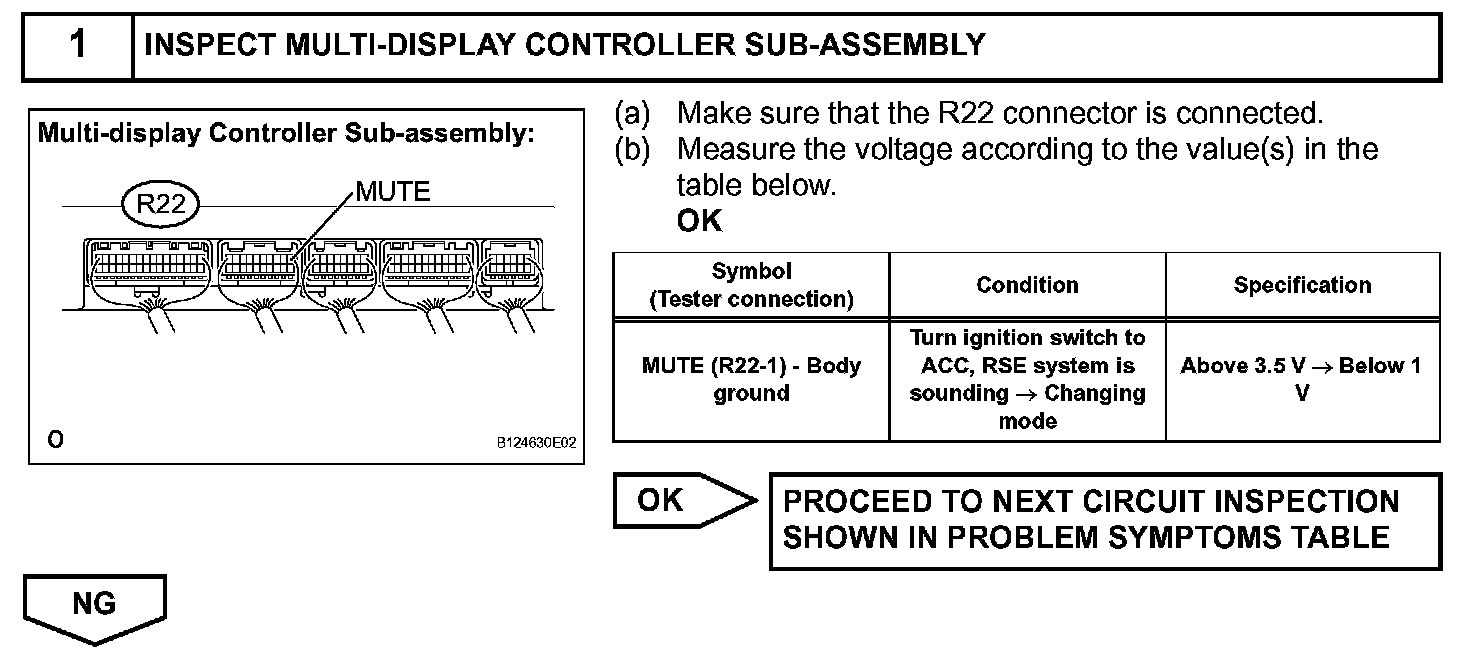

Step 1:

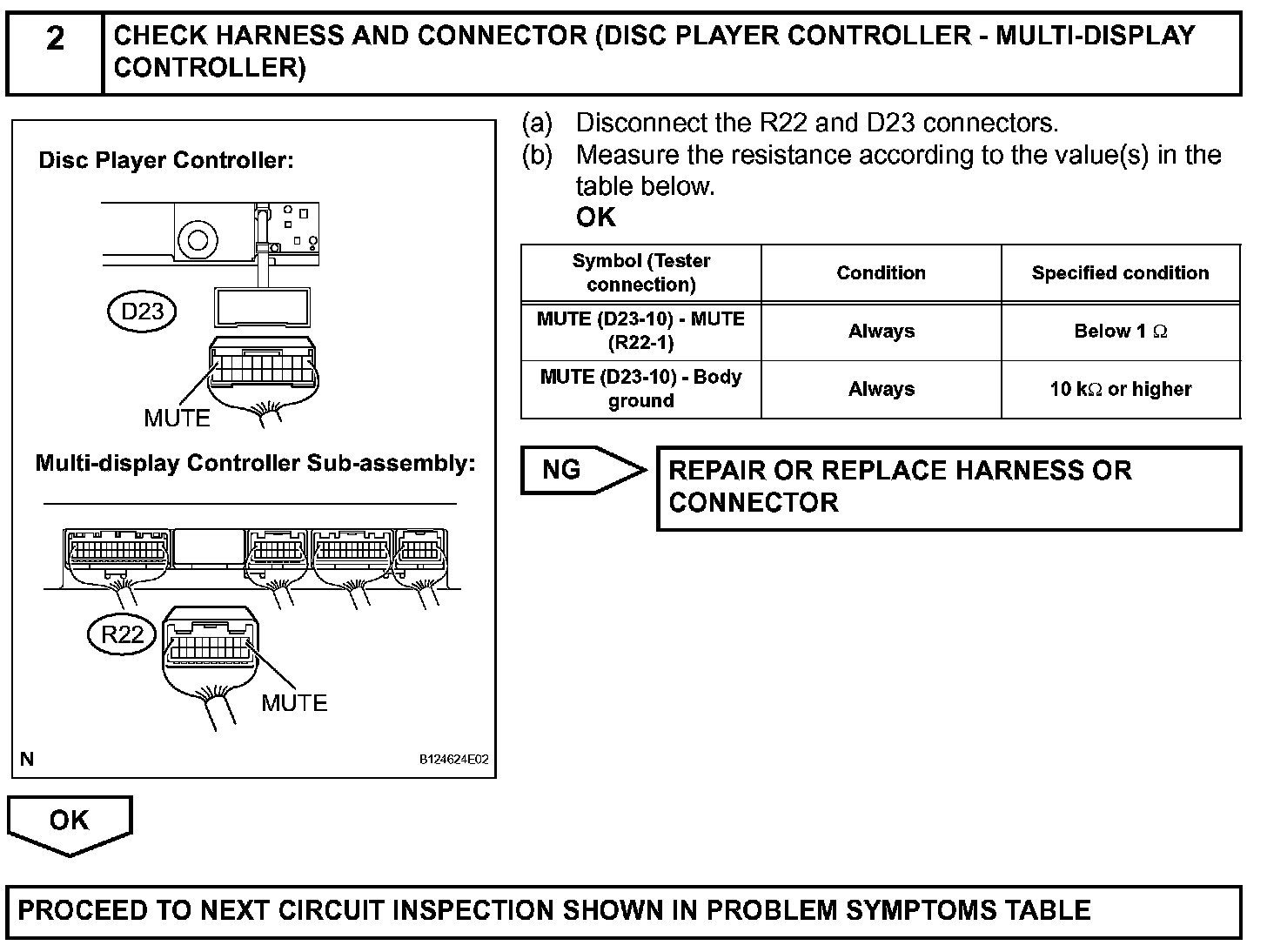

Step 2:

INSPECTION PROCEDURE
