Mute Signal Circuit Between Navigation Assembly and Multi-Display Controller

Mute Signal Circuit between Navigation Assembly and Multi-display Controller

DESCRIPTION

The multi-display controller sub-assembly controls the volume according to the MUTE signal from the radio receiver assembly or radio and navigation assembly.

The MUTE signal is sent to reduce noise and a popping sound generated when the mode, etc. is switched.

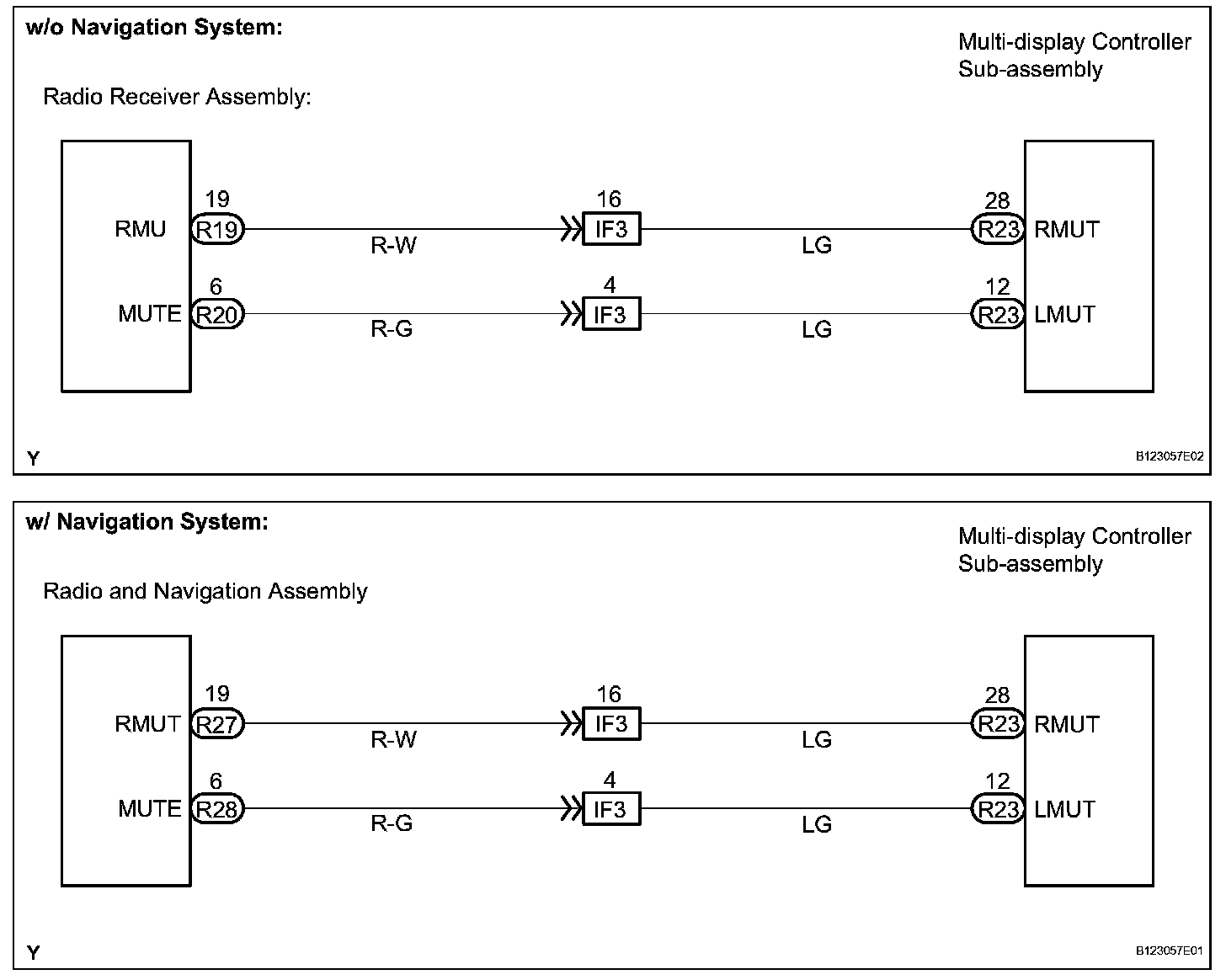

Wiring Diagram:

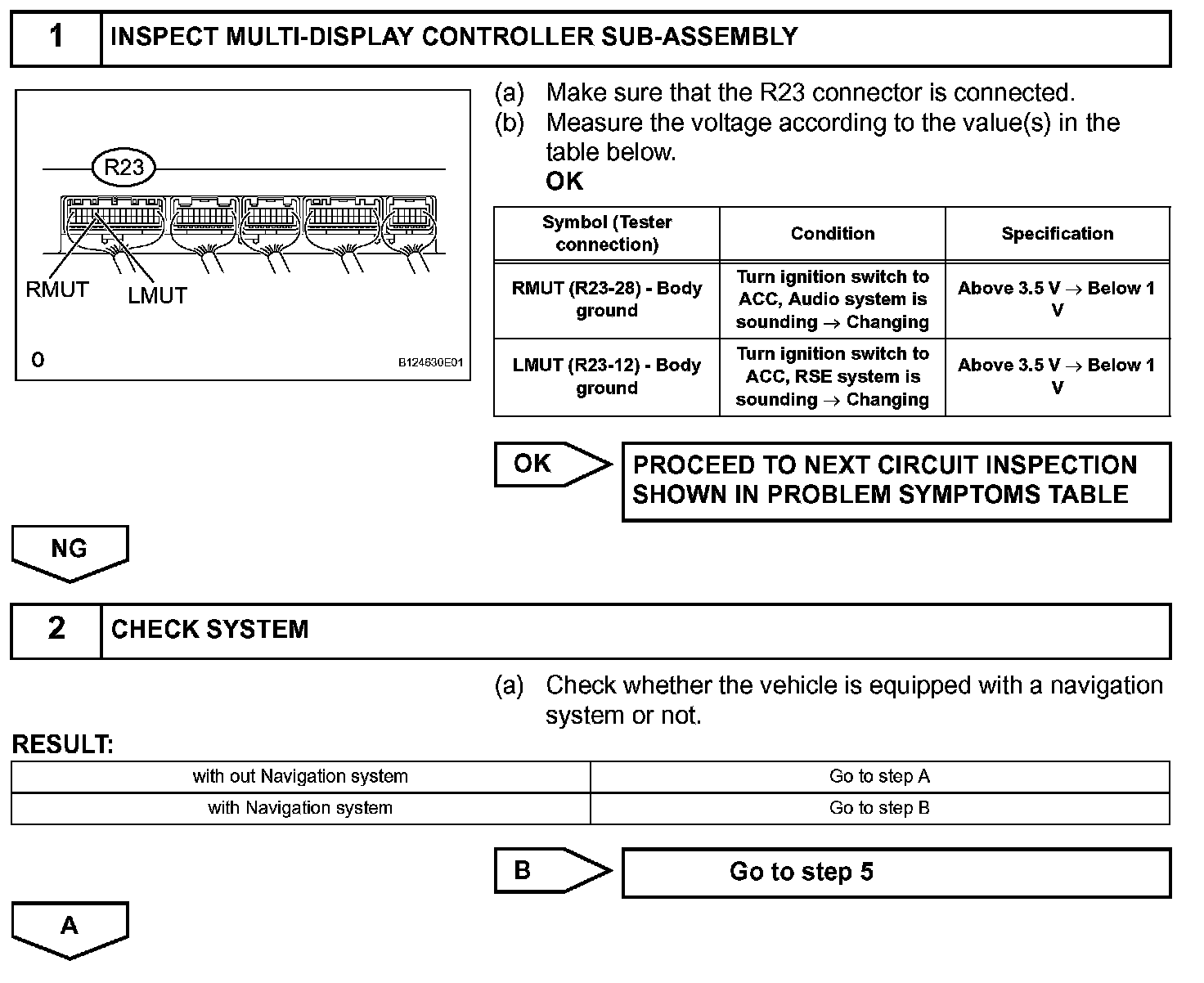

Step 1-2:

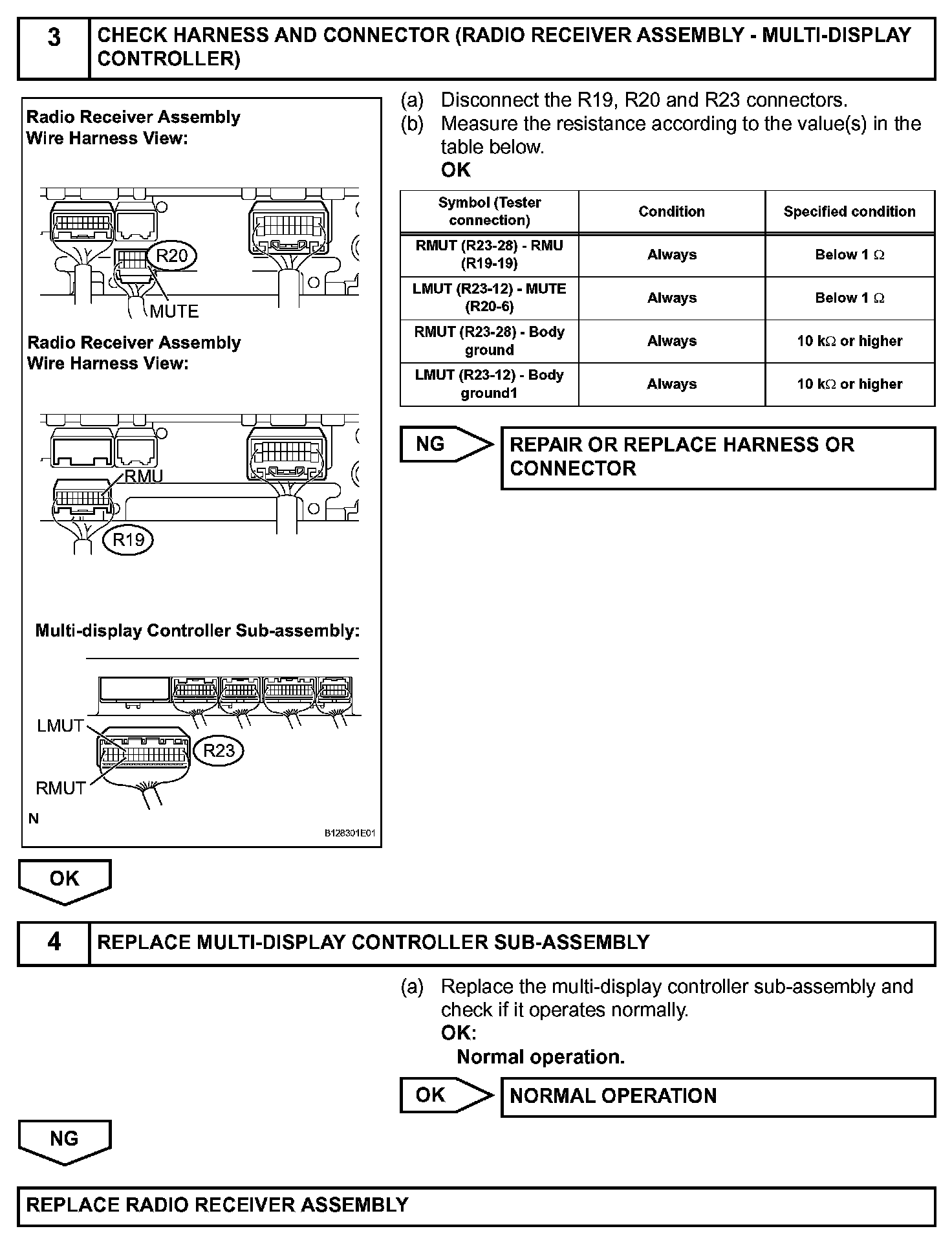

Step 3-4:

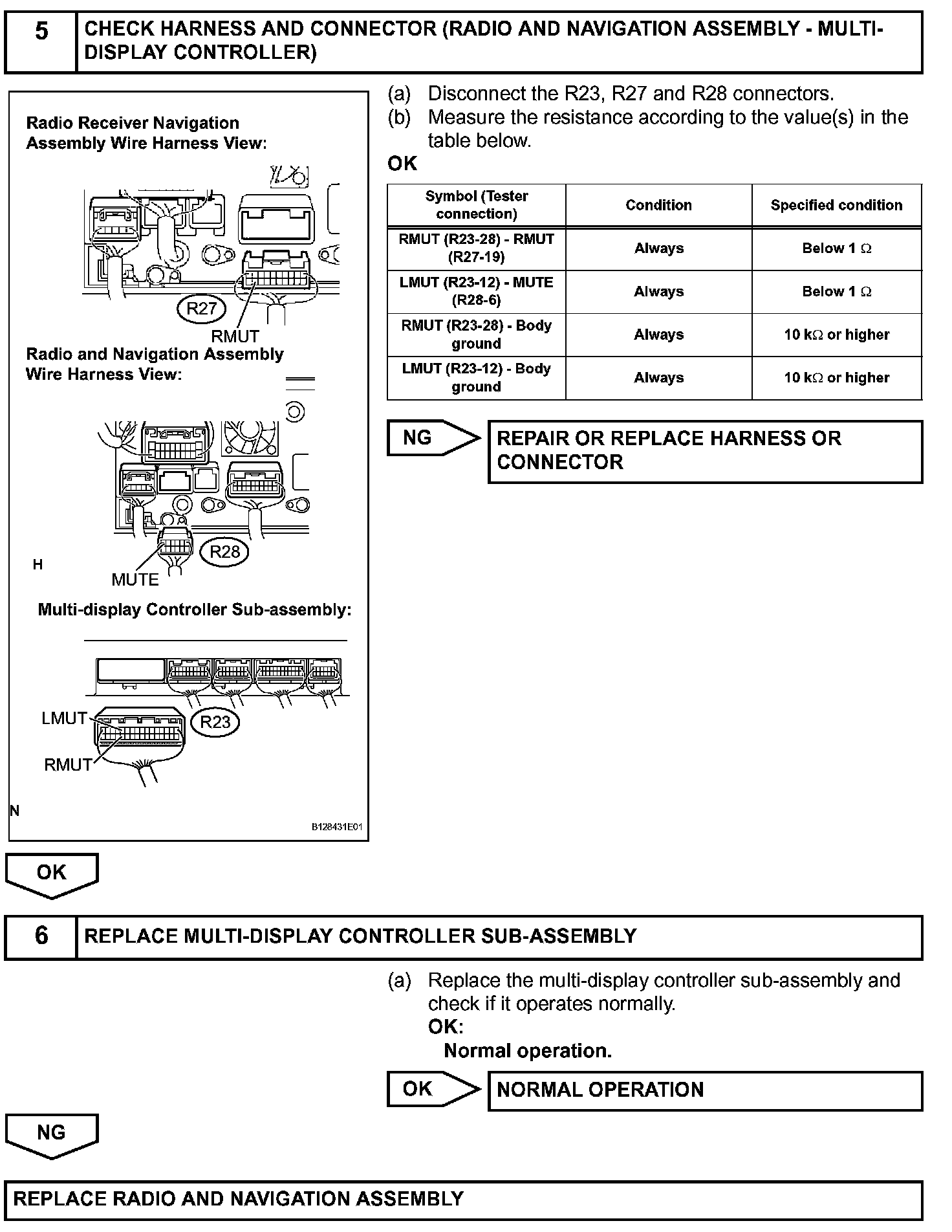

Step 5-6:
