Sound Signal Circuit Between Multi-Display Controller and Disc Player Controller
Sound Signal Circuit between Multi-display Controller and Disc Player ControllerDESCRIPTIONThis is the sound signal circuit from the disc player controller to the multi-display controller sub-assembly.

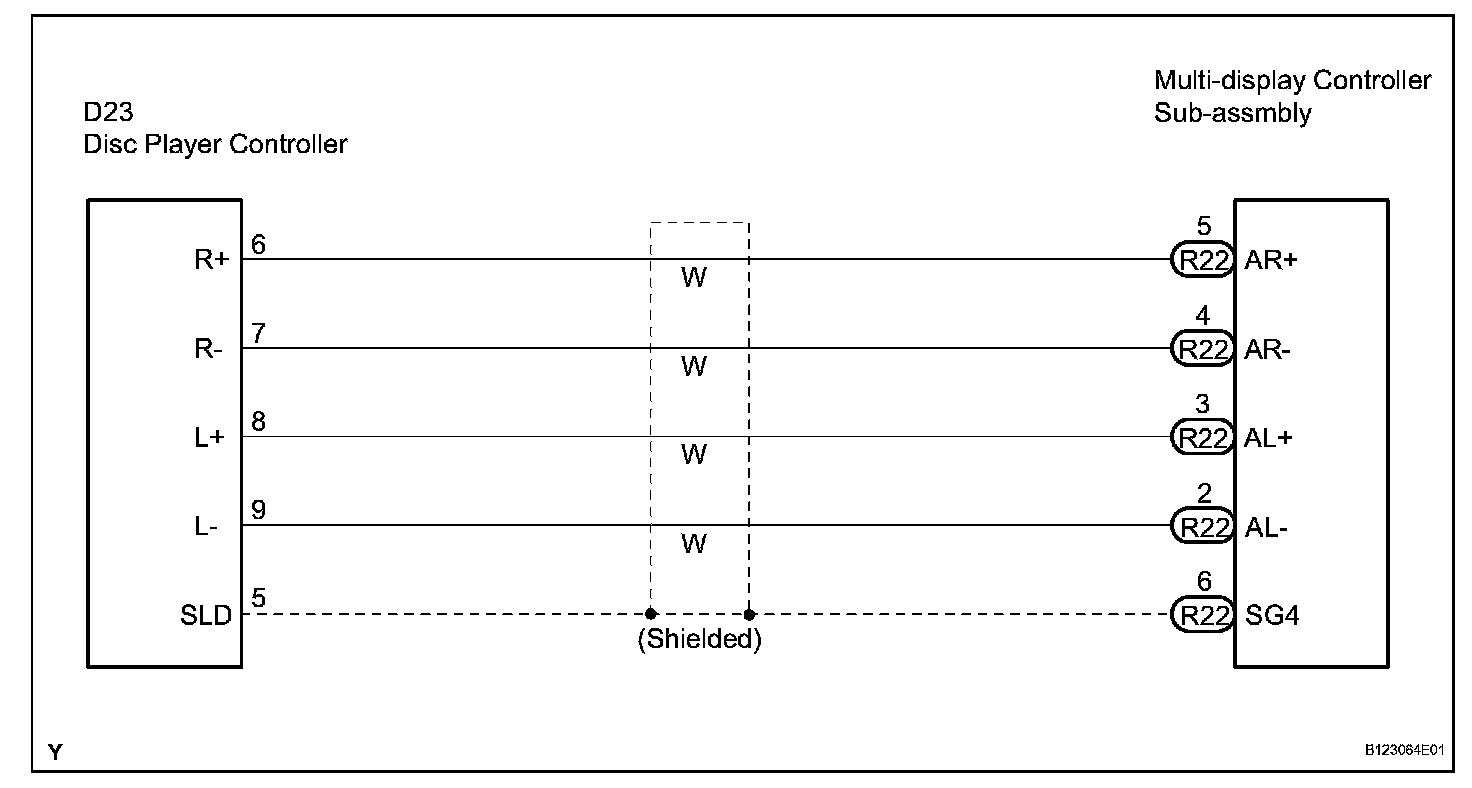

Wiring Diagram:
Step 1:

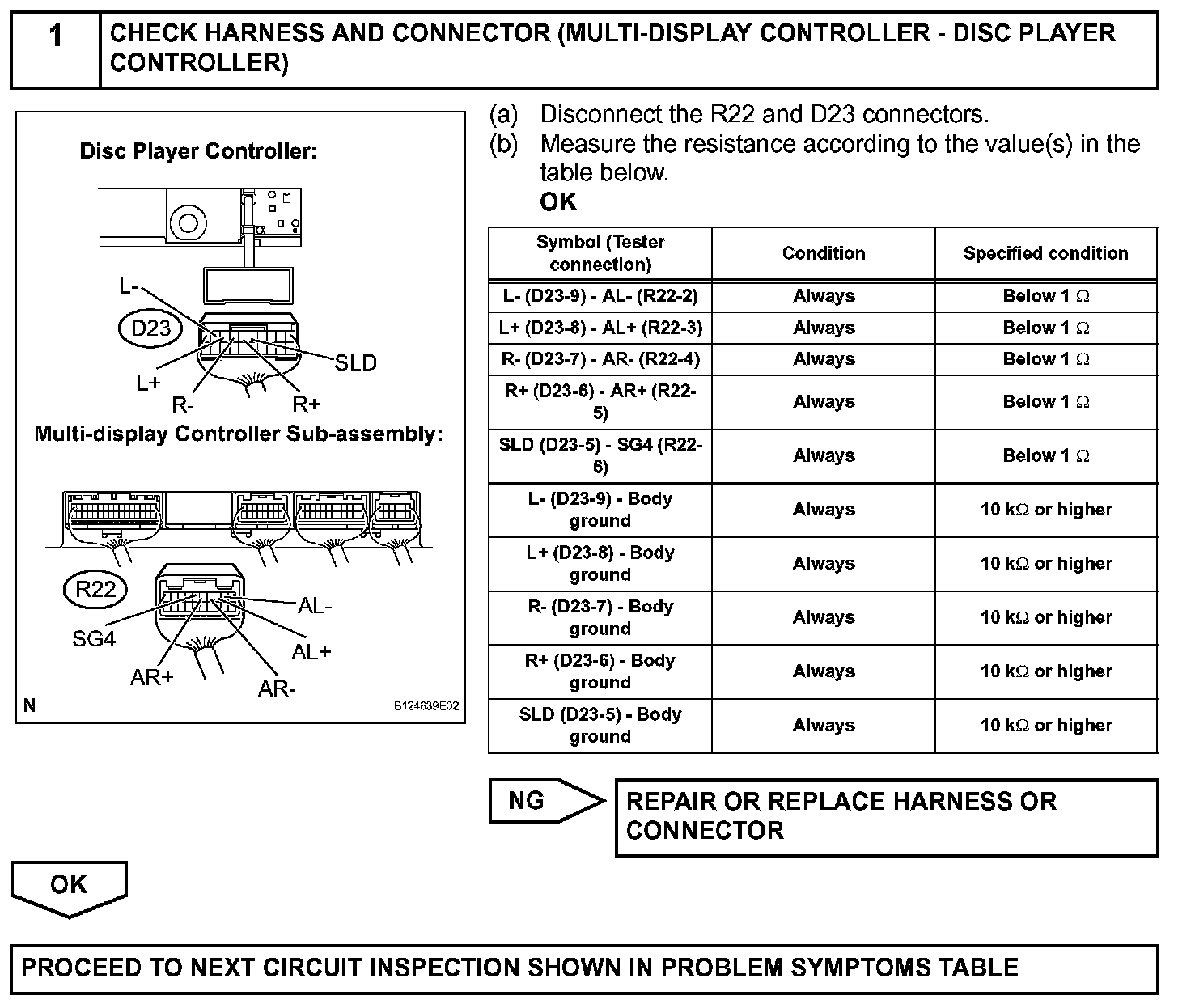

INSPECTION PROCEDURE
