Rear Cooler Control Panel
DISASSEMBLY 1.
REMOVE AIR CONDITIONER AMPLIFIER
a.

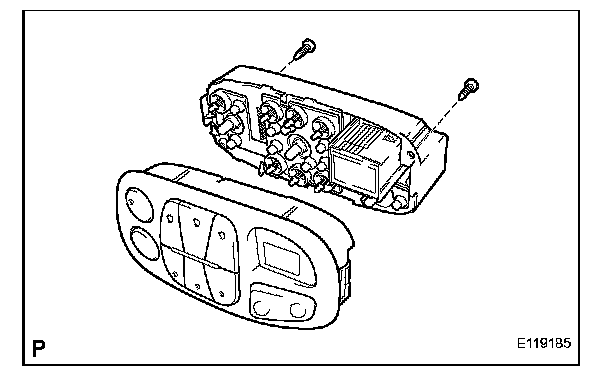

Remove the 2 screws and heater control switch.
b.

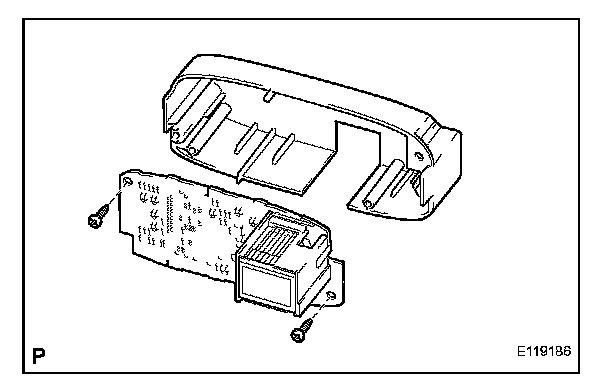

Remove the 4 screws, A/C amplifier and PC board.
c.

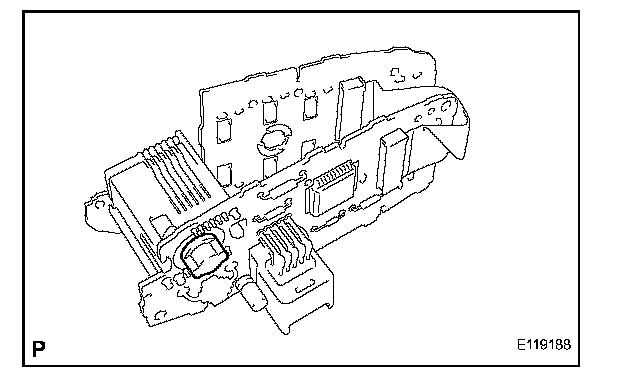

Remove the 3 bulbs from the PC board.
d.
Remove the bulb from the A/C amplifier.
REASSEMBLYReassembly is in the reverse order of disassembly.
