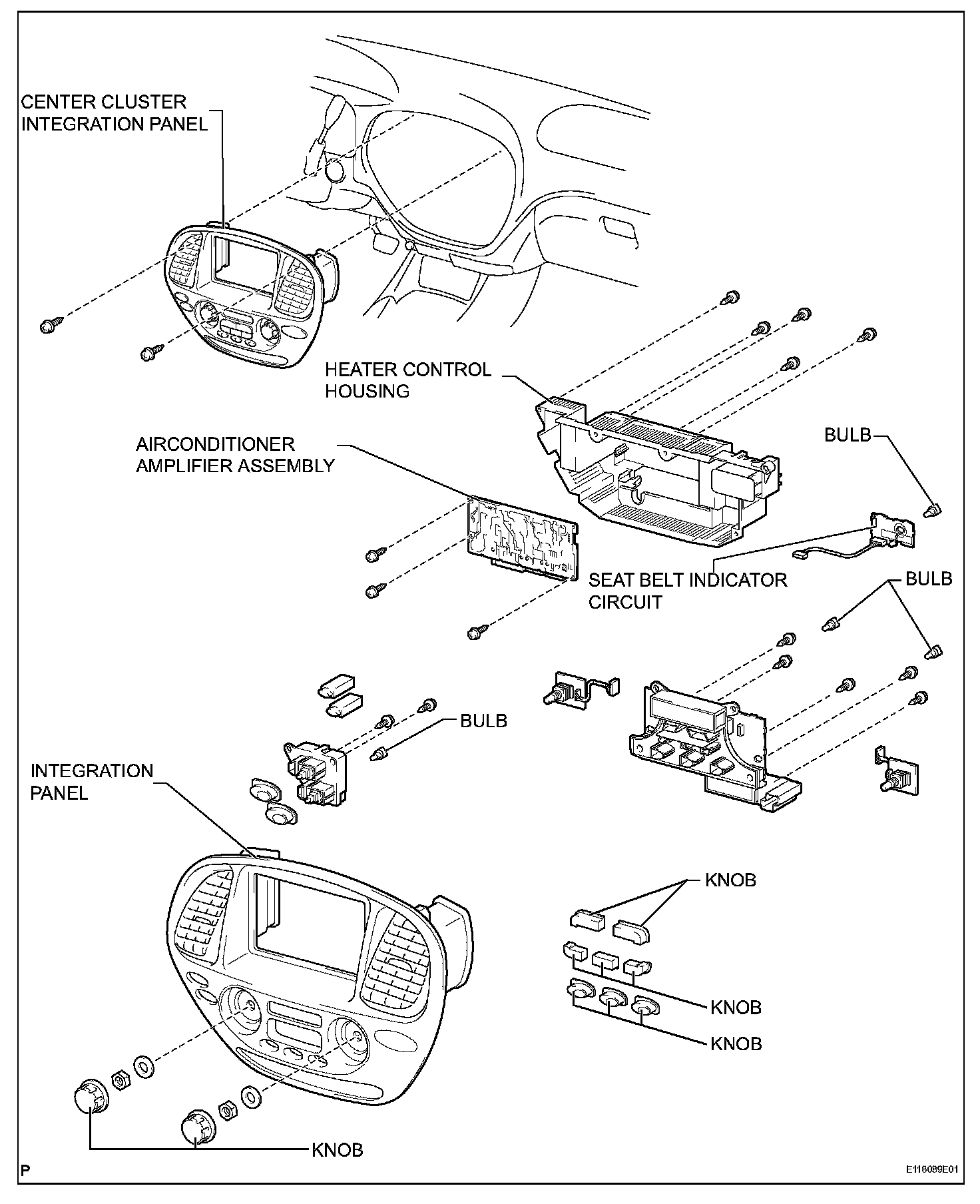

Air Conditioning Control Assembly
Air Conditioning Control Assembly:
AIR CONDITIONING CONTROL ASSEMBLYREMOVAL 1.
REMOVE AIR CONDITIONER
CONTROL ASSEMBLY a.
Remove the 2 screws.
b.

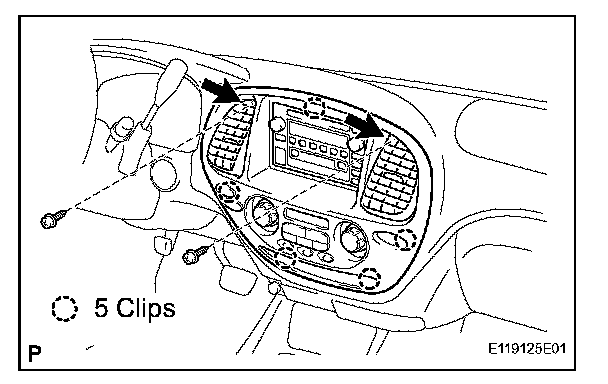

Remove the integration control panel by pulling the portions indicated by arrows in the illustration.
c.
Disconnect the connector.
INSTALLATIONInstallation is in the reverse order of removal.
