Shift Position L Switch Circuit

Shift Position L Switch Circuit

DESCRIPTION
The shift position L switch is a momentary type switch. When the shift position L switch is pressed while driving with the shift lever in the 2 position, the L position indicator on the combination meter comes on and the transmission is locked in 1st gear. When the switch is pressed again, the indicator goes off and the transmission is released.

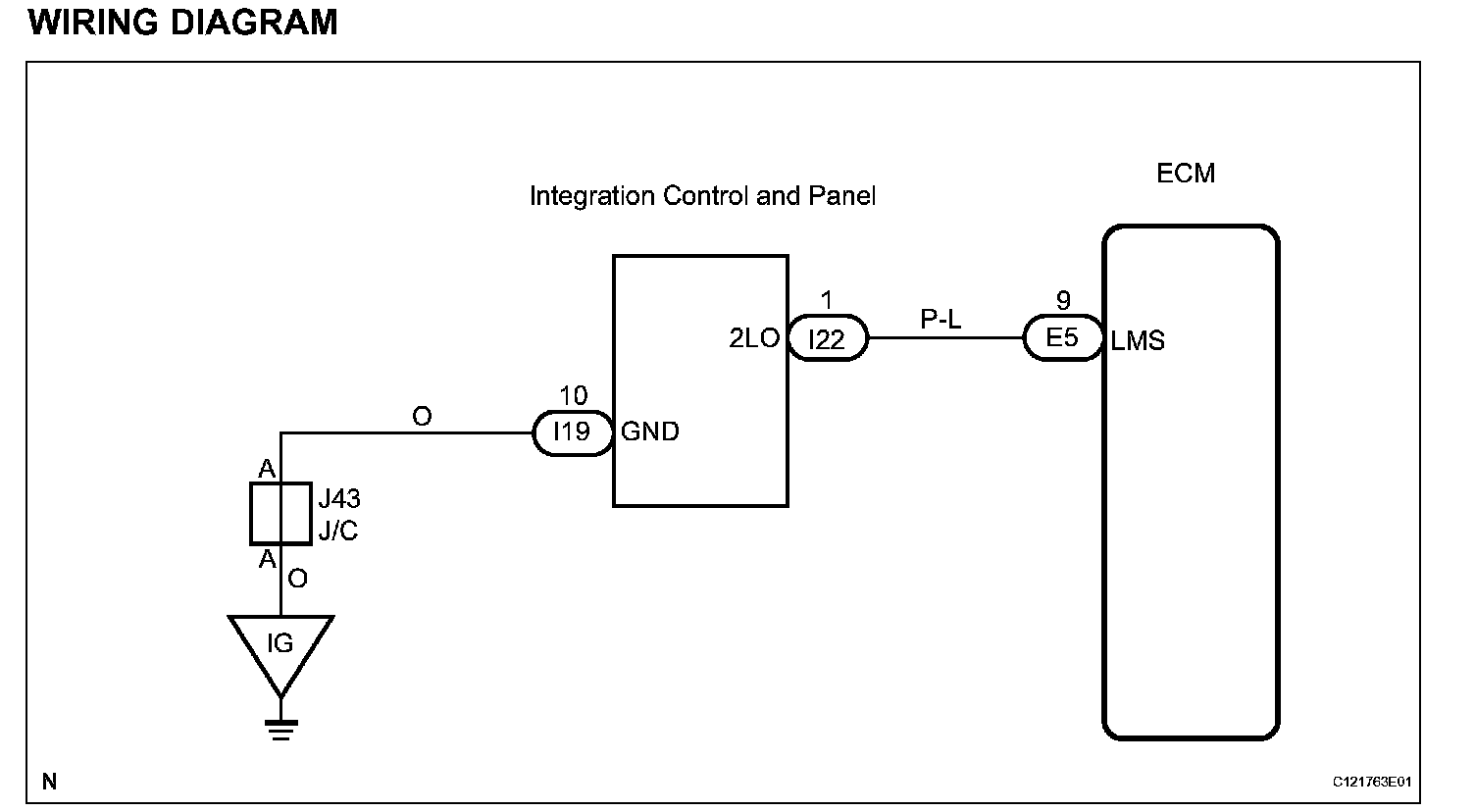

WIRING DIAGRAM:





INSPECTION PROCEDURE

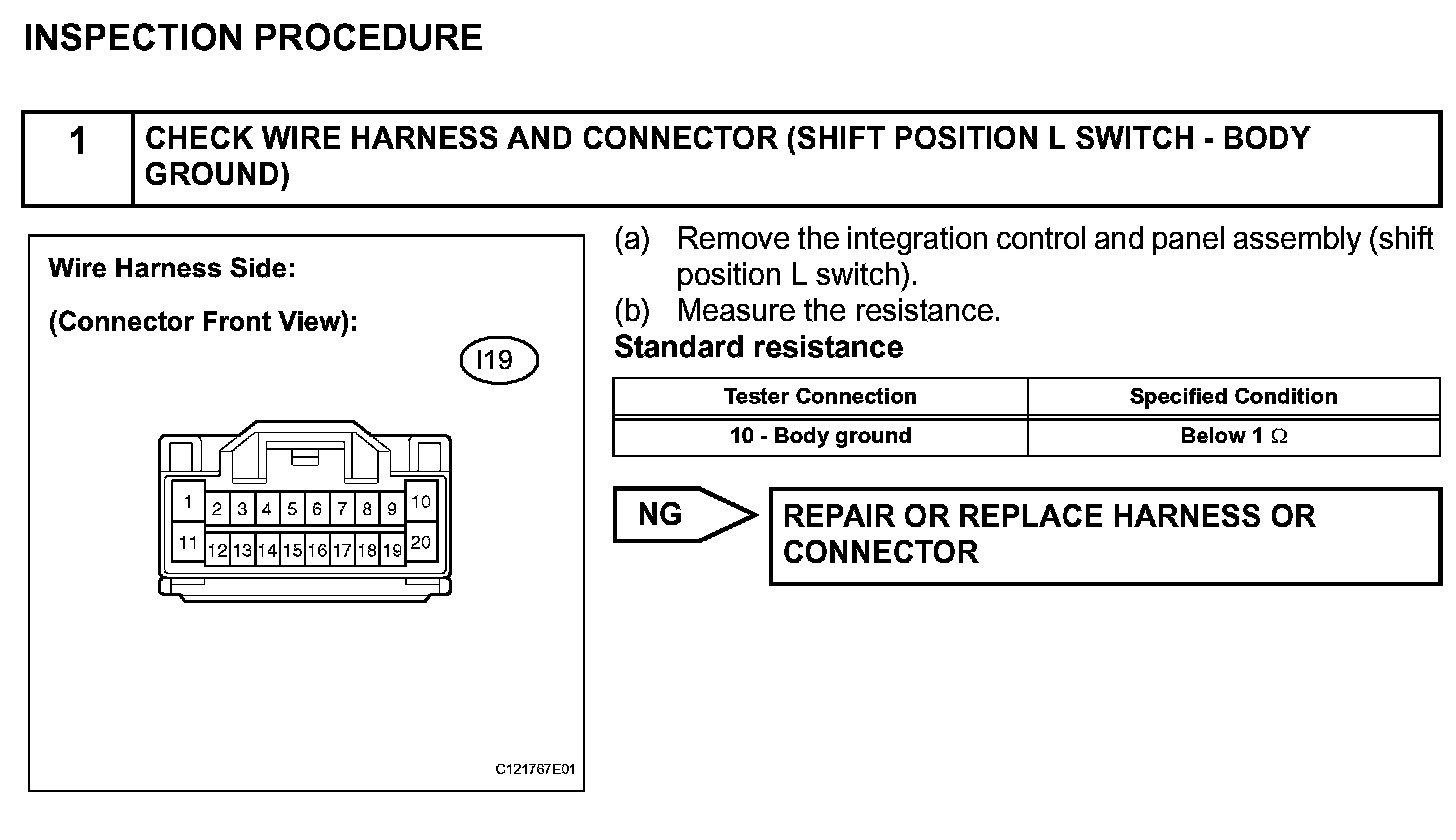

Step 1(Part 1):

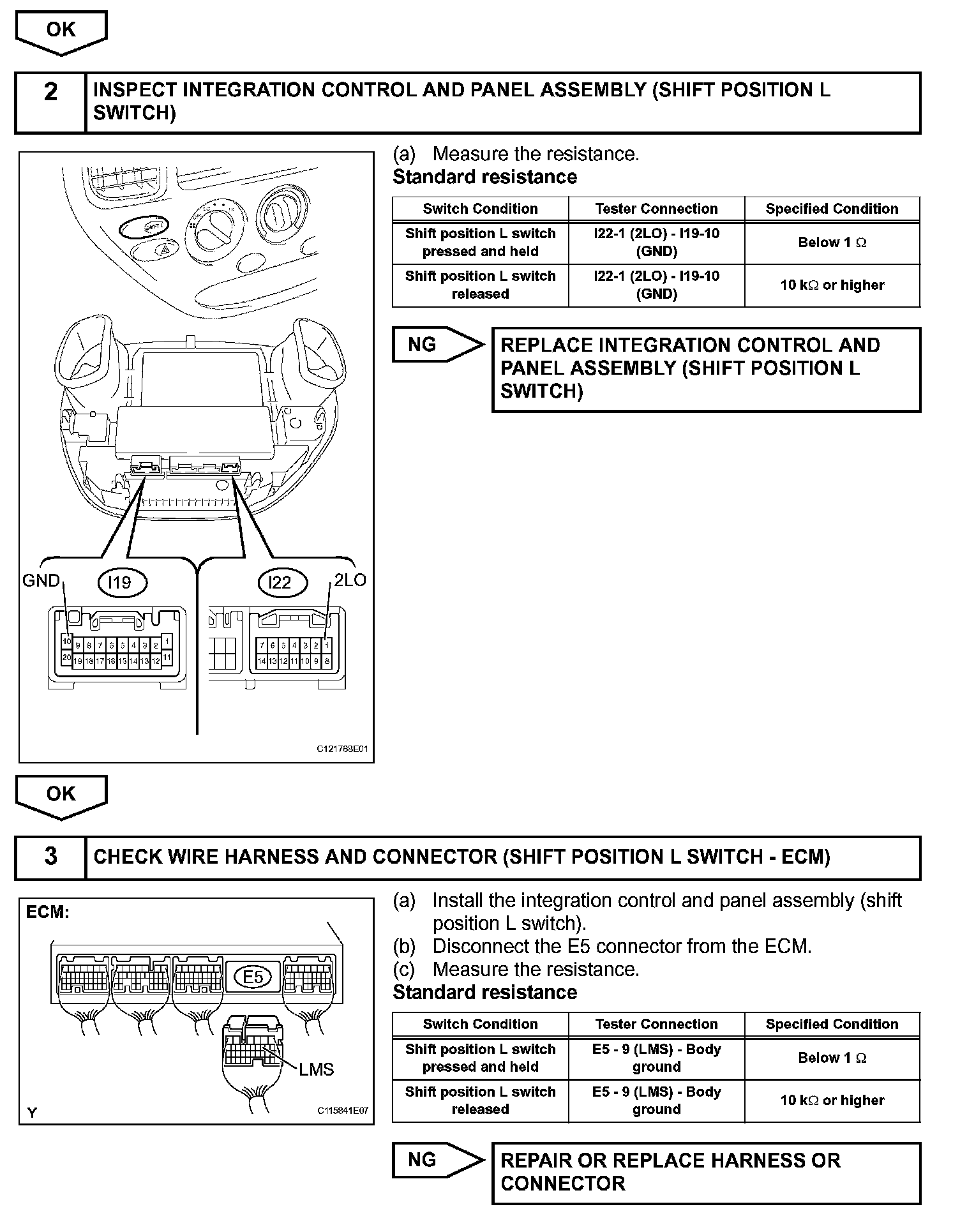

Steps 1(Part 2)-3(Part 1):

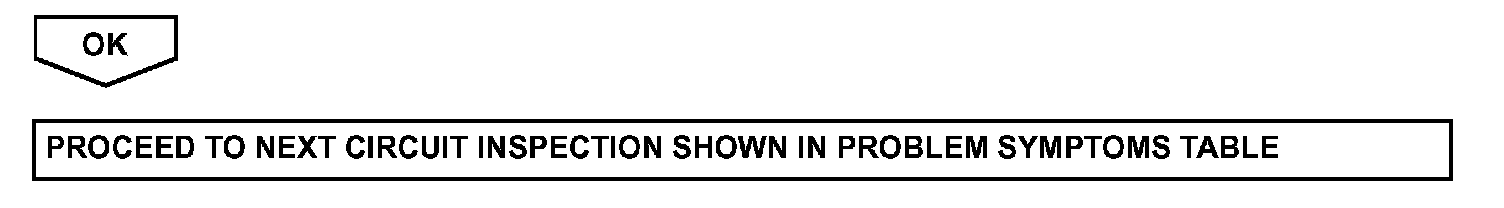

Step 3(Part 2):
