Alignment

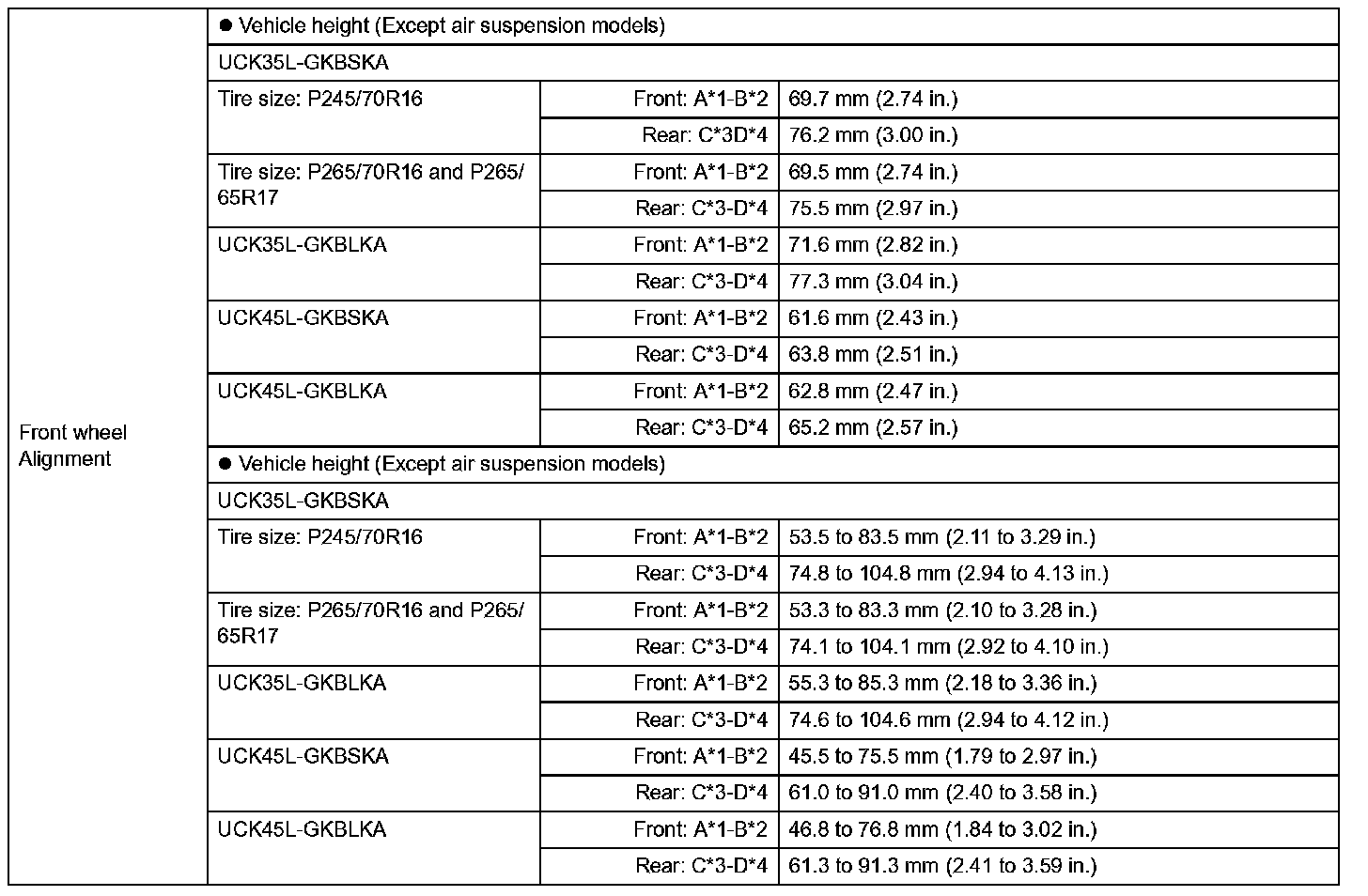

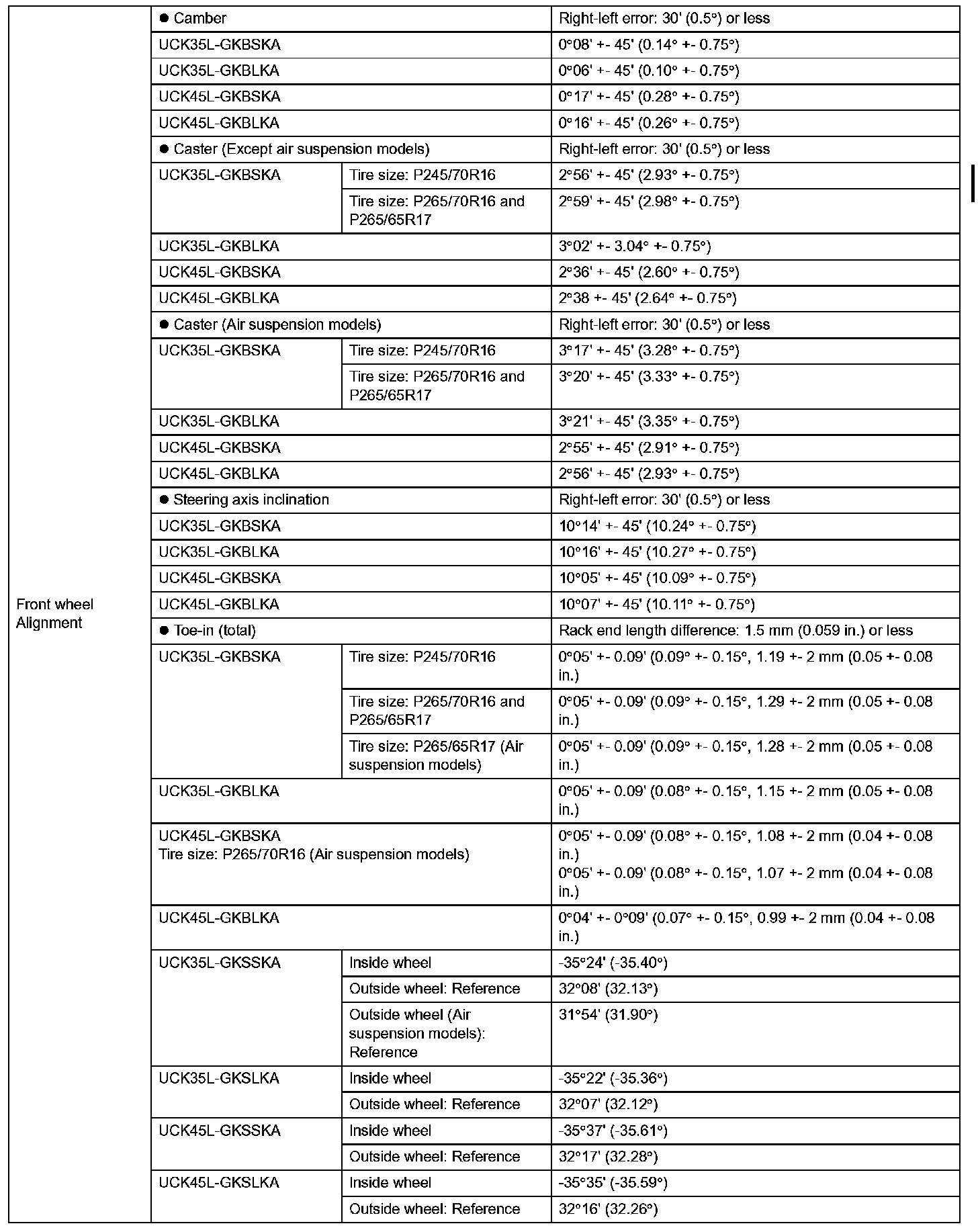

Suspension Service Data:
Suspension Service Data:
Suspension Service Data:
A*1:
Ground clearance of the front drive shaft center
B*2:
Ground clearance of the front adjusting cam bolt center
C*3:
Ground clearance of the rear axle shaft center
D*4:
Ground clearance of the rear lower control arm front bolt center
