Driver Side Door Jam Protection Limit Switch Circuit

Driver Side Door Jam Protection Limit Switch Circuit

DESCRIPTION
The jam protection limit switch, built in the driver side power window motor, turns off before top dead center. The ECU reads this "OFF" signal and fully closes the window.

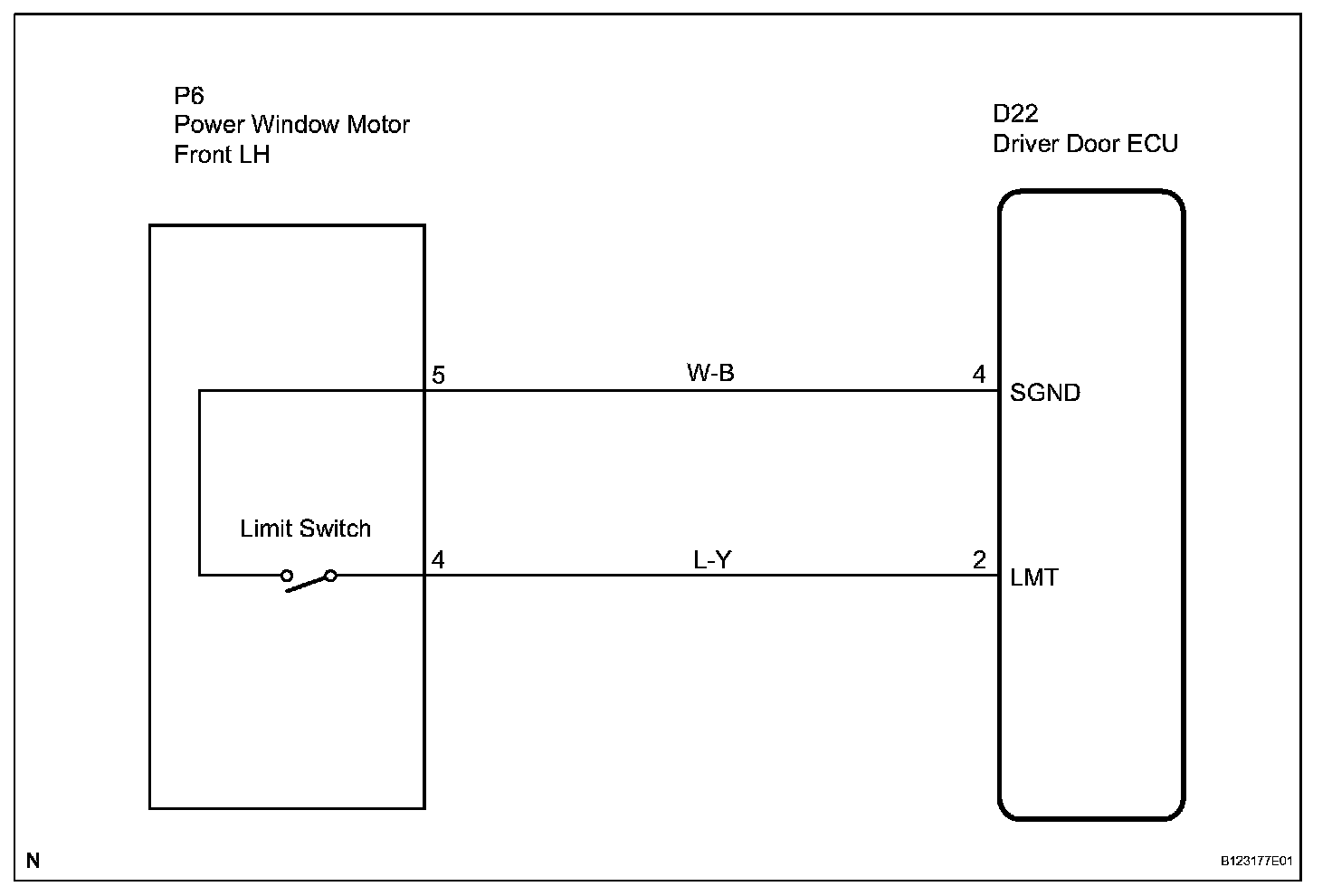

Wiring Diagram:

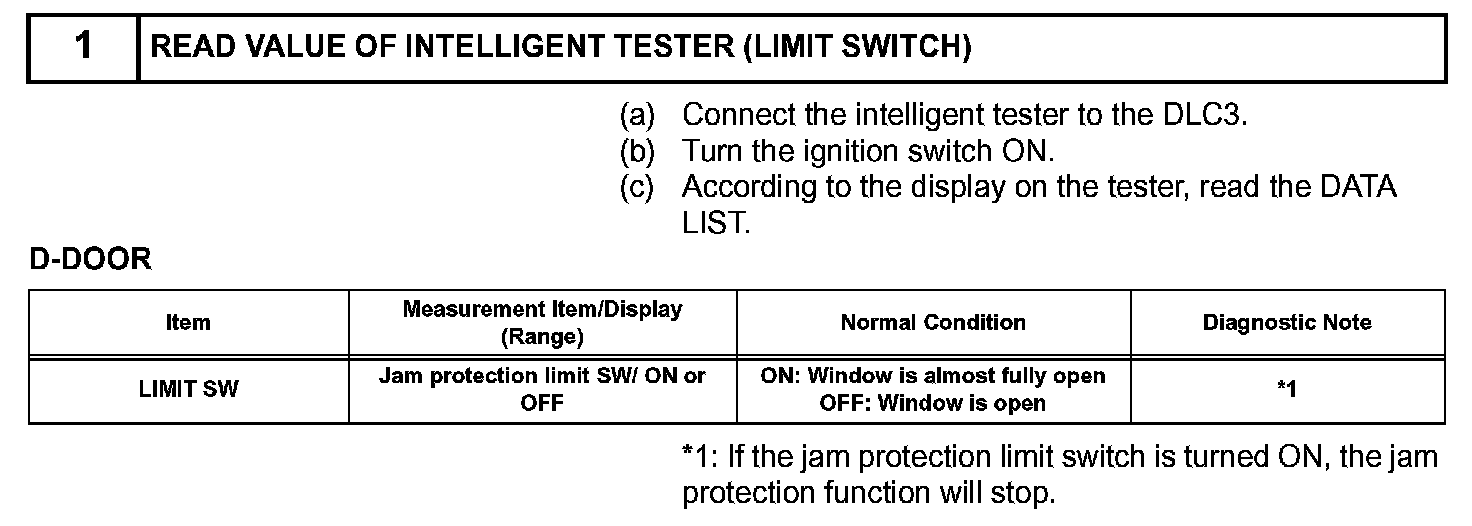

Step 1:

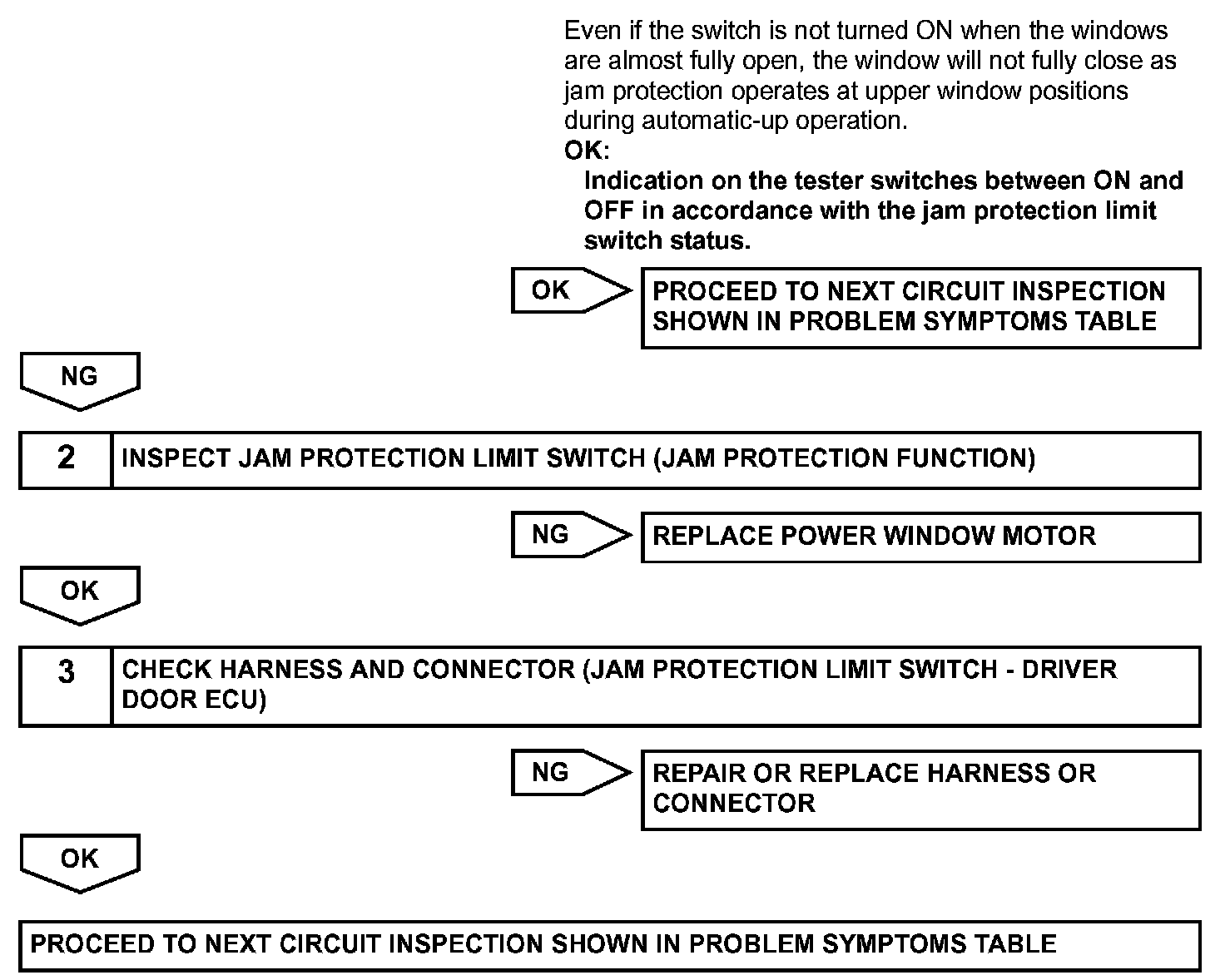

Step 1(Continued)-3:




INSPECTION PROCEDURE

HINT: When using the intelligent tester, start the inspection from step 1 and when not using the intelligent tester, start from step 2.
