Cranking Holding Function Circuit
Cranking Holding Function CircuitDESCRIPTION
The system detects the ignition switch's starting signal (STSW) and then supplies current to the starter until the ECM judges that the engine has started successfully. The purpose is to reduce the holding time of the ignition key.
Wiring Diagram:
Step 1:

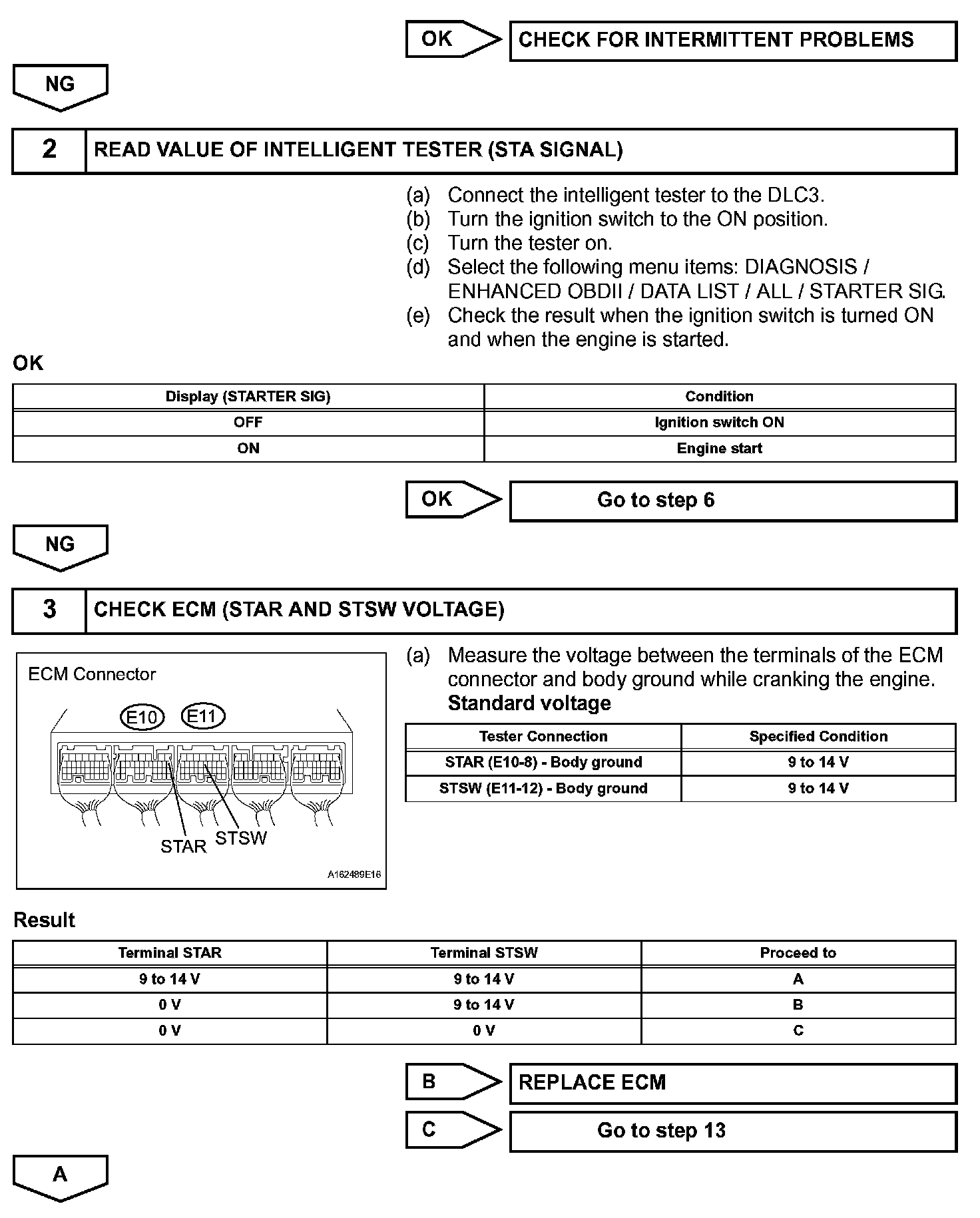

Step 1(Continued)-3:

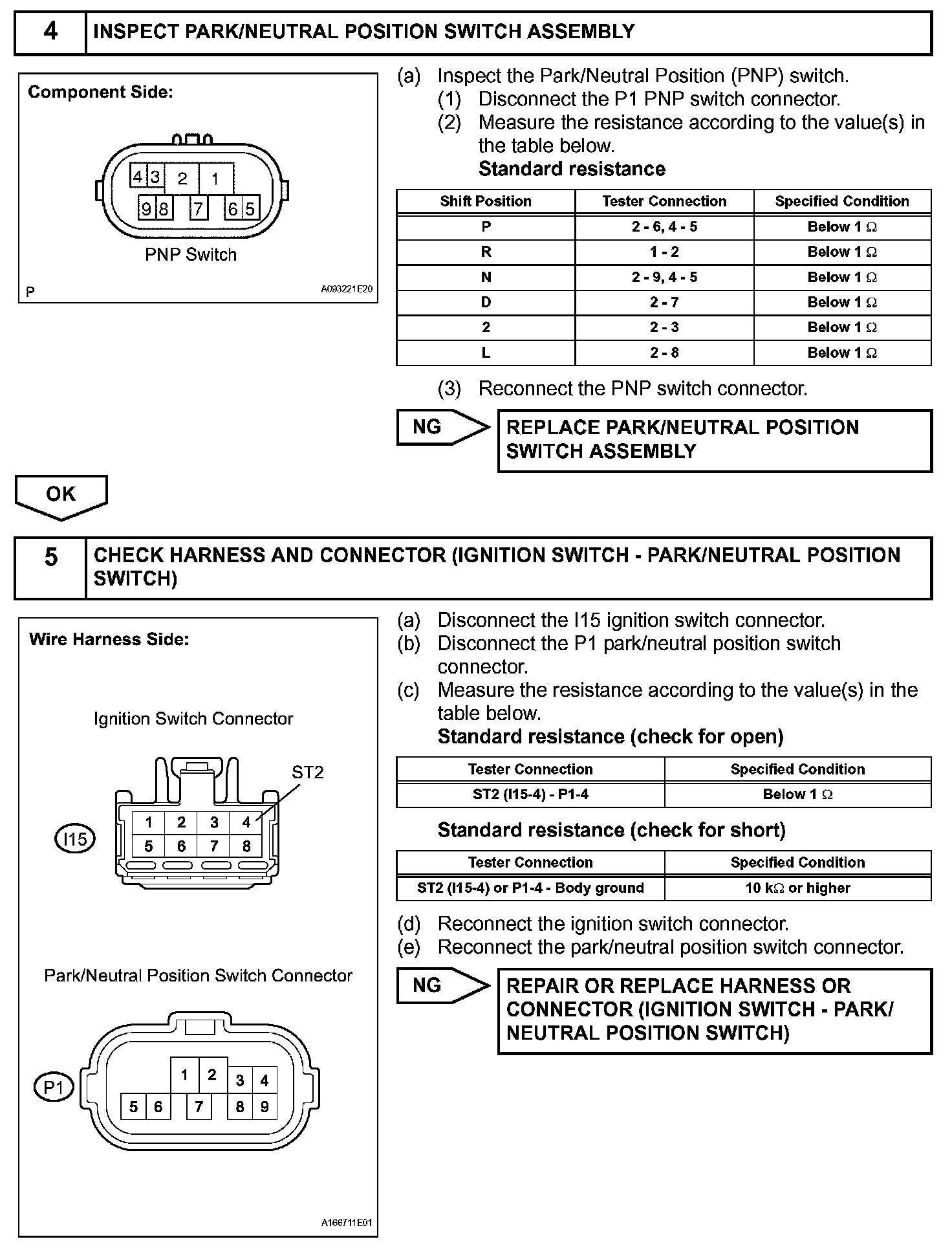

Step 4-5:

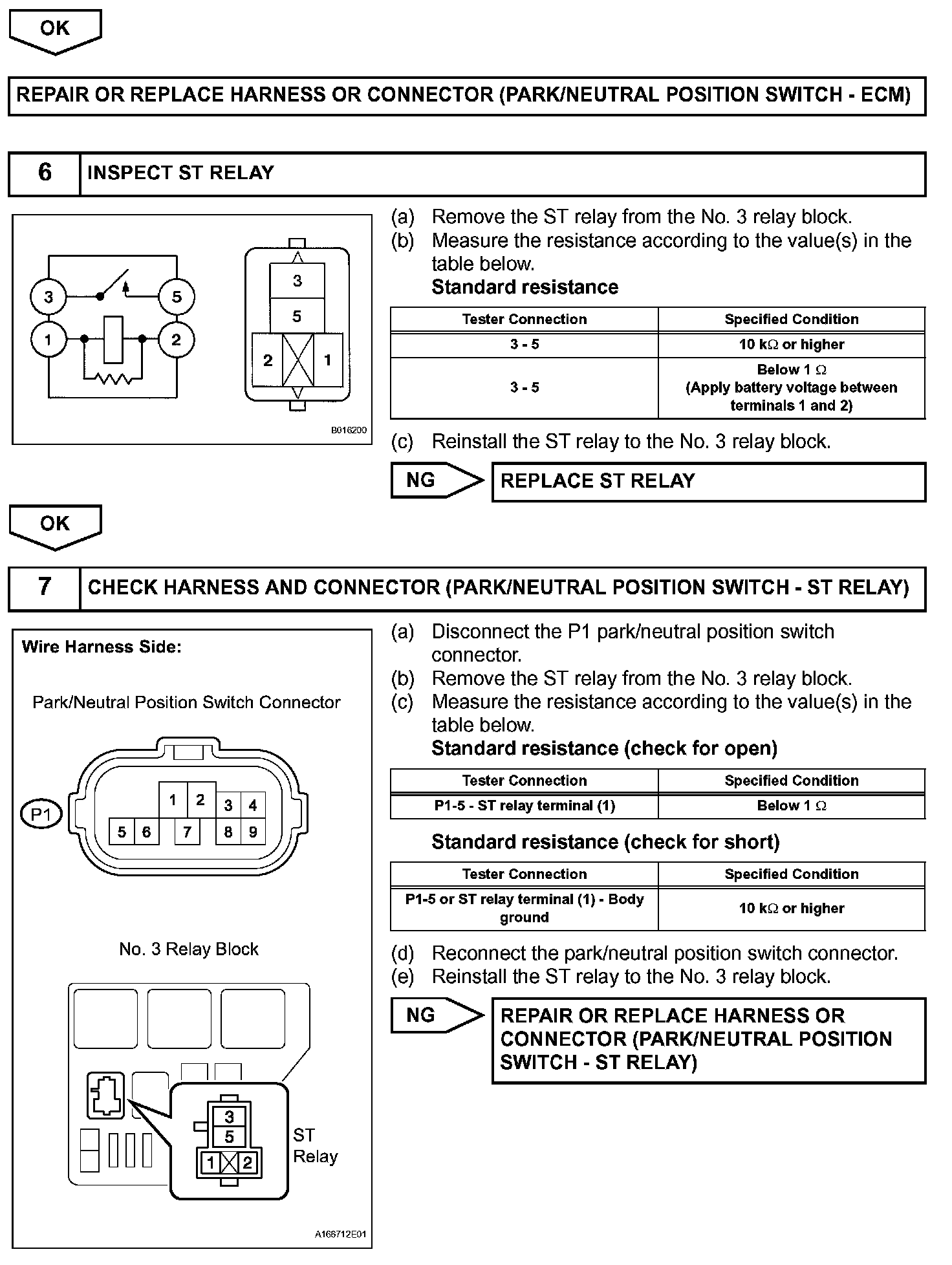

Step 5(Continued)-7:

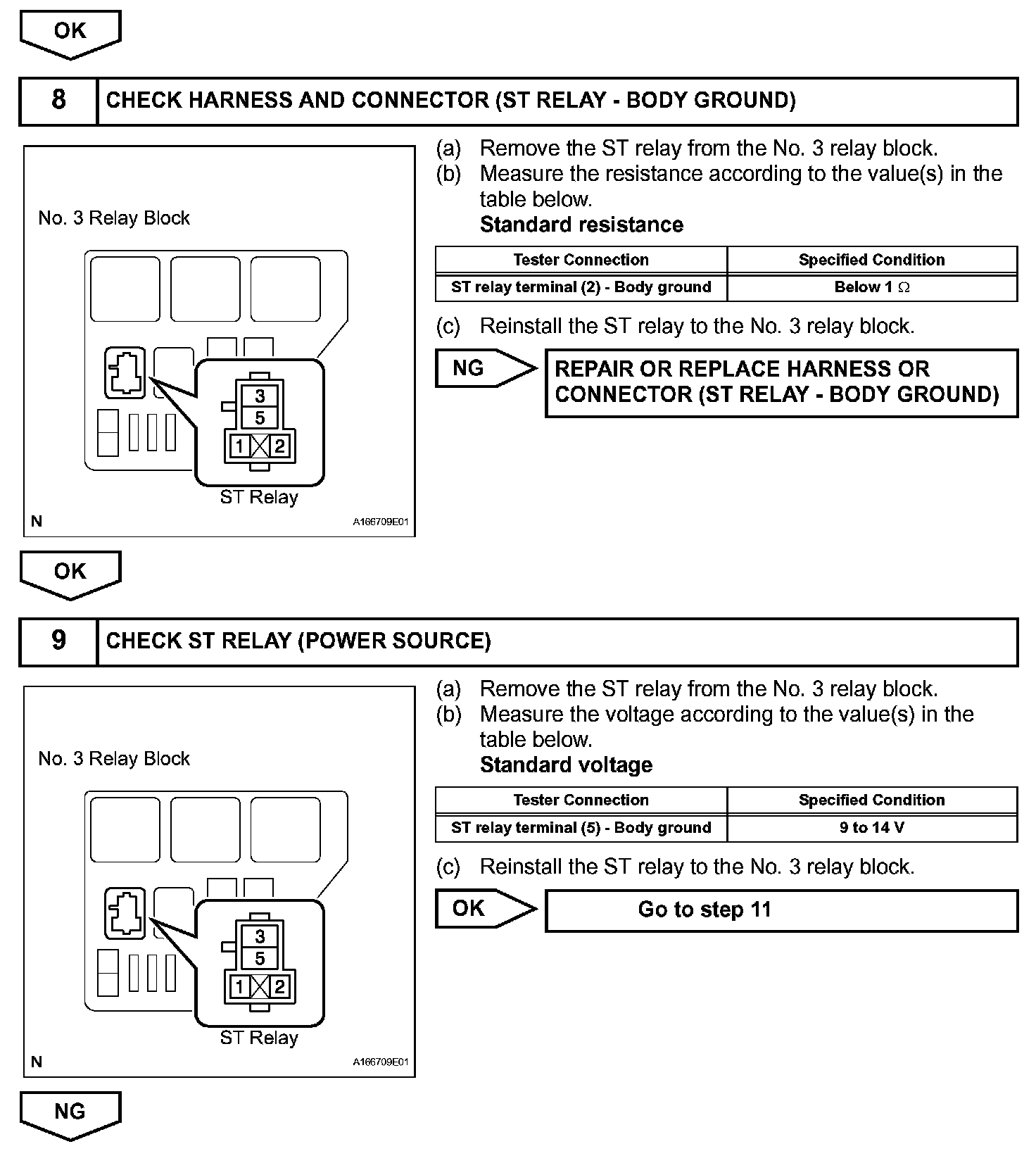

Step 7(Continued)-9:

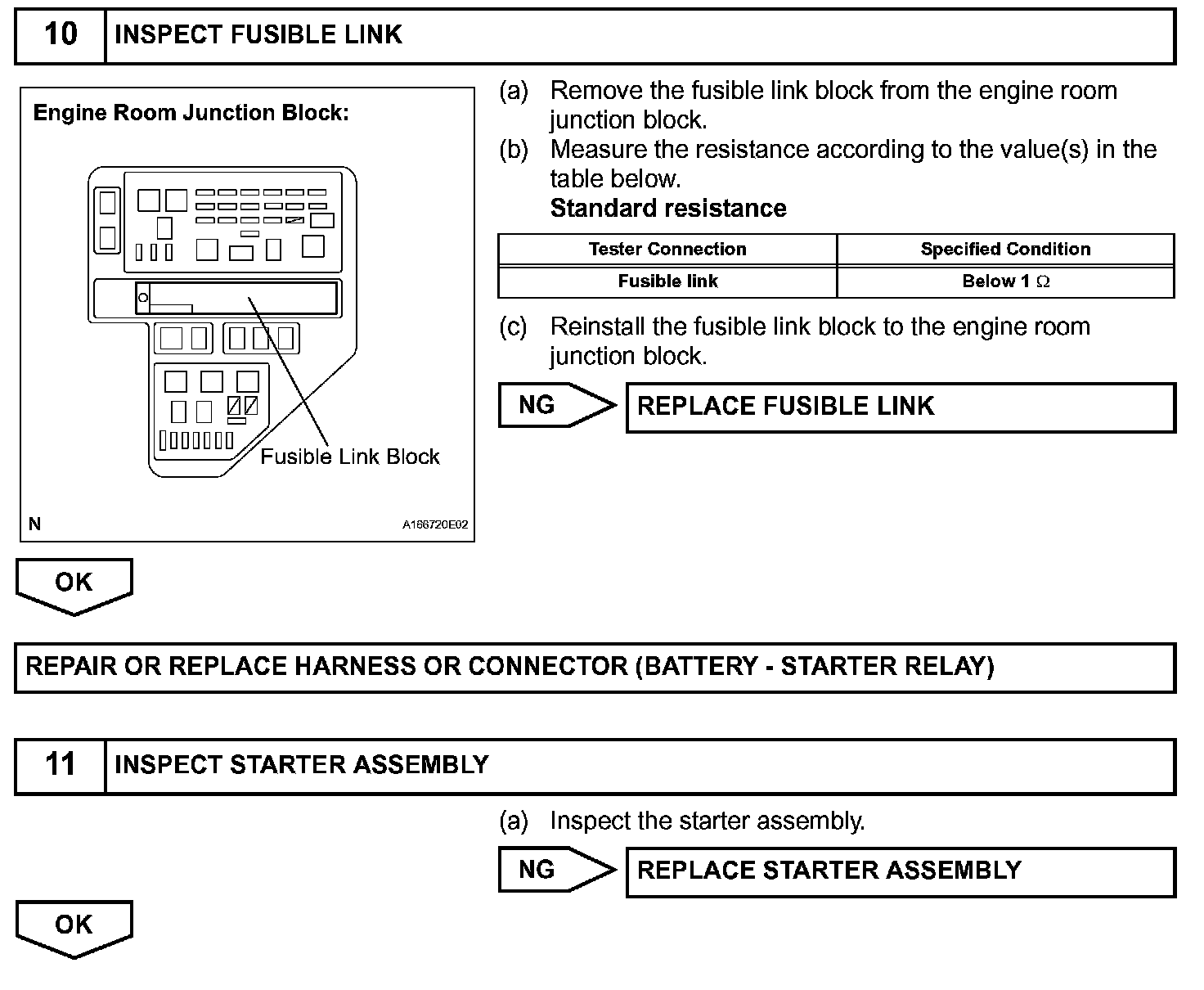

Step 10-11:

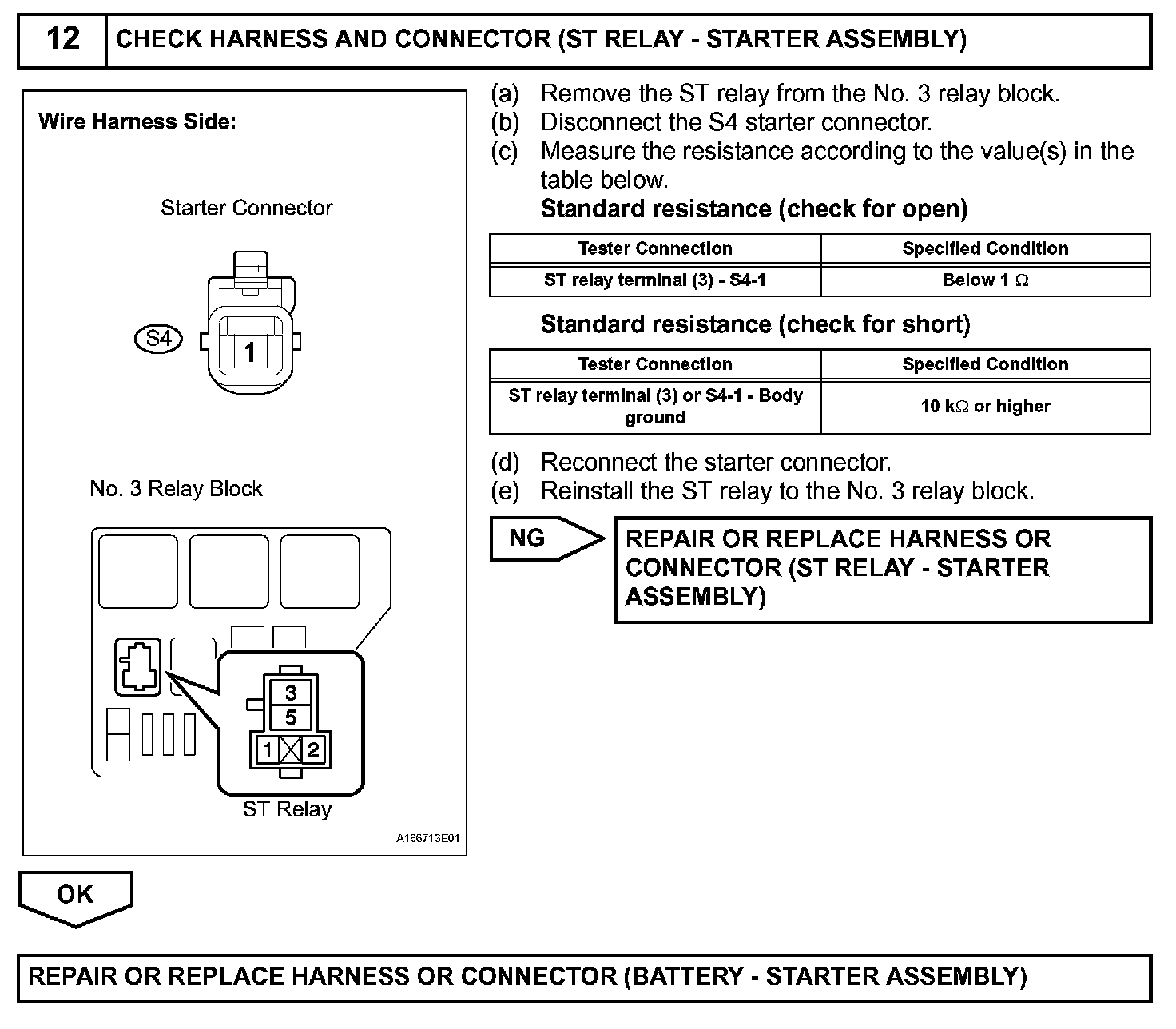

Step 12:

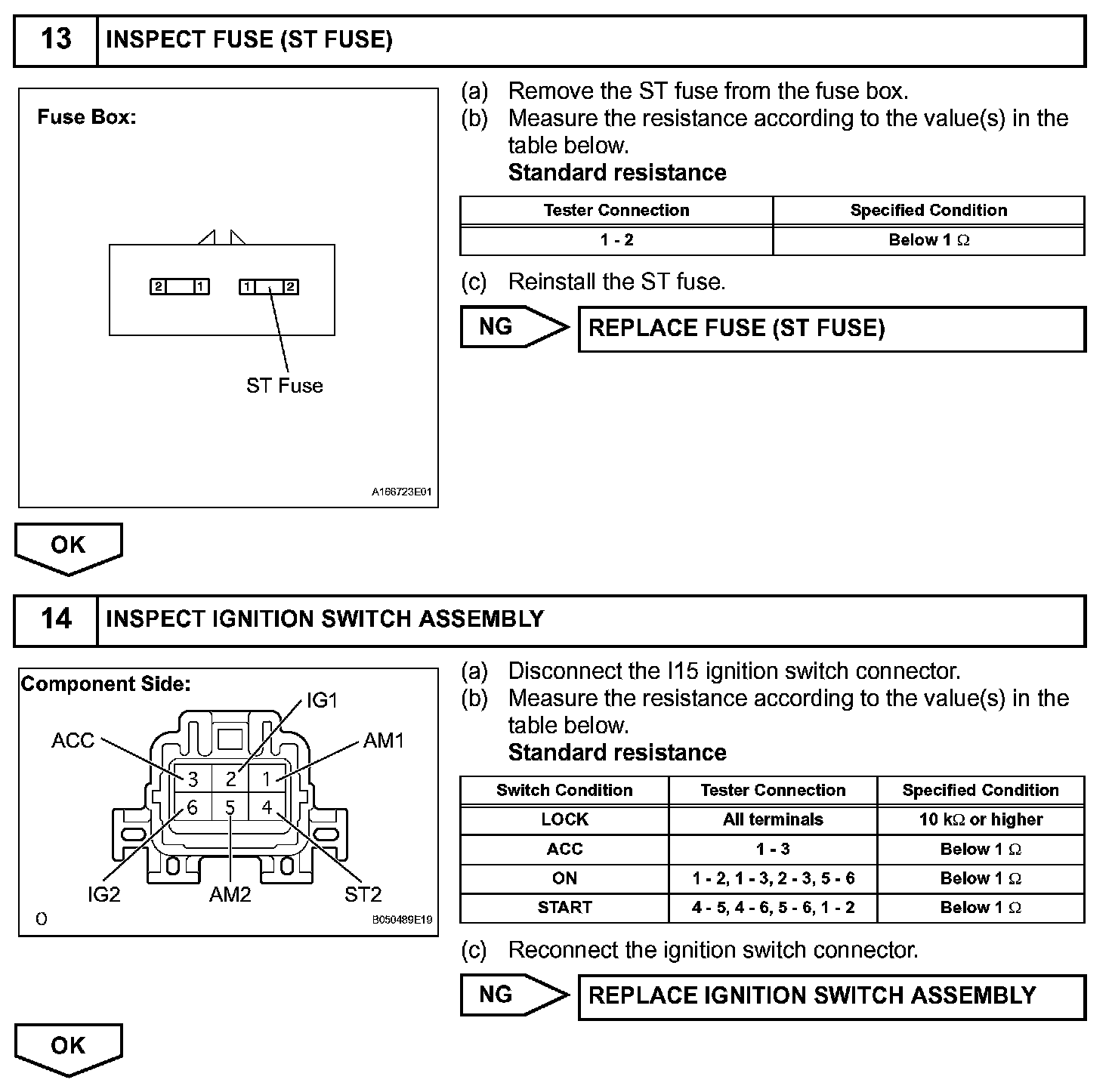

Step 13-14:

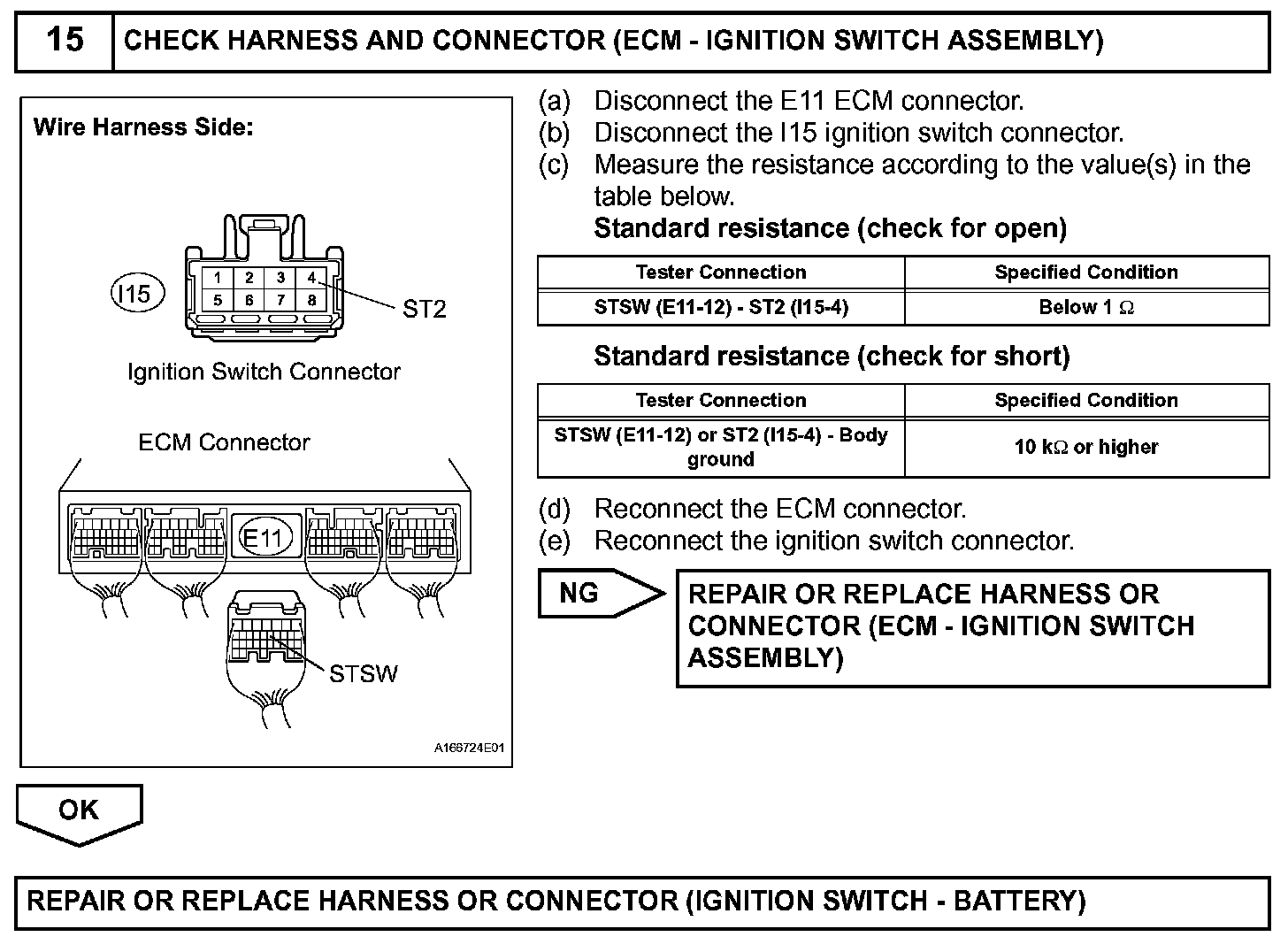

Step 15:
INSPECTION PROCEDURE
