Front Speed Sensor

INSPECTION

1. INSPECT FRONT SPEED SENSOR
a. Make sure that there is no looseness at the connector lock part and connecting part of the connector.
b. Disconnect the speed sensor connector.

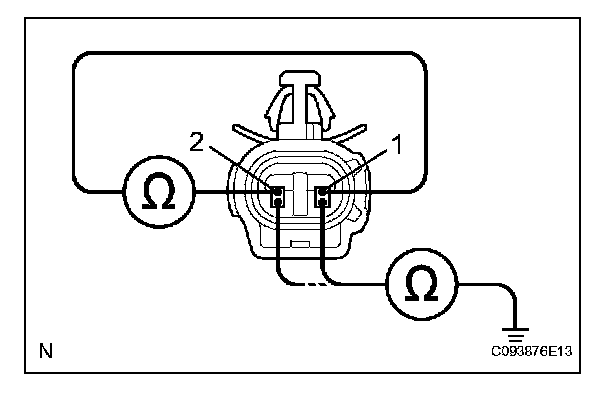

c. Measure the resistance between terminals 1 and 2 of the speed sensor connector.

OK: Resistance: 0.92 to 1.22 K Ohms

d. Measure the resistance between terminals 1 and 2 of the speed sensor connector and body ground.

OK: Resistance: 1mohms or higher
