Timing Cover

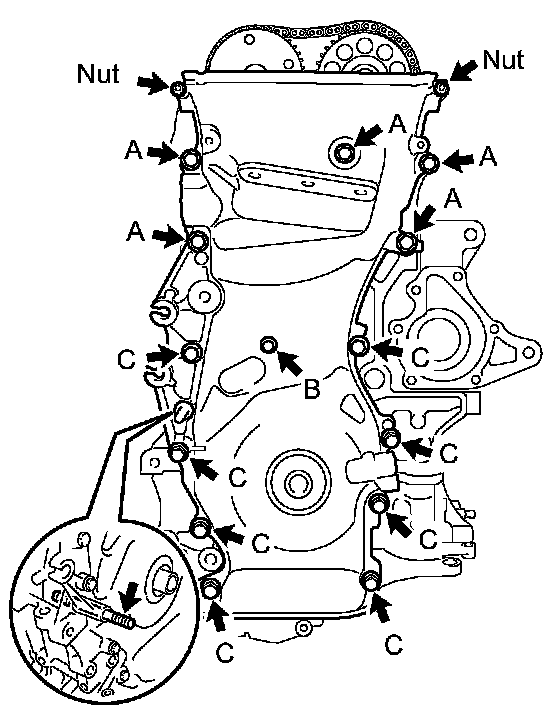

Timing Cover Install the
timing chain cover with the 14 bolts and 2 nuts.
-
Torque:
for bolt A 55 Nm (561 kgf-cm, 41 ft. lbs.)
for bolt B 9.0 Nm (92 kgf-cm, 80 inch lbs.)
for bolt C 25 Nm (255 kgf-cm, 18 ft. lbs.)
for nut 11 Nm (112 kgf-cm, 8 ft. lbs.)
Using an E10 "TORX" socket, install the stud bolt to the
drive belt tensioner.
-
Torque: 22 Nm (220 kgf-cm, 16 ft. lbs.)
