Open in One Side of CAN Sub Bus Line
Open in One Side of CAN Sub Bus LineDESCRIPTION

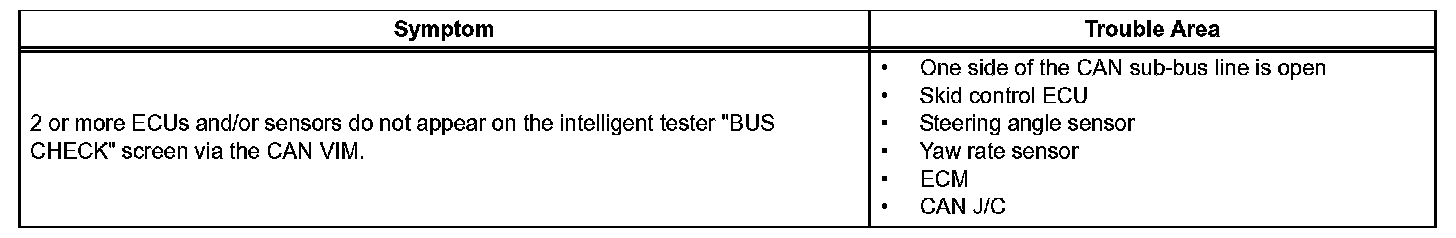

If 2 or more ECUs and/or sensors do not appear on the intelligent tester "BUS CHECK" screen via the CAN VIM , one side of the CAN sub-bus line may be open. (ONE side of the CAN-H [sub-bus line] / CANL [sub-bus line] of the ECU and/or sensor is open.)

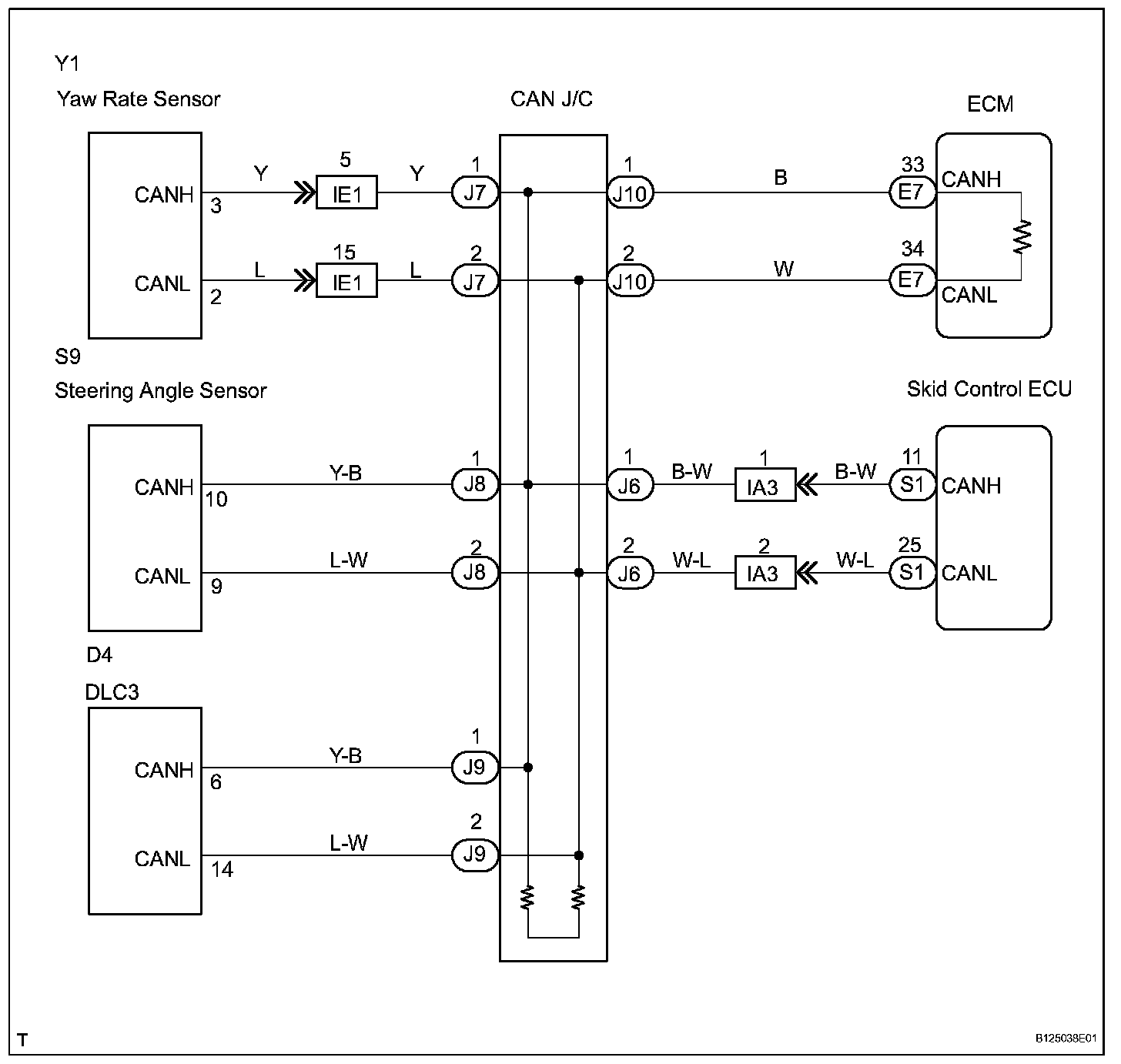

Wiring Diagram:
INSPECTION PROCEDURE

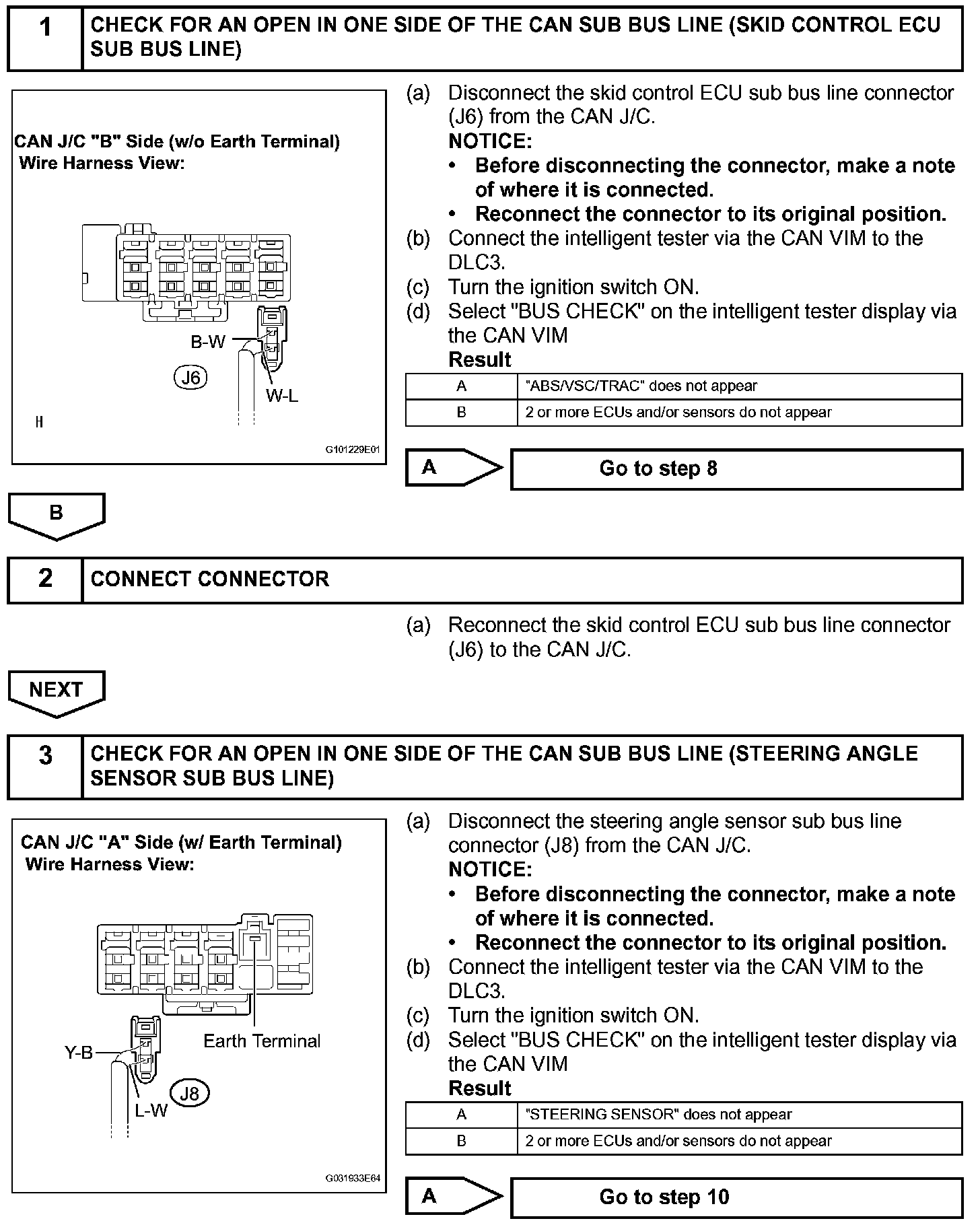

Step 1-3:

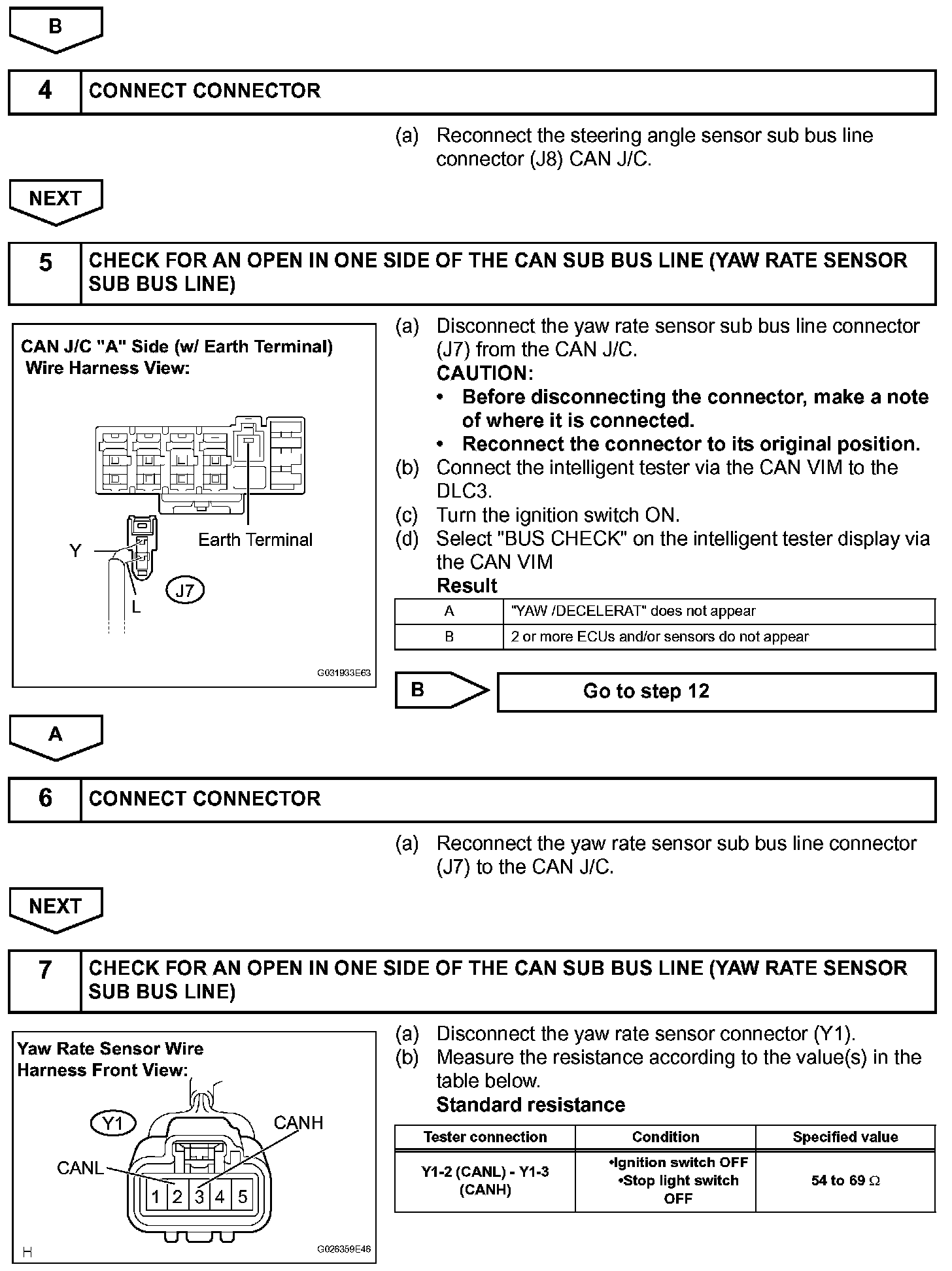

Step 3(Continued)-7:
Step 7(Continued)-10:

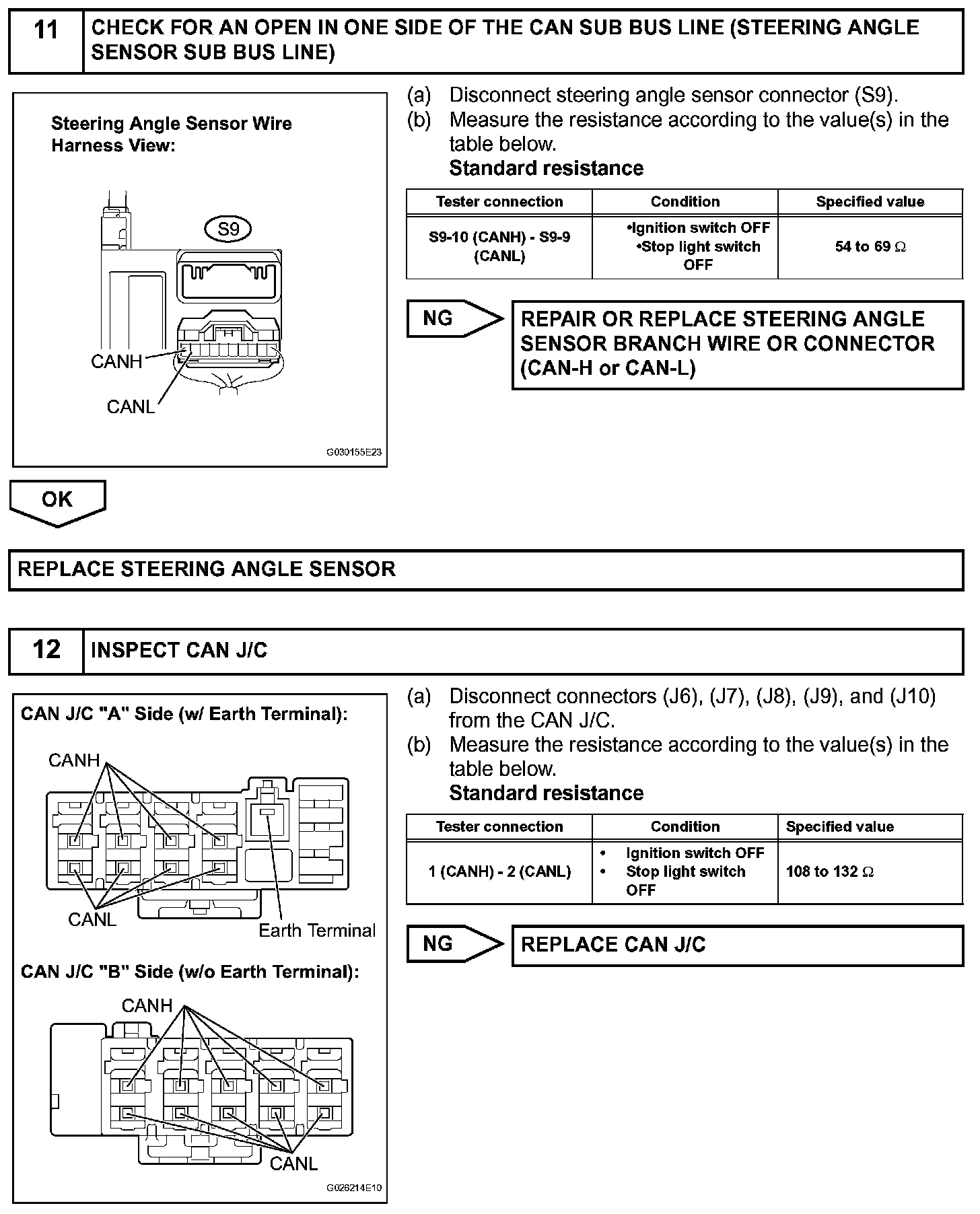

Step 11-12:

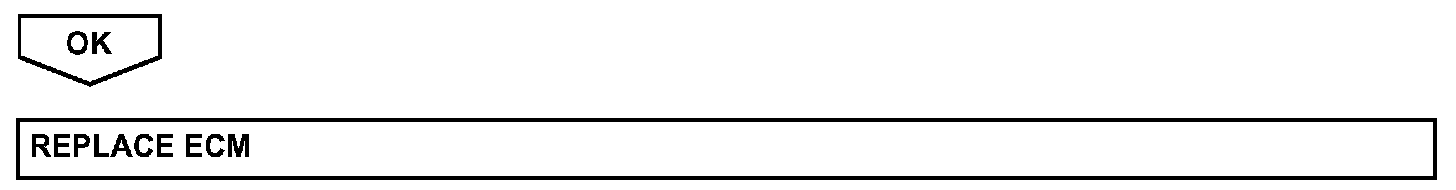

Step 12(Continued):
