Key Reminder Warning System
TERMINALS OF ECU 1.

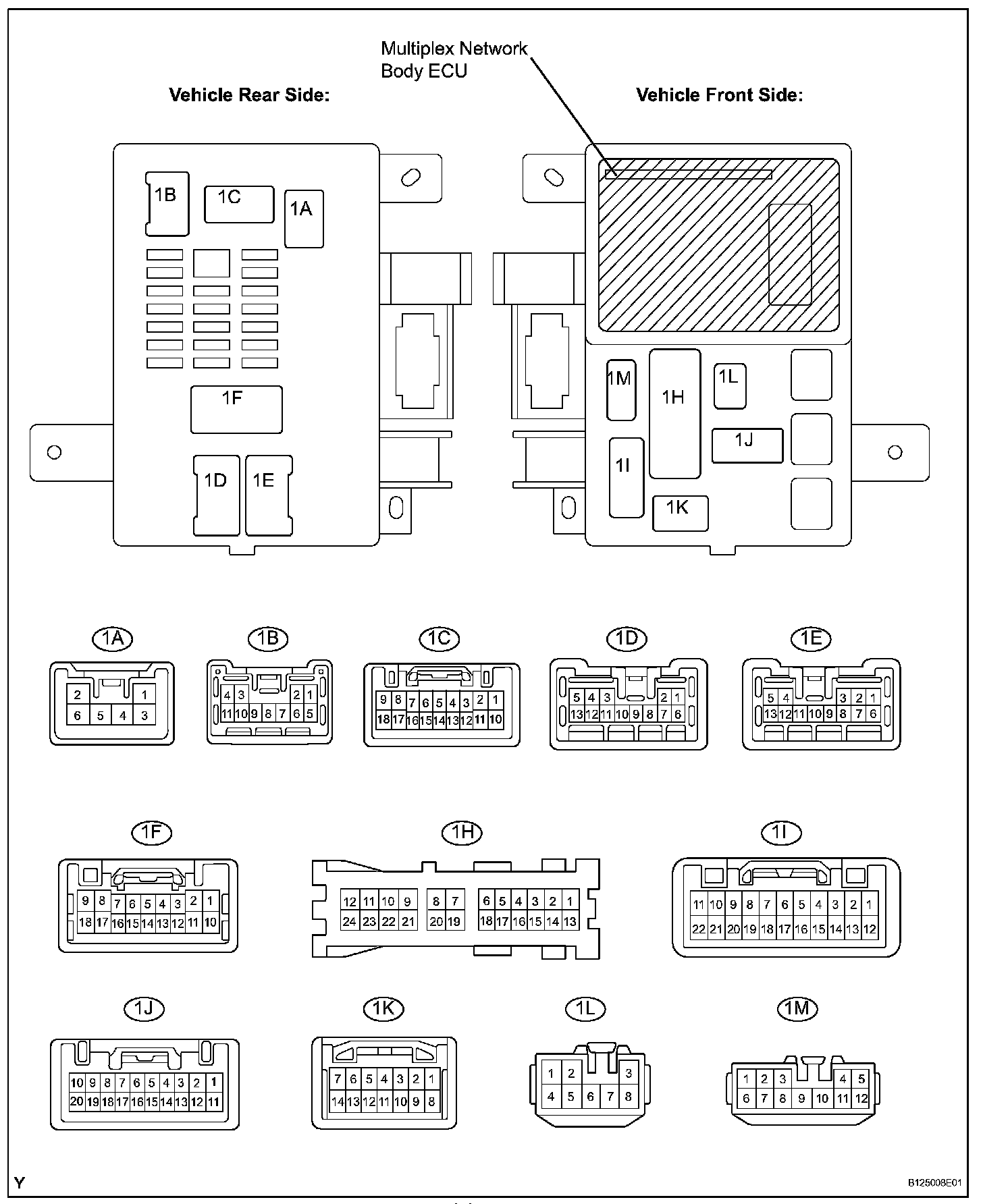

CHECK DRIVER SIDE J/B (MULTIPLEX NETWORK BODY ECU)
a.
Disconnect the 1A, 1H, 1F and 1K connectors.
b.
Measure the voltage and resistance between each terminal of the wire harness side connectors.
HINT: If the result is not as specified, there may be a malfunction on the wire harness side.
