No Answer-Back
No Answer-Back DESCRIPTION In some cases, wireless control functions are normal but the hazard warning light answer-back function is not. In such a case, the multiplex network body ECU hazard warning light signal output may be malfunctioning.
Wiring Diagram:
INSPECTION PROCEDUREStep 1:

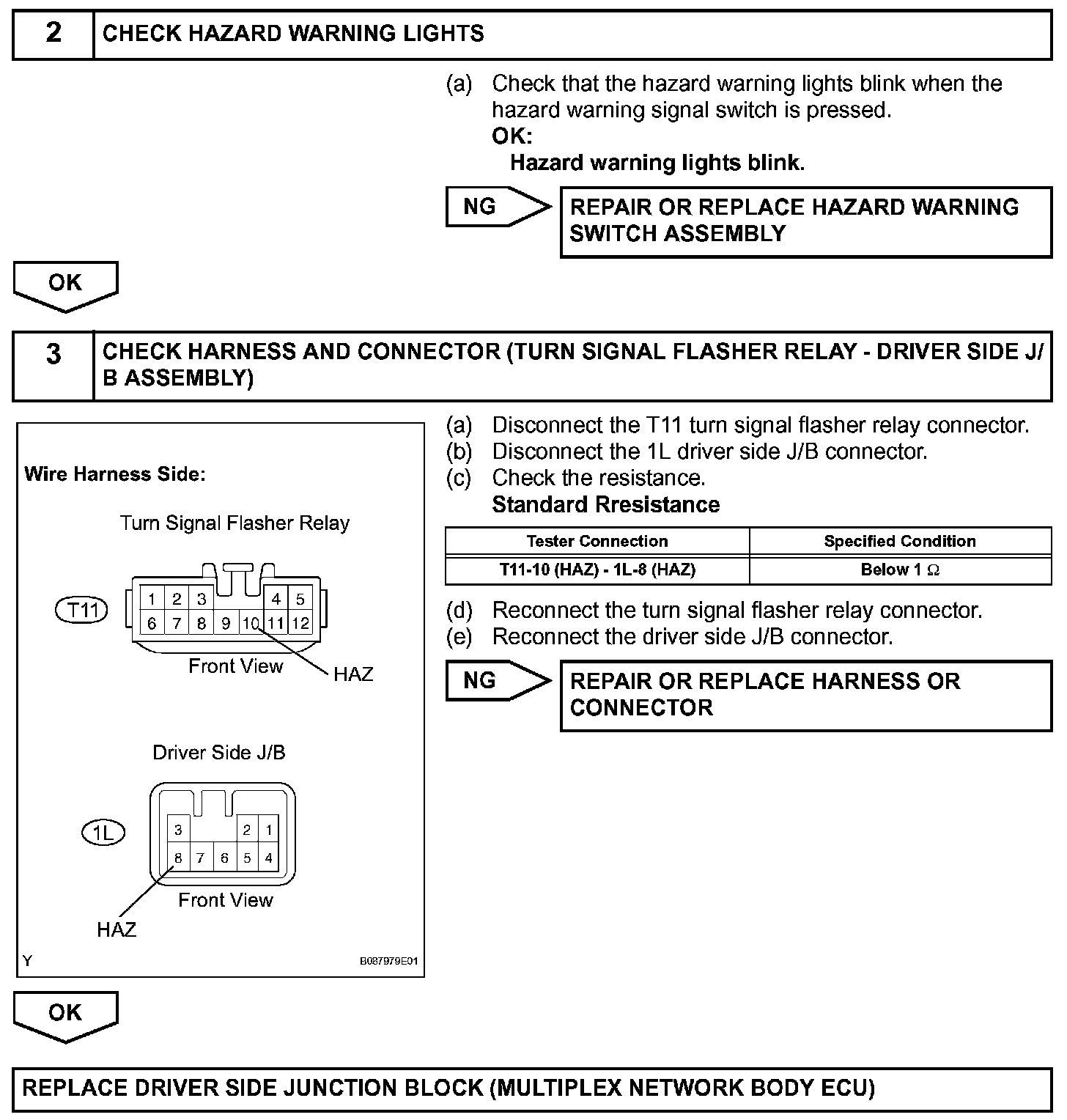

Step 2-3:
