Inner Rear View Mirror

INNER REAR VIEW MIRROR

Inner Rear View Mirror:

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (w/ EC Mirror)

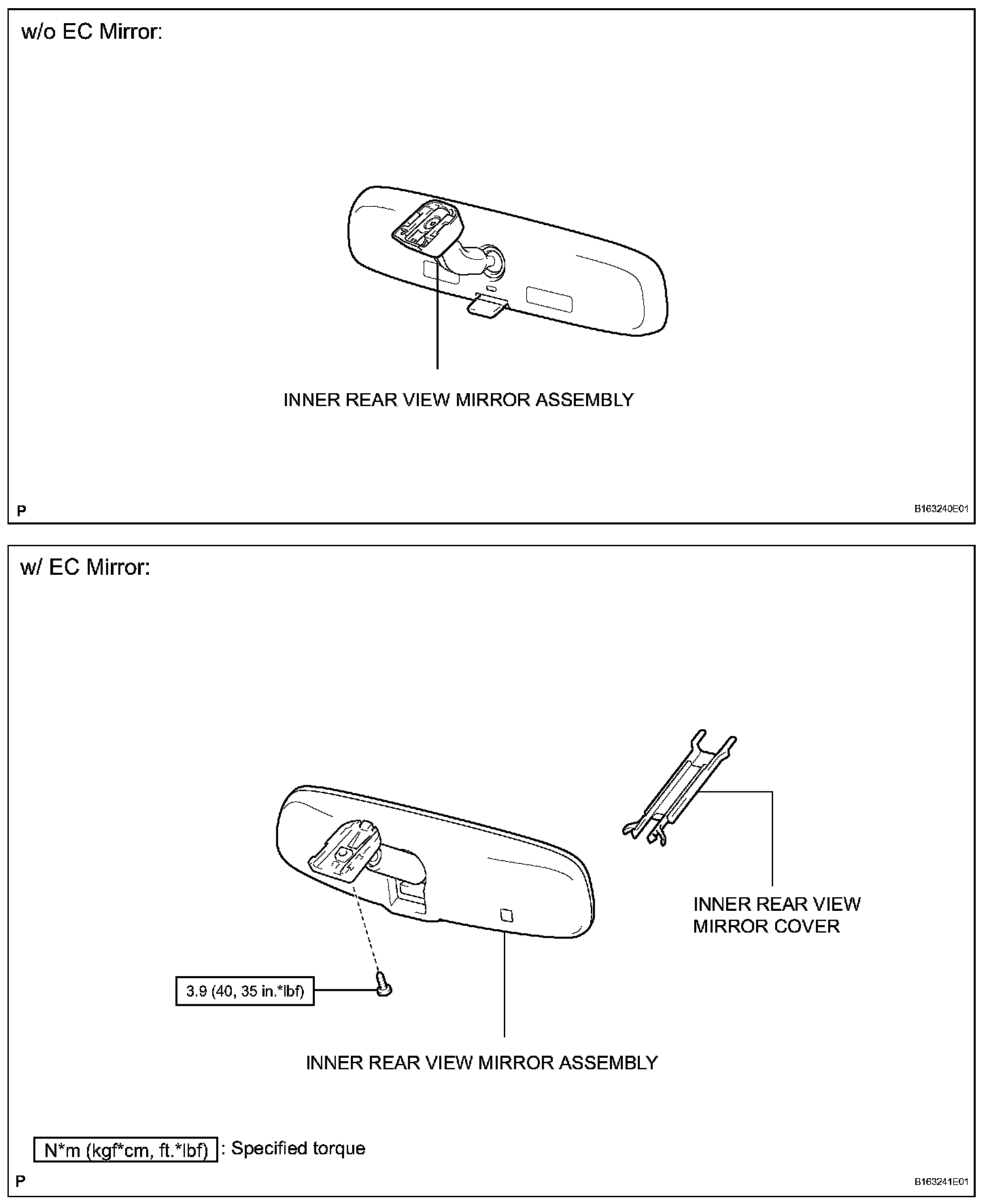

2. REMOVE INNER REAR VIEW MIRROR ASSEMBLY

a. w/o EC Mirror:





1. Pinch the cover and detach the 2 claws. Then remove the cover.





2. Push the lever, and slide and remove the inner rear view mirror.

b. w/ EC Mirror.





1. Slide the inner rear view mirror cover.
2. Detach the 2 claws and remove the inner rear view mirror cover.





3. Disconnect the EC mirror connector.
4 Using a T20 "TORX" socket wrench, remove the screw and the inner rear view mirror.

INSTALLATION

1. INSTALL INNER REAR VIEW MIRROR ASSEMBLY





a. w/o EC Mirror:
1. Slide and install the inner rear view mirror.
2. Attach the 2 claws to install the cover.

b. w/ EC Mirror:
1. Using a T20 "TORX" socket wrench, install the inner rear view mirror with the screw.

Torque: 3.9 N.m (40 kgf.cm, 35 in.lbf)

2. Connect the EC mirror connector.
3. Attach the 2 claws to install the inner rear view mirror cover.
4 Slide the inner rear view mirror cover.

2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (w/ EC Mirror)
