Removal and Replacement

Air Conditioning Control Assembly:





REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL




2. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

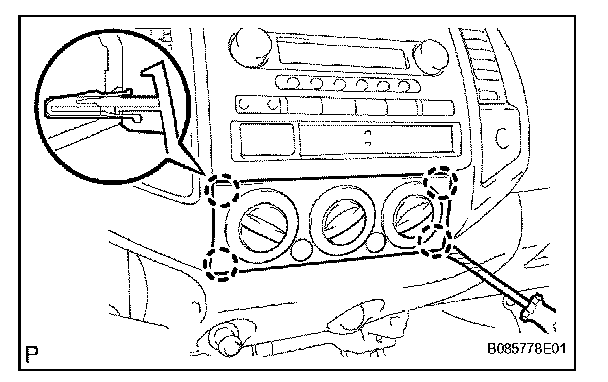

a. Using a screwdriver, disengage the 4 clips and remove the air conditioner control assembly.

HINT: Tape up the screwdriver tip before use.

b. Disconnect the 2 connectors.

INSTALLATION




1. INSTALL AIR CONDITIONING CONTROL ASSEMBLY
a. Connect the 2 connectors.
b. Engage the 4 clips and install the air conditioning control assembly.

2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 3.9 N.m (40 kgf.cm, 35 in.lbf)
