Power Outlet Socket

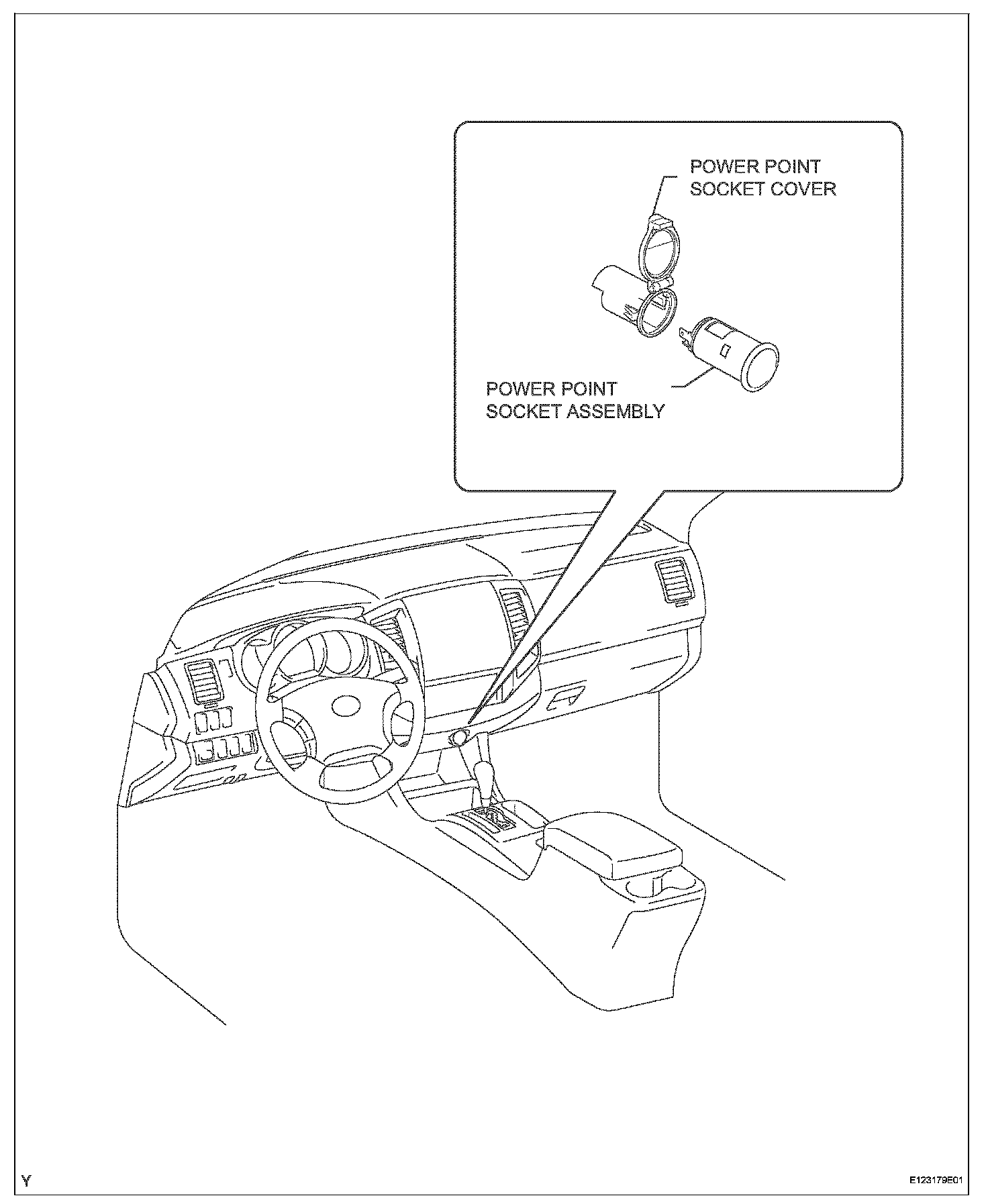

Power Point Socket:

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE POWER OUTLET SOCKET ASSEMBLY




a. Using a Torx socket wrench T30, remove the 4 screws.




b. Disconnect the connector.
c. Remove the clamp and the power outlet socket assembly.

INSTALLATION

1. INSTALL POWER OUTLET SOCKET ASSEMBLY




a. Install the clamp.
b. Connect the connector.




c. Using a Torx socket wrench T30, install the 4 screws and the power outlet socket assembly.

Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)

NOTE: Install the screws in the order shown the illustration.

2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 3.9 N.m (40 kgf.cm, 35 in.lbf)
