Short in CAN Bus Lines
Short in CAN Bus Lines
DESCRIPTION The CAN bus lines are considered to be shorted when the resistance between terminals 6 (CANH) and 14 (CANL) of the
DLC3 is
below 54 Ohms.
Wiring Diagram:

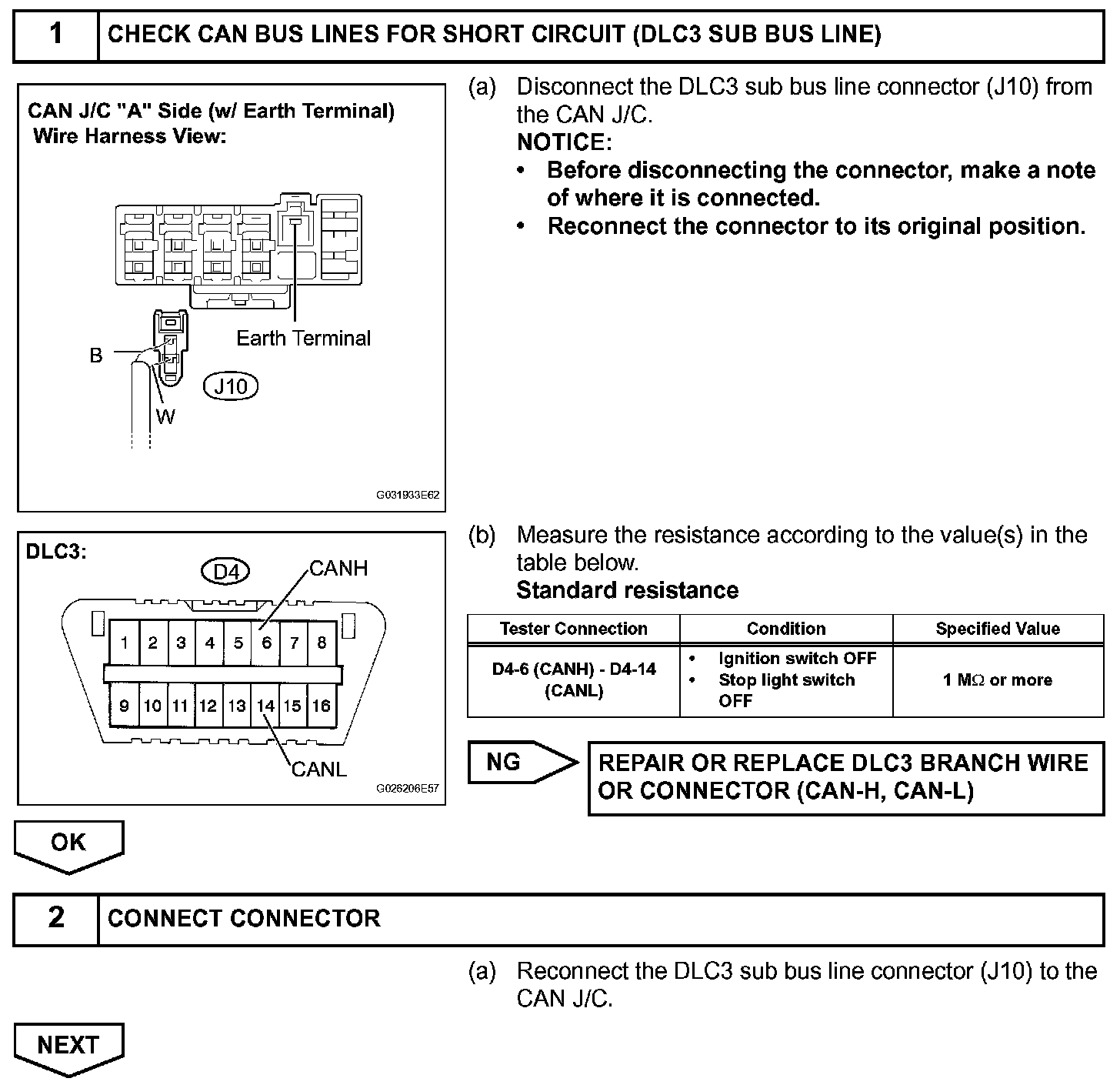

INSPECTION PROCEDUREStep 1-2:

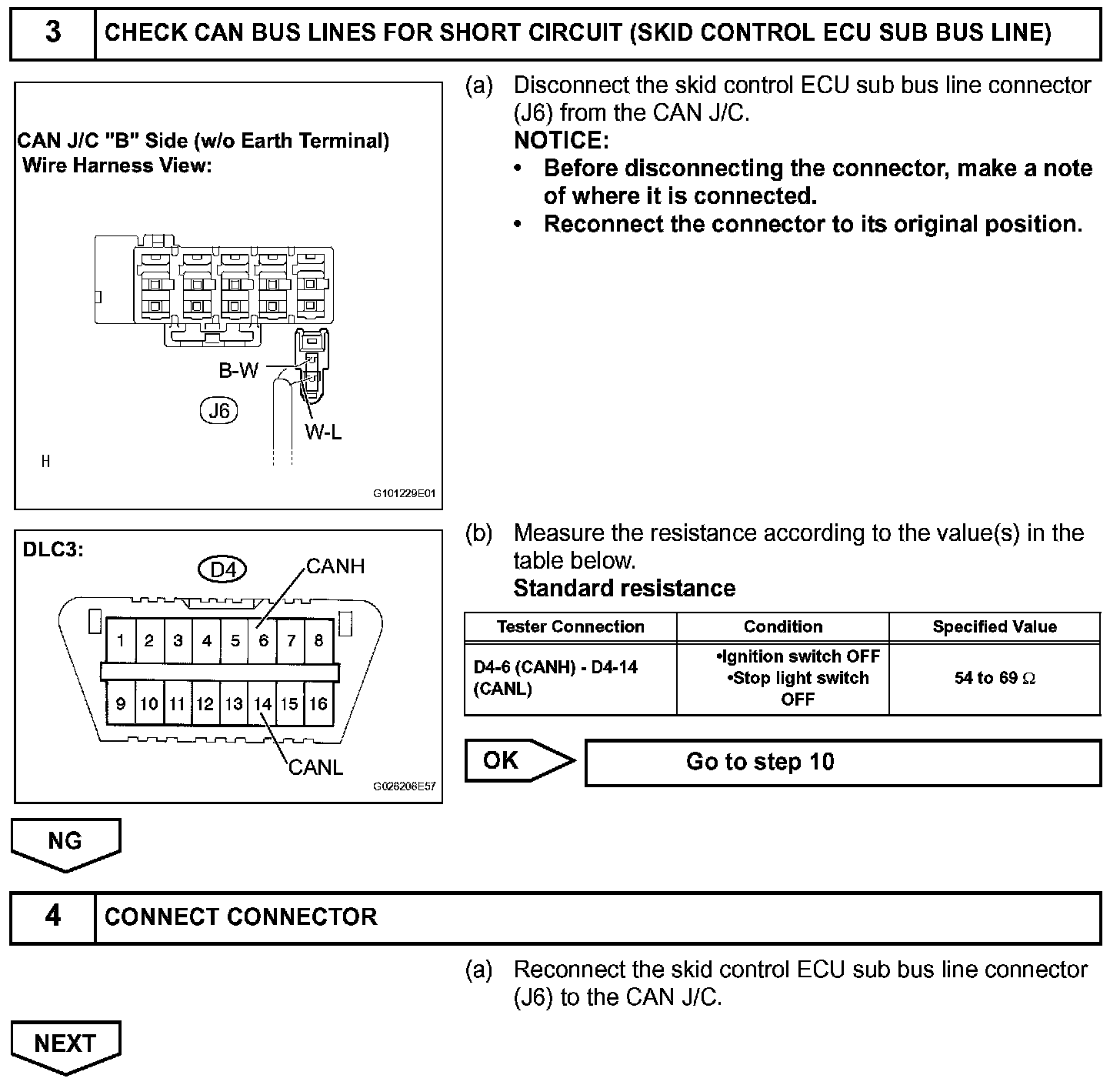

Step 3-4:

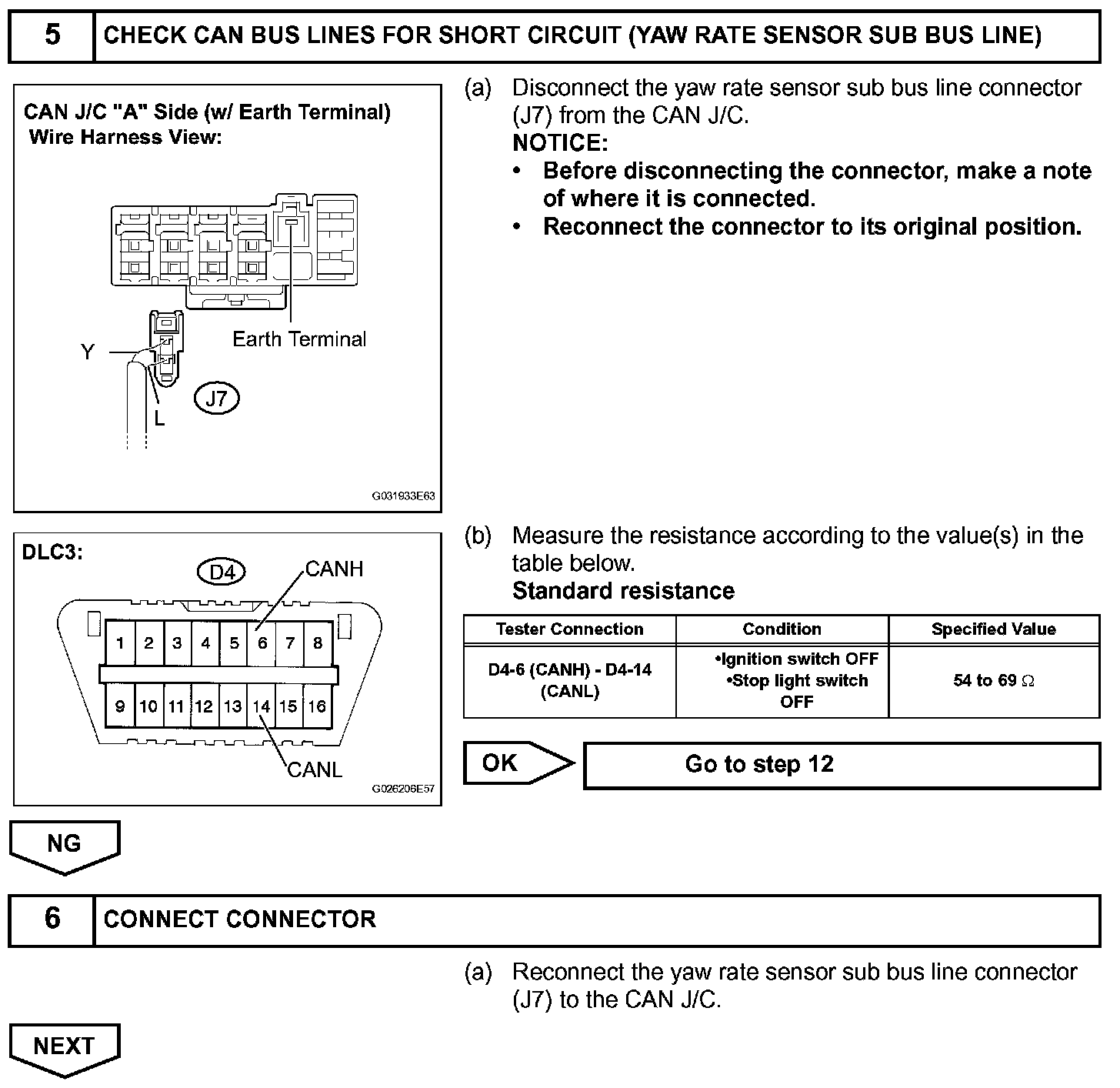

Step 5-6:

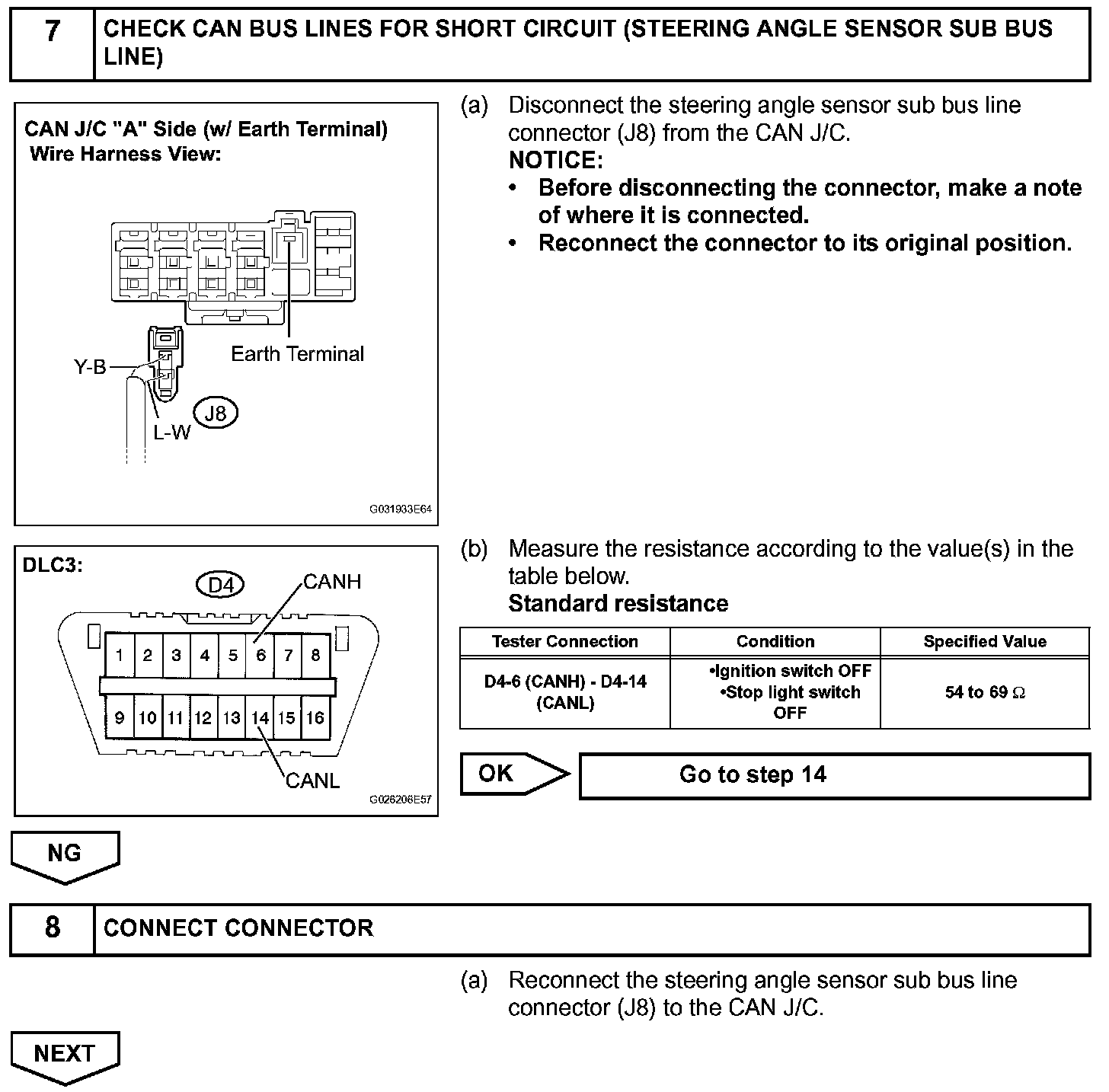

Step 7-8:

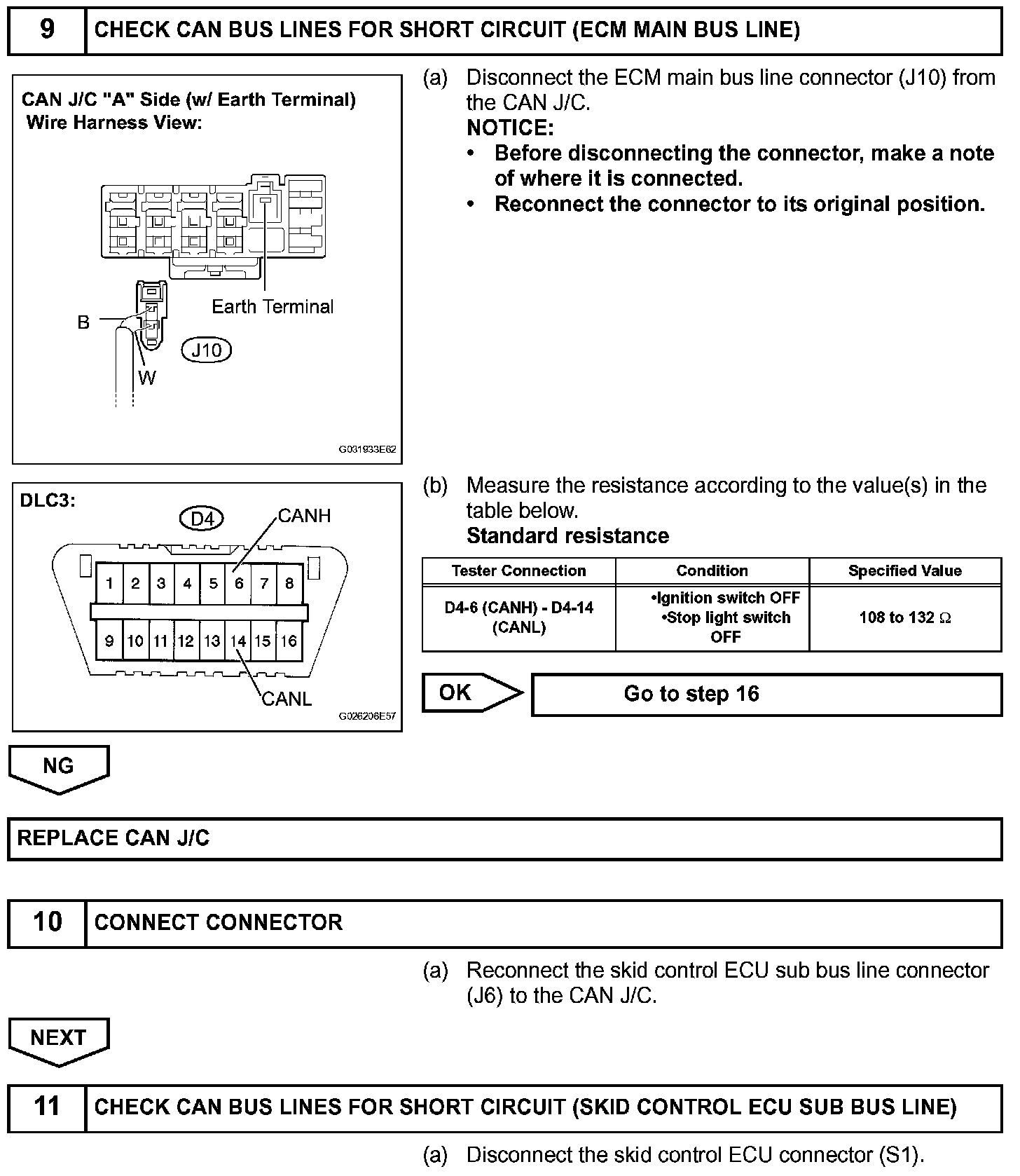

Step 9-11:

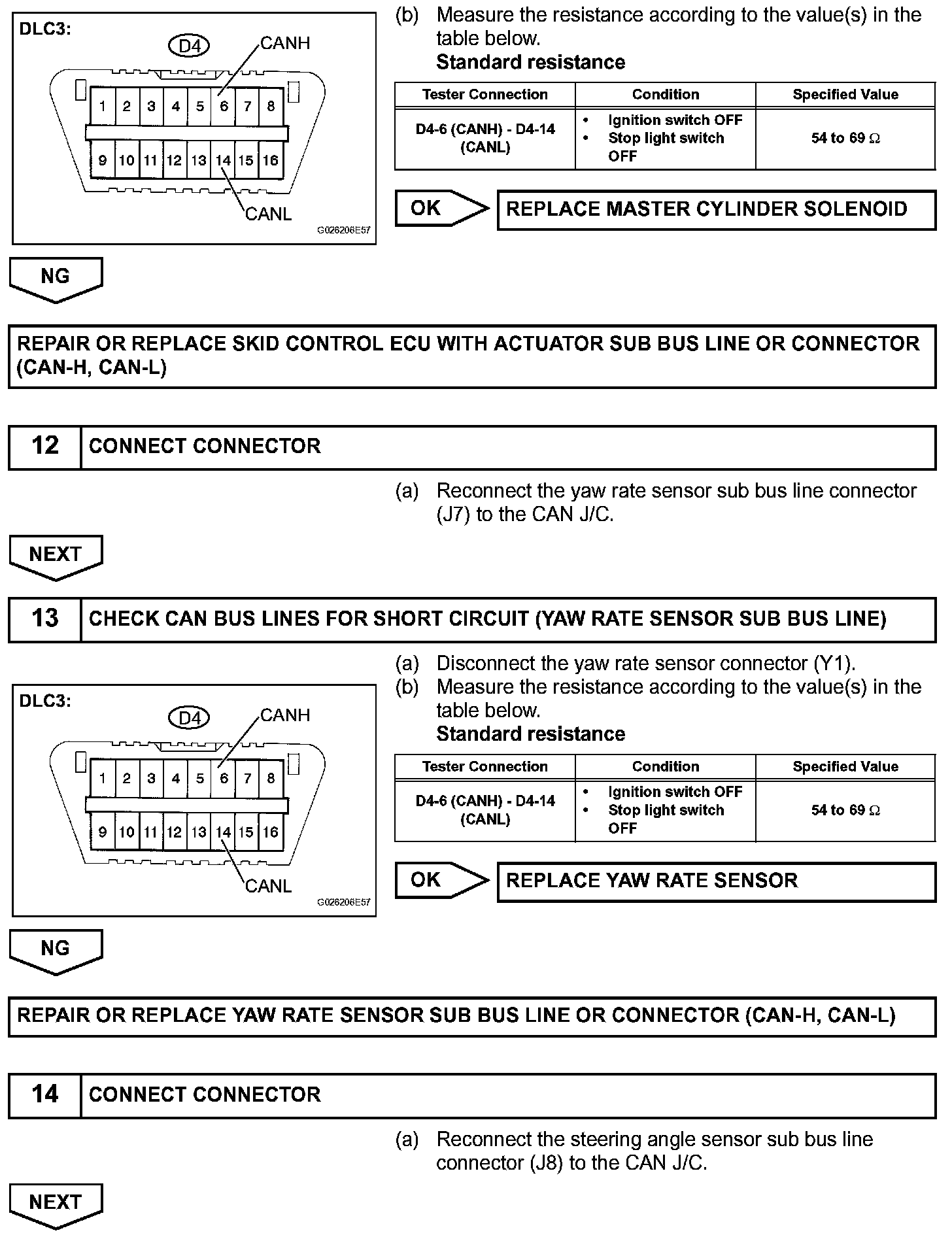

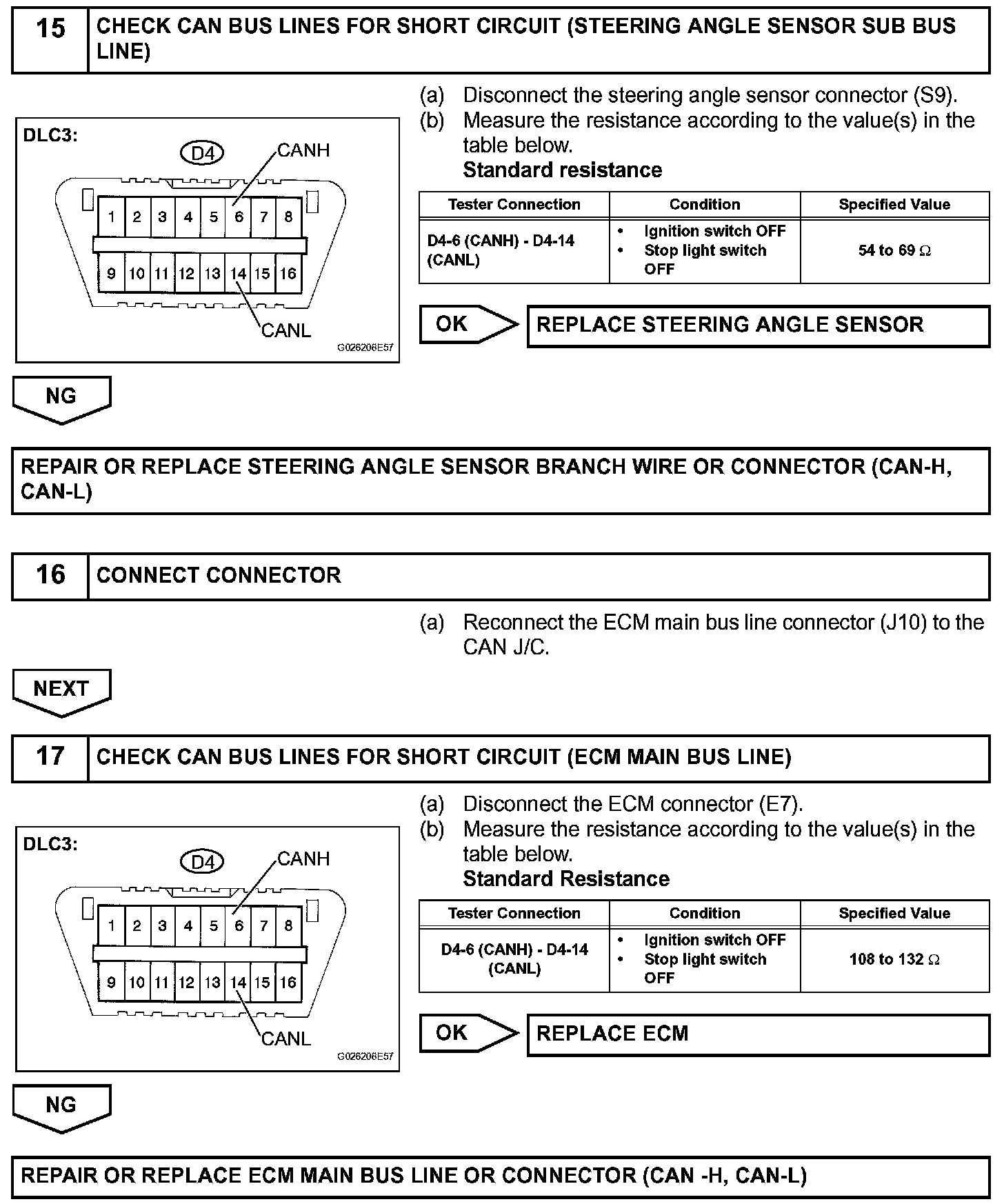

Step 11(Continued)-14:
Step 15-17:
