Scan Tool Testing and Procedures

DATA LIST

HINT: By accessing the DATA LIST displayed on the intelligent tester, you can perform such functions as reading the values of switches and sensors without removing any parts. Reading the DATA LIST is the first step of troubleshooting and is one method to shorten labor time.

1. DATA LIST FOR CENTER AIRBAG SENSOR ASSEMBLY

a. Connect the intelligent tester to the DLC3.
b. Turn the ignition switch to the ON position and turn the tester on.
c. Follow the display on the tester screen to enter the "DATA LIST".

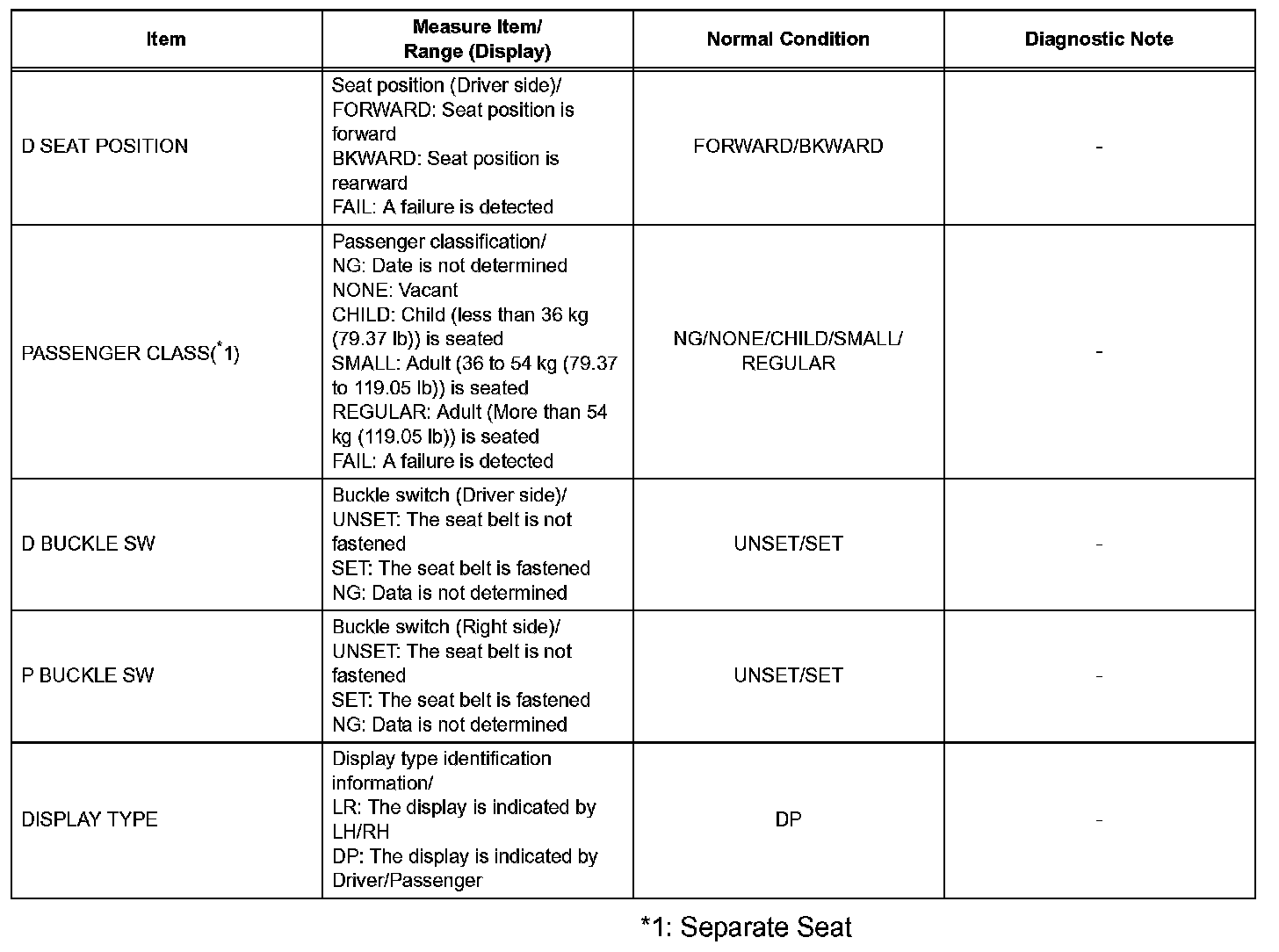

d. Check the condition by referring to the table.
