Ignition Switch: Service and Repair

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

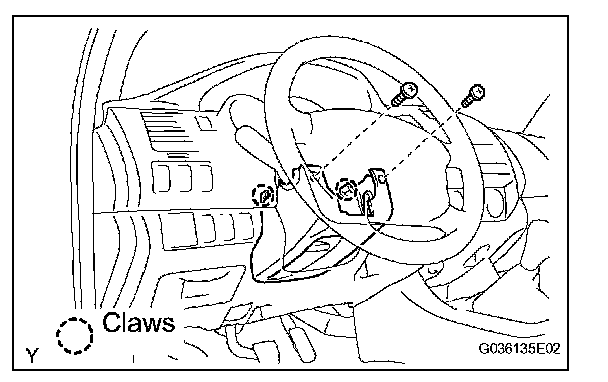

2. REMOVE STEERING COLUMN COVER LWR




a. Remove the 2 screws.
b. Disengage the 2 claws and remove the steering column cover LWR.

3. REMOVE IGNITION SWITCH




a. Disconnect the connector.
b. Disengage the 2 clamps, then remove the ignition or starter switch.

INSTALLATION

1. INSTALL IGNITION SWITCH
2. INSTALL STEERING COLUMN COVER LWR
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 3.9 N.m (40 kgf.cm, 35 in.lbf)
