Power Windows Do Not Operate At All
Power Windows do not Operate at AllDESCRIPTIONIf none of the door
windows operate, there may be a failure in the supply of power to the power window regulator master switch assembly, or the power window regulator master switch itself may be malfunctioning.

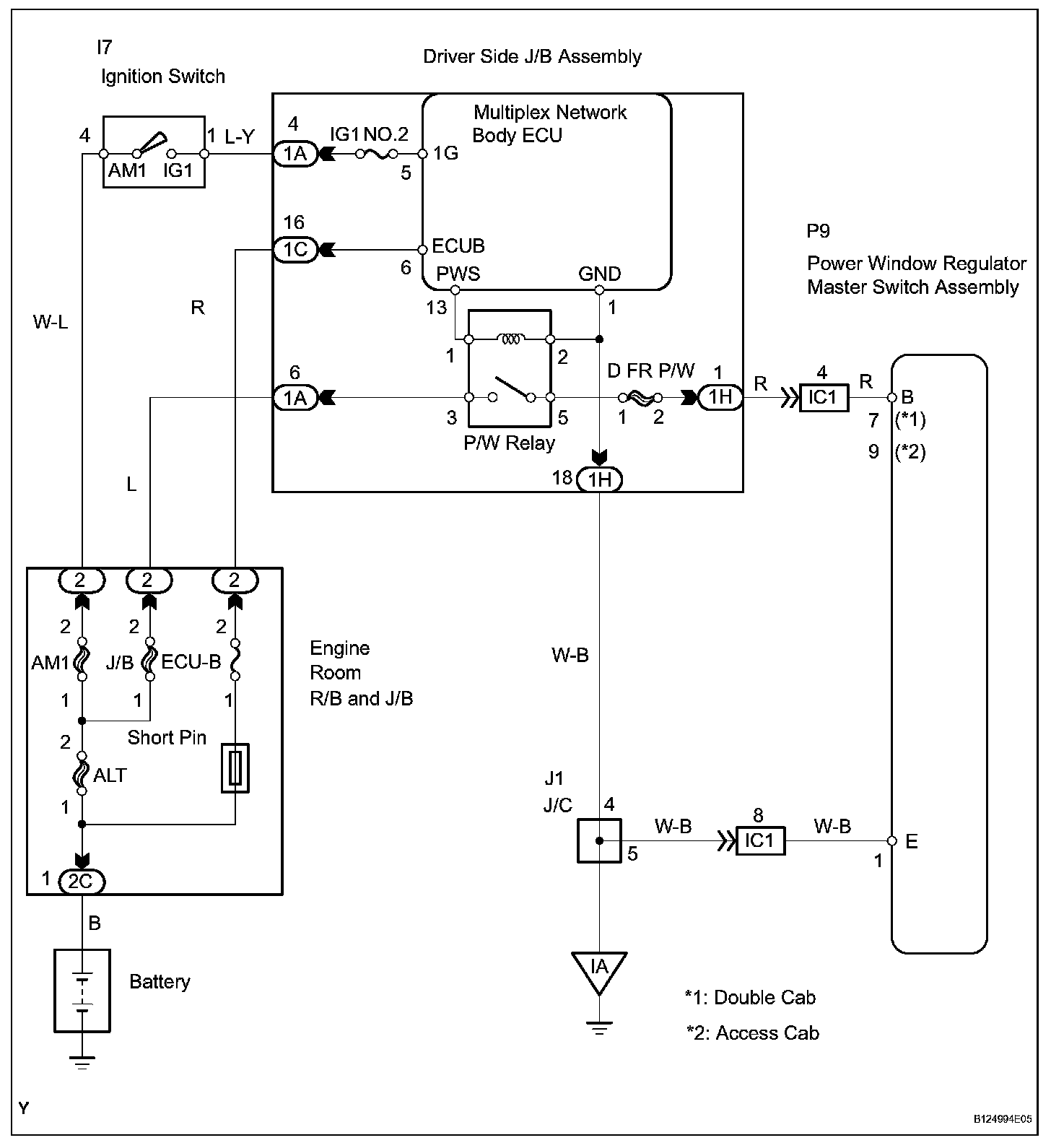

WIRING DIAGRAMWiring Diagram:

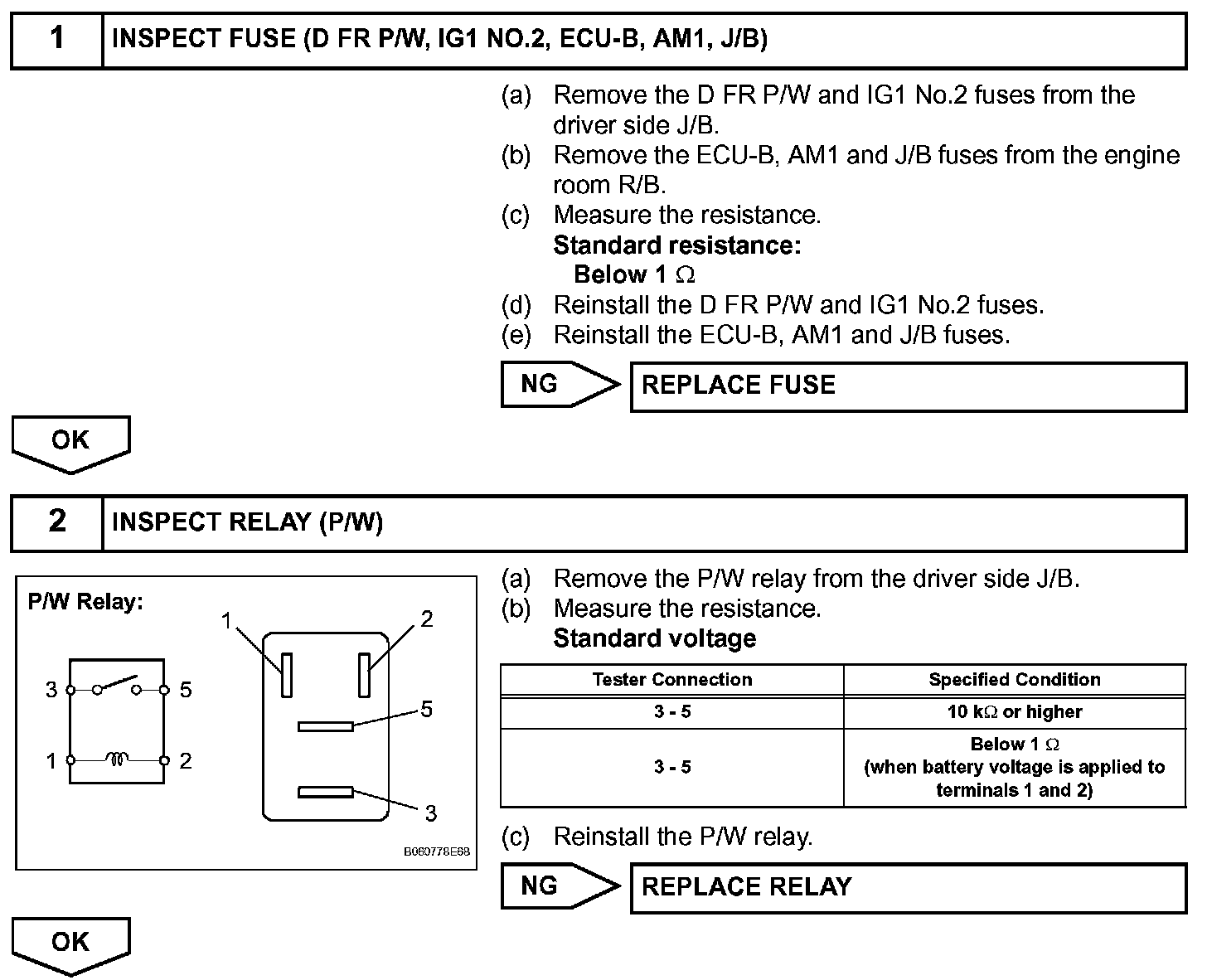

INSPECTION PROCEDUREStep 1 - 2:

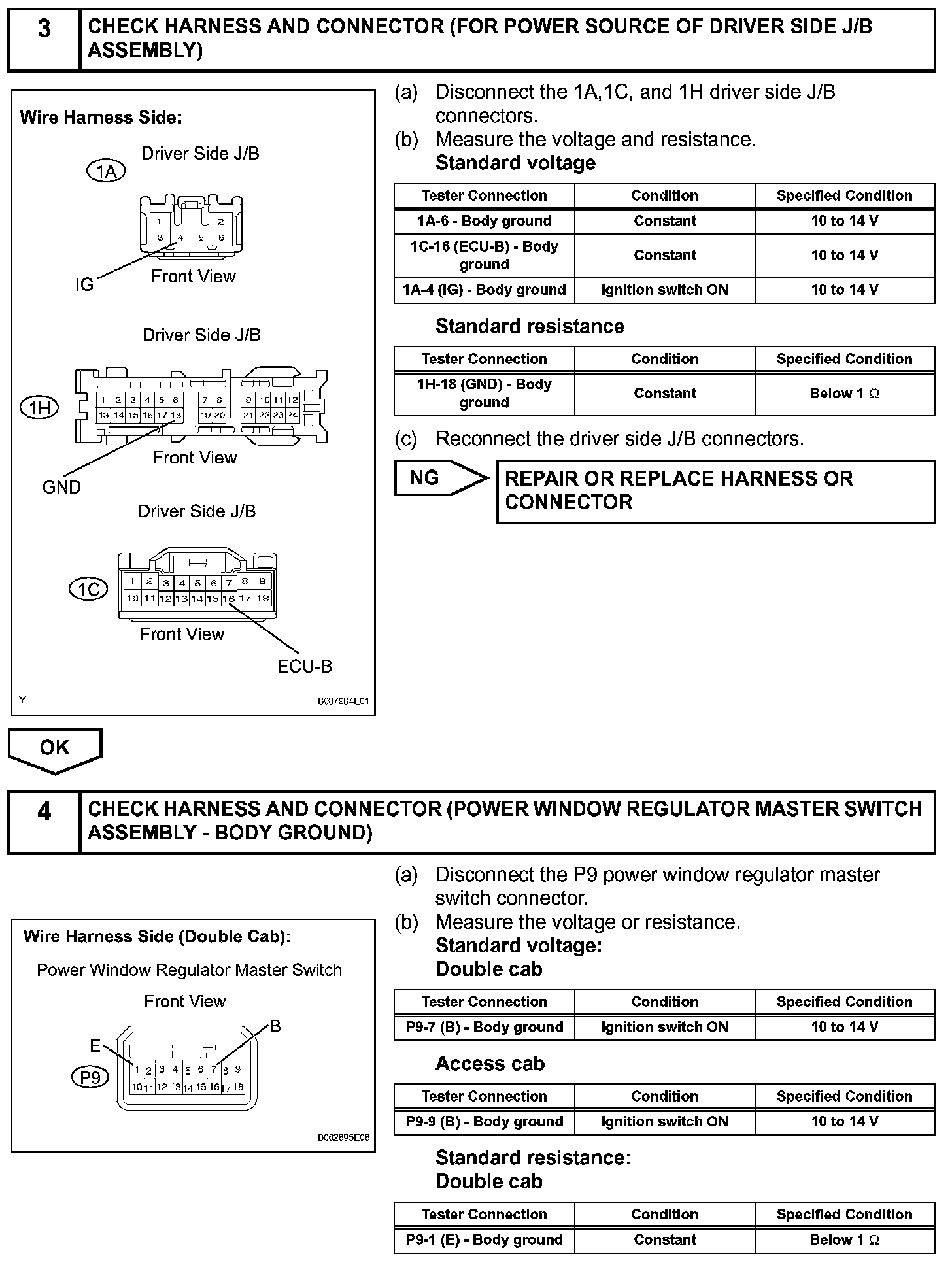

Step 3 - 4:

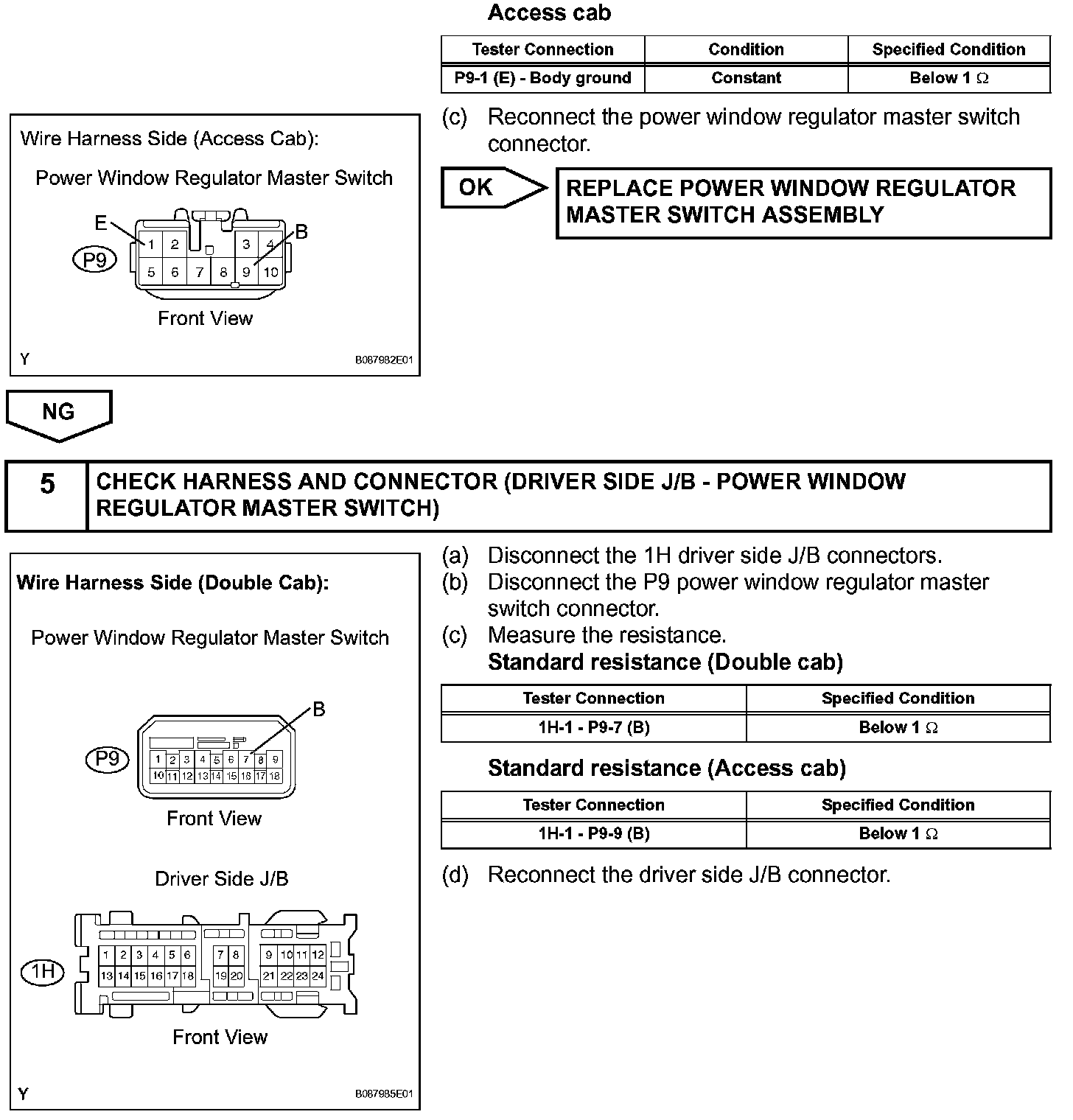

Step 4(Continued) - 5:
Step 5(Continued):
