Remote Up / Down Function Does Not Operate

Remote Up / Down Function does not Operate

DESCRIPTION
With the ignition switch ON, the power window regulator master switch assembly transmits remote switch signals to the passenger side power window and rear door power window regulator switches. Then, the regulator switches drive the power window regulator motors.

WIRING DIAGRAM

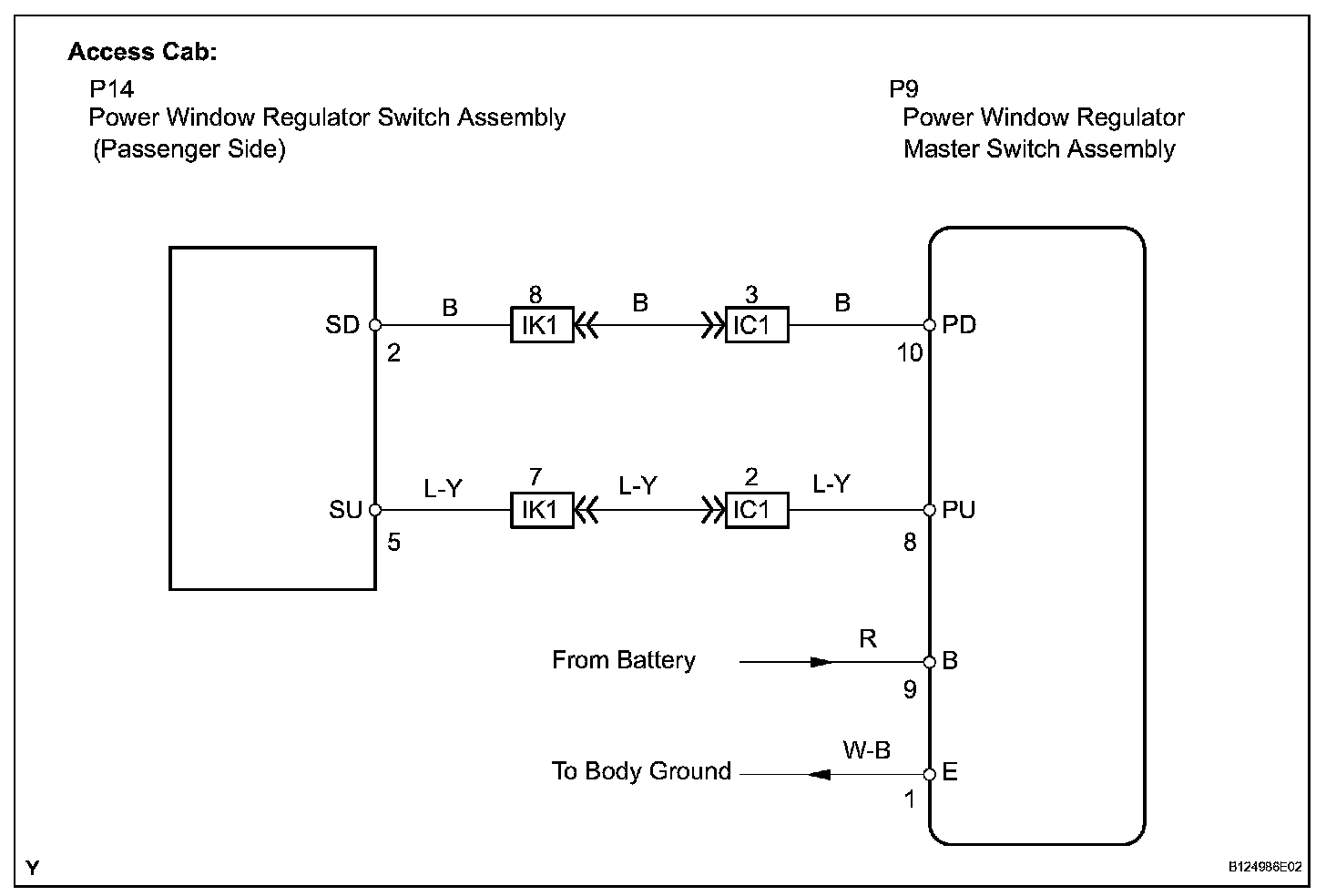

Wiring Diagram:

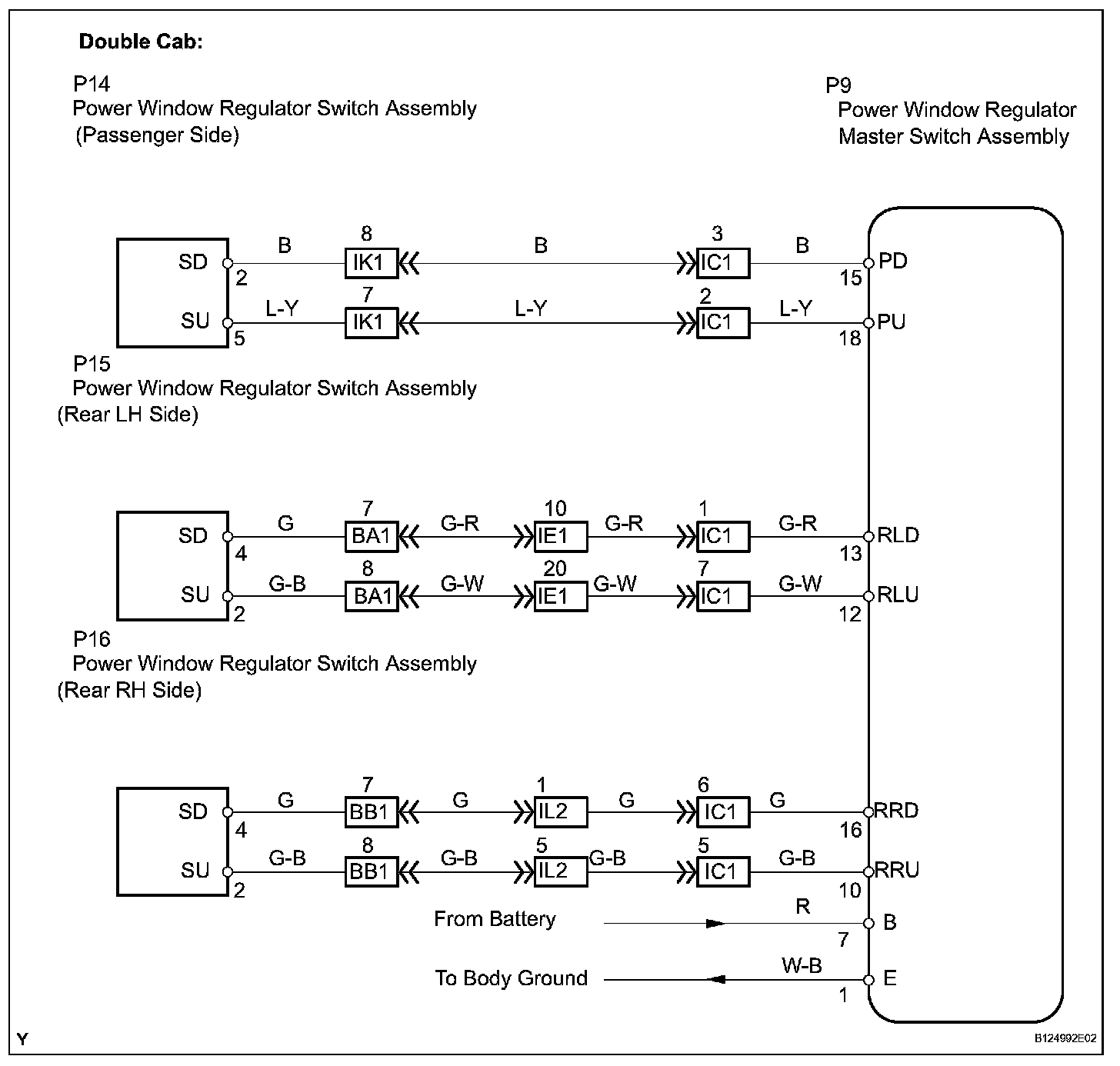

Wiring Diagram:





INSPECTION PROCEDURE

Step 1 - 2:

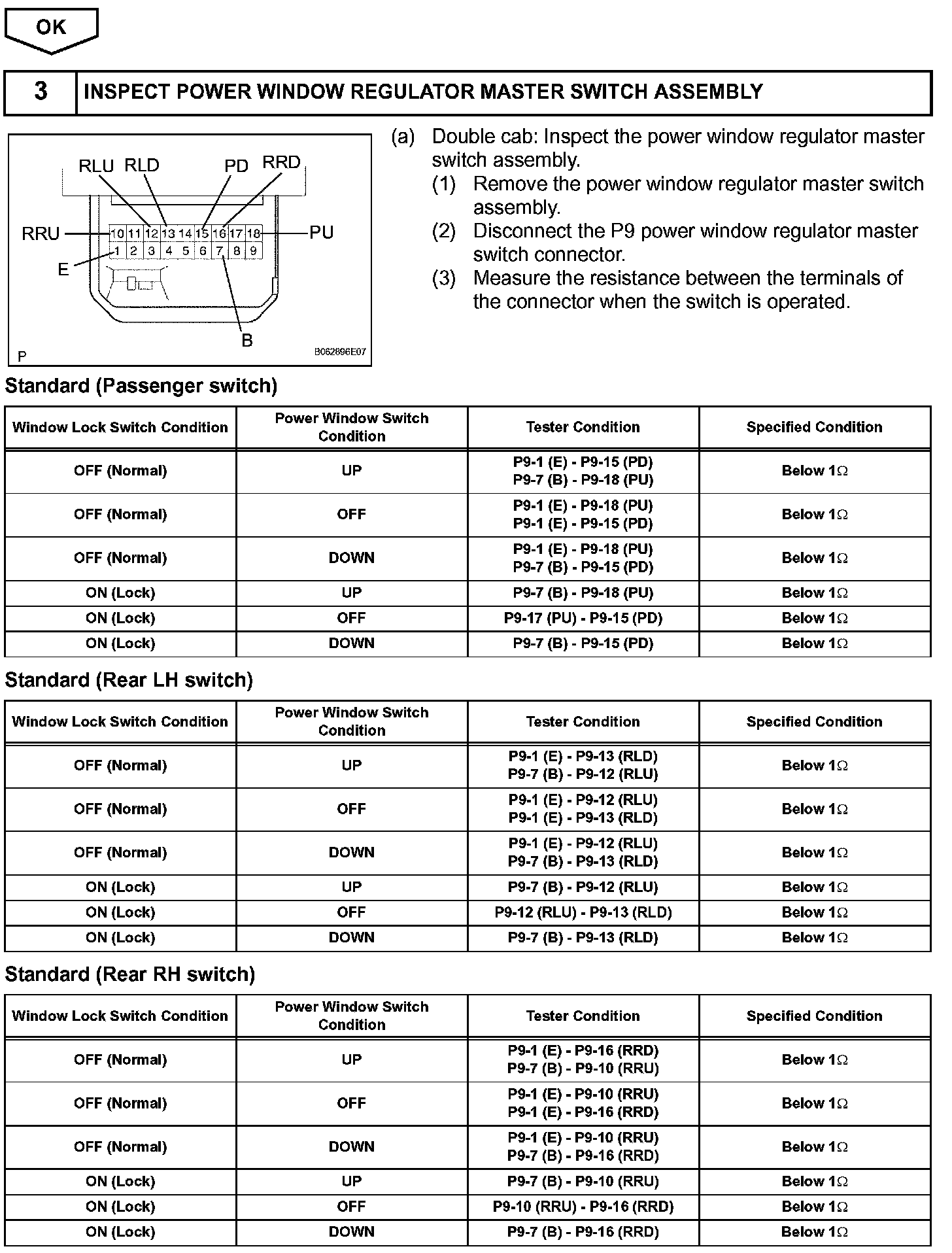

Step 3:

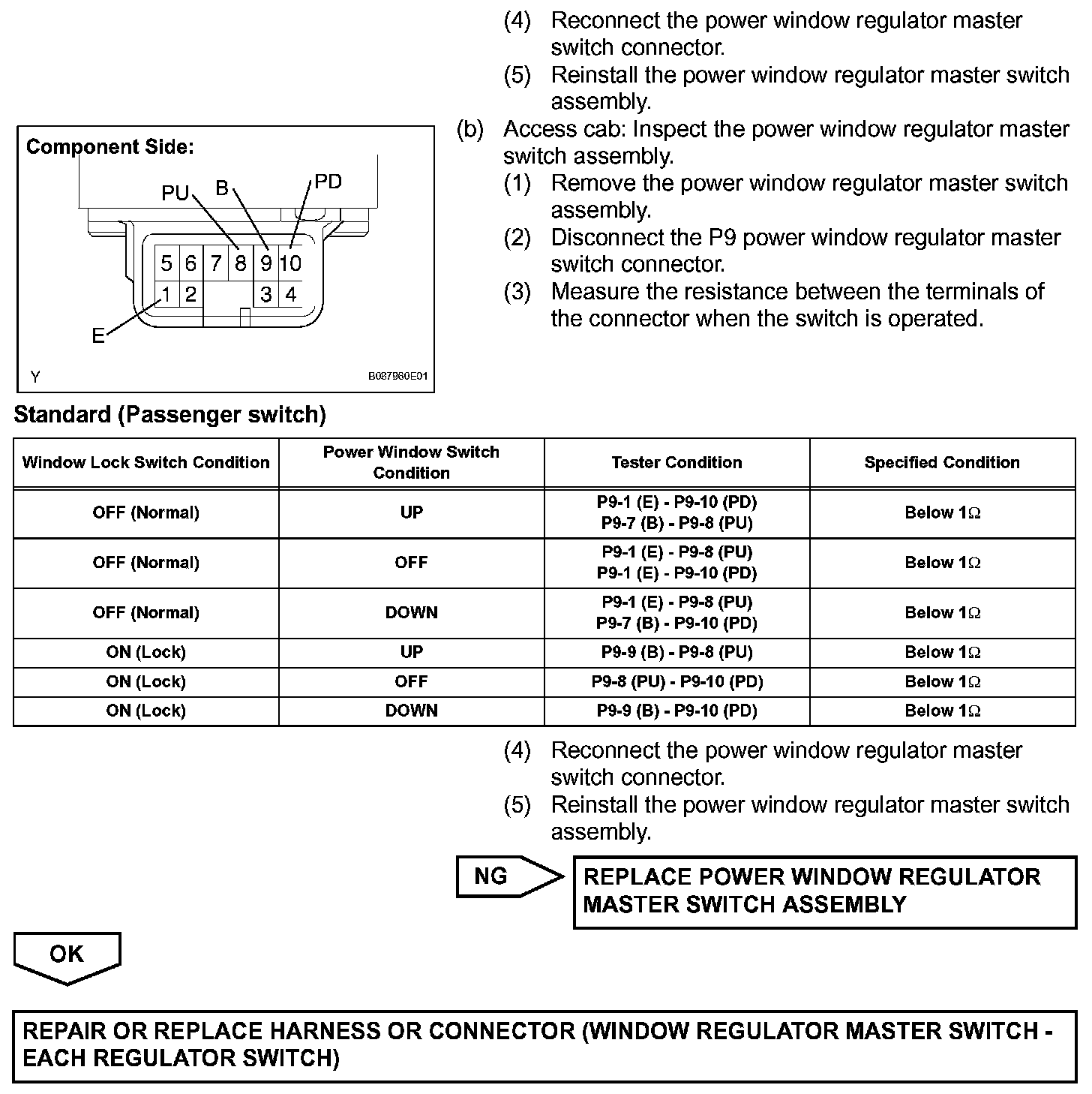

Step 3(Continued):
