Alarm Module: Service and Repair

Theft Warning ECU:

Theft Warning ECU:

THEFT WARNING ECU

REMOVAL

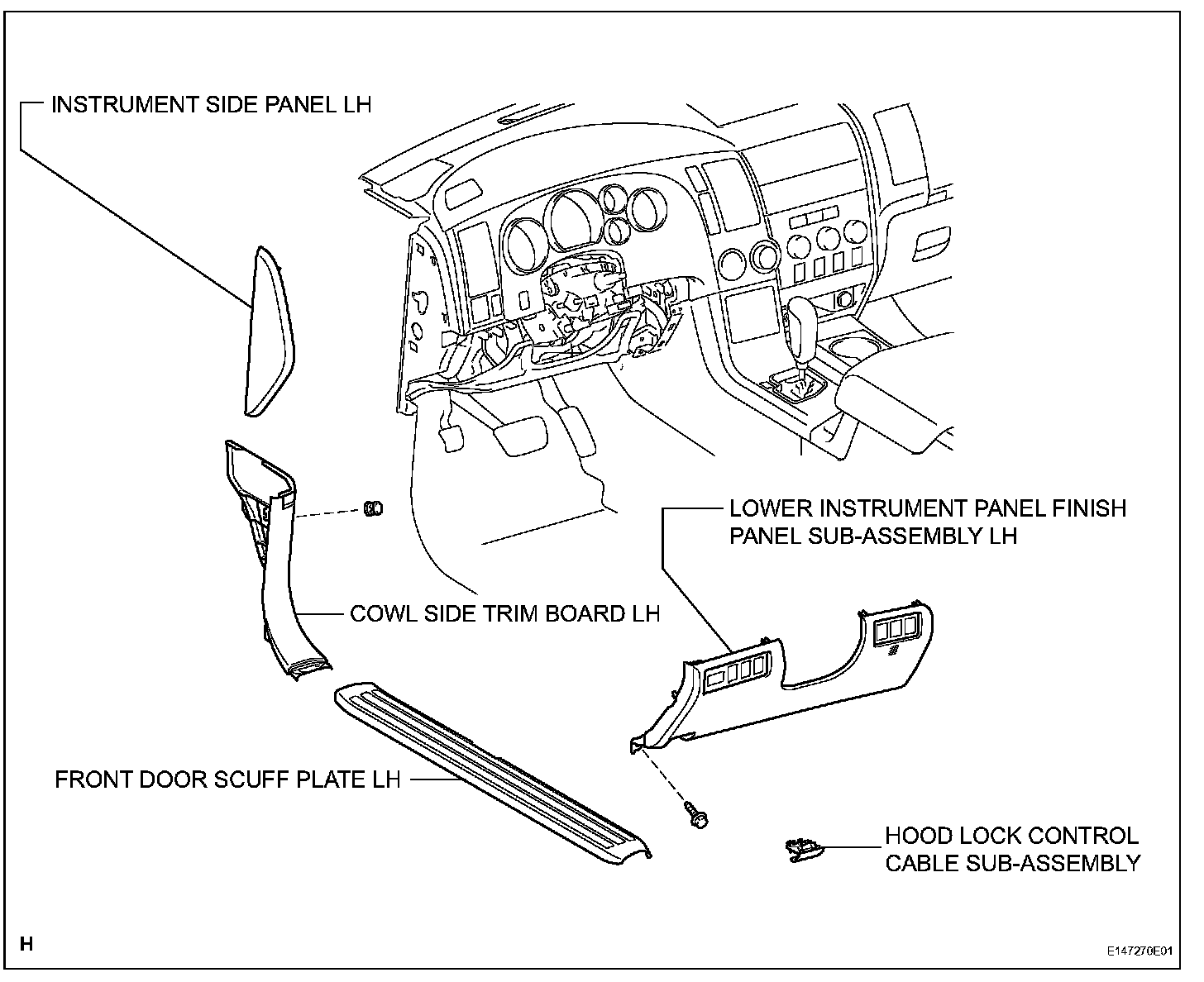

1. REMOVE FRONT DOOR SCUFF PLATE LH
a. for Regular Cab: Remove the front door scuff plate.
b. for Double Cab: Remove the front door scuff plate.

2. REMOVE COWL SIDE TRIM BOARD LH
a. for Regular Cab: Remove the cowl side trim board.
b. for Double Cab: Remove the cowl side trim board.

3. REMOVE INSTRUMENT SIDE PANEL LH
a. for Column Shift Type: Remove the instrument side panel.
b. for Floor Shift Type: Remove the instrument side panel.

4. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LH
a. for Column Shift Type: Remove the instrument panel finish panel.
b. for Floor Shift Type: Remove the instrument panel finish panel.




5. REMOVE GLASS BREAKAGE SENSOR ECU

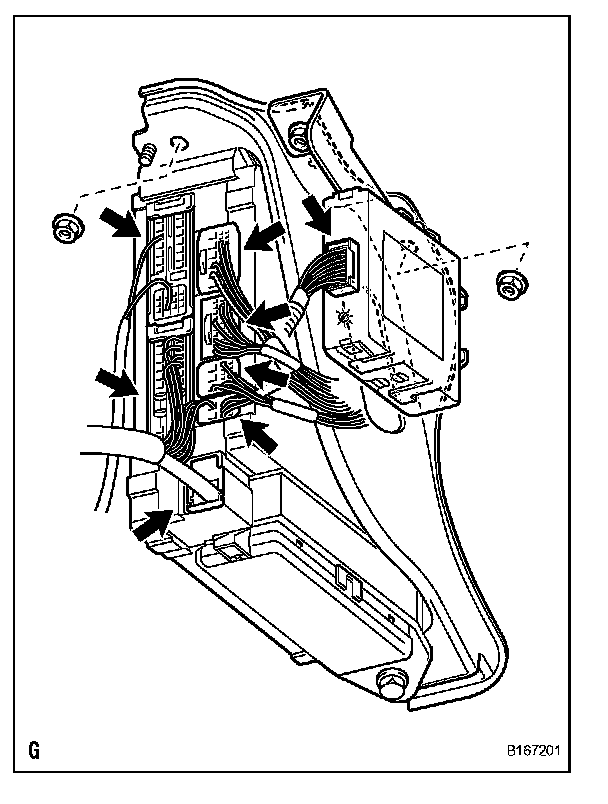

a. Disconnect the connectors.

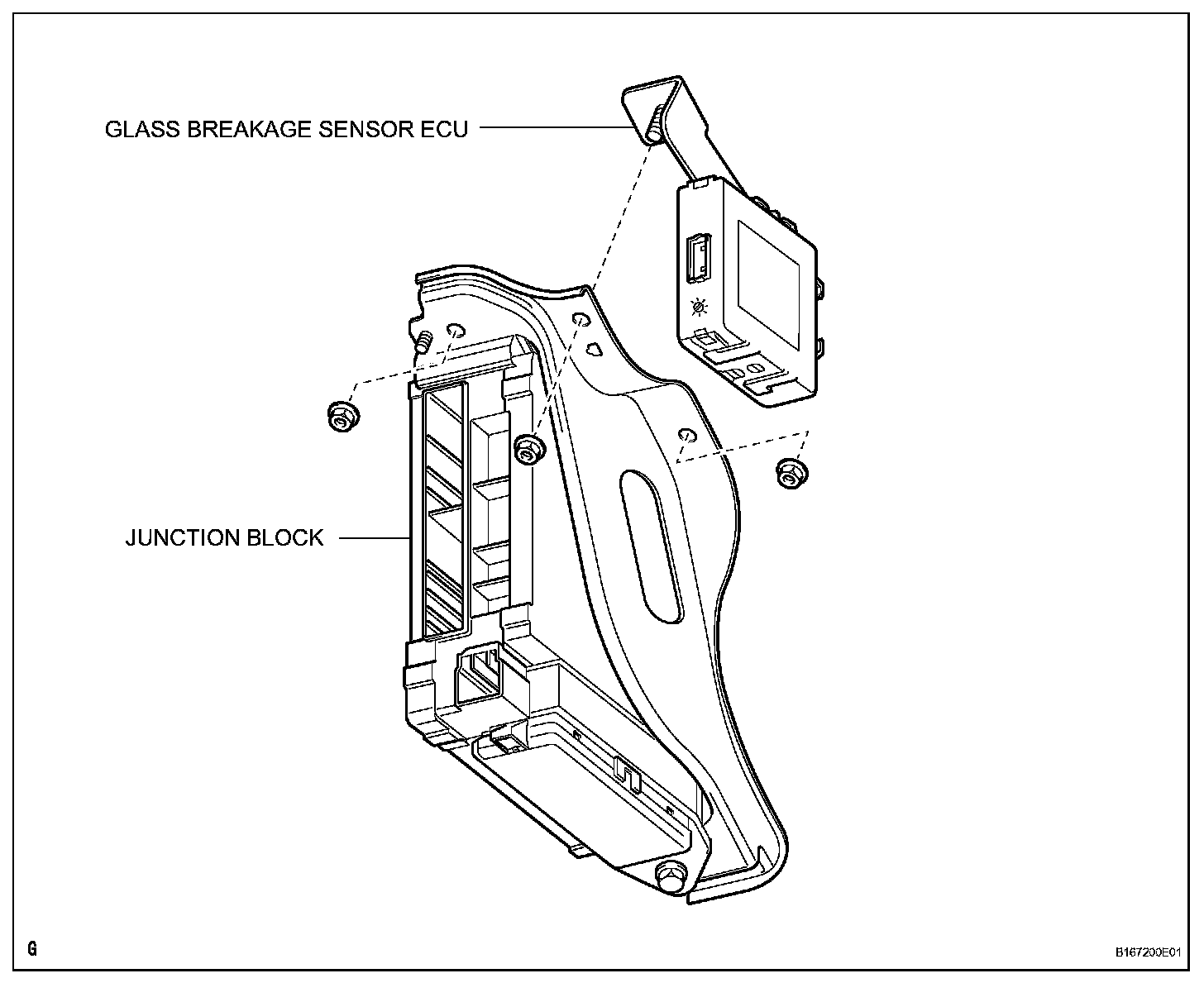

b. Remove the 2 nuts and junction block.

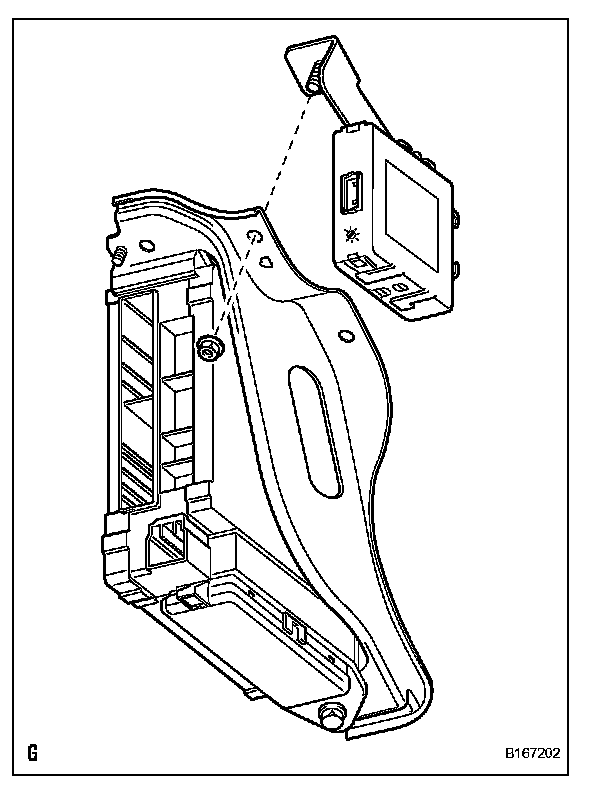

c. Remove the nut and ECU.

INSTALLATION




1. INSTALL GLASS BREAKAGE SENSOR ECU

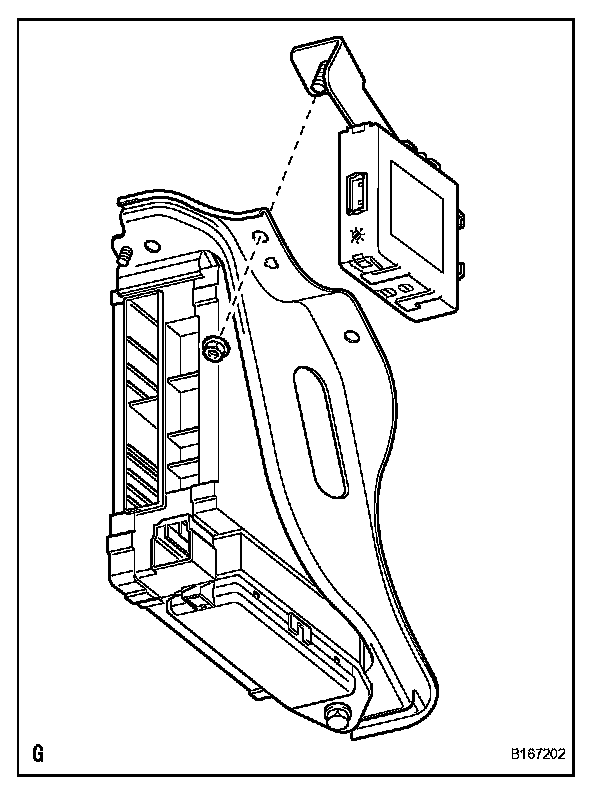

a. Install the ECU with the nut.




b. Install the junction block with the 2 nuts.
c. Connect the connectors.

2. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LH
a. for Column Shift Type: Remove the instrument panel finish panel.
b. for Floor Shift Type: Remove the instrument panel finish panel.

3. INSTALL INSTRUMENT SIDE PANEL LH
a. for Column Shift Type: Remove the instrument side panel.
b. for Floor Shift Type: Remove the instrument side panel.

4. INSTALL COWL SIDE TRIM BOARD LH
a. for Regular Cab: Install the cowl side trim board.
b. for Double Cab: Install the cowl side trim board.

5. INSTALL FRONT DOOR SCUFF PLATE LH
a. for Regular Cab: Install the front door scuff plate.
b. for Double Cab: Install the front door scuff plate.
