Door Control Receiver (For Double Cab)

Door Control Receiver (For Double Cab):




Door Control Receiver (For Double Cab):

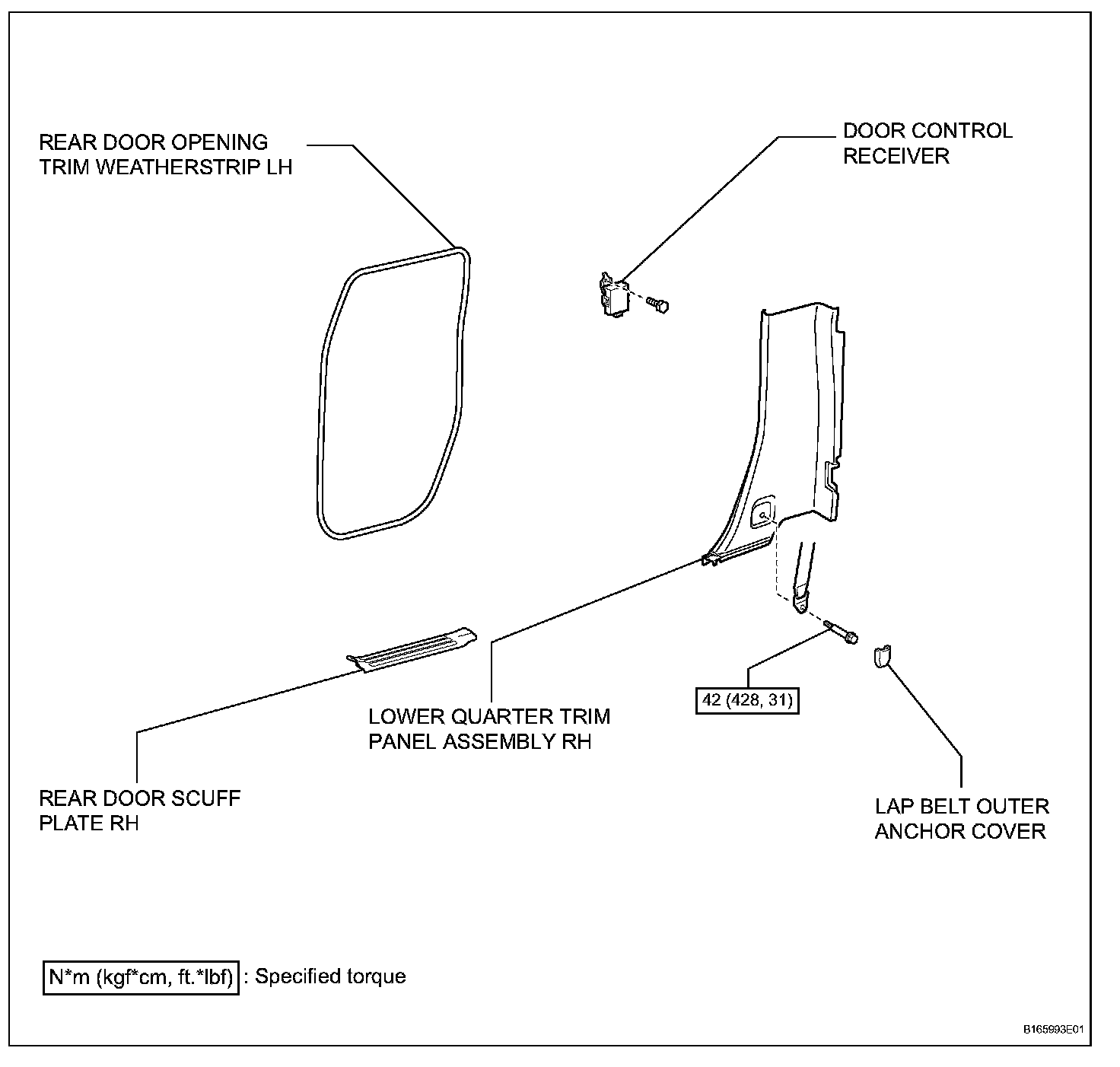

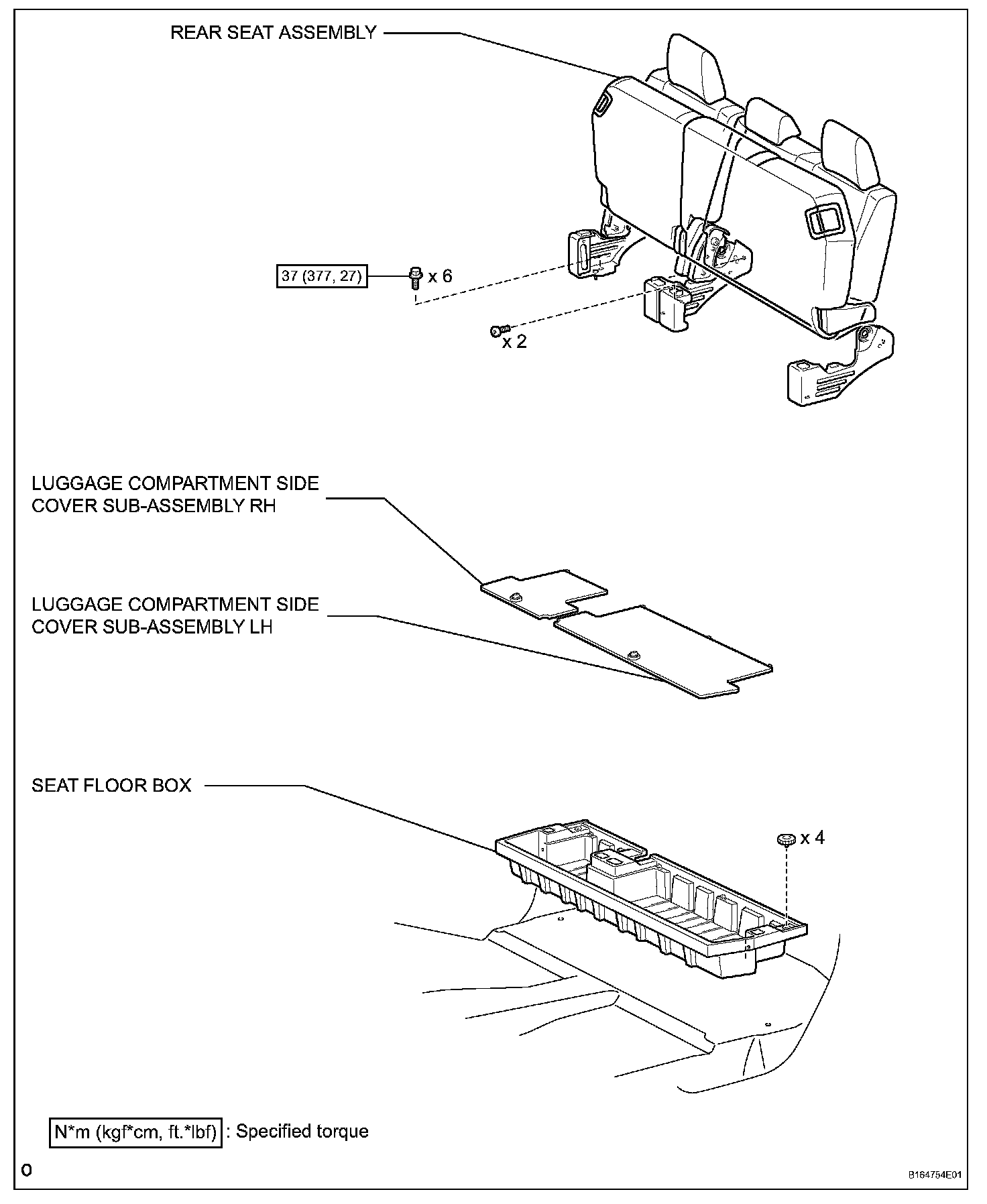

DOOR CONTROL RECEIVER (FOR DOUBLE CAB)

REMOVAL

1. REMOVE LUGGAGE COMPARTMENT SIDE COVER SUB-ASSEMBLY LH
2. REMOVE LUGGAGE COMPARTMENT SIDE COVER SUB-ASSEMBLY RH
3. REMOVE SEAT FLOOR BOX
4. REMOVE REAR SEAT ASSEMBLY
5. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
6. REMOVE REAR DOOR SCUFF PLATE RH
a. Remove the front door scuff plate.

HINT: The procedures listed are for the LH side.

7. REMOVE LOWER QUARTER TRIM PANEL ASSEMBLY RH
8. REMOVE DOOR CONTROL RECEIVER




a. Disconnect the door control receiver connector.
b. Remove the bolt and receiver.

INSTALLATION

1. INSTALL DOOR CONTROL RECEIVER




a. Install the receiver with the bolt.
b. Connect the door control receiver connector.

2. INSTALL LOWER QUARTER TRIM PANEL ASSEMBLY RH
3. INSTALL REAR DOOR SCUFF PLATE RH
a. Install rear door scuff plate.

HINT: The procedures listed are for the LH side.

4. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH
5. INSTALL REAR SEAT ASSEMBLY
6. INSTALL SEAT FLOOR BOX
7. INSTALL LUGGAGE COMPARTMENT SIDE COVER SUB-ASSEMBLY RH
8. INSTALL LUGGAGE COMPARTMENT SIDE COVER SUB-ASSEMBLY LH
