Unlock Warning Switch

Unlock Warning Switch:

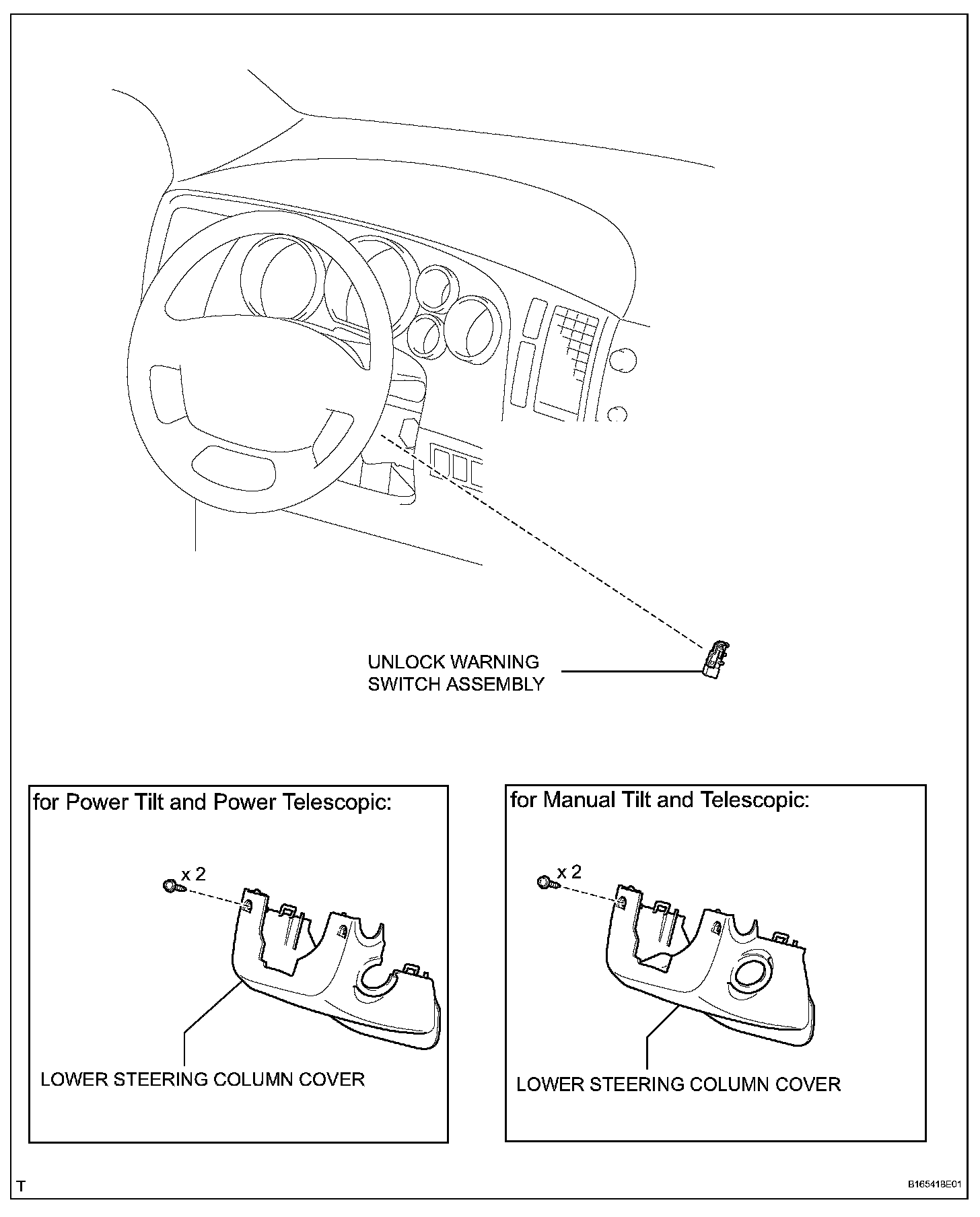

UNLOCK WARNING SWITCH

REMOVAL

1. REMOVE LOWER STEERING COLUMN COVER (for Manual Tilt and Telescopic)
2. REMOVE LOWER STEERING COLUMN COVER (for Power Tilt and Power Telescopic)
3. REMOVE UNLOCK WARNING SWITCH ASSEMBLY

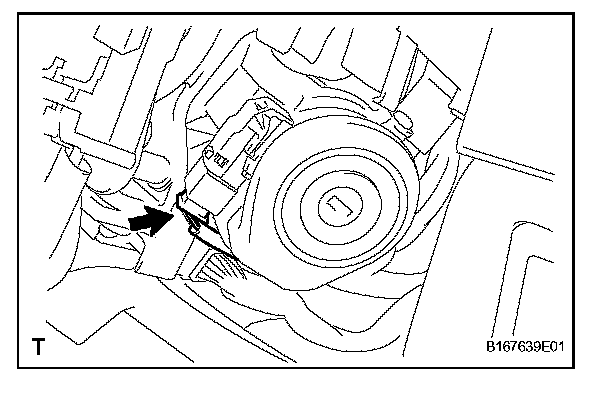

a. Disconnect the unlock warning switch connector.

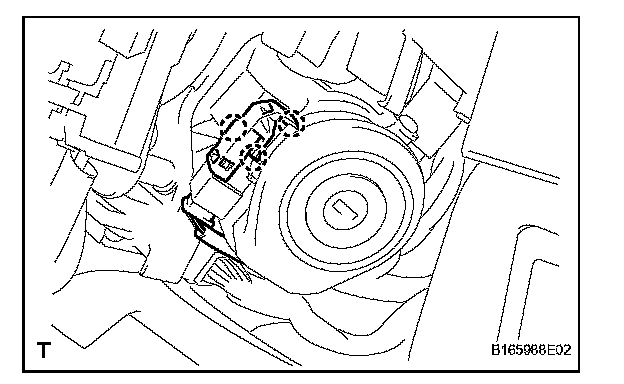

b. Detach the 3 claws and remove the cover.

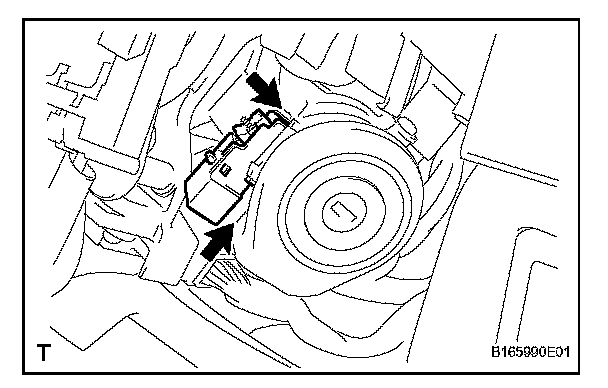

c. Remove the contact pin cap.
d. Remove the unlock warning switch.

INSTALLATION

1. INSTALL UNLOCK WARNING SWITCH ASSEMBLY
a. If reusing unlock warning switch assembly:




1. Temporarily install the unlock warning switch.
2. Install the contact pin cap.

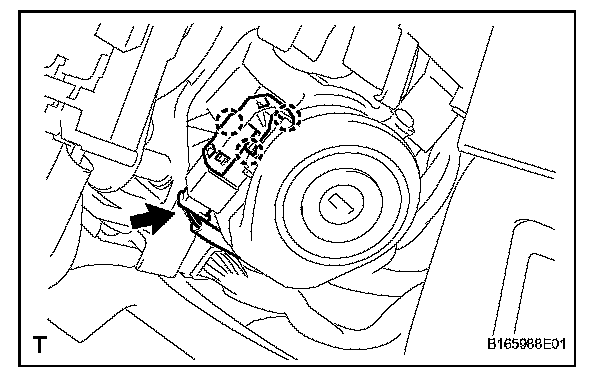

3. Attach the 3 claws to install the cover.

b. If replacing unlock warning switch assembly:

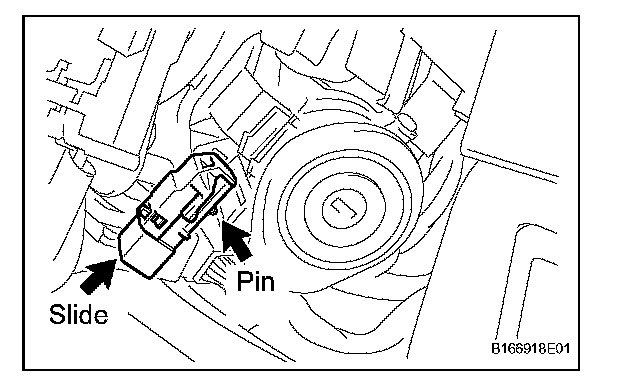

1. While pushing the pin, slide the switch to install the warning switch.




c. Connect the unlock warning switch connector.

2. INSTALL LOWER STEERING COLUMN COVER (for Power Tilt and Power Telescopic)
3. INSTALL LOWER STEERING COLUMN COVER (for Manual Tilt and Telescopic)
