Wireless Door Lock System
Wireless Door Lock Buzzer:

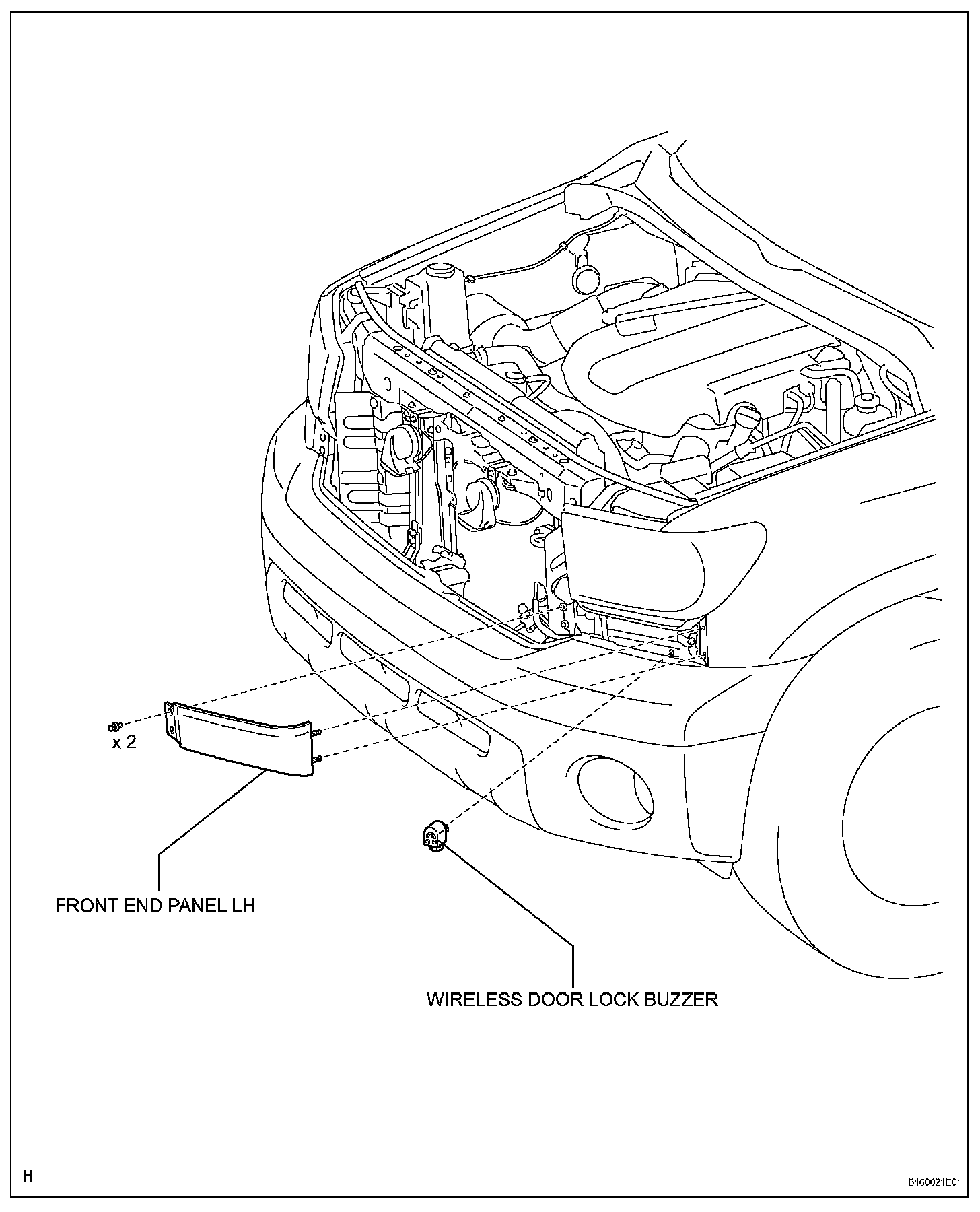

WIRELESS DOOR LOCK BUZZERREMOVAL 1.
REMOVE FRONT END PANEL LH
2.
REMOVE WIRELESS DOOR LOCK BUZZER
a.
Disconnect the wireless door lock buzzer connector.
b.
Detach the claw and remove the buzzer.
INSTALLATION 1.
INSTALL WIRELESS DOOR LOCK BUZZER
a.
Attach the claw to install the buzzer.
b.
Connect the wireless door lock buzzer connector.
2.
INSTALL FRONT END PANEL LH
