Ambient Temperature Sensor / Switch HVAC: Service and Repair
Ambient Temperature Sensor:

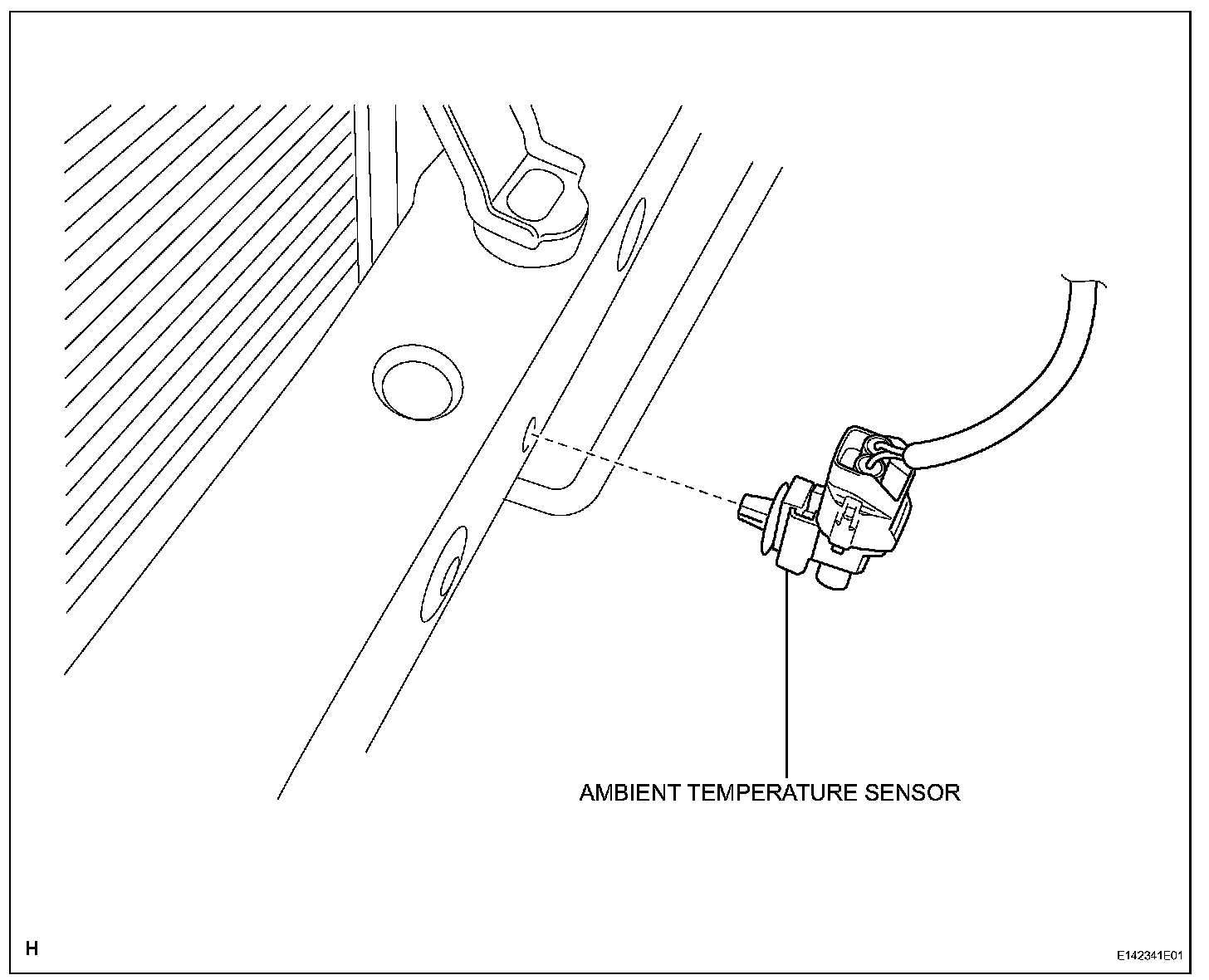

AMBIENT TEMPERATURE SENSORREMOVALREMOVE AMBIENT TEMPERATURE SENSOR a.
Disconnect the connector.
b.
Using a screwdriver, detach the clamp and remove the sensor.
HINT: Tape the screwdriver tip before use.
INSTALLATIONINSTALL AMBIENT TEMPERATURE SENSOR a.
Attach the clamp to install the sensor.
b.
Connect the connector.
