Cabin Temperature Sensor / Switch: Service and Repair

Room Temperature Sensor (For Automatic Air Conditioning System):

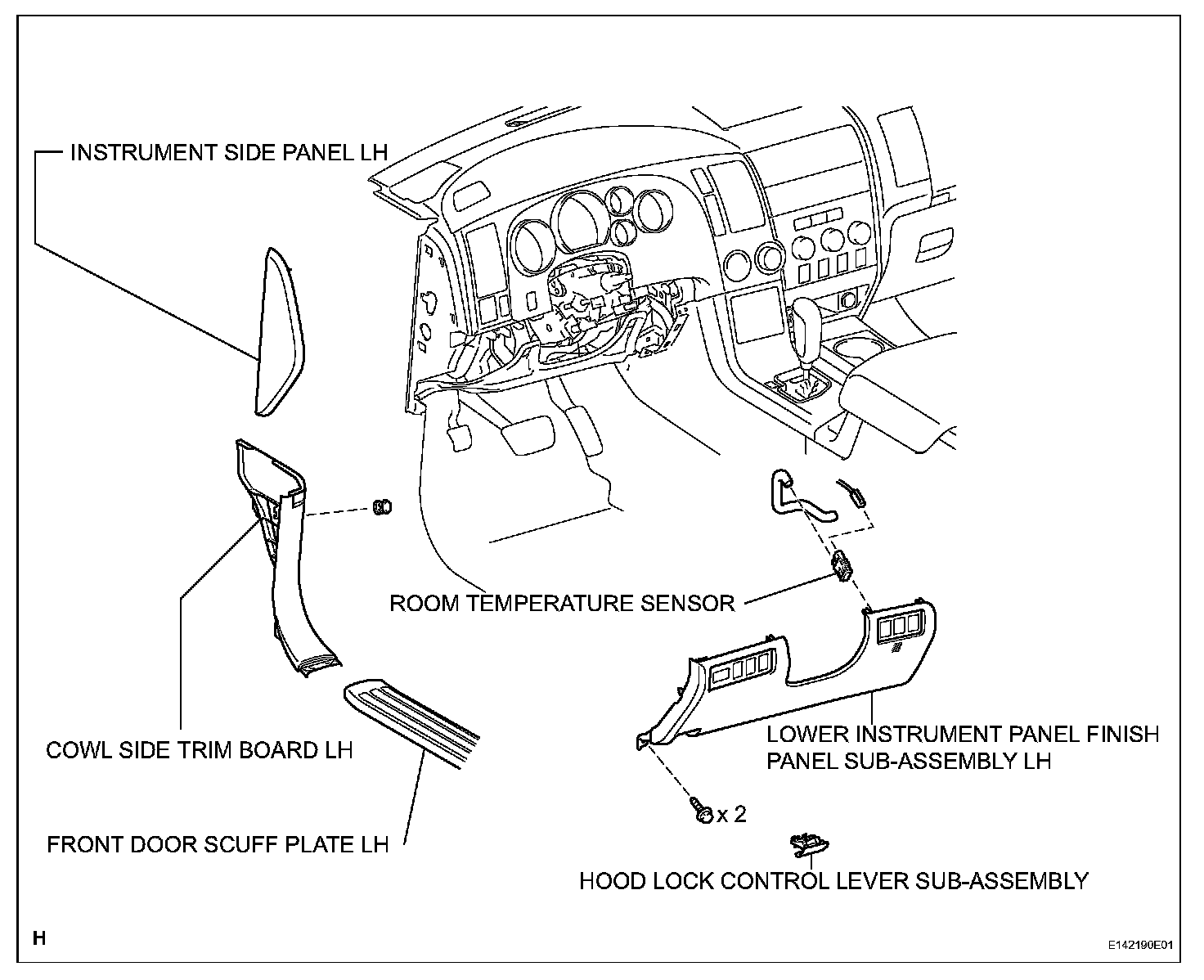

ROOM TEMPERATURE SENSOR (FOR AUTOMATIC AIR CONDITIONING SYSTEM)

REMOVAL

1. REMOVE FRONT DOOR SCUFF PLATE LH
a. for Regular Cab:
Remove the front door scuff plate.

b. for Double Cab:
Remove the front door scuff plate.

2. REMOVE COWL SIDE TRIM BOARD LH
a. for Regular Cab:
Remove the cowl side trim board.

b. for Double Cab:
Remove the cowl side trim board.

3. REMOVE INSTRUMENT SIDE PANEL LH
a. for Column Shift Type:
Remove the instrument side panel.

b. for Floor Shift Type:
Remove the instrument side panel.

4. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LH
a. for Column Shift Type:
Remove the instrument panel finish panel.

b. for Floor Shift Type:
Remove the instrument panel finish panel.

5. REMOVE ROOM TEMPERATURE SENSOR




a. Detach the 2 claws and remove the sensor.

INSTALLATION

1. INSTALL ROOM TEMPERATURE SENSOR




a. Attach the 2 claws to install the sensor.

2. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LH
a. for Column Shift Type:
Remove the instrument panel finish panel.

b. for Floor Shift Type:
Remove the instrument panel finish panel.

3. INSTALL INSTRUMENT SIDE PANEL LH
a. for Column Shift Type:
Remove the instrument side panel.

b. for Floor Shift Type:
Remove the instrument side panel.

4. INSTALL COWL SIDE TRIM BOARD LH
a. for Regular Cab:
Install the cowl side trim board.

b. for Double Cab:
Install the cowl side trim board.

5. INSTALL FRONT DOOR SCUFF PLATE LH
a. for Regular Cab:
Install the front door scuff plate.

b. for Double Cab:
Install the front door scuff plate.
