Power Window Master Switch

Power Window Master Switch:




Power Window Master Switch:






REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:
- Some systems need to be initialized after the cable is reconnected.
- After the ignition switch is turned OFF, the navigation system requires approximately 90 seconds to record various types of memory and settings. As a result, after turning the ignition switch OFF, wait 90 seconds or more before disconnecting the cable from the negative (-) battery terminal.

2. REMOVE FRONT UPPER ARMREST BASE PANEL LH

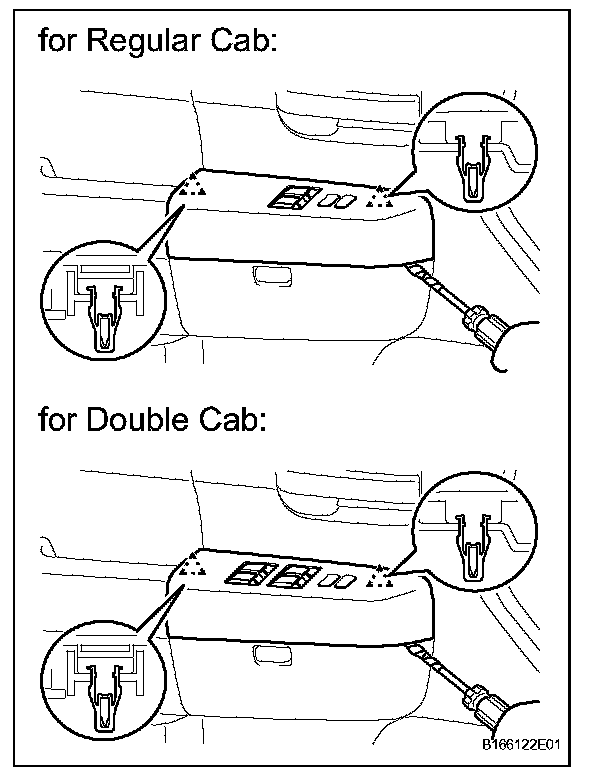

a. Using a screwdriver, detach the 2 clips and remove the front upper armrest base panel LH.

HINT: Tape the screwdriver tip before use.

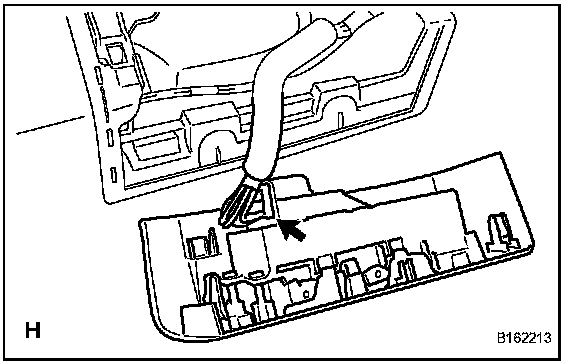

b. Disconnect the master switch connector.

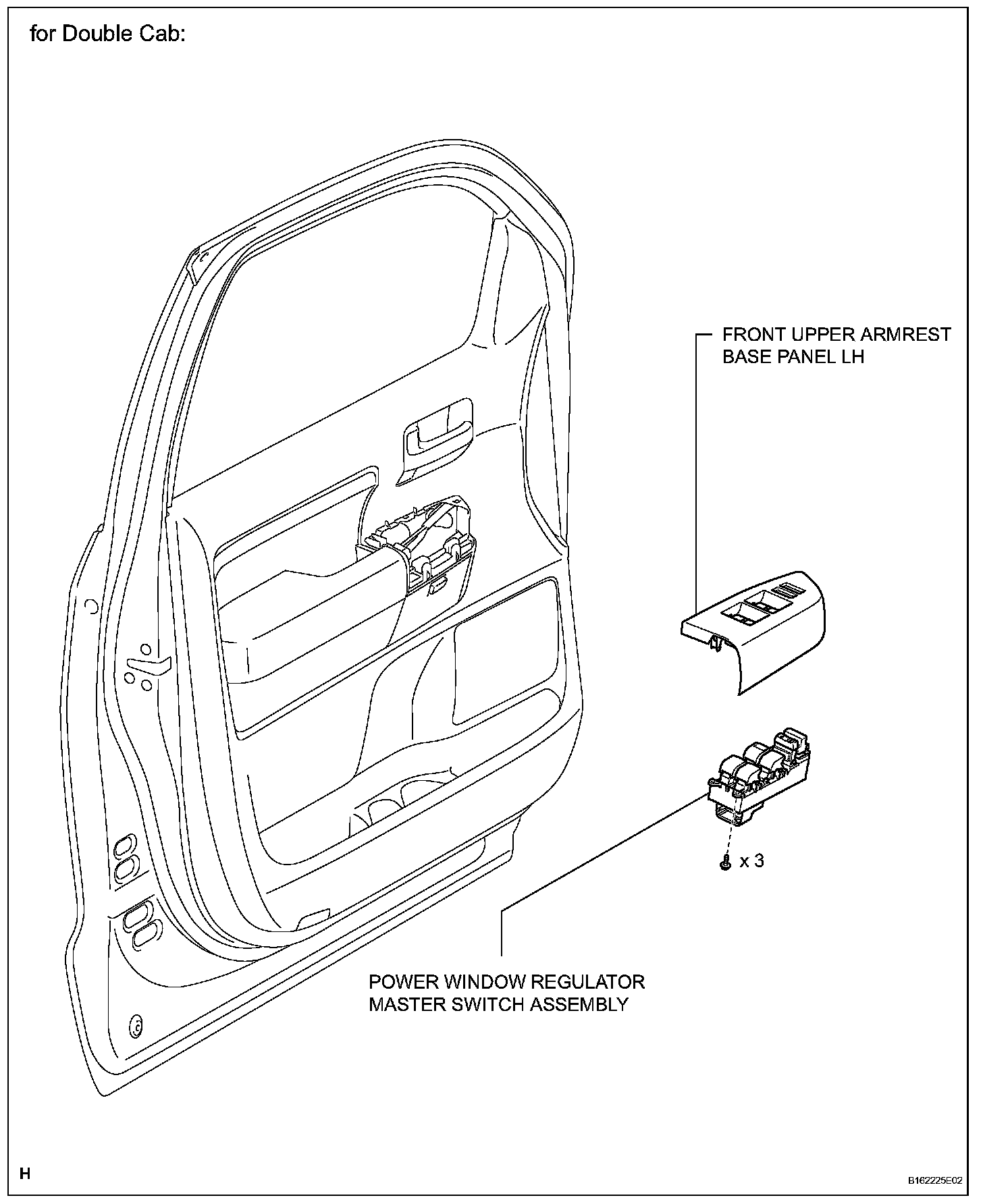

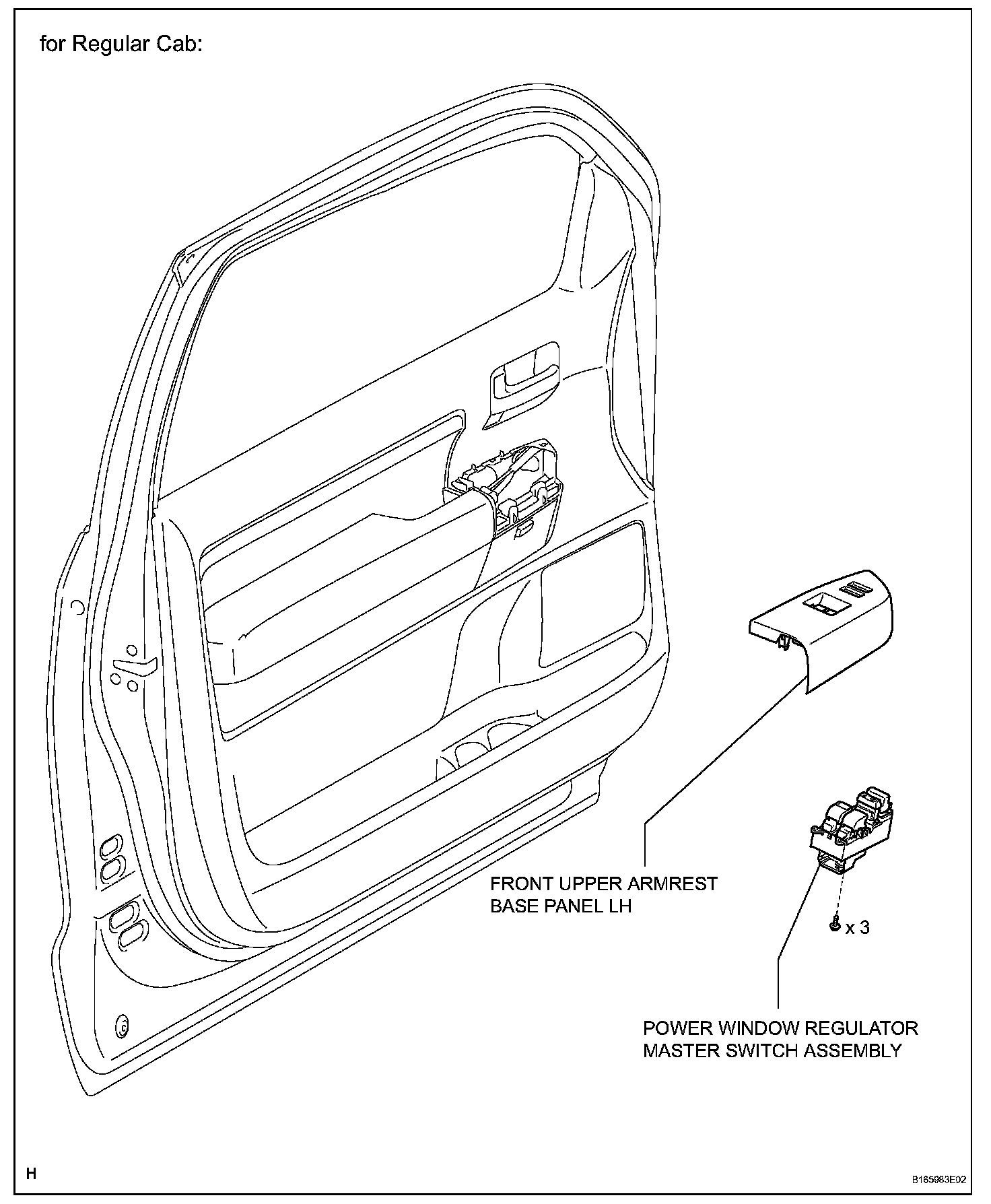

3. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

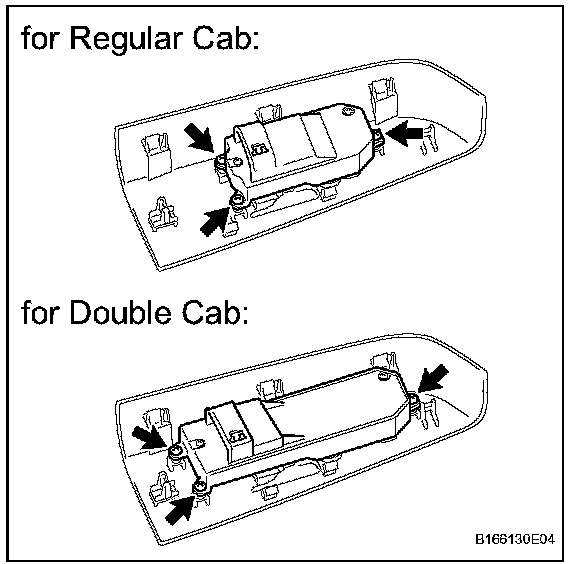

a. Remove the 3 screws and master switch.

INSTALLATION






1. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
a. Install the master switch with the 3 screws.


2. INSTALL FRONT UPPER ARMREST BASE PANEL LH

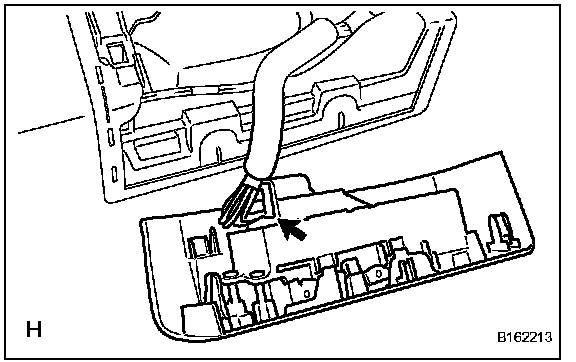

a. Connect the master switch connector.

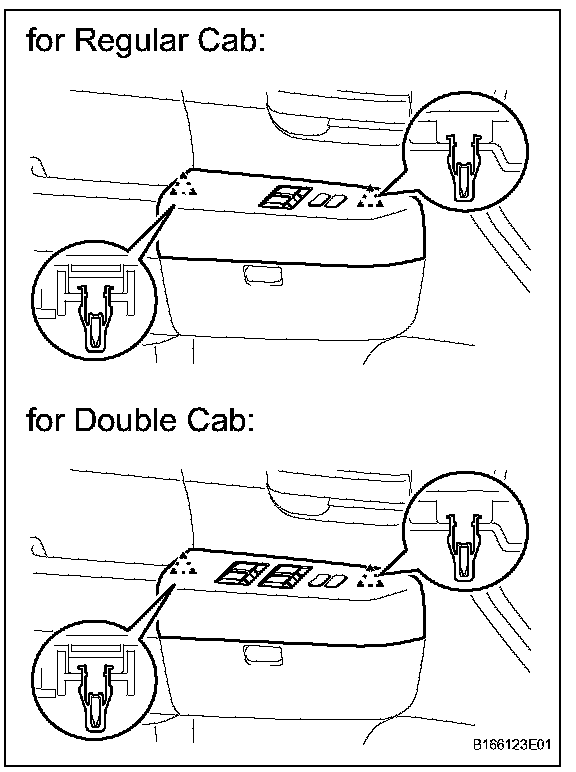

b. Attach the 2 clips to install the front upper armrest base panel LH.
