Power Window Master Switch

ON-VEHICLE INSPECTION

1. CHECK POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

a. for Regular Cab:
1. Remove the power window regulator master switch.
2. Reconnect the switch connector.

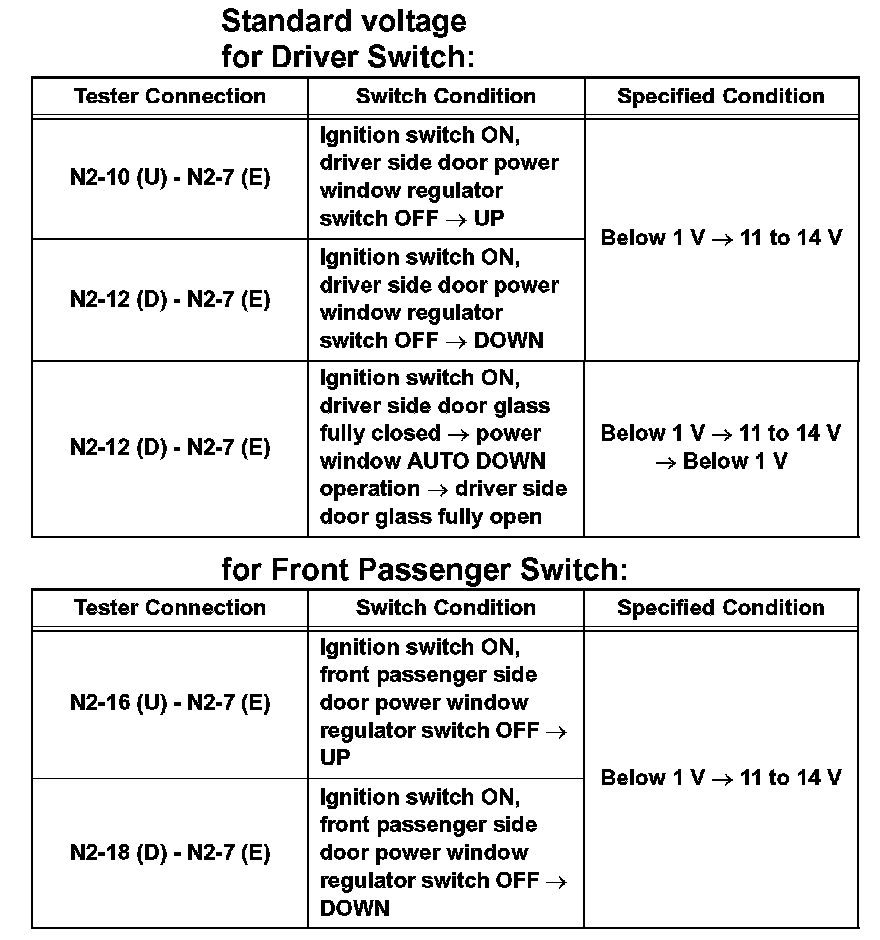

3. Measure the voltage according to the value(s) in the table below.

b. for Double Cab:
1. Remove the power window regulator master switch.
2. Reconnect the switch connector.

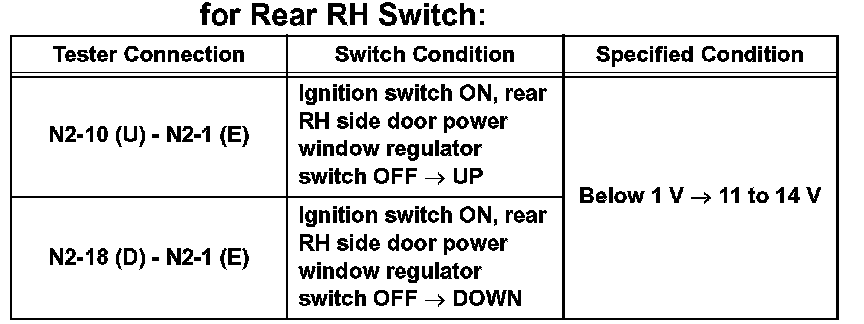

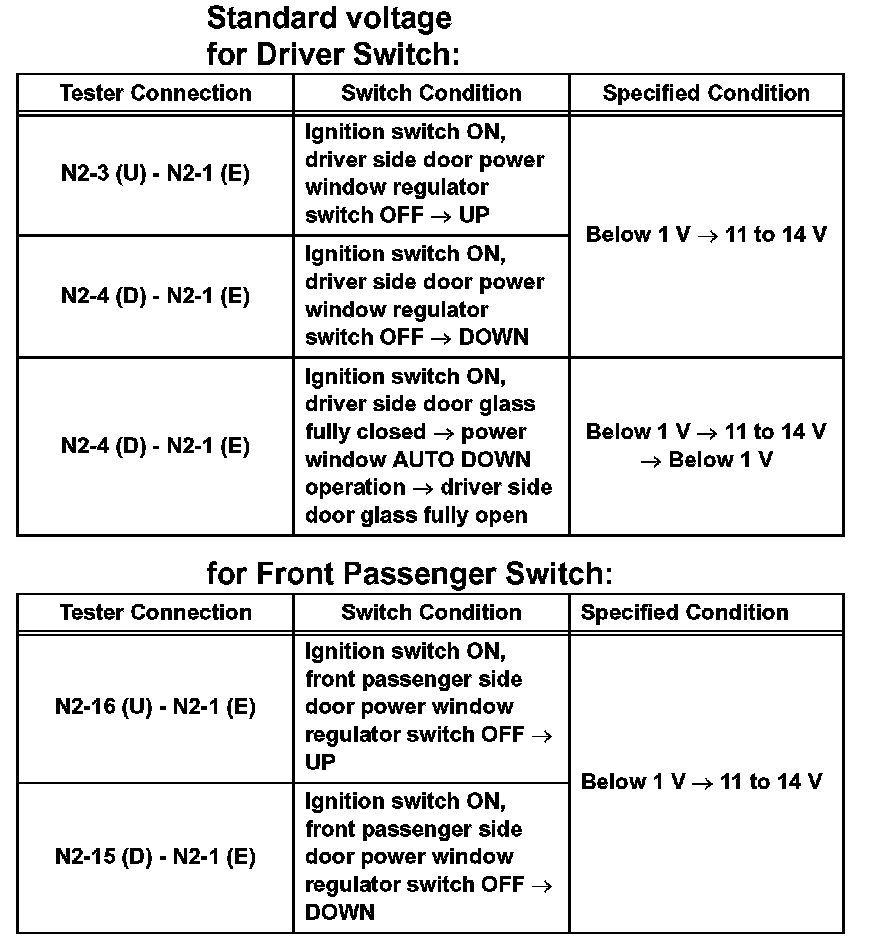

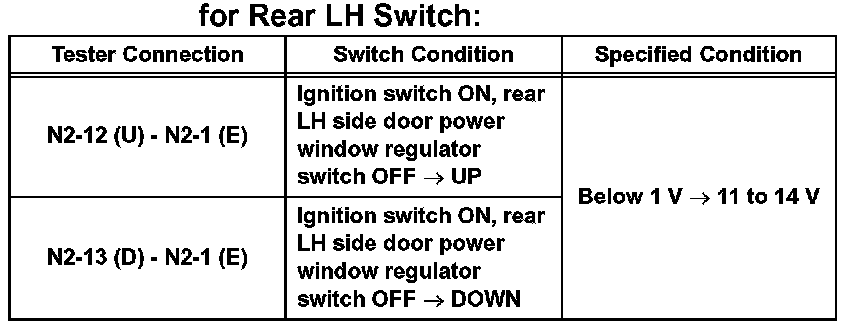

3. Measure the voltage according to the value(s) in the table below.
