Cruise Control Switch: Service and Repair

Cruise Control Main Switch:




CRUISE CONTROL MAIN SWITCH

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
Wait for at least 90 seconds after disconnecting the cable to prevent the airbag from working.

2. REMOVE STEERING PAD

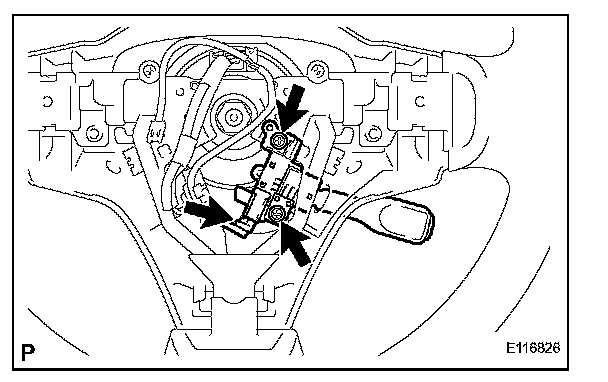

3. REMOVE CRUISE CONTROL MAIN SWITCH
a. Disconnect the connector.
b. Remove the 2 screws and remove the cruise control main switch.

INSTALLATION

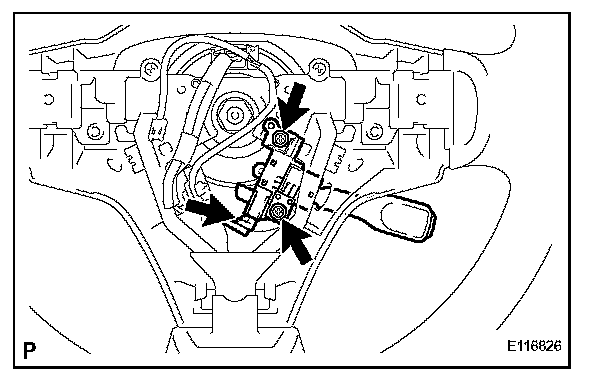

1. INSTALL CRUISE CONTROL MAIN SWITCH
a. Install the cruise control main switch with the 2 screws.

Torque: 2.4 N.m (24 kgf.cm, 21 in.lbf)

b. Connect the connector.

2. INSTALL STEERING PAD

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

4. INSPECT SRS WARNING LIGHT
