Ambient Temperature Sensor / Switch HVAC: Service and Repair

Ambient Temperature Sensor:




Ambient Temperature Sensor:




Ambient Temperature Sensor:

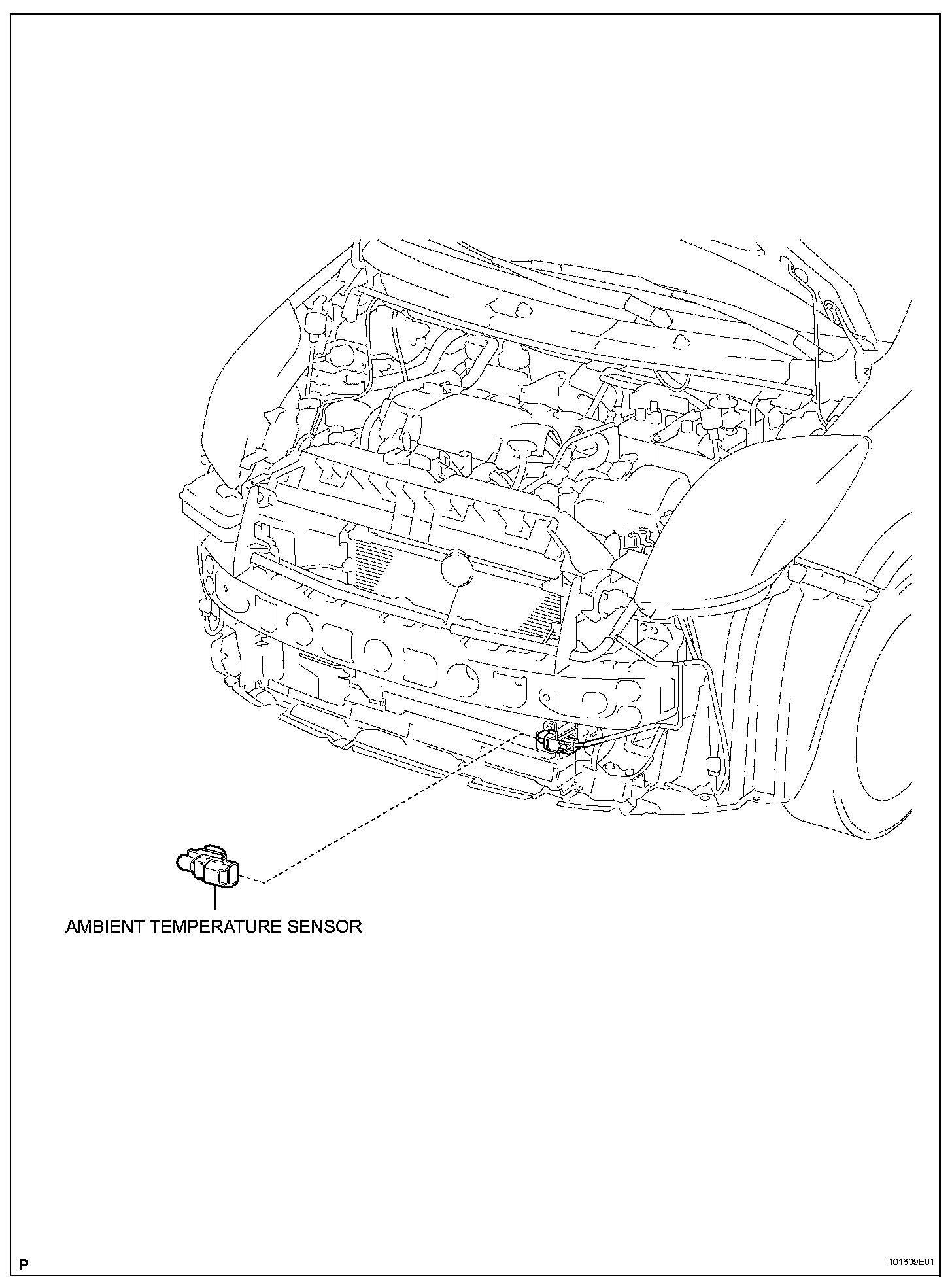

AMBIENT TEMPERATURE SENSOR

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

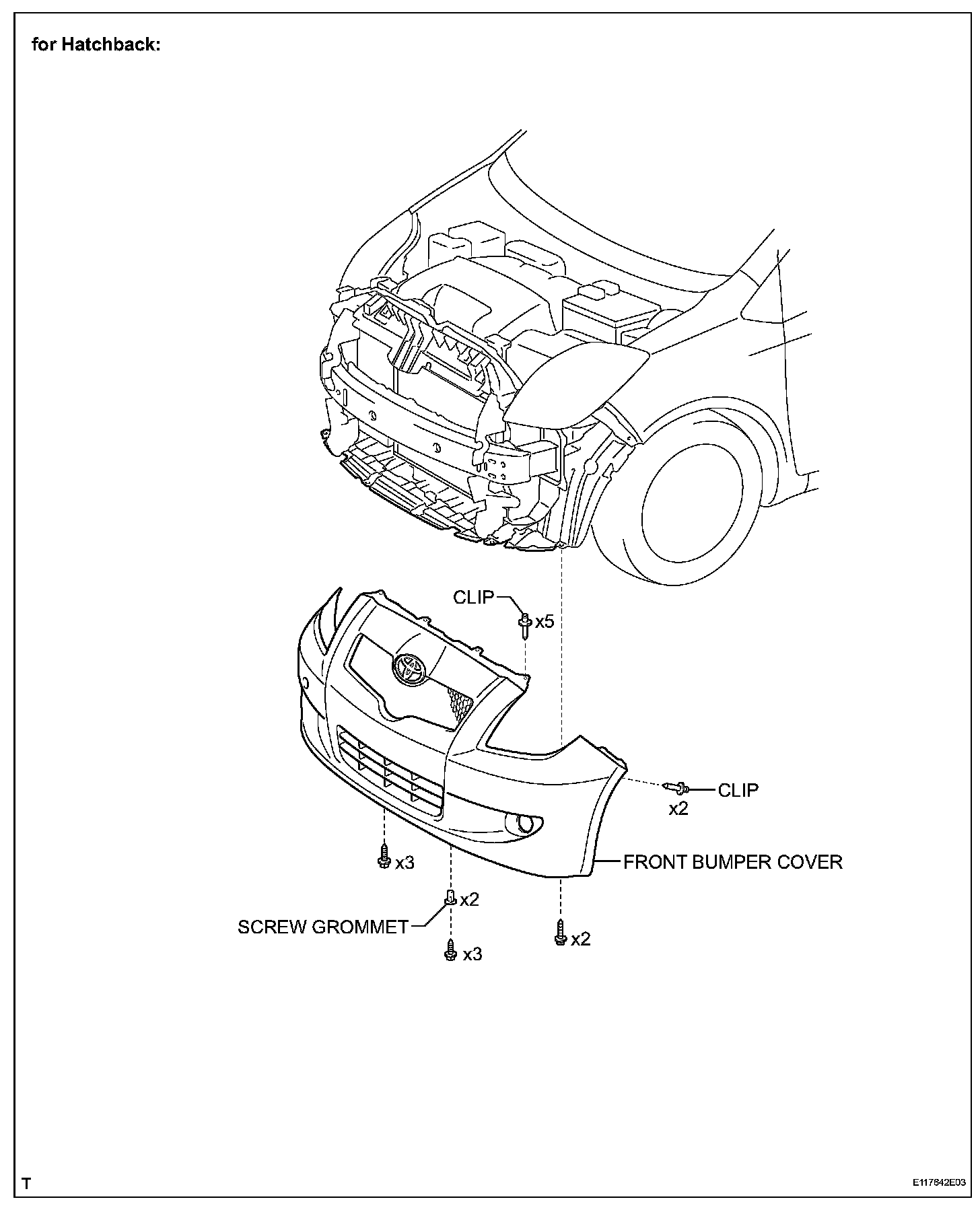

2. REMOVE FRONT BUMPER COVER (for Hatchback)

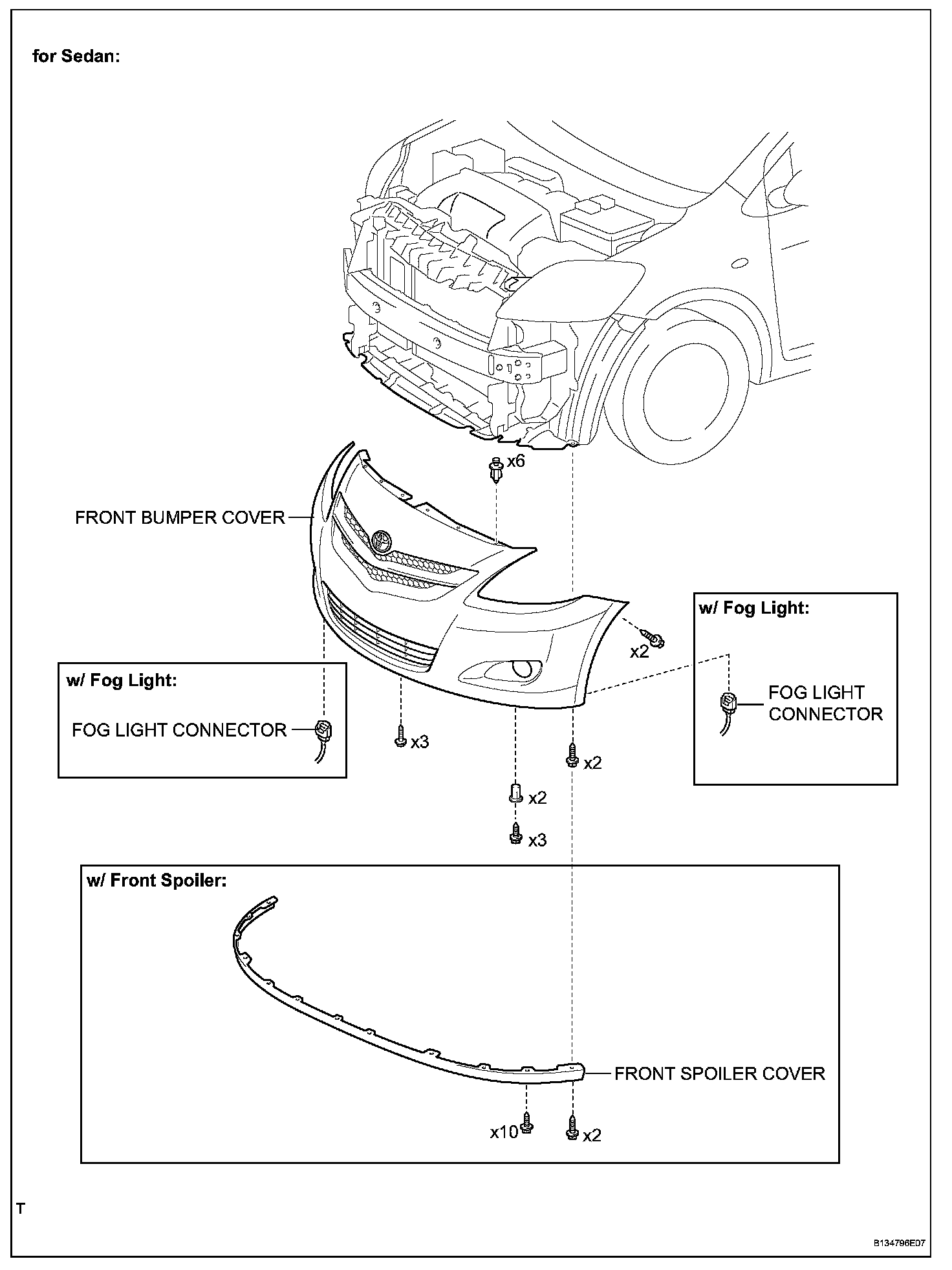

3. REMOVE FRONT SPOILER COVER (for Sedan)

4. REMOVE FRONT BUMPER COVER (for Sedan)

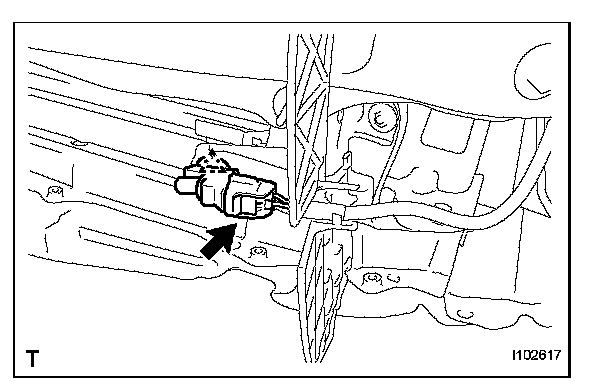

5. REMOVE AMBIENT TEMPERATURE SENSOR
a. Disconnect the connector.
b. Disengage the clamp and remove the ambient temperature sensor.

INSTALLATION

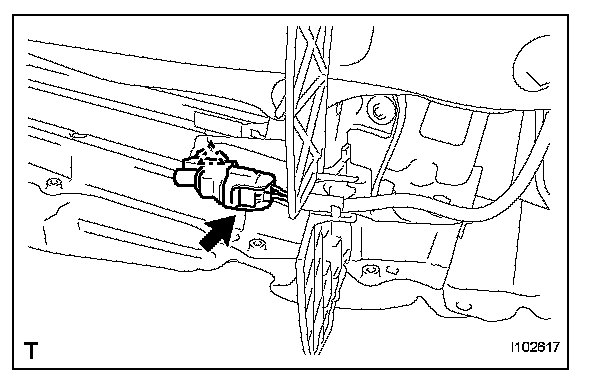

1. INSTALL AMBIENT TEMPERATURE SENSOR
a. Engage the clamp and install the ambient temperature sensor.
b. Connect the connector.

2. INSTALL FRONT BUMPER COVER (for Hatchback)

3. INSTALL FRONT BUMPER COVER (for Sedan)

4. INSTALL FRONT SPOILER COVER (for Sedan)

5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
