Air Conditioning Panel Assembly (For Sedan)

DISASSEMBLY




1. REMOVE NO. 3 HEATER CONTROL KNOB
a. Disengage the 2 claws and remove the No. 3 heater control knob.

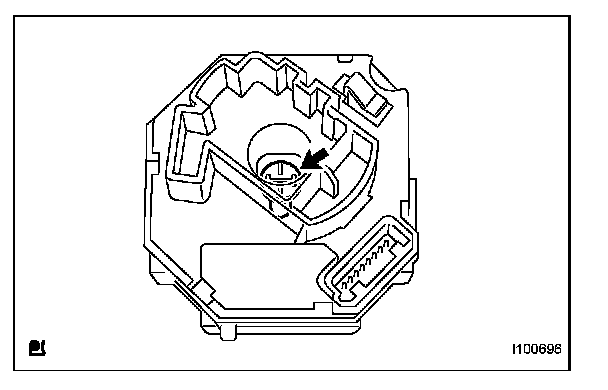

b. Remove the bulb.




2. REMOVE HEATER CONTROL BASE SUB-ASSEMBLY

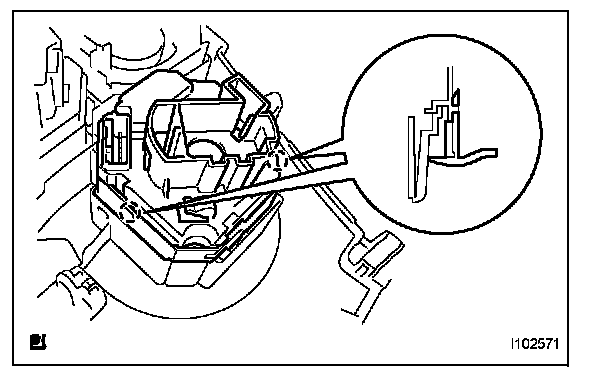

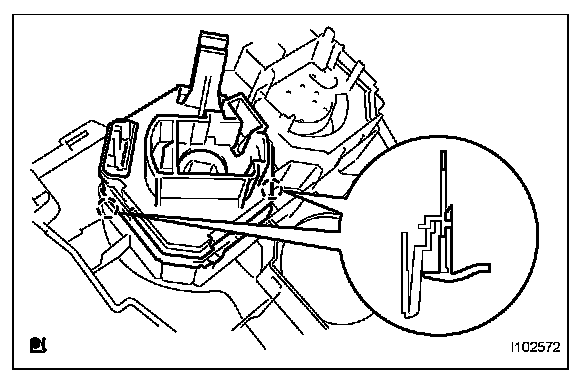

a. Disengage the 2 claws and remove the heater control base.

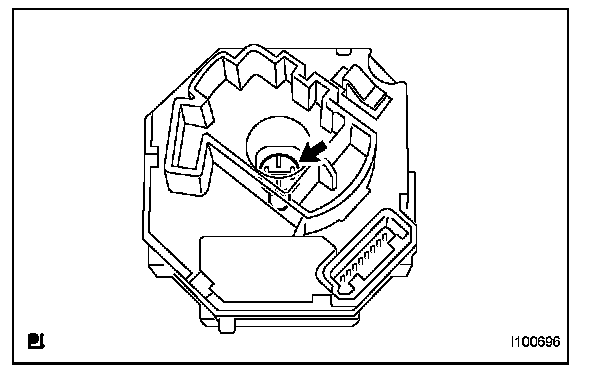

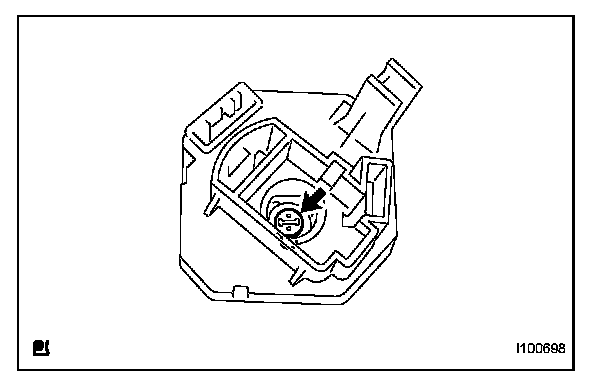

b. Remove the bulb.




3. REMOVE HEATER CONTROL SUB-ASSEMBLY

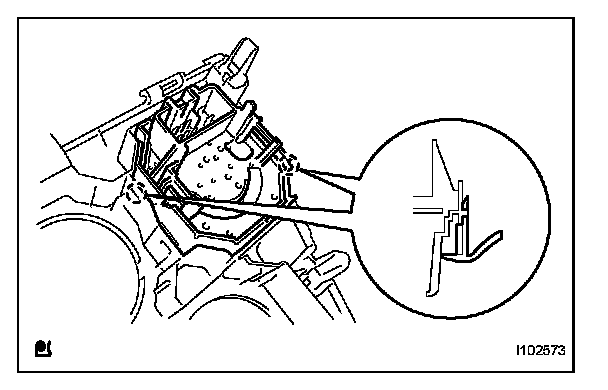

a. Disengage the 2 claws and remove the heater control.

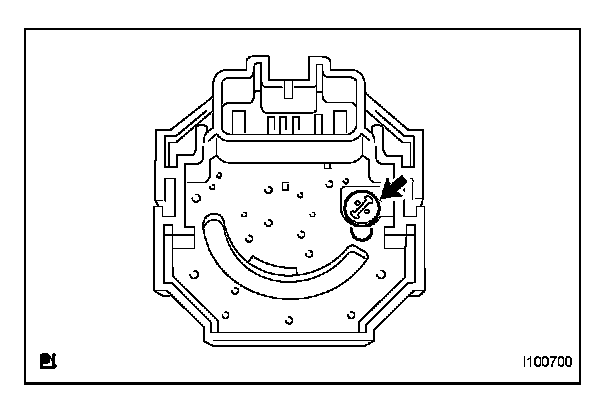

b. Remove the bulb.

REASSEMBLY




1. INSTALL HEATER CONTROL SUB-ASSEMBLY
a. Install the bulb.

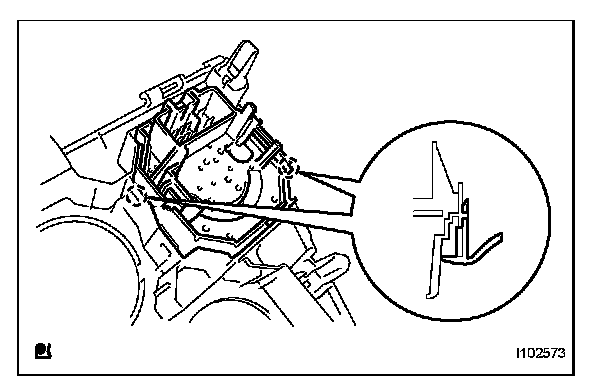

b. Engage the 2 claws and install the heater control.




2. INSTALL HEATER CONTROL BASE SUB-ASSEMBLY
a. Install the bulb.




b. Engage the 2 claws and install the heater control base.




3. INSTALL NO. 3 HEATER CONTROL KNOB
a. Install the bulb.




b. Engage the 2 claws and install the No. 3 heater control knob.
